Technical Information 48.2008
Cutting tools for STIHL trimmers and brushcutters
Contents
1. New STIHL FixCutTM 25-2 mowing head
1.1 Modified parts
2. New version of STIHL FixCutTM 5-2 mowing head
3. Summary
1. New STIHL FixCutTM 25-2 mowing
head
The new FixCutTM 25-2 mowing head can be
assembled and disassembled on the gearheads of
brushcutters without using combination wrenches
1 2 and locking pins.
Because of the extensive and highly advantageous
changes in the STIHL FixCutTM 25-2, the mowing
head was assigned a new part number; the sales
designation, however, remains the same.
The new version of the FixCutTM 25-2 mowing head
is approved for the same brushcutters as the
preceeding model (see the "FS Cutting Tools"
681TI178 KN
catalog and the mowing head information sheet).

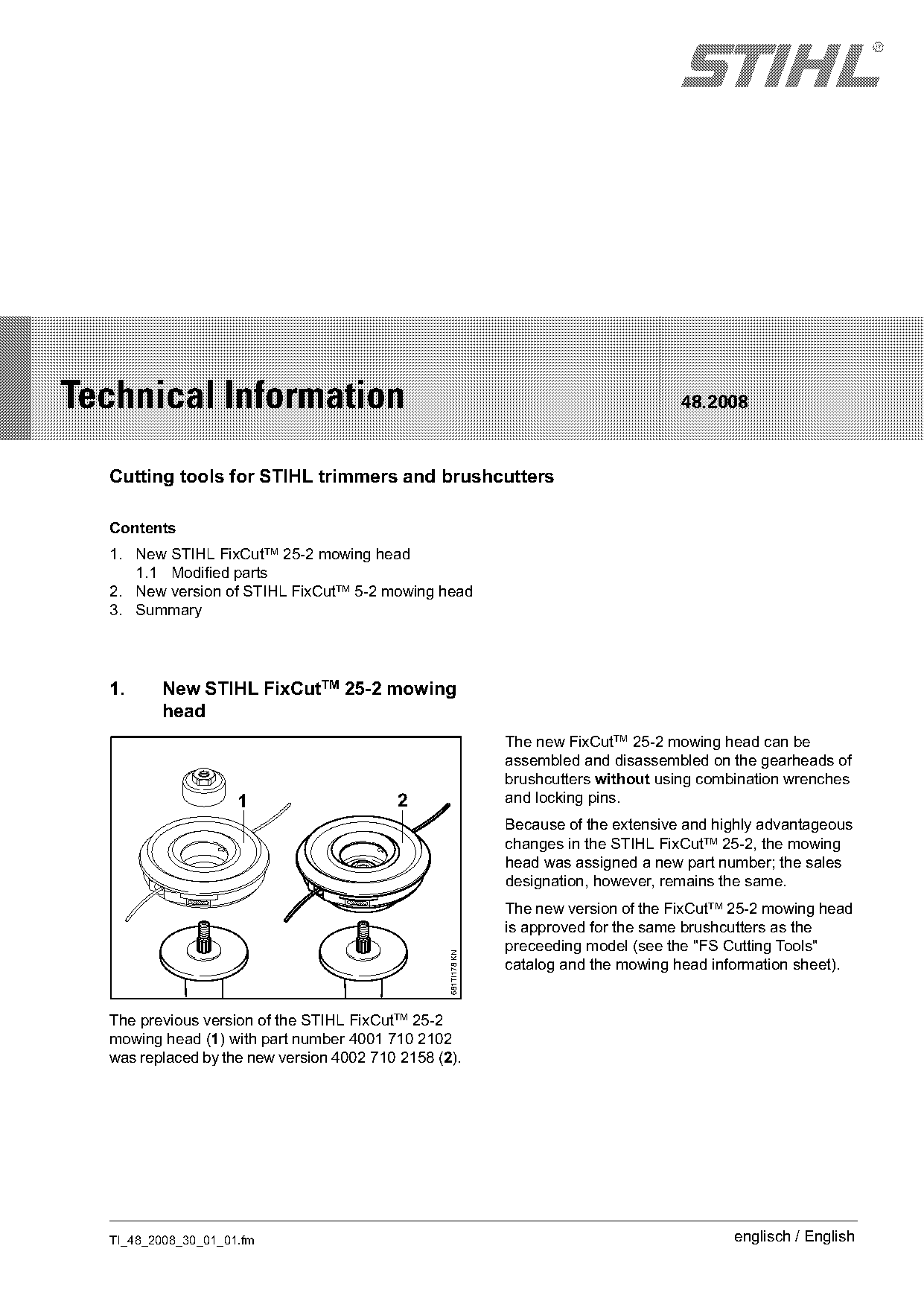

The previous version of the STIHL FixCutTM 25-2
mowing head (1) with part number 4001 710 2102
was replaced by the new version 4002 710 2158 (2).
TI_48_2008_30_01_01.fm englisch / English
)m~ge 2 Technical Information 48.2008
1.1 Modified parts 1.1.2 Base
1.1.1 Top 2 1 3
1
2 3
681TI176 KN
681TI174 KN

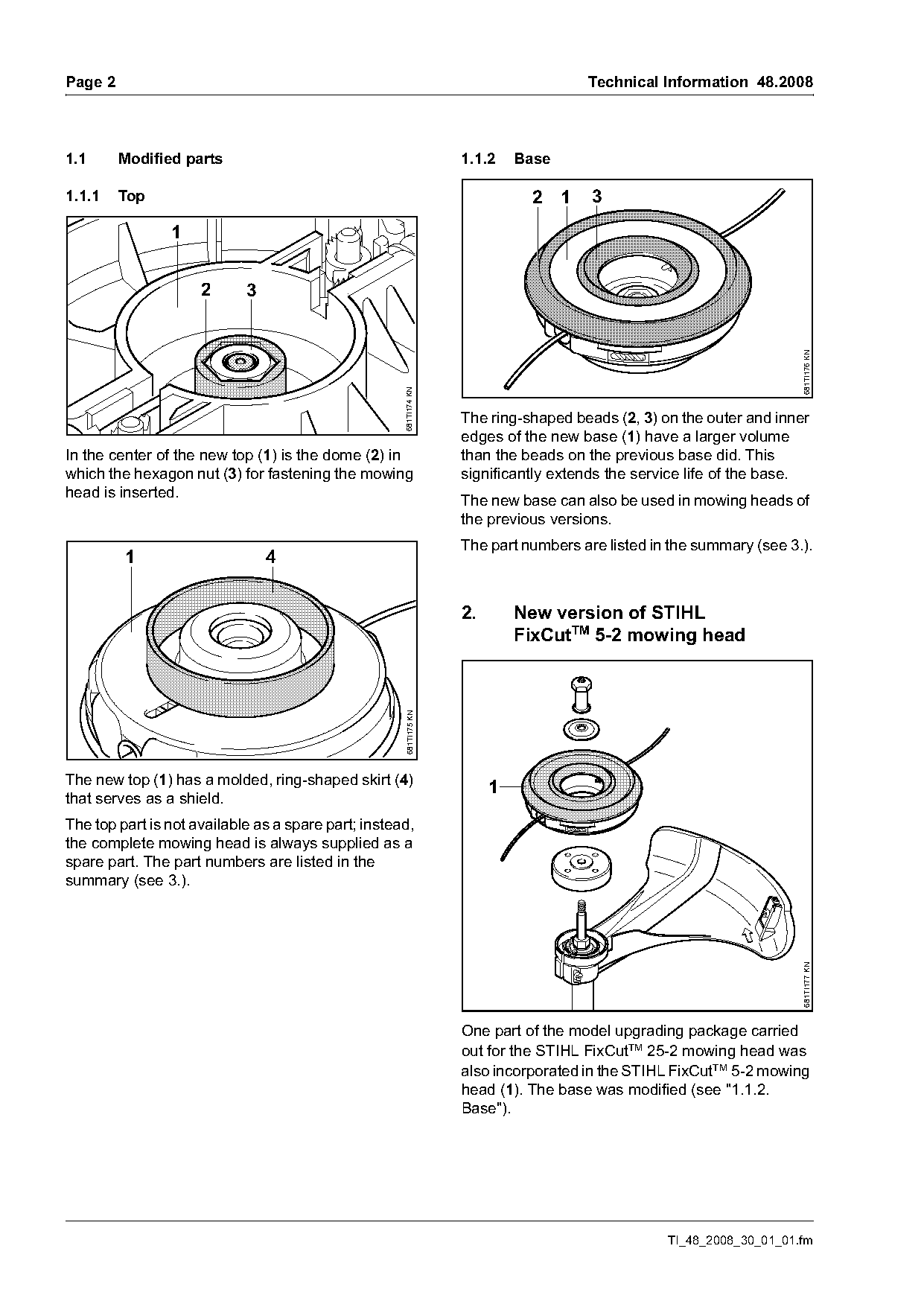

The ring-shaped beads (2, 3) on the outer and inner
edges of the new base (1) have a larger volume
In the center of the new top (1) is the dome (2) in than the beads on the previous base did. This
which the hexagon nut (3) for fastening the mowing significantly extends the service life of the base.
head is inserted.
The new base can also be used in mowing heads of
the previous versions.
The part numbers are listed in the summary (see 3.).
1 4
2. New version of STIHL
FixCutTM 5-2 mowing head
681TI175 KN
The new top (1) has a molded, ring-shaped skirt (4)
1
that serves as a shield.
The top part is not available as a spare part; instead,
the complete mowing head is always supplied as a
spare part. The part numbers are listed in the
summary (see 3.).
681TI177 KN
One part of the model upgrading package carried
out for the STIHL FixCutTM 25-2 mowing head was
also incorporated in the STIHL FixCutTM 5-2 mowing
head (1). The base was modified (see "1.1.2.
Base").
TI_48_2008_30_01_01.fm Page 2 of 3
Technical Information 48.2008 Page 3
Despite the limited scope of the changes, the
modified version of the mowing head was assigned
a new part number.
The modified version of the FixCutTM 5-2 mowing
head is approved for the same trimmers as the
preceeding model (see the "FS Cutting Tools"
catalog and the mowing head information sheet).
The part numbers are listed in the summary (see 3.).

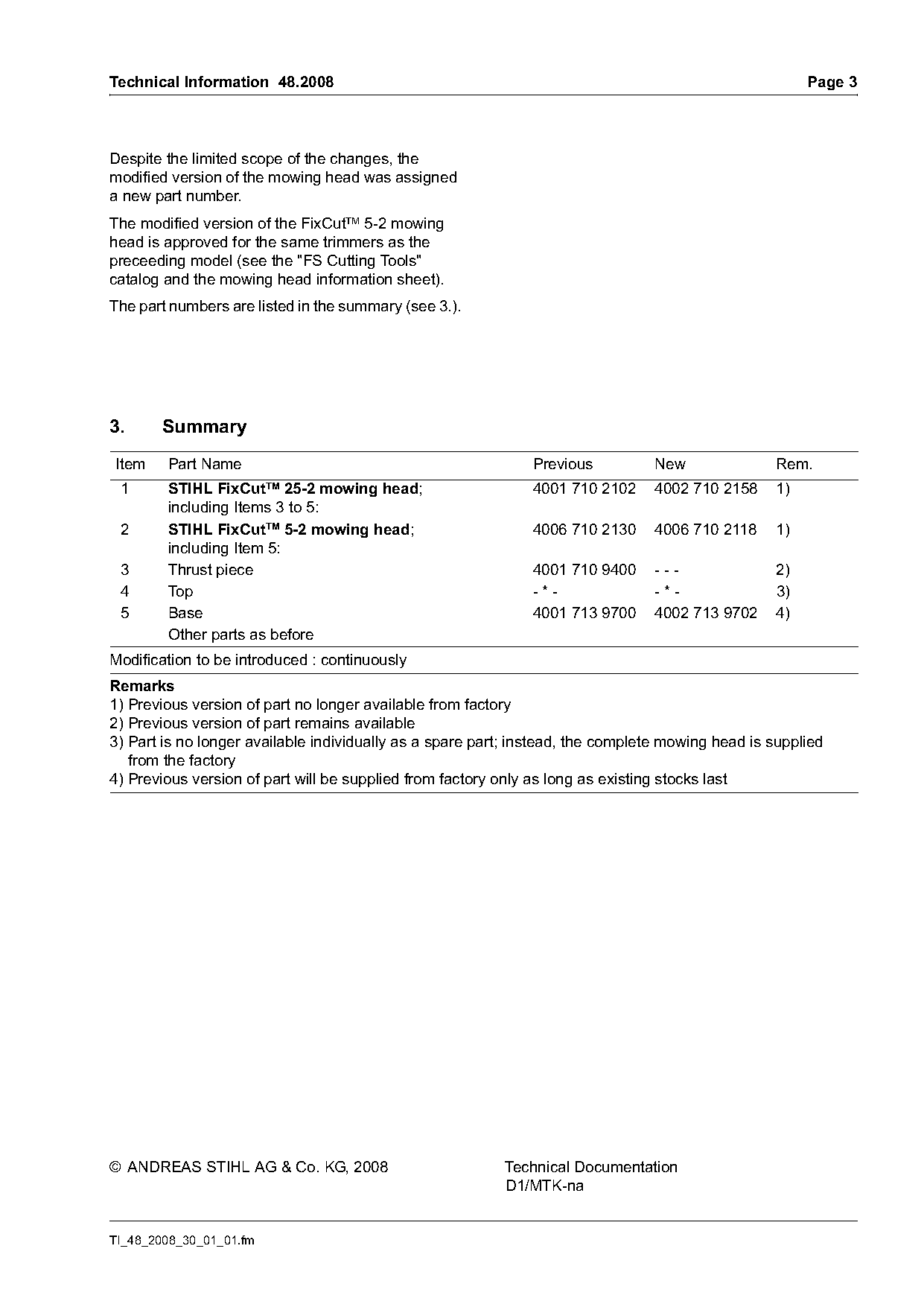

3. Summary
Item Part Name Previous New Rem.
1 STIHL FixCutTM 25-2 mowing head; 4001 710 2102 4002 710 2158 1)
including Items 3 to 5:
2 STIHL FixCutTM 5-2 mowing head; 4006 710 2130 4006 710 2118 1)
including Item 5:
3 Thrust piece 4001 710 9400 --- 2)
4 Top -*- -*- 3)
5 Base 4001 713 9700 4002 713 9702 4)
Other parts as before
Modification to be introduced : continuously
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available
3) Part is no longer available individually as a spare part; instead, the complete mowing head is supplied
from the factory
4) Previous version of part will be supplied from factory only as long as existing stocks last
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-na
TI_48_2008_30_01_01.fm Page 3 of 3
