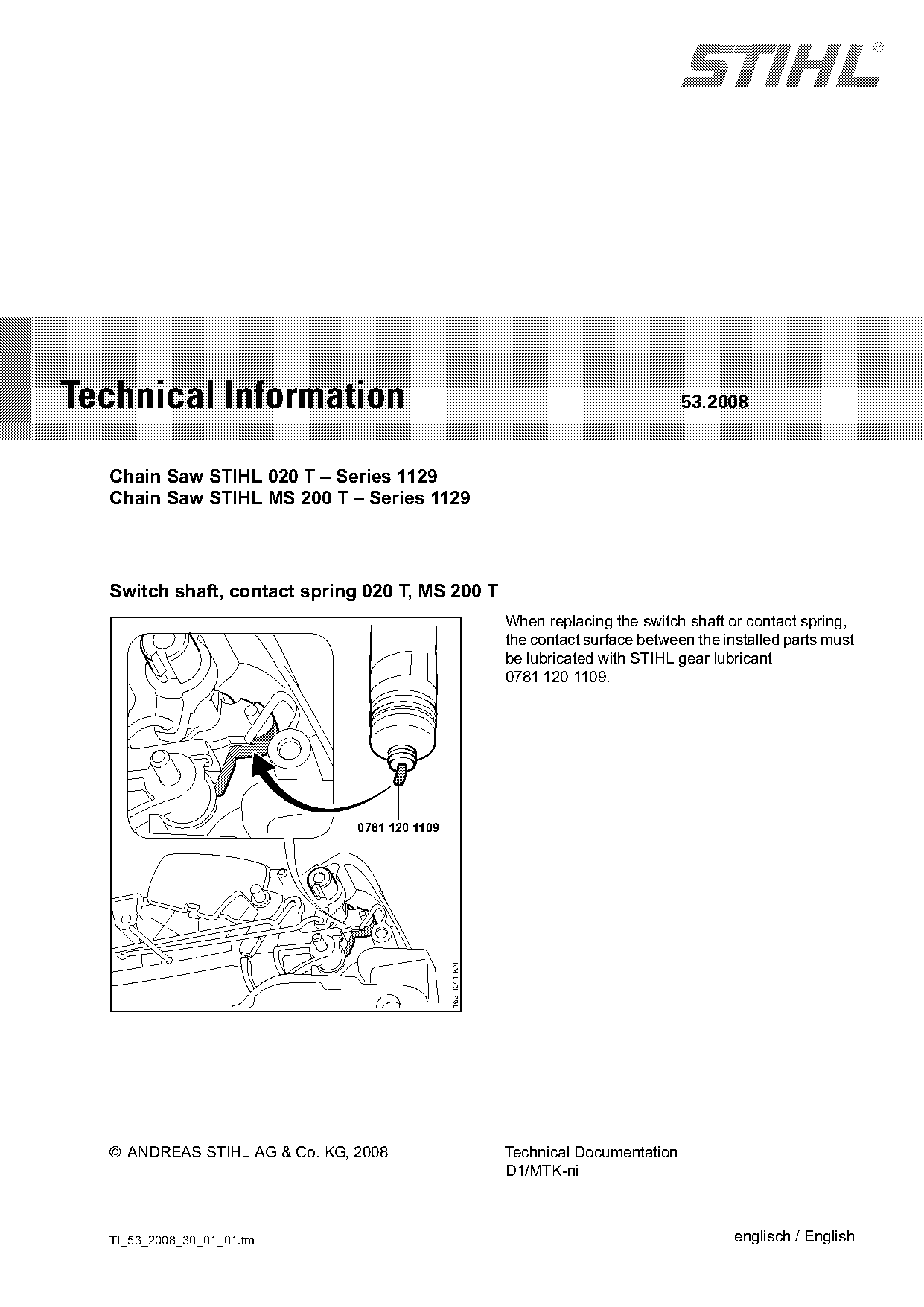

Technical Information                                                                  53.2008

  Chain Saw STIHL 020 T – Series 1129
  Chain Saw STIHL MS 200 T – Series 1129

  Switch shaft, contact spring 020 T, MS 200 T
                                                             When replacing the switch shaft or contact spring,
                                                             the contact surface between the installed parts must
                                                             be lubricated with STIHL gear lubricant
                                                             0781 120 1109.

                               0781 120 1109
                                               162TI041 KN

  © ANDREAS STIHL AG & Co. KG, 2008                          Technical Documentation
                                                             D1/MTK-ni

  TI_53_2008_30_01_01.fm                                                                       englisch / English
