Technical Information · issue 55 of 2008
New STIHL ROLLOMATIC® E Mini Light Guide Bar
IssueTI 55/2008
Full text

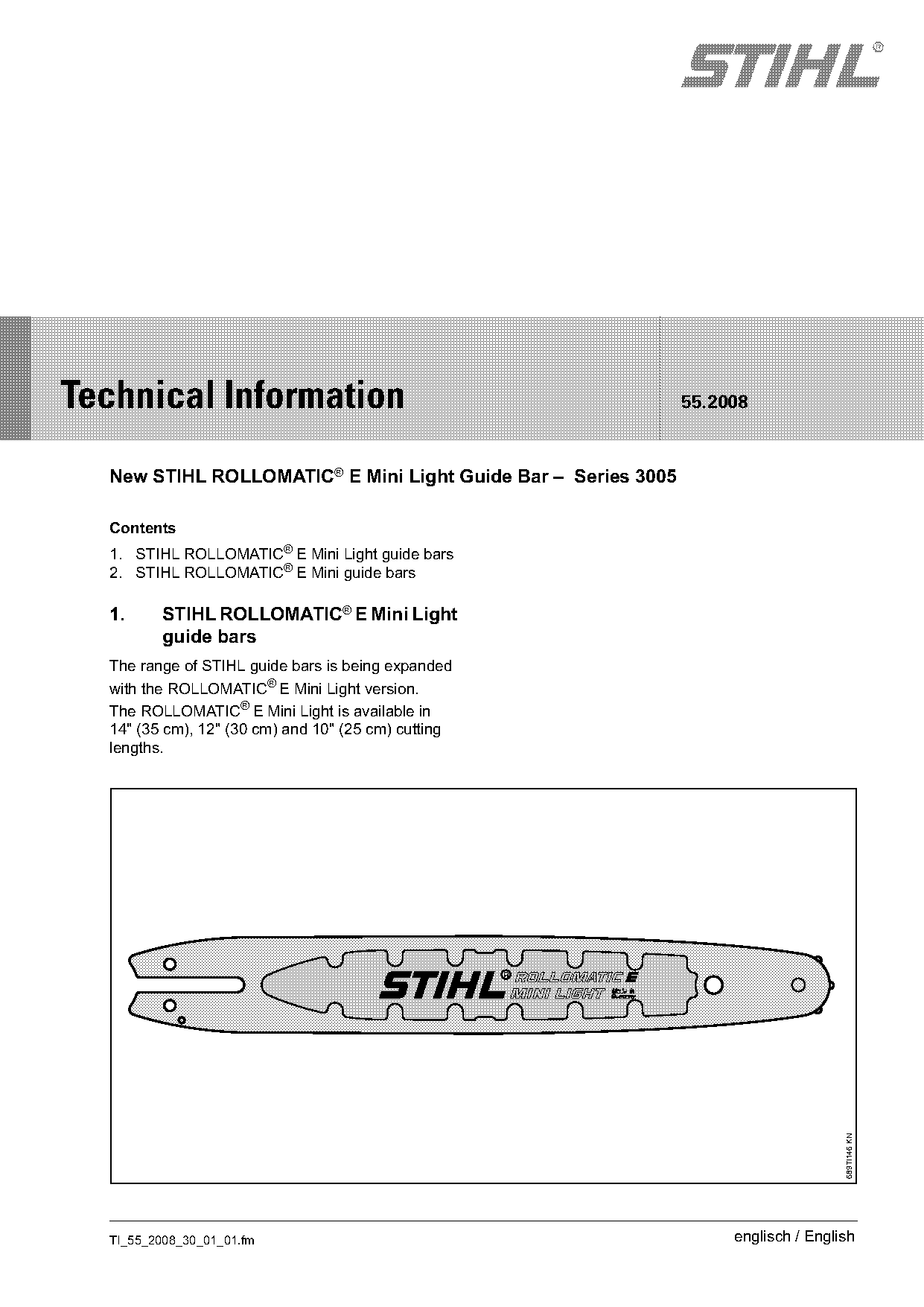

Page 1 of 3
STIH)
Technical Information 55.2008
New STIHL ROLLOMATIC® E Mini Light Guide Bar – Series 3005
Contents
1. STIHL ROLLOMATIC® E Mini Light guide bars
2. STIHL ROLLOMATIC® E Mini guide bars
1. STIHL ROLLOMATIC® E Mini Light
guide bars
The range of STIHL guide bars is being expanded
with the ROLLOMATIC® E Mini Light version.
The ROLLOMATIC® E Mini Light is available in
14" (35 cm), 12" (30 cm) and 10" (25 cm) cutting
lengths.
689TI146 KN
TI_55_2008_30_01_01.fm englisch / English

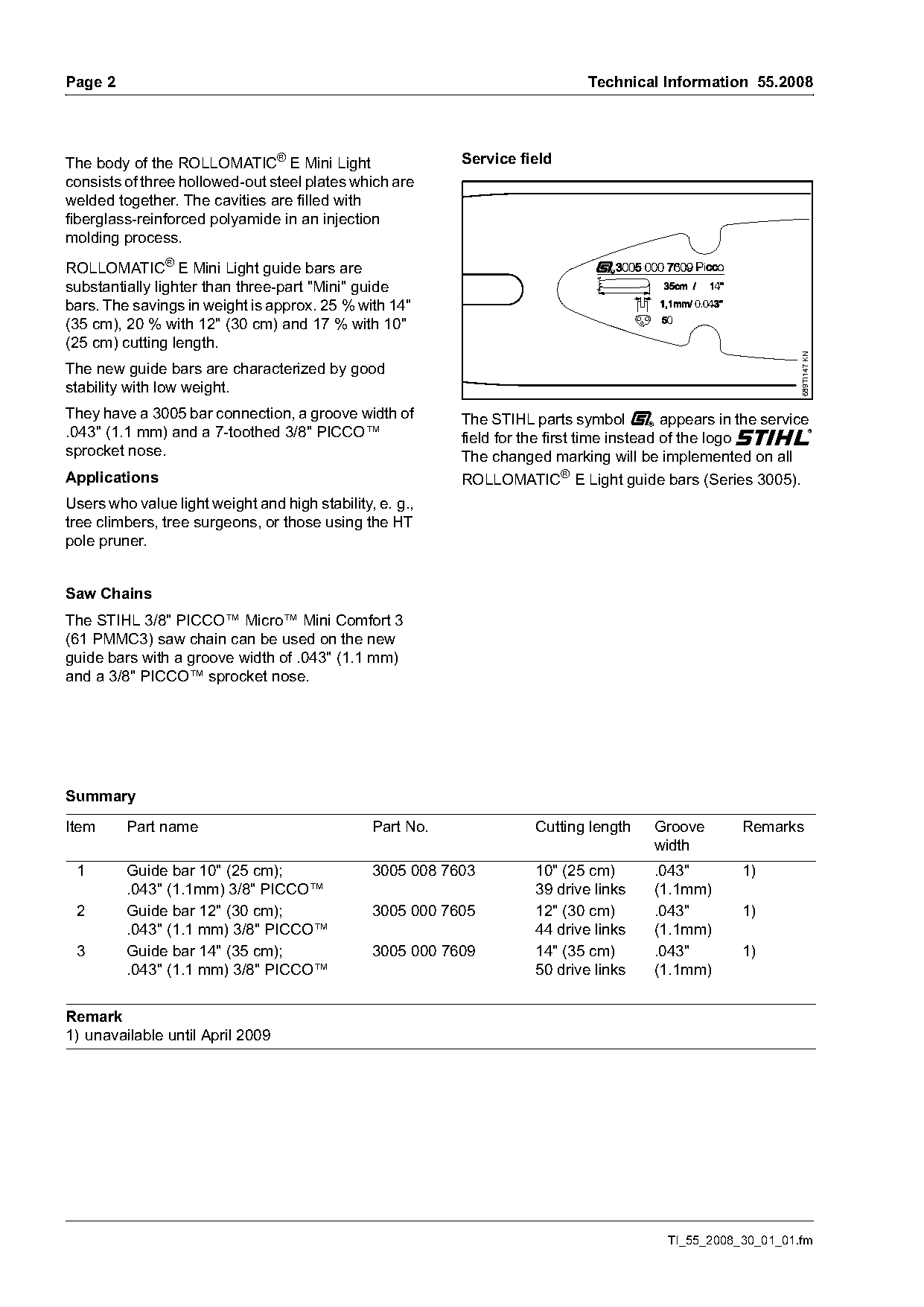

)m~ge 2 Technical Information 55.2008
The body of the ROLLOMATIC® E Mini Light Service field
consists of three hollowed-out steel plates which are
welded together. The cavities are filled with
fiberglass-reinforced polyamide in an injection
molding process.
ROLLOMATIC® E Mini Light guide bars are
substantially lighter than three-part "Mini" guide
bars. The savings in weight is approx. 25 % with 14"
(35 cm), 20 % with 12" (30 cm) and 17 % with 10"
(25 cm) cutting length.
689TI147 KN
The new guide bars are characterized by good
stability with low weight.
They have a 3005 bar connection, a groove width of The STlHL parts symbol K appears in the service
.043" (1.1 mm) and a 7-toothed 3/8" PICCO™ field for the first time instead of the logo {
sprocket nose. The changed marking will be implemented on all
Applications ROLLOMATIC® E Light guide bars (Series 3005).
Users who value light weight and high stability, e. g.,
tree climbers, tree surgeons, or those using the HT
pole pruner.
Saw Chains
The STIHL 3/8" PICCO™ Micro™ Mini Comfort 3
(61 PMMC3) saw chain can be used on the new
guide bars with a groove width of .043" (1.1 mm)
and a 3/8" PICCO™ sprocket nose.
Summary
Item Part name Part No. Cutting length Groove Remarks
width
1 Guide bar 10" (25 cm); 3005 008 7603 10" (25 cm) .043" 1)
.043" (1.1mm) 3/8" PICCO™ 39 drive links (1.1mm)
2 Guide bar 12" (30 cm); 3005 000 7605 12" (30 cm) .043" 1)
.043" (1.1 mm) 3/8" PICCO™ 44 drive links (1.1mm)
3 Guide bar 14" (35 cm); 3005 000 7609 14" (35 cm) .043" 1)
.043" (1.1 mm) 3/8" PICCO™ 50 drive links (1.1mm)
Remark
1) unavailable until April 2009
TI_55_2008_30_01_01.fm Page 2 of 3

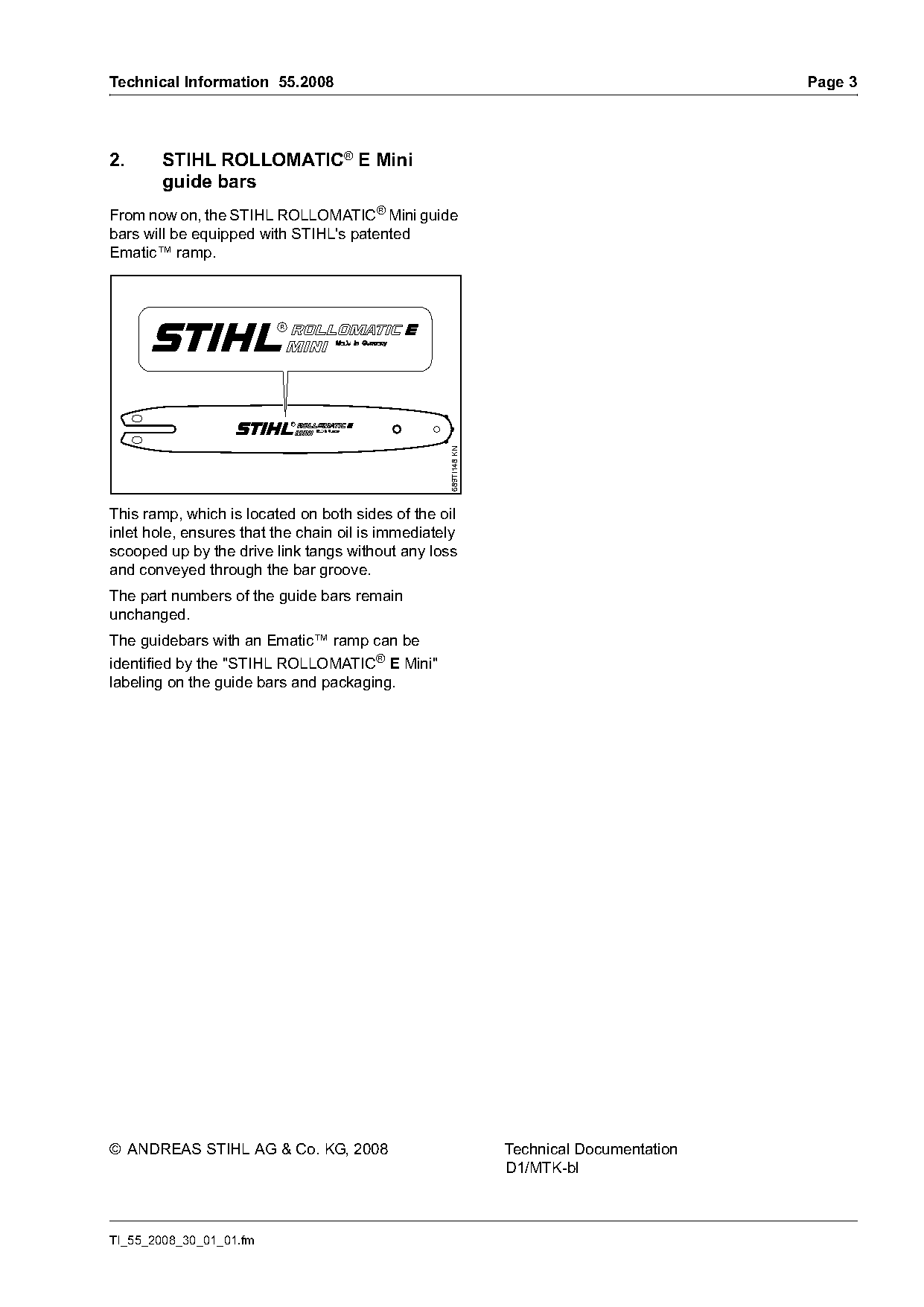

Technical Information 55.2008 Page 3
2. STIHL ROLLOMATIC® E Mini
guide bars
From now on, the STIHL ROLLOMATIC® Mini guide
bars will be equipped with STIHL's patented
Ematic™ ramp.
689TI148 KN
This ramp, which is located on both sides of the oil
inlet hole, ensures that the chain oil is immediately
scooped up by the drive link tangs without any loss
and conveyed through the bar groove.
The part numbers of the guide bars remain
unchanged.
The guidebars with an Ematic™ ramp can be
identified by the "STIHL ROLLOMATIC® E Mini"
labeling on the guide bars and packaging.
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-bl
TI_55_2008_30_01_01.fm Page 3 of 3
