STIH)

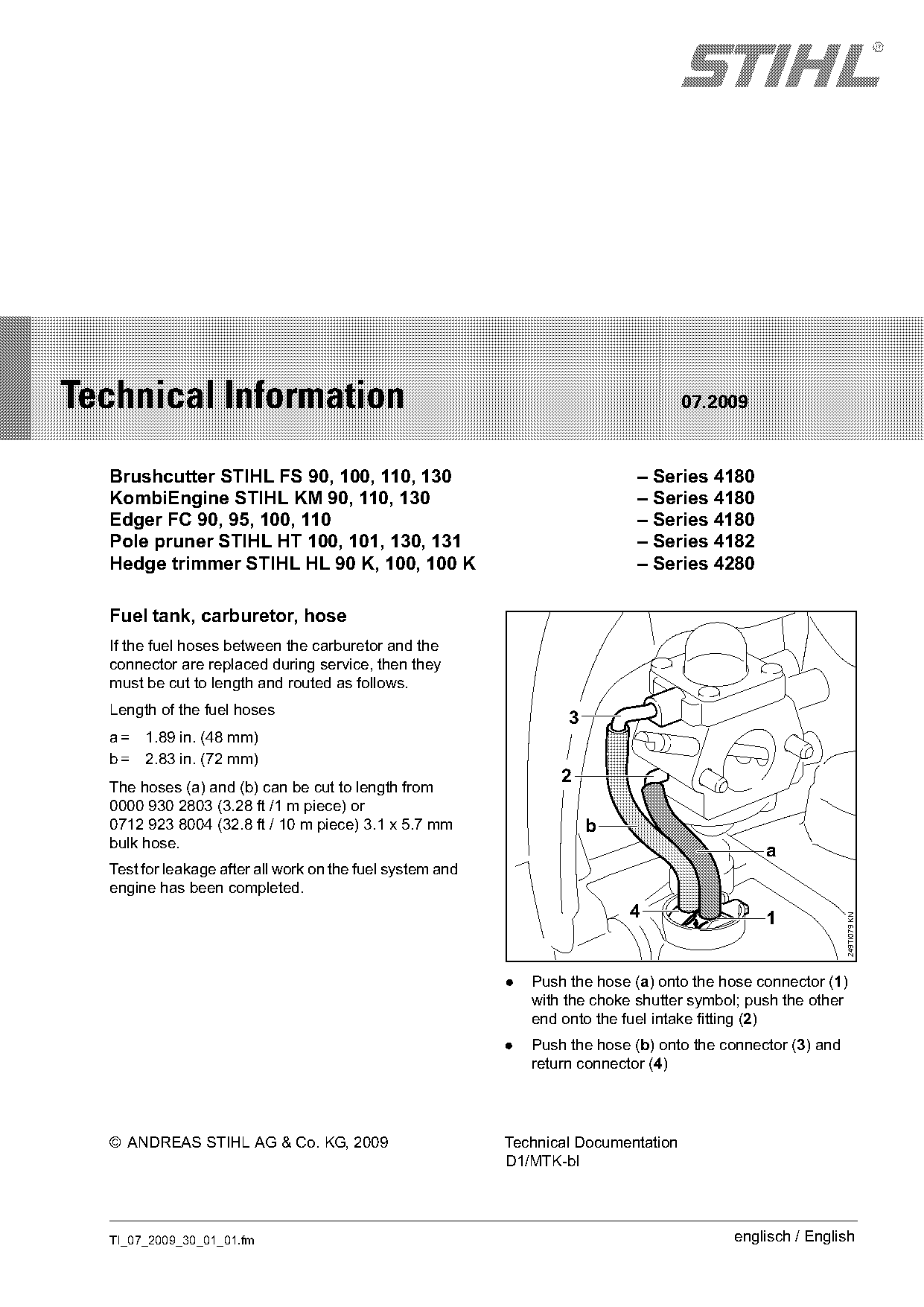

Technical Information 07.2009
Brushcutter STIHL FS 90, 100, 110, 130 – Series 4180
KombiEngine STIHL KM 90, 110, 130 – Series 4180
Edger FC 90, 95, 100, 110 – Series 4180
Pole pruner STIHL HT 100, 101, 130, 131 – Series 4182
Hedge trimmer STIHL HL 90 K, 100, 100 K – Series 4280
Fuel tank, carburetor, hose
If the fuel hoses between the carburetor and the
connector are replaced during service, then they
must be cut to length and routed as follows.
Length of the fuel hoses
3
a = 1.89 in. (48 mm)
b = 2.83 in. (72 mm)
2
The hoses (a) and (b) can be cut to length from
0000 930 2803 (3.28 ft /1 m piece) or
0712 923 8004 (32.8 ft / 10 m piece) 3.1 x 5.7 mm b
bulk hose.
a
Test for leakage after all work on the fuel system and
engine has been completed.
4 1
249TI079 KN
. Push the hose (a) onto the hose connector (1)
with the choke shutter symbol; push the other
end onto the fuel intake fitting (2)
. Push the hose (b) onto the connector (3) and
return connector (4)
© ANDREAS STIHL AG & Co. KG, 2009 Technical Documentation
D1/MTK-bl
