STIH)
Technical Information 16.2009
STIHL BT 120 C, 121 Earth Auger – Series 4313
STIHL FS 350 Clearing Saw – Series 4134
STIHL FS 120, 200, 250 Brushcutters – Series 4134
STIHL SP 200 Special Harvester – Series 4233
STIHL HT 250 Pole Pruner – Series 4134
Contents
1. Fuel Hose Barb Connectors
2. Carburetor
3. Heat Shield
4. Fuel Pump
5. Filter Housing
6. Fuel Hose Between Carburetor and Fuel Pump
7. Summary
1. Fuel Hose Barb Connectors
The above mentioned machines have been – Carburetor, end cover, metering diaphragm,
equipped for some time with hose barb connectors gasket and carburetor parts kit, see chapter 2.
for the fuel hoses. Straight connectors are no longer
– Heat shield, see chapter 3.
used for fuel hoses.
– Fuel pump, see chapter 4.
The following components and assemblies are
affected by the change: – Filter housing, see chapter 5.
– Fuel hose between carburetor and fuel pump,
see chapter 6.
TI_16_2009_30_01_01.fm englisch / English
)m~ge 2 Technical Information 16.2009

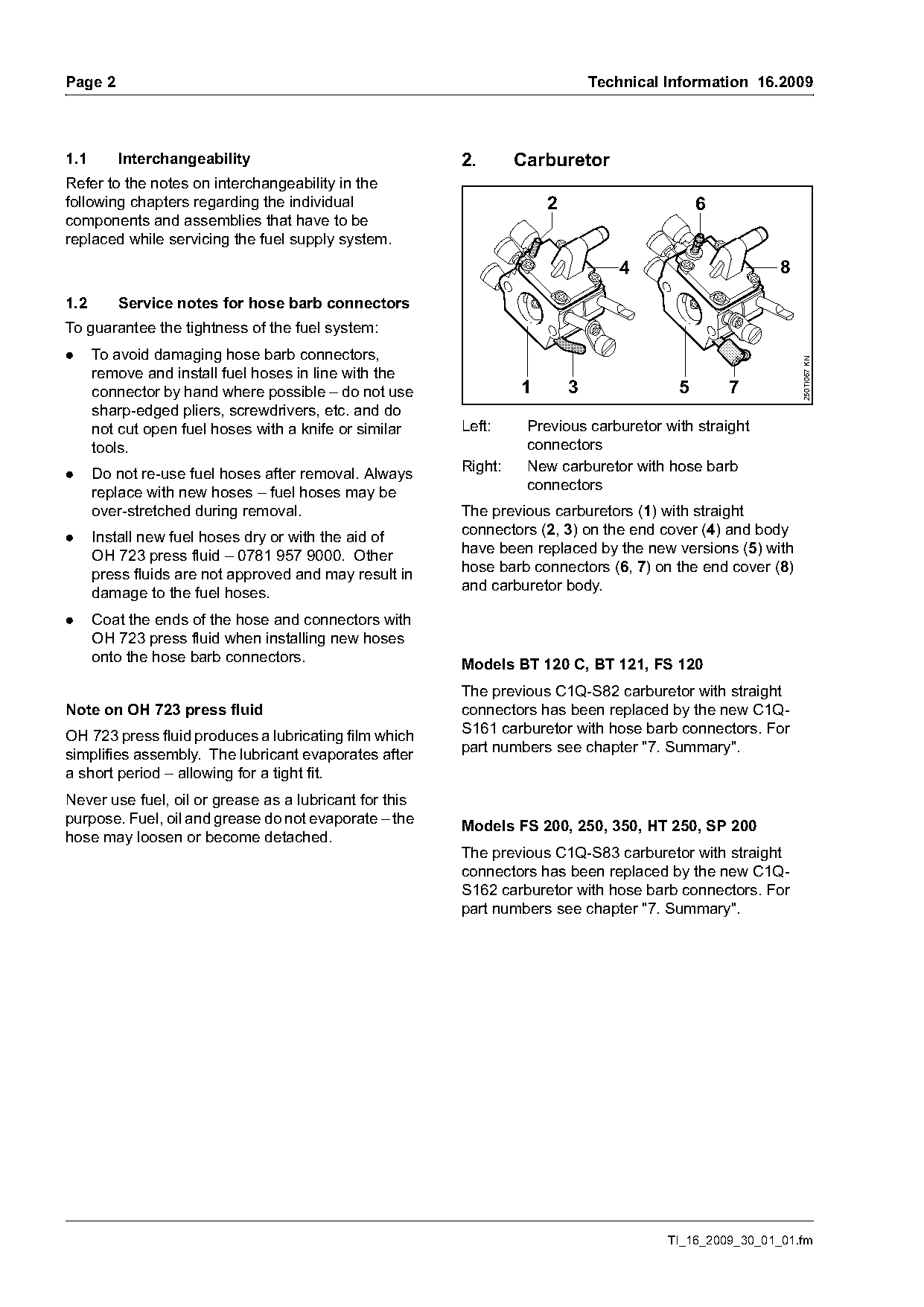

1.1 Interchangeability 2. Carburetor
Refer to the notes on interchangeability in the
following chapters regarding the individual 2 6
components and assemblies that have to be
replaced while servicing the fuel supply system.
4 8
1.2 Service notes for hose barb connectors
To guarantee the tightness of the fuel system:
. To avoid damaging hose barb connectors,
250TI067 KN
remove and install fuel hoses in line with the
connector by hand where possible – do not use 1 3 5 7
sharp-edged pliers, screwdrivers, etc. and do
not cut open fuel hoses with a knife or similar Left: Previous carburetor with straight
tools. connectors
Right: New carburetor with hose barb
. Do not re-use fuel hoses after removal. Always
connectors
replace with new hoses – fuel hoses may be
over-stretched during removal. The previous carburetors (1) with straight
. Install new fuel hoses dry or with the aid of connectors (2, 3) on the end cover (4) and body
OH 723 press fluid – 0781 957 9000. Other have been replaced by the new versions (5) with
press fluids are not approved and may result in hose barb connectors (6, 7) on the end cover (8)
damage to the fuel hoses. and carburetor body.
. Coat the ends of the hose and connectors with
OH 723 press fluid when installing new hoses
onto the hose barb connectors.
Models BT 120 C, BT 121, FS 120
The previous C1Q-S82 carburetor with straight
Note on OH 723 press fluid connectors has been replaced by the new C1Q-
OH 723 press fluid produces a lubricating film which S161 carburetor with hose barb connectors. For
simplifies assembly. The lubricant evaporates after part numbers see chapter "7. Summary".
a short period – allowing for a tight fit.
Never use fuel, oil or grease as a lubricant for this
purpose. Fuel, oil and grease do not evaporate – the
Models FS 200, 250, 350, HT 250, SP 200
hose may loosen or become detached.
The previous C1Q-S83 carburetor with straight
connectors has been replaced by the new C1Q-
S162 carburetor with hose barb connectors. For
part numbers see chapter "7. Summary".
TI_16_2009_30_01_01.fm Page 2 of 9
Technical Information 16.2009 Page 3

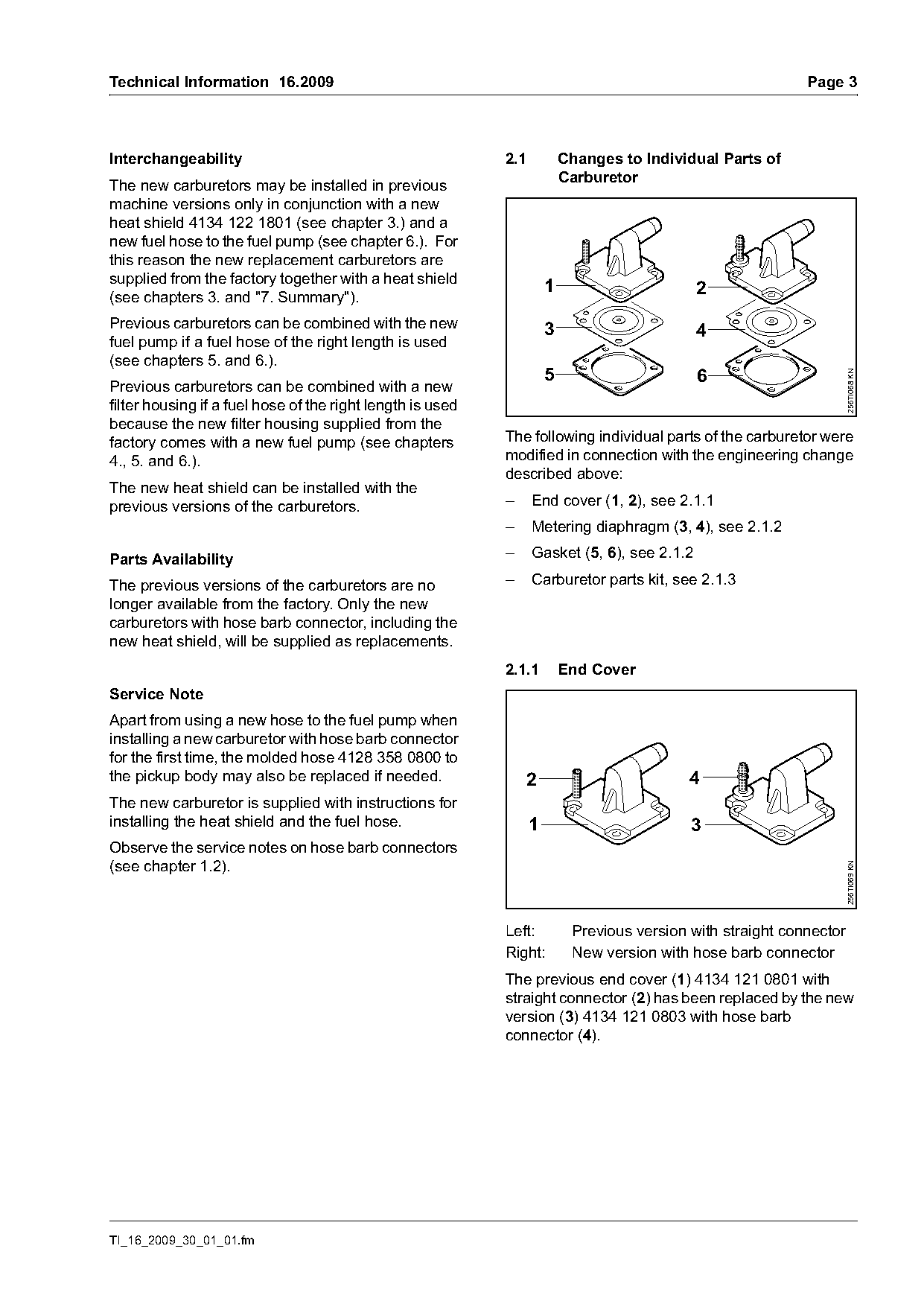

Interchangeability 2.1 Changes to Individual Parts of
Carburetor
The new carburetors may be installed in previous
machine versions only in conjunction with a new
heat shield 4134 122 1801 (see chapter 3.) and a
new fuel hose to the fuel pump (see chapter 6.). For
this reason the new replacement carburetors are
supplied from the factory together with a heat shield
1 2
(see chapters 3. and "7. Summary").
Previous carburetors can be combined with the new 3 4
fuel pump if a fuel hose of the right length is used
(see chapters 5. and 6.).
5 6
256TI068 KN
Previous carburetors can be combined with a new
filter housing if a fuel hose of the right length is used
because the new filter housing supplied from the
factory comes with a new fuel pump (see chapters The following individual parts of the carburetor were
4., 5. and 6.). modified in connection with the engineering change
described above:
The new heat shield can be installed with the
previous versions of the carburetors. – End cover (1, 2), see 2.1.1
– Metering diaphragm (3, 4), see 2.1.2
Parts Availability – Gasket (5, 6), see 2.1.2
The previous versions of the carburetors are no – Carburetor parts kit, see 2.1.3
longer available from the factory. Only the new
carburetors with hose barb connector, including the
new heat shield, will be supplied as replacements.
2.1.1 End Cover
Service Note
Apart from using a new hose to the fuel pump when
installing a new carburetor with hose barb connector
for the first time, the molded hose 4128 358 0800 to
the pickup body may also be replaced if needed. 2 4
The new carburetor is supplied with instructions for
installing the heat shield and the fuel hose. 1 3
Observe the service notes on hose barb connectors
(see chapter 1.2).
256TI069 KN
Left: Previous version with straight connector
Right: New version with hose barb connector
The previous end cover (1) 4134 121 0801 with
straight connector (2) has been replaced by the new
version (3) 4134 121 0803 with hose barb
connector (4).
TI_16_2009_30_01_01.fm
)m~ge 4 Technical Information 16.2009
Parts Availability Parts Availability
The previous end cover (1) 4134 121 0801 remains The previous versions of the metering
available for machines with the previous carburetor. diaphragm (1) 4129 121 4700 and gasket (2)
1129 129 0900 remain available for machines with
the previous carburetor.
Service Note
The previous end cover (1) 4134 121 0801 may
Service Note
only be installed in machines with the previous
carburetor. The previous carburetor can be The previous versions of the metering
identified by the straight connector (2) on the end diaphragm (1) 4129 121 4700 and gasket (2)
cover (1). 1129 129 0900 may only be installed in machines
The new end cover (3) 4134 121 0801 may only be with the previous carburetor. The previous
installed in machines with the new carburetor. The carburetor can be identified by the straight
new carburetor can be identified by the hose barb connector on the end cover.
connector (4) on the end cover (3). Observe the The new versions of the metering diaphragm (3)
service notes on hose barb connectors (see chapter 4134 121 4700 and gasket (4) 4134 129 0901 may
1.2). only be installed in machines with the new
carburetor. The new carburetor can be identified by
the hose barb connector on the end cover. Observe
the service notes on hose barb connectors (see
chapter 1.2).

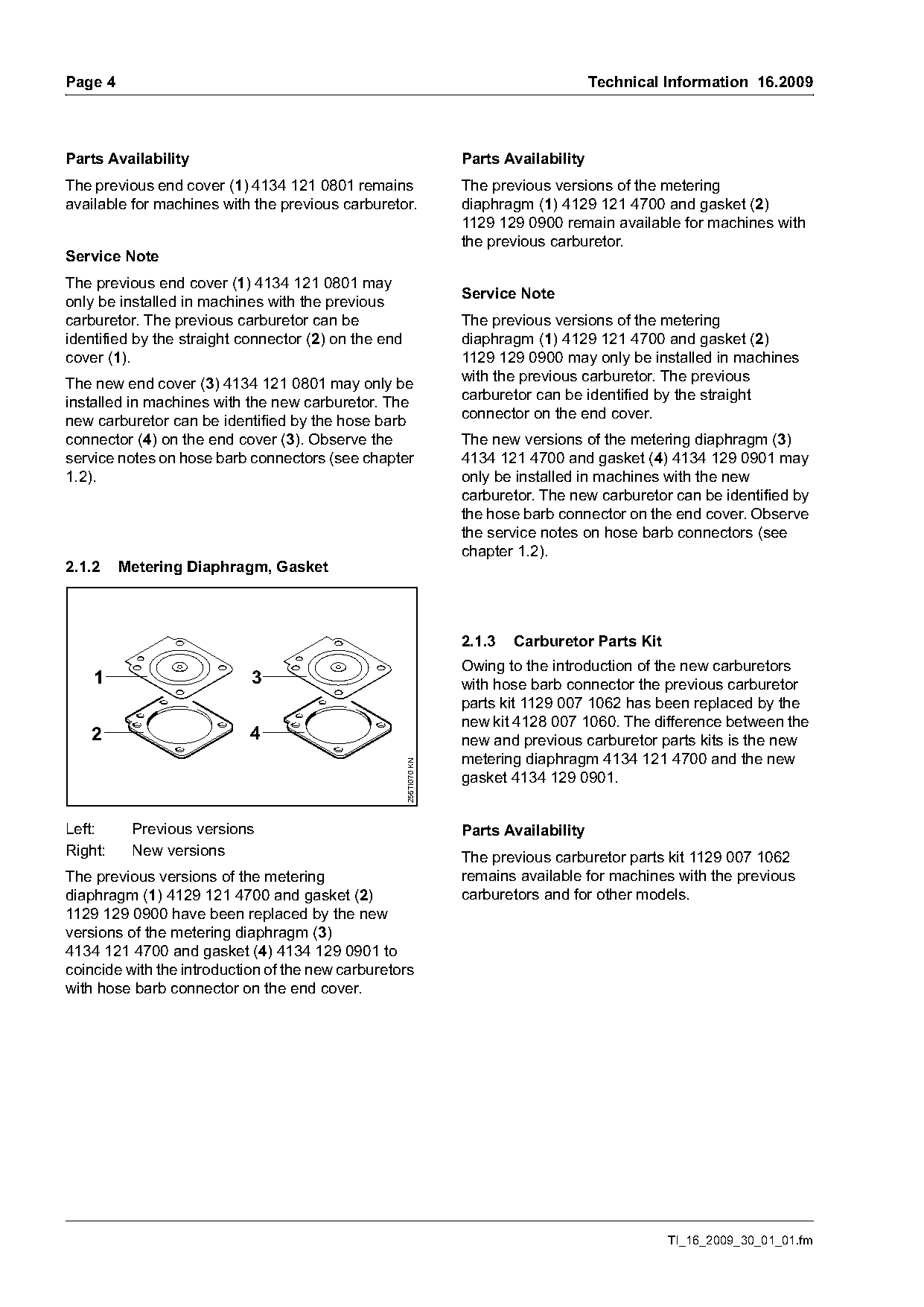

2.1.2 Metering Diaphragm, Gasket
2.1.3 Carburetor Parts Kit
Owing to the introduction of the new carburetors
1 3 with hose barb connector the previous carburetor
parts kit 1129 007 1062 has been replaced by the
new kit 4128 007 1060. The difference between the
2 4 new and previous carburetor parts kits is the new
metering diaphragm 4134 121 4700 and the new
256TI070 KN
gasket 4134 129 0901.
Left: Previous versions Parts Availability
Right: New versions The previous carburetor parts kit 1129 007 1062
The previous versions of the metering remains available for machines with the previous
diaphragm (1) 4129 121 4700 and gasket (2) carburetors and for other models.
1129 129 0900 have been replaced by the new
versions of the metering diaphragm (3)
4134 121 4700 and gasket (4) 4134 129 0901 to
coincide with the introduction of the new carburetors
with hose barb connector on the end cover.
TI_16_2009_30_01_01.fm Page 3 of 9
Technical Information 16.2009 Page 5
Service Note Interchangeability
The previous carburetor parts kit 1129 007 1062 The new heat shield may be installed in the previous
may only be installed in machines with the previous version of the machines.
carburetor. The previous carburetor can be The previous heat shield may not be used in
identified by the straight connector on the end cover. machines with carburetors that have hose barb
The new carburetor parts kit 4128 007 1060 may connectors.
only be installed in machines with the new
A new carburetor with hose barb connector must be
carburetor. The new carburetor can be identified by
installed with a new heat shield.
the hose barb connector on the end cover. Observe
the service notes on hose barb connectors (see
chapter 1.2). Service Note
If a new carburetor is installed in the previous
version of the machine, a new heat shield must be
installed with it.

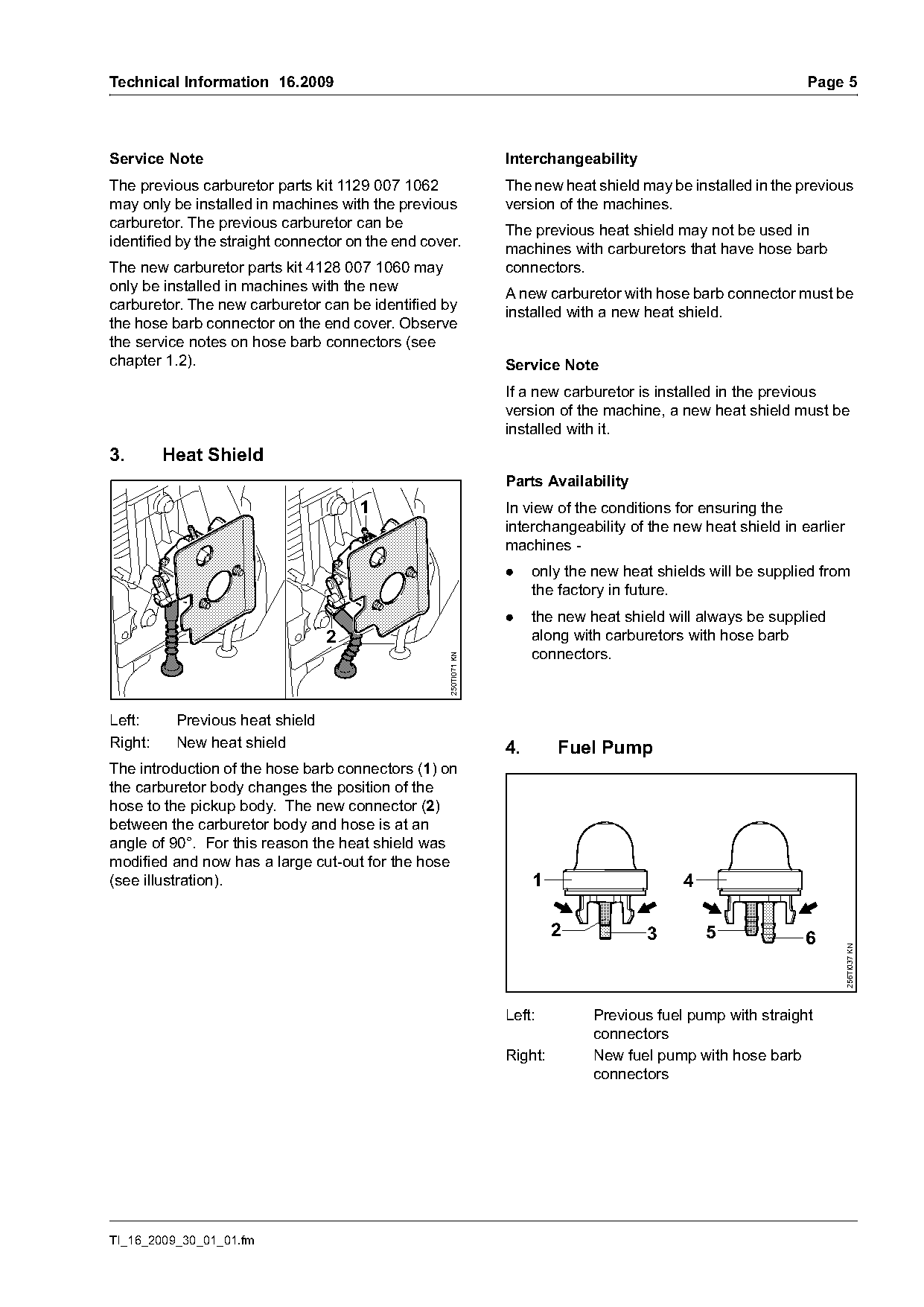

3. Heat Shield
Parts Availability
1 In view of the conditions for ensuring the
interchangeability of the new heat shield in earlier
machines -
. only the new heat shields will be supplied from
the factory in future.
. the new heat shield will always be supplied
2 along with carburetors with hose barb
connectors.
250TI071 KN
Left: Previous heat shield
Right: New heat shield 4. Fuel Pump
The introduction of the hose barb connectors (1) on
the carburetor body changes the position of the
hose to the pickup body. The new connector (2)
between the carburetor body and hose is at an
angle of 90°. For this reason the heat shield was
modified and now has a large cut-out for the hose
(see illustration). 1 4
2 3 5 6
256TI037 KN
Left: Previous fuel pump with straight
connectors
Right: New fuel pump with hose barb
connectors
TI_16_2009_30_01_01.fm
)m~ge 6 Technical Information 16.2009
The previous fuel pump (1) 4130 350 6200 with 5. Filter Housing
straight connectors (2, 3) has been replaced by the
new version (4) 0000 350 6201 with hose barb
connectors (5, 6). Furthermore, the geometry of the
snap hooks (arrows) on the new fuel pump (4)
differs from the previous version (1).
The filter housing has been modified to suit the new 1 2
geometry of the fuel pump, see chapter 5.
The straight connectors (2, 3) of the previous fuel
pump (1) are in line with one another, while the hose
barb connectors (5, 6) of the new fuel pump (4) are
256TI072 KN
offset.
Parts Availability Left: Previous filter housing
4134 140 2800
The previous fuel pump (1) 4130 350 6200 remains
Right: New filter housing 4134 140 2801
available for older machines with the previous filter
housing. The previous version of the filter housing (1) will be
For reasons of interchangeability in previous replaced by the new version (2) to coincide with the
machine versions the new fuel pump is supplied introduction of the new fuel pump 0000 350 6201
with the new filter housing, see chapter 5. (see chapter 4). The difference between the new
filter housing (2) and the previous version (1) is the
modified contour and index (arrows) of the seat for
Service Note the fuel pump.
The previous fuel pump (1) 4130 350 6200 may
only be installed in machines with the previous filter Interchangeability
housing (see chapter 5).
The new filter housing 4134 140 2801 can only be
The new fuel pump (4) 0000 350 6201 may only be installed in previous machine versions in
installed in machines with the new filter housing, see combination with the new fuel pump
chapter 5. 0000 350 6201.
When installing a fuel pump, note the length of the The new filter housing can be replaced as a
hose to the carburetor for the previous and the new separate item only in new machine versions.
version, see chapter 6.
The length of the fuel hose between the carburetor
and fuel pump depends on the type of connector on
the carburetor. For this reason check the length of
the hose to the carburetor when fitting the new filter
housing, see also chapter 6.
TI_16_2009_30_01_01.fm Page 4 of 9
Technical Information 16.2009 Page 7

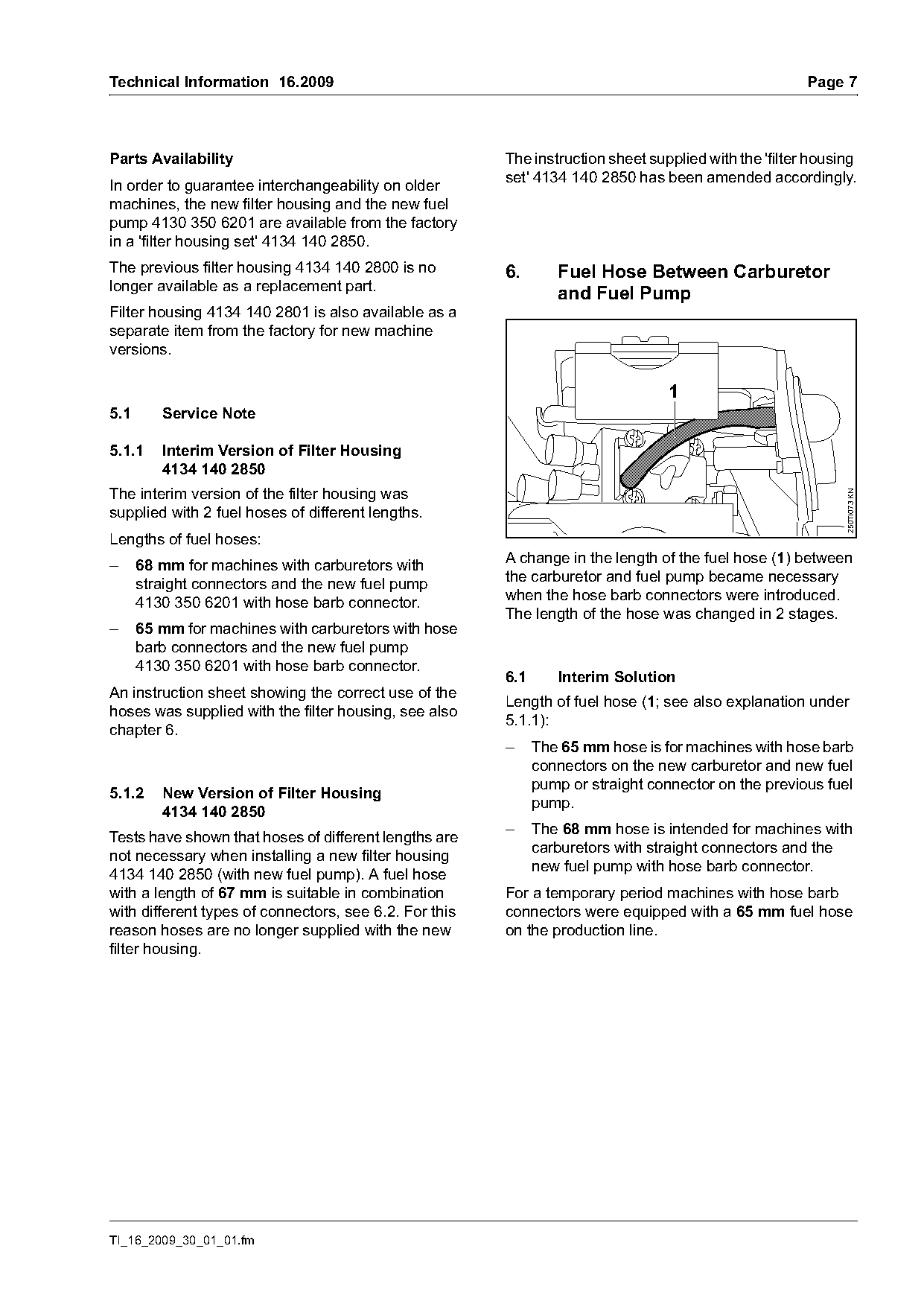

Parts Availability The instruction sheet supplied with the 'filter housing
set' 4134 140 2850 has been amended accordingly.
In order to guarantee interchangeability on older
machines, the new filter housing and the new fuel
pump 4130 350 6201 are available from the factory
in a 'filter housing set' 4134 140 2850.
The previous filter housing 4134 140 2800 is no 6. Fuel Hose Between Carburetor
longer available as a replacement part.
and Fuel Pump
Filter housing 4134 140 2801 is also available as a
separate item from the factory for new machine
versions.
1
5.1 Service Note
5.1.1 Interim Version of Filter Housing
4134 140 2850
The interim version of the filter housing was
250TI073 KN
supplied with 2 fuel hoses of different lengths.
Lengths of fuel hoses:
– 68 mm for machines with carburetors with A change in the length of the fuel hose (1) between
straight connectors and the new fuel pump the carburetor and fuel pump became necessary
4130 350 6201 with hose barb connector. when the hose barb connectors were introduced.
The length of the hose was changed in 2 stages.
– 65 mm for machines with carburetors with hose
barb connectors and the new fuel pump
4130 350 6201 with hose barb connector.
6.1 Interim Solution
An instruction sheet showing the correct use of the
Length of fuel hose (1; see also explanation under
hoses was supplied with the filter housing, see also
5.1.1):
chapter 6.
– The 65 mm hose is for machines with hose barb
connectors on the new carburetor and new fuel
pump or straight connector on the previous fuel
5.1.2 New Version of Filter Housing
pump.
4134 140 2850
Tests have shown that hoses of different lengths are – The 68 mm hose is intended for machines with
not necessary when installing a new filter housing carburetors with straight connectors and the
4134 140 2850 (with new fuel pump). A fuel hose new fuel pump with hose barb connector.
with a length of 67 mm is suitable in combination For a temporary period machines with hose barb
with different types of connectors, see 6.2. For this connectors were equipped with a 65 mm fuel hose
reason hoses are no longer supplied with the new on the production line.
filter housing.
TI_16_2009_30_01_01.fm
)m~ge 8 Technical Information 16.2009

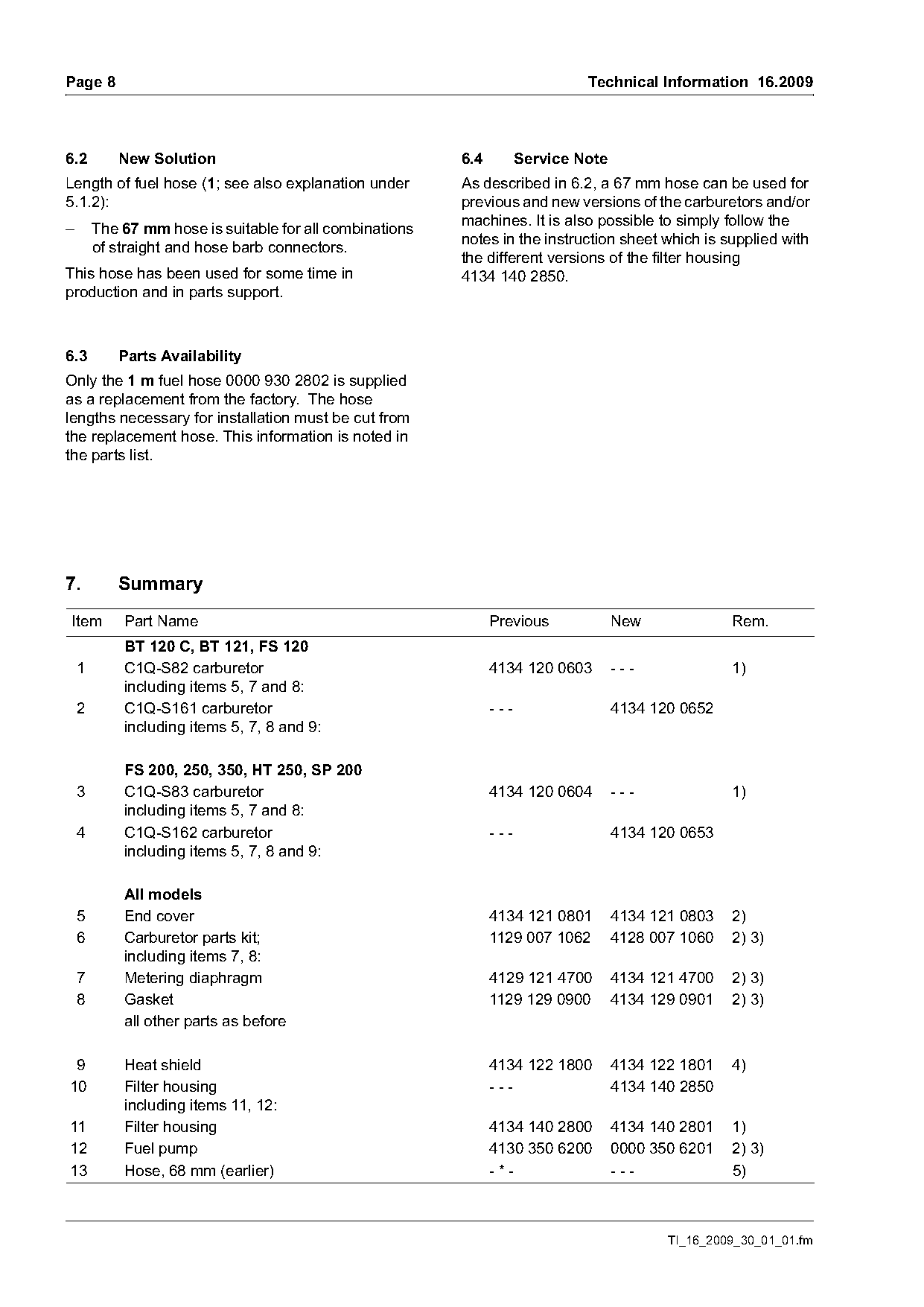

6.2 New Solution 6.4 Service Note
Length of fuel hose (1; see also explanation under As described in 6.2, a 67 mm hose can be used for
5.1.2): previous and new versions of the carburetors and/or
machines. It is also possible to simply follow the
– The 67 mm hose is suitable for all combinations
notes in the instruction sheet which is supplied with
of straight and hose barb connectors.
the different versions of the filter housing
This hose has been used for some time in 4134 140 2850.
production and in parts support.
6.3 Parts Availability
Only the 1 m fuel hose 0000 930 2802 is supplied
as a replacement from the factory. The hose
lengths necessary for installation must be cut from
the replacement hose. This information is noted in
the parts list.
7. Summary
Item Part Name Previous New Rem.
BT 120 C, BT 121, FS 120
1 C1Q-S82 carburetor 4134 120 0603 --- 1)
including items 5, 7 and 8:
2 C1Q-S161 carburetor --- 4134 120 0652
including items 5, 7, 8 and 9:
FS 200, 250, 350, HT 250, SP 200
3 C1Q-S83 carburetor 4134 120 0604 --- 1)
including items 5, 7 and 8:
4 C1Q-S162 carburetor --- 4134 120 0653
including items 5, 7, 8 and 9:
All models
5 End cover 4134 121 0801 4134 121 0803 2)
6 Carburetor parts kit; 1129 007 1062 4128 007 1060 2) 3)
including items 7, 8:
7 Metering diaphragm 4129 121 4700 4134 121 4700 2) 3)
8 Gasket 1129 129 0900 4134 129 0901 2) 3)
all other parts as before
9 Heat shield 4134 122 1800 4134 122 1801 4)
10 Filter housing --- 4134 140 2850
including items 11, 12:
11 Filter housing 4134 140 2800 4134 140 2801 1)
12 Fuel pump 4130 350 6200 0000 350 6201 2) 3)
13 Hose, 68 mm (earlier) -*- --- 5)
TI_16_2009_30_01_01.fm Page 5 of 9

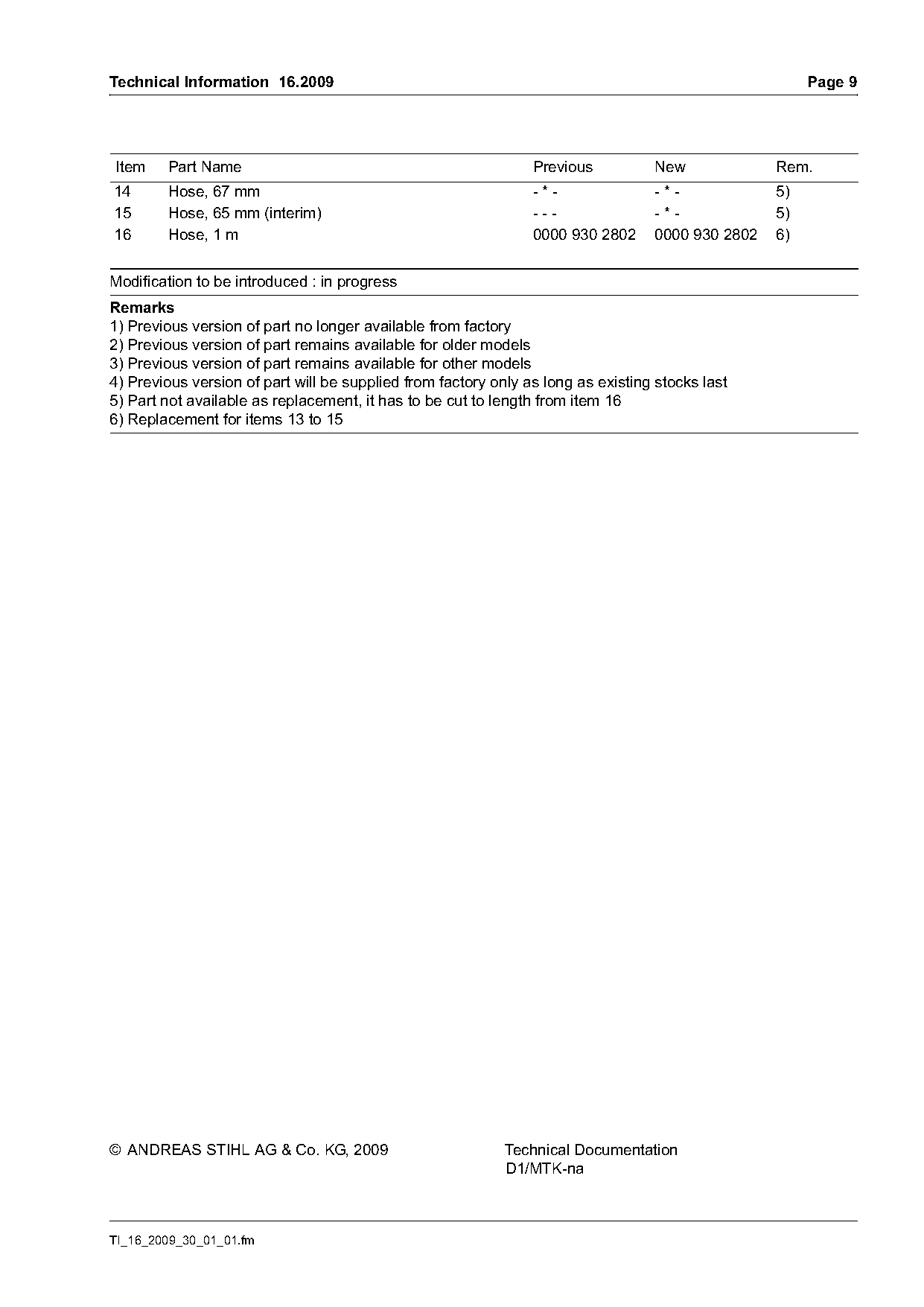

Technical Information 16.2009 Page 9
Item Part Name Previous New Rem.
14 Hose, 67 mm -*- -*- 5)
15 Hose, 65 mm (interim) --- -*- 5)
16 Hose, 1 m 0000 930 2802 0000 930 2802 6)
Modification to be introduced : in progress
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
3) Previous version of part remains available for other models
4) Previous version of part will be supplied from factory only as long as existing stocks last
5) Part not available as replacement, it has to be cut to length from item 16
6) Replacement for items 13 to 15
© ANDREAS STIHL AG & Co. KG, 2009 Technical Documentation
D1/MTK-na
TI_16_2009_30_01_01.fm Page 6 of 9
Page 7 of 9
Page 8 of 9
Page 9 of 9
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
