STIH)
Technical Information 31.2009
Chain saws STIHL MS 170, 180
Contents
1. Modified carburetor
2. Summary

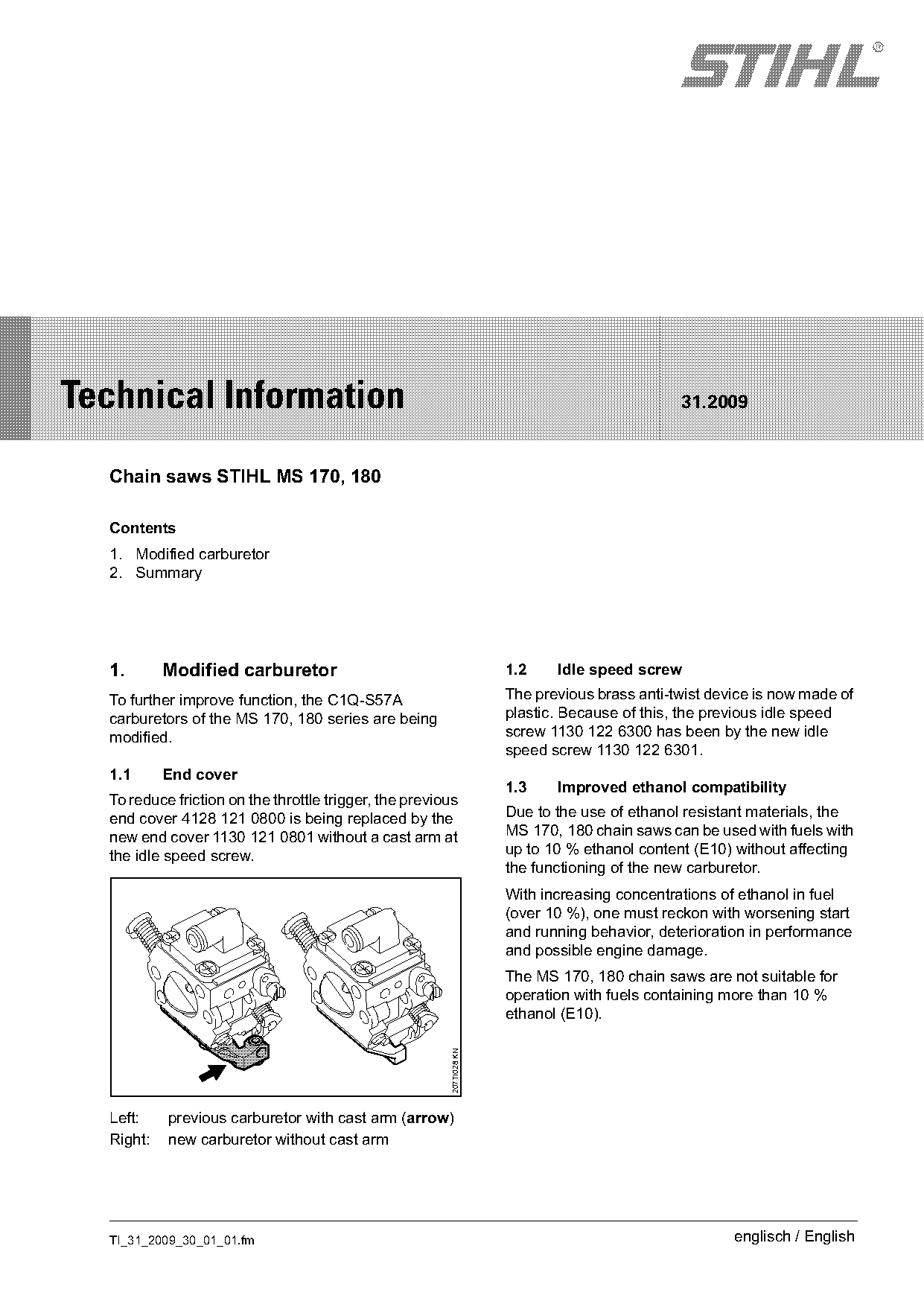

1. Modified carburetor 1.2 Idle speed screw
To further improve function, the C1Q-S57A The previous brass anti-twist device is now made of
carburetors of the MS 170, 180 series are being plastic. Because of this, the previous idle speed
modified. screw 1130 122 6300 has been by the new idle
speed screw 1130 122 6301.
1.1 End cover
1.3 Improved ethanol compatibility
To reduce friction on the throttle trigger, the previous
end cover 4128 121 0800 is being replaced by the Due to the use of ethanol resistant materials, the
new end cover 1130 121 0801 without a cast arm at MS 170, 180 chain saws can be used with fuels with
the idle speed screw. up to 10 % ethanol content (E10) without affecting
the functioning of the new carburetor.
With increasing concentrations of ethanol in fuel
(over 10 %), one must reckon with worsening start
and running behavior, deterioration in performance
and possible engine damage.
The MS 170, 180 chain saws are not suitable for
operation with fuels containing more than 10 %
ethanol (E10).
207TI028 KN
Left: previous carburetor with cast arm (arrow)
Right: new carburetor without cast arm
TI_31_2009_30_01_01.fm englisch / English
)m~ge 2 Technical Information 31.2009

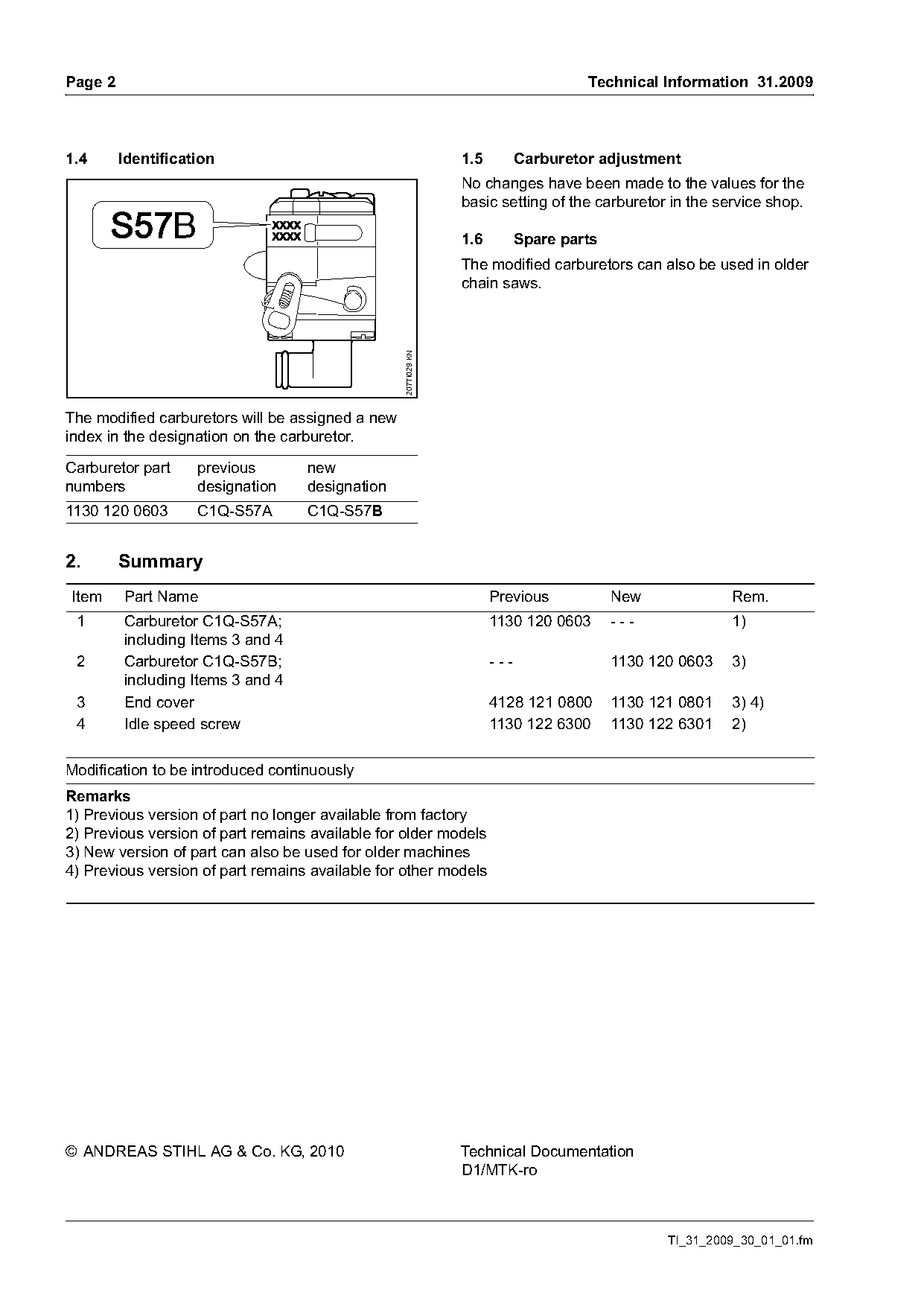

1.4 Identification 1.5 Carburetor adjustment
No changes have been made to the values for the
basic setting of the carburetor in the service shop.
1.6 Spare parts
The modified carburetors can also be used in older
chain saws.
207TI029 KN
The modified carburetors will be assigned a new
index in the designation on the carburetor.
Carburetor part previous new
numbers designation designation
1130 120 0603 C1Q-S57A C1Q-S57B
2. Summary
Item Part Name Previous New Rem.
1 Carburetor C1Q-S57A; 1130 120 0603 --- 1)
including Items 3 and 4
2 Carburetor C1Q-S57B; --- 1130 120 0603 3)
including Items 3 and 4
3 End cover 4128 121 0800 1130 121 0801 3) 4)
4 Idle speed screw 1130 122 6300 1130 122 6301 2)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
3) New version of part can also be used for older machines
4) Previous version of part remains available for other models
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-ro
TI_31_2009_30_01_01.fm Page 2 of 2
