Technical Information · issue 34 of 2009
Oil pump with higher delivery rate; Carburetor
IssueTI 34/2009
Engine family 1122
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1122 640 3205 | 1122 640 3201 | In the future, the oil pump 1122 640 3205 will be replaced by oil pump 1122 640 3201 on both flush b and wrap handle versions of the MS 650 Magnum™. |
Full text

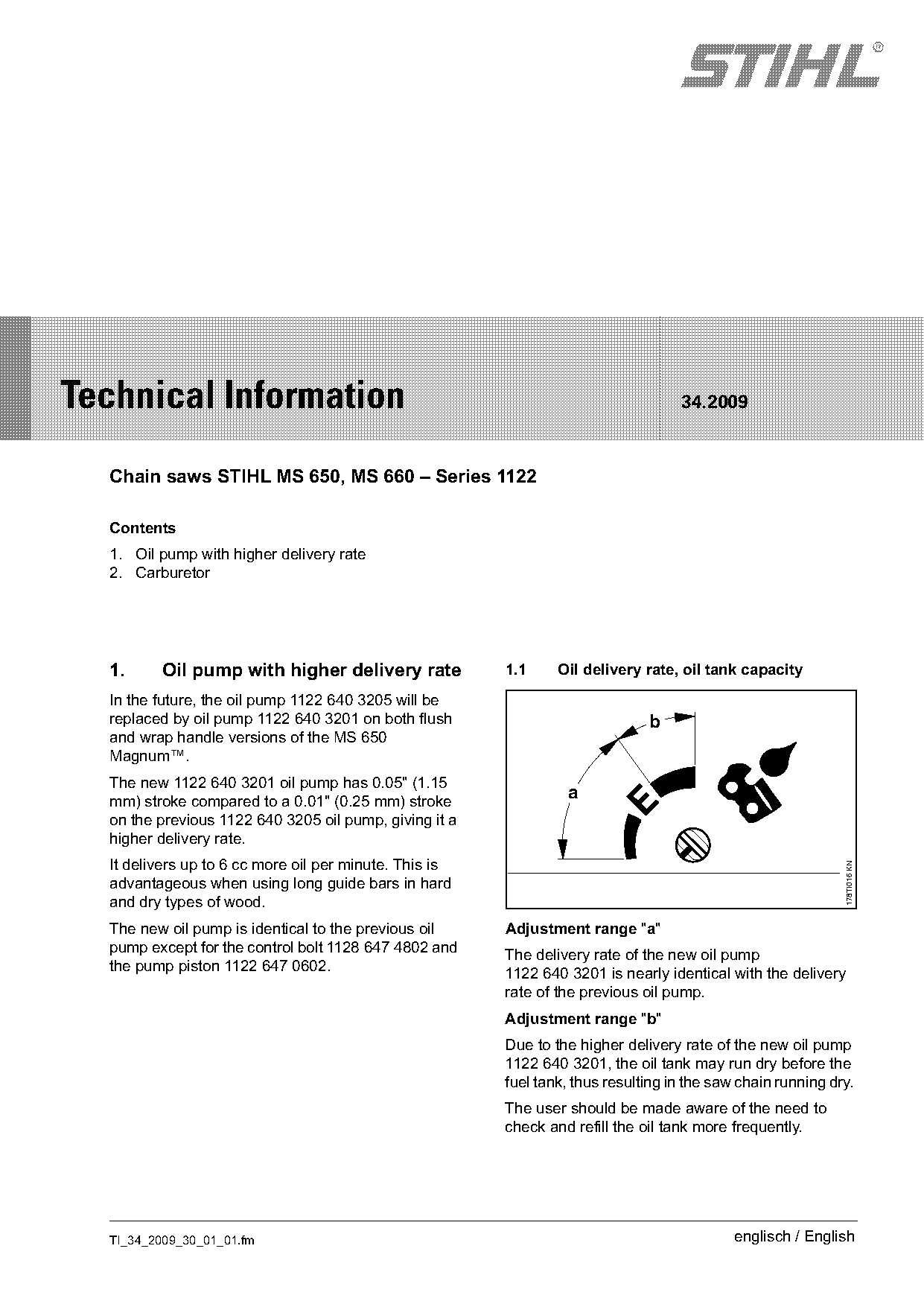

Page 1 of 3
STIH)
Technical Information 34.2009
Chain saws STIHL MS 650, MS 660 – Series 1122
Contents
1. Oil pump with higher delivery rate
2. Carburetor
1. Oil pump with higher delivery rate 1.1 Oil delivery rate, oil tank capacity
In the future, the oil pump 1122 640 3205 will be
replaced by oil pump 1122 640 3201 on both flush b
and wrap handle versions of the MS 650
Magnum™.
The new 1122 640 3201 oil pump has 0.05" (1.15
mm) stroke compared to a 0.01" (0.25 mm) stroke
a
on the previous 1122 640 3205 oil pump, giving it a
higher delivery rate.
It delivers up to 6 cc more oil per minute. This is
178TI016 KN
advantageous when using long guide bars in hard
and dry types of wood.
The new oil pump is identical to the previous oil Adjustment range "a"
pump except for the control bolt 1128 647 4802 and
The delivery rate of the new oil pump
the pump piston 1122 647 0602.
1122 640 3201 is nearly identical with the delivery
rate of the previous oil pump.
Adjustment range "b"
Due to the higher delivery rate of the new oil pump
1122 640 3201, the oil tank may run dry before the
fuel tank, thus resulting in the saw chain running dry.
The user should be made aware of the need to
check and refill the oil tank more frequently.
TI_34_2009_30_01_01.fm englisch / English

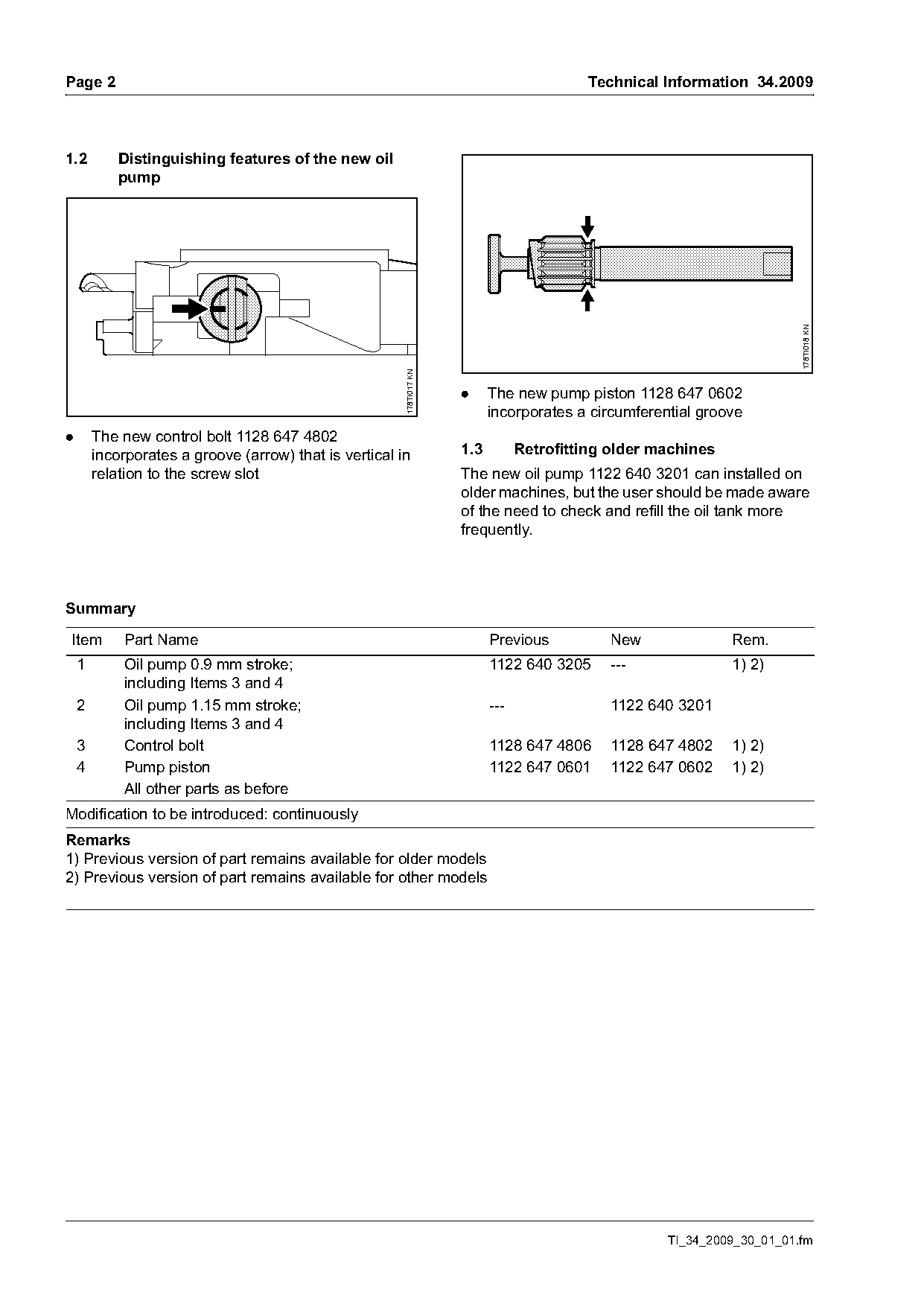

)m~ge 2 Technical Information 34.2009
1.2 Distinguishing features of the new oil
pump
178TI018 KN
178TI017 KN
. The new pump piston 1128 647 0602
incorporates a circumferential groove
. The new control bolt 1128 647 4802
incorporates a groove (arrow) that is vertical in 1.3 Retrofitting older machines
relation to the screw slot The new oil pump 1122 640 3201 can installed on
older machines, but the user should be made aware
of the need to check and refill the oil tank more
frequently.
Summary
Item Part Name Previous New Rem.
1 Oil pump 0.9 mm stroke; 1122 640 3205 --- 1) 2)
including Items 3 and 4
2 Oil pump 1.15 mm stroke; --- 1122 640 3201
including Items 3 and 4
3 Control bolt 1128 647 4806 1128 647 4802 1) 2)
4 Pump piston 1122 647 0601 1122 647 0602 1) 2)
All other parts as before
Modification to be introduced: continuously
Remarks
1) Previous version of part remains available for older models
2) Previous version of part remains available for other models
TI_34_2009_30_01_01.fm Page 2 of 3

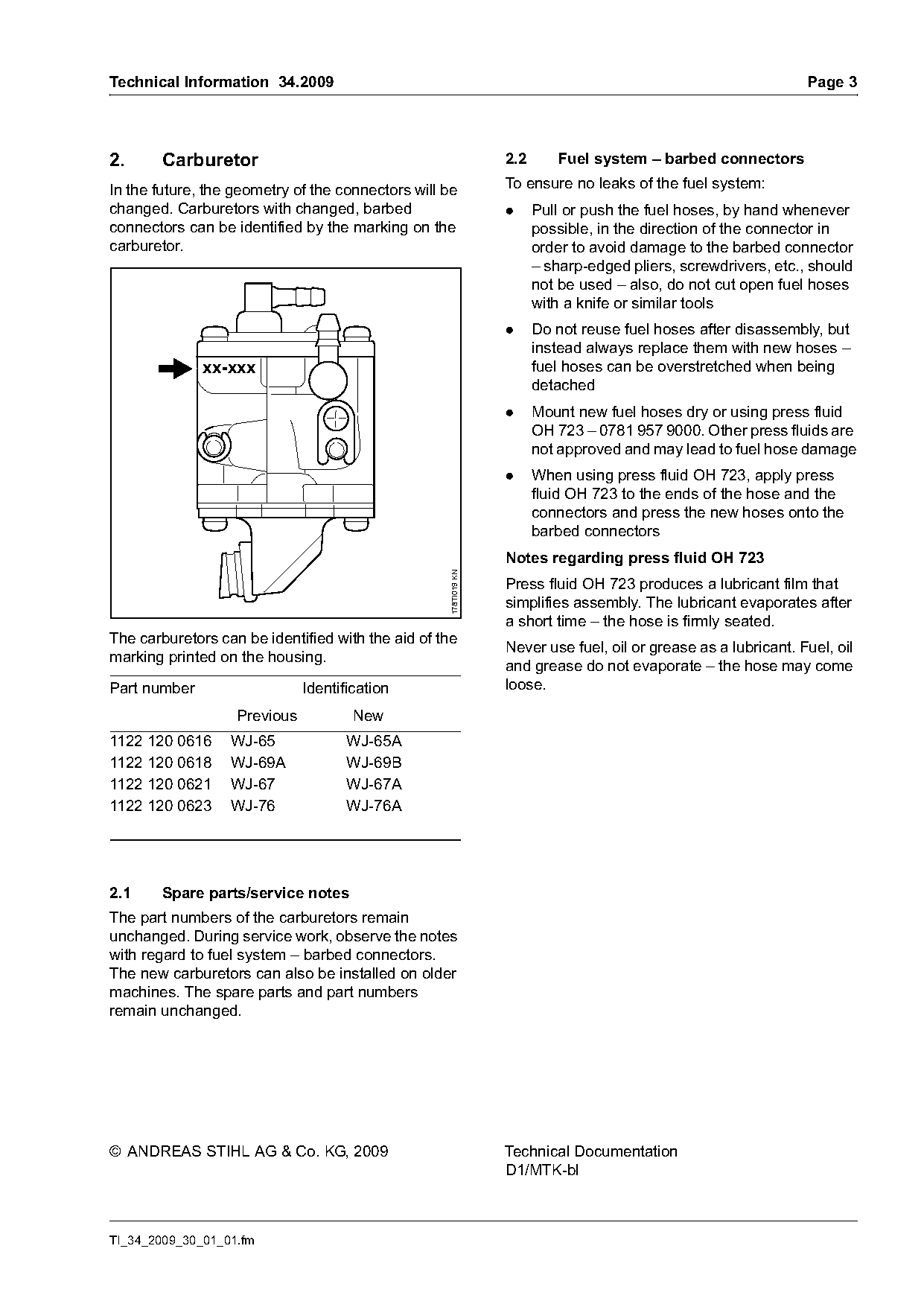

Technical Information 34.2009 Page 3
2. Carburetor 2.2 Fuel system – barbed connectors
In the future, the geometry of the connectors will be To ensure no leaks of the fuel system:
changed. Carburetors with changed, barbed . Pull or push the fuel hoses, by hand whenever
connectors can be identified by the marking on the possible, in the direction of the connector in
carburetor. order to avoid damage to the barbed connector
– sharp-edged pliers, screwdrivers, etc., should
not be used – also, do not cut open fuel hoses
with a knife or similar tools
. Do not reuse fuel hoses after disassembly, but
instead always replace them with new hoses –
xx-xxx fuel hoses can be overstretched when being
detached
. Mount new fuel hoses dry or using press fluid
OH 723 – 0781 957 9000. Other press fluids are
not approved and may lead to fuel hose damage
. When using press fluid OH 723, apply press
fluid OH 723 to the ends of the hose and the
connectors and press the new hoses onto the
barbed connectors
Notes regarding press fluid OH 723
178TI019 KN
Press fluid OH 723 produces a lubricant film that
simplifies assembly. The lubricant evaporates after
a short time – the hose is firmly seated.
The carburetors can be identified with the aid of the
Never use fuel, oil or grease as a lubricant. Fuel, oil
marking printed on the housing.
and grease do not evaporate – the hose may come
Part number Identification loose.
Previous New
1122 120 0616 WJ-65 WJ-65A
1122 120 0618 WJ-69A WJ-69B
1122 120 0621 WJ-67 WJ-67A
1122 120 0623 WJ-76 WJ-76A
2.1 Spare parts/service notes
The part numbers of the carburetors remain
unchanged. During service work, observe the notes
with regard to fuel system – barbed connectors.
The new carburetors can also be installed on older
machines. The spare parts and part numbers
remain unchanged.
© ANDREAS STIHL AG & Co. KG, 2009 Technical Documentation
D1/MTK-bl
TI_34_2009_30_01_01.fm Page 3 of 3
