Guide bars STIHL Rollomatic® E Super, Duromatic® E – Series 3001, 3002, 3003
Ematic™ S
Ematic™ S stands out by virtue of a slanted,
elliptical oil inlet hole. Ematic™ S is a special
development for long cutting lengths and refinement
of the Ematic™ principle.
The new elliptical oil inlet hole increases the rate of
flow of the saw chain oil, improves lubrication of the
drive links and reduces clogging of the oil hole.
Ematic™ S improves the lubrication effect and thus
extends the service life of the guide bar and chain.
In future, all Rollomatic® E Super and Duromatic® E
guide bars will be equipped with a one-sided oil inlet
hole with Ematic® S.
Advantages
689TI128 KN
– Improved lubrication effect
– Optimum pickup of oil by the drive link

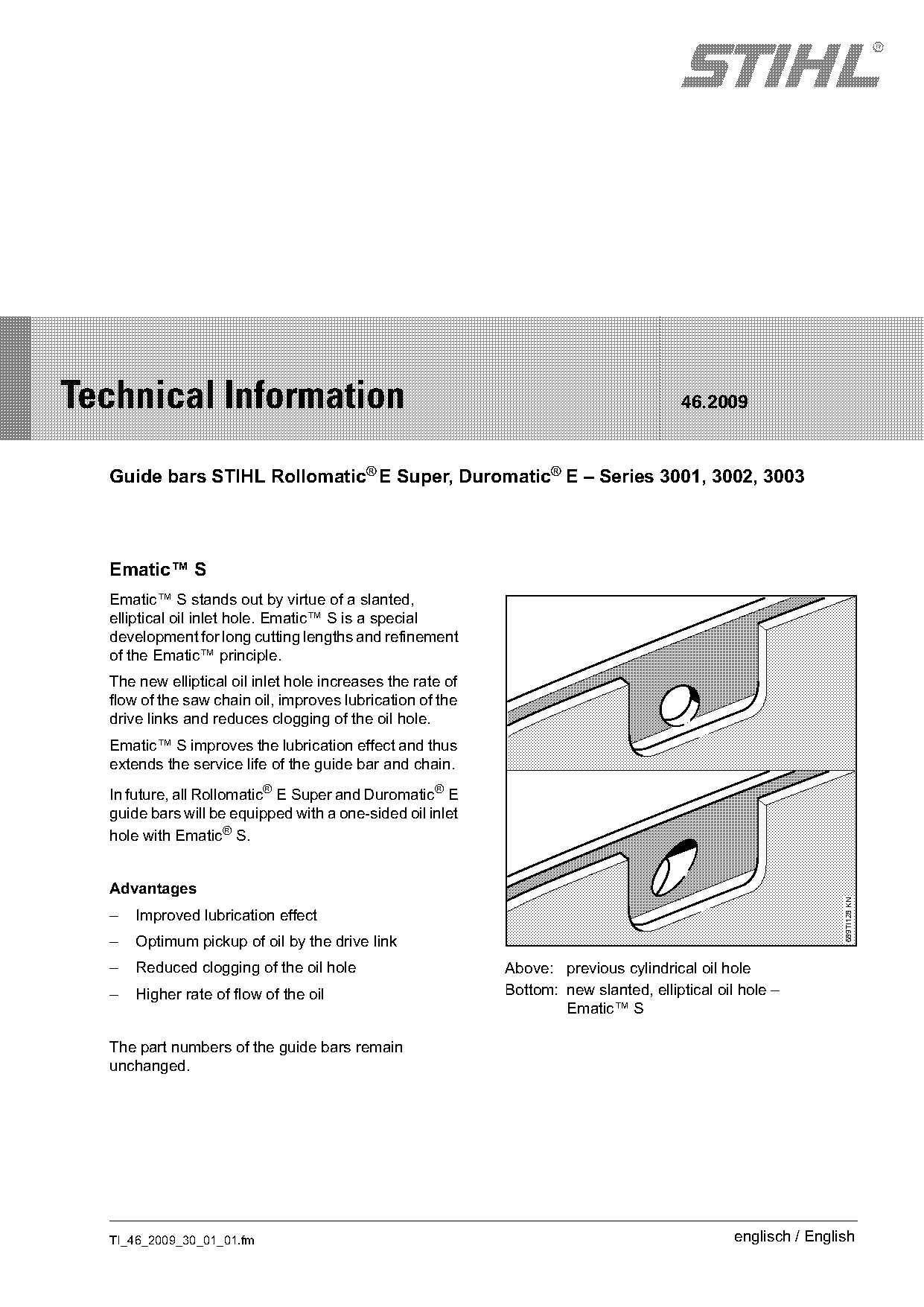

– Reduced clogging of the oil hole Above: previous cylindrical oil hole
– Higher rate of flow of the oil Bottom: new slanted, elliptical oil hole –
Ematic™ S
The part numbers of the guide bars remain
unchanged.
TI_46_2009_30_01_01.fm englisch / English
)m~ge 2 Technical Information 46.2009

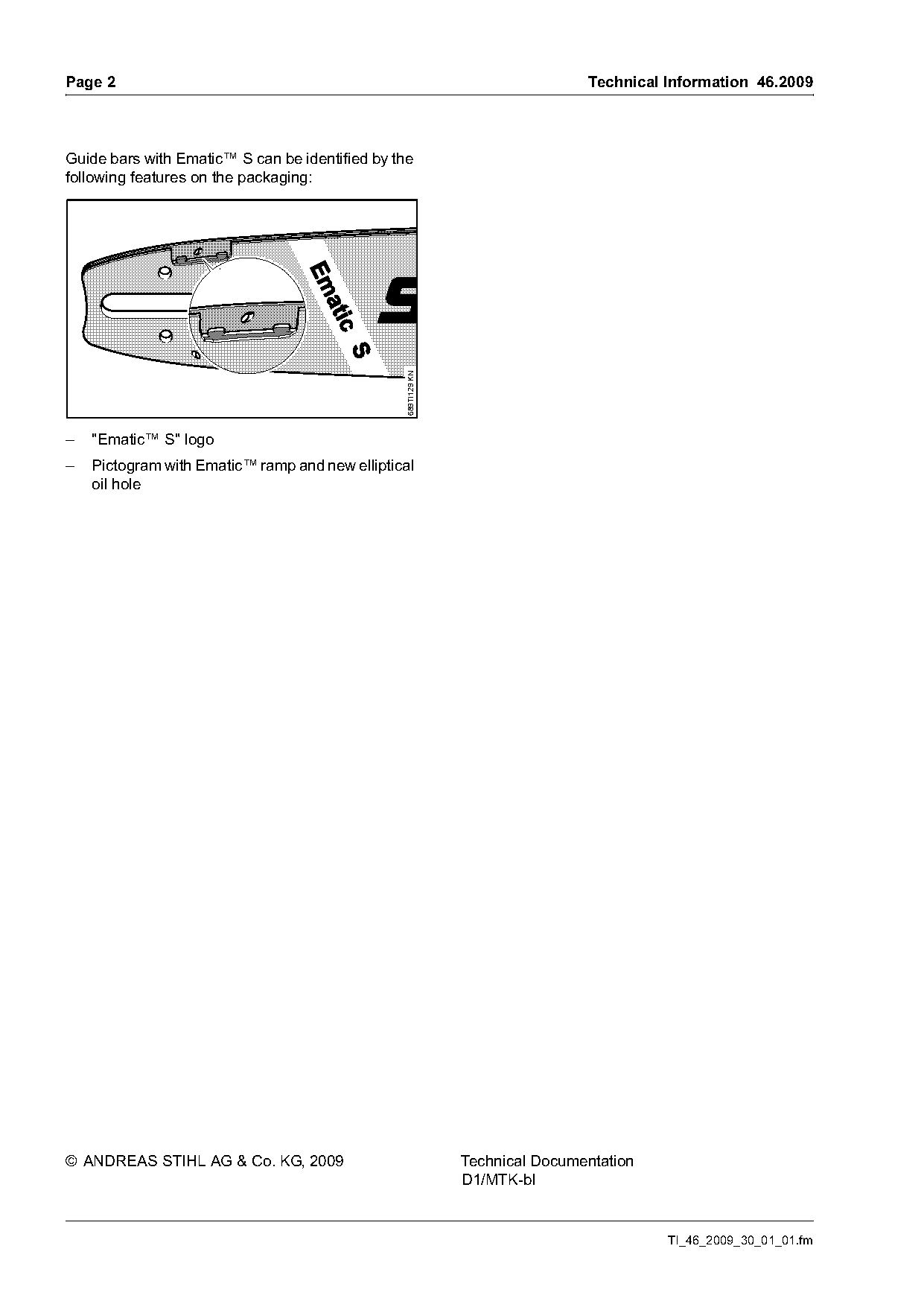

Guide bars with Ematic™ S can be identified by the
following features on the packaging:
689TI129 KN
– "Ematic™ S" logo
– Pictogram with Ematic™ ramp and new elliptical
oil hole
