Technical Information · issue 15 of 2010
New STIHL ROLLOMATIC® ES Light Guide Bar
Accessory changes & notes
Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.
Service note · Accessory
ES Light 28-inch .063: series 3003 guide bar
28 in / 71 cm, .063 in / 1.6 mm gauge, 3/8-inch pitch and 91 drive links.
- Summary row for 3003 000 2038: cutting length 28 inches (71 cm), groove width .063 inch (1.6 mm), 3/8-inch pitch, 91 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 28-inch .063: series 3003 guide bar.
Part numbers (1)
- 3003 000 2038 — ES Light 28-inch, .063-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light 32-inch .063: series 3003 guide bar
32 in / 80 cm, .063 in / 1.6 mm gauge, 3/8-inch pitch and 105 drive links.
- Summary row for 3003 000 2046: cutting length 32 inches (80 cm), groove width .063 inch (1.6 mm), 3/8-inch pitch, 105 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 32-inch .063: series 3003 guide bar.
Part numbers (1)
- 3003 000 2046 — ES Light 32-inch, .063-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light 36-inch .063: series 3003 guide bar
36 in / 90 cm, .063 in / 1.6 mm gauge, 3/8-inch pitch and 114 drive links.
- Summary row for 3003 000 2053: cutting length 36 inches (90 cm), groove width .063 inch (1.6 mm), 3/8-inch pitch, 114 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 36-inch .063: series 3003 guide bar.
Part numbers (1)
- 3003 000 2053 — ES Light 36-inch, .063-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light 28-inch .050: series 3003 guide bar
28 in / 71 cm, .050 in / 1.3 mm gauge, 3/8-inch pitch and 91 drive links.
- Summary row for 3003 000 2238: cutting length 28 inches (71 cm), groove width .050 inch (1.3 mm), 3/8-inch pitch, 91 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 28-inch .050: series 3003 guide bar.
Part numbers (1)
- 3003 000 2238 — ES Light 28-inch, .050-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light 32-inch .050: series 3003 guide bar
32 in / 80 cm, .050 in / 1.3 mm gauge, 3/8-inch pitch and 105 drive links.
- Summary row for 3003 000 2246: cutting length 32 inches (80 cm), groove width .050 inch (1.3 mm), 3/8-inch pitch, 105 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 32-inch .050: series 3003 guide bar.
Part numbers (1)
- 3003 000 2246 — ES Light 32-inch, .050-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light 36-inch .050: series 3003 guide bar
36 in / 90 cm, .050 in / 1.3 mm gauge, 3/8-inch pitch and 114 drive links.
- Summary row for 3003 000 2253: cutting length 36 inches (90 cm), groove width .050 inch (1.3 mm), 3/8-inch pitch, 114 drive links. Page1 specifies a 3003 bar connection and 11-toothed sprocket nose. These are exact row values, not length-based estimates.
- All six rows carry remark2: yellow color code. The TI names no compatible powerhead models; connection series alone does not establish a model-specific fitment, engine suitability or a complete cutting-attachment recommendation.
- All six rows also carry remark1, which prints spare nose 3003 650 2551 as 3/8-inch, 11-toothed, .063 inch (1.6 mm), including three rivets 0000 974 0503. The .050-inch rows therefore carry an unresolved gauge conflict. Do not treat that shared footnote as proof of cross-gauge interchange or silently substitute a guessed .050-inch nose.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light 36-inch .050: series 3003 guide bar.
Part numbers (1)
- 3003 000 2253 — ES Light 36-inch, .050-inch guide barIntroduced accessory; exact table specification · Named series 3003 accessory only; no unnamed powerhead fitment
Service note · Accessory
ES Light: ribbed steel construction and historical weight claim
The TI claims 30% less weight than E Super; it does not give measured masses.
- Wear-resistant steel bar plate has large openings and longitudinal ribs; openings are covered by a cover plate attached by a special laser-welding process. This describes factory construction, not a field welding or repair procedure.
- The TI claims 30% less weight than ROLLOMATIC E Super bars, higher bending/warping resistance than three-part or comparable light bars of that class, and balance shifted toward the engine. These are attributed vendor claims, not measurements reproduced here; no absolute mass, test method or load limit is given.
- Application is professional users valuing light weight and durability. Cover title and bar image say ES Light, while introductory heading/prose says E SuperLight / E Super Light. Preserve the naming variation; it does not establish separate product generations or different compatibility.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 1 · TI 15/2010, p. 2 — ES Light: ribbed steel construction and historical weight claim.
No additional parts-table entry added.
Service note · Accessory
ES Light: replaceable nose and unresolved gauge footnote
Riveted nose is replaceable; the .063-inch spare listing conflicts with the .050-inch rows.
- The nose illustration shows a separable riveted nose. As with ROLLOMATIC ES, the ES Light riveted nose can be replaced. No rivet-setting tooling, force, dimensions or complete installation procedure is printed; none is invented.
- Remark1 lists bar nose 3003 650 2551, 3/8-inch pitch, 11 teeth, .063 inch (1.6 mm), INCLUDING three countersunk rivets 0000 974 0503. It is applied to all six summary rows, including three .050-inch (1.3 mm) bars.
- This is an unresolved gauge conflict, not evidence that .063-inch and .050-inch noses are interchangeable. Keep the printed spare number and inclusion quantity visible without recommending it for the .050-inch rows; a correct .050-inch replacement number is unestablished by this source.
- Historical English TI15/2010; no numeric serial cutoff or current stock promise. No physical interchange test was performed.
Source: TI 15/2010, p. 2 — ES Light: replaceable nose and unresolved gauge footnote.
Part numbers (2)
- 3003 650 2551 — Bar nose 3/8 inch, 11 teeth, .063 inchPrinted spare; cross-gauge footnote conflict retained · Named series 3003 accessory only; no unnamed powerhead fitment
- 0000 974 0503 — Countersunk rivet, quantity threeIncluded with printed spare nose · Named series 3003 accessory only; no unnamed powerhead fitment
Full text

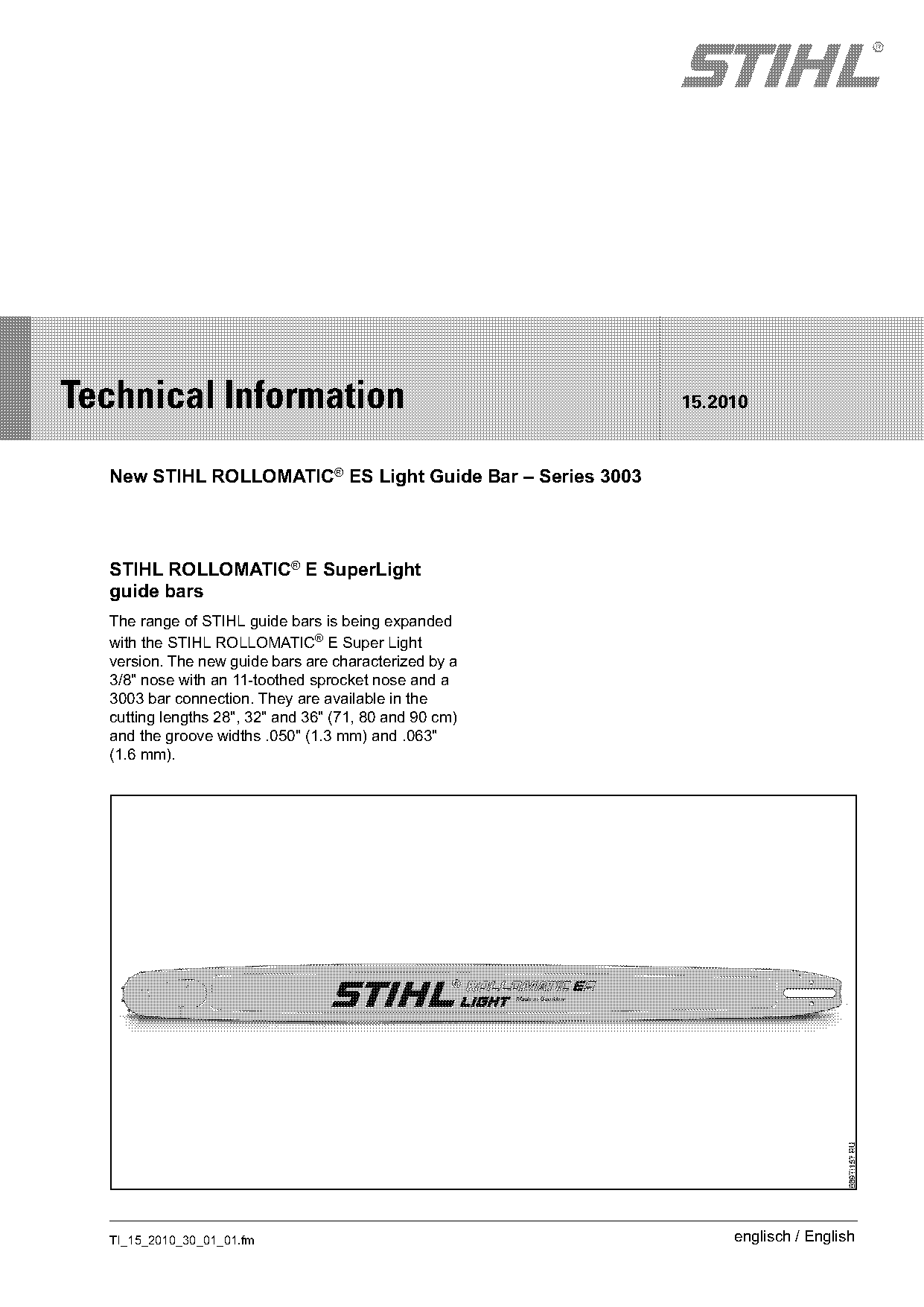

Page 1 of 2
Text of page 1 — search, copy, screen readers
STIH) Technical Information 15.2010 New STIHL ROLLOMATIC® ES Light Guide Bar – Series 3003 STIHL ROLLOMATIC® E SuperLight guide bars The range of STIHL guide bars is being expanded with the STIHL ROLLOMATIC® E Super Light version. The new guide bars are characterized by a 3/8" nose with an 11-toothed sprocket nose and a 3003 bar connection. They are available in the cutting lengths 28", 32" and 36" (71, 80 and 90 cm) and the groove widths .050" (1.3 mm) and .063" (1.6 mm). TI_15_2010_30_01_01.fm englisch / English

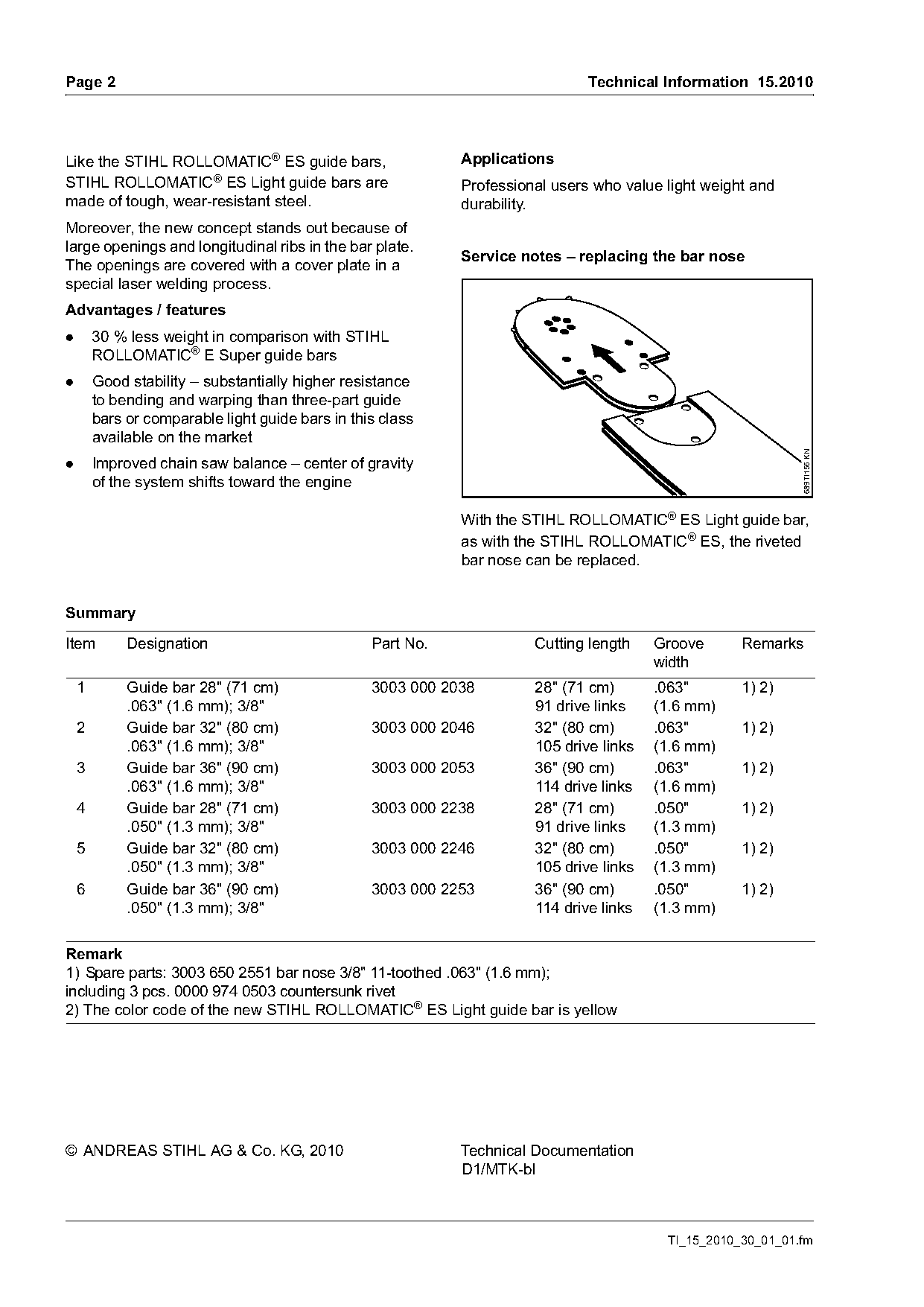

Page 2 of 2
Text of page 2 — search, copy, screen readers
Page 2 Technical Information 15.2010
Like the STIHL ROLLOMATIC® ES guide bars, Applications
STIHL ROLLOMATIC® ES Light guide bars are Professional users who value light weight and
made of tough, wear-resistant steel. durability.
Moreover, the new concept stands out because of
large openings and longitudinal ribs in the bar plate.
Service notes – replacing the bar nose
The openings are covered with a cover plate in a
special laser welding process.
Advantages / features
. 30 % less weight in comparison with STIHL
ROLLOMATIC® E Super guide bars
. Good stability – substantially higher resistance
to bending and warping than three-part guide
bars or comparable light guide bars in this class
available on the market
689TI156 KN
. Improved chain saw balance – center of gravity
of the system shifts toward the engine
With the STIHL ROLLOMATIC® ES Light guide bar,
as with the STIHL ROLLOMATIC® ES, the riveted
bar nose can be replaced.
Summary
Item Designation Part No. Cutting length Groove Remarks
width
1 Guide bar 28" (71 cm) 3003 000 2038 28" (71 cm) .063" 1) 2)
.063" (1.6 mm); 3/8" 91 drive links (1.6 mm)
2 Guide bar 32" (80 cm) 3003 000 2046 32" (80 cm) .063" 1) 2)
.063" (1.6 mm); 3/8" 105 drive links (1.6 mm)
3 Guide bar 36" (90 cm) 3003 000 2053 36" (90 cm) .063" 1) 2)
.063" (1.6 mm); 3/8" 114 drive links (1.6 mm)
4 Guide bar 28" (71 cm) 3003 000 2238 28" (71 cm) .050" 1) 2)
.050" (1.3 mm); 3/8" 91 drive links (1.3 mm)
5 Guide bar 32" (80 cm) 3003 000 2246 32" (80 cm) .050" 1) 2)
.050" (1.3 mm); 3/8" 105 drive links (1.3 mm)
6 Guide bar 36" (90 cm) 3003 000 2253 36" (90 cm) .050" 1) 2)
.050" (1.3 mm); 3/8" 114 drive links (1.3 mm)
Remark
1) Spare parts: 3003 650 2551 bar nose 3/8" 11-toothed .063" (1.6 mm);
including 3 pcs. 0000 974 0503 countersunk rivet
2) The color code of the new STIHL ROLLOMATIC® ES Light guide bar is yellow
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-bl
