New STIHL FSA 65, 85 Cordless Trimmers – Series 4852
Contents
1. Technical Description
2. Safety Precautions
3. Specifications

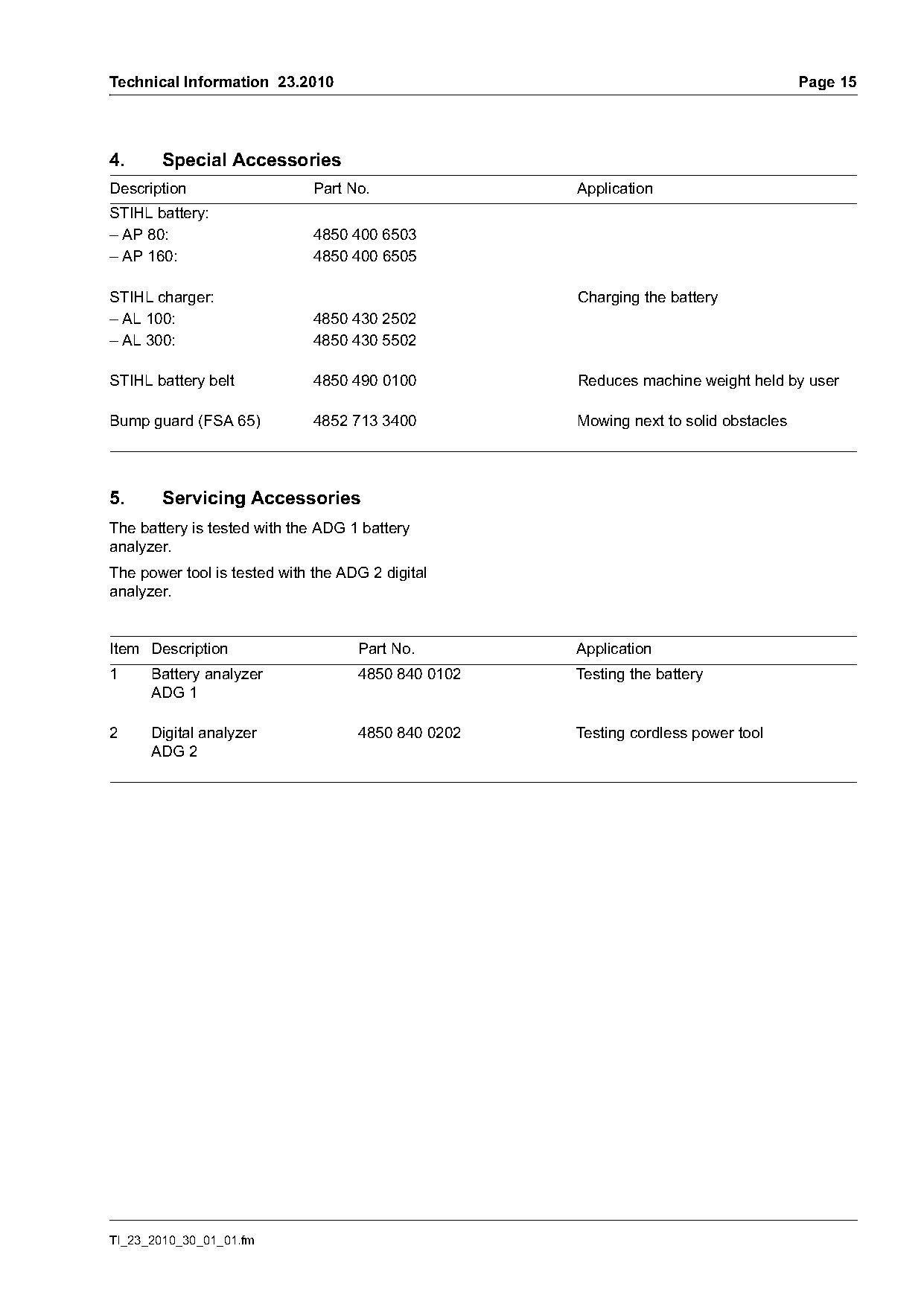

4. Special Accessories
5. Servicing Accessories
6. Spare Parts
7. Repairs

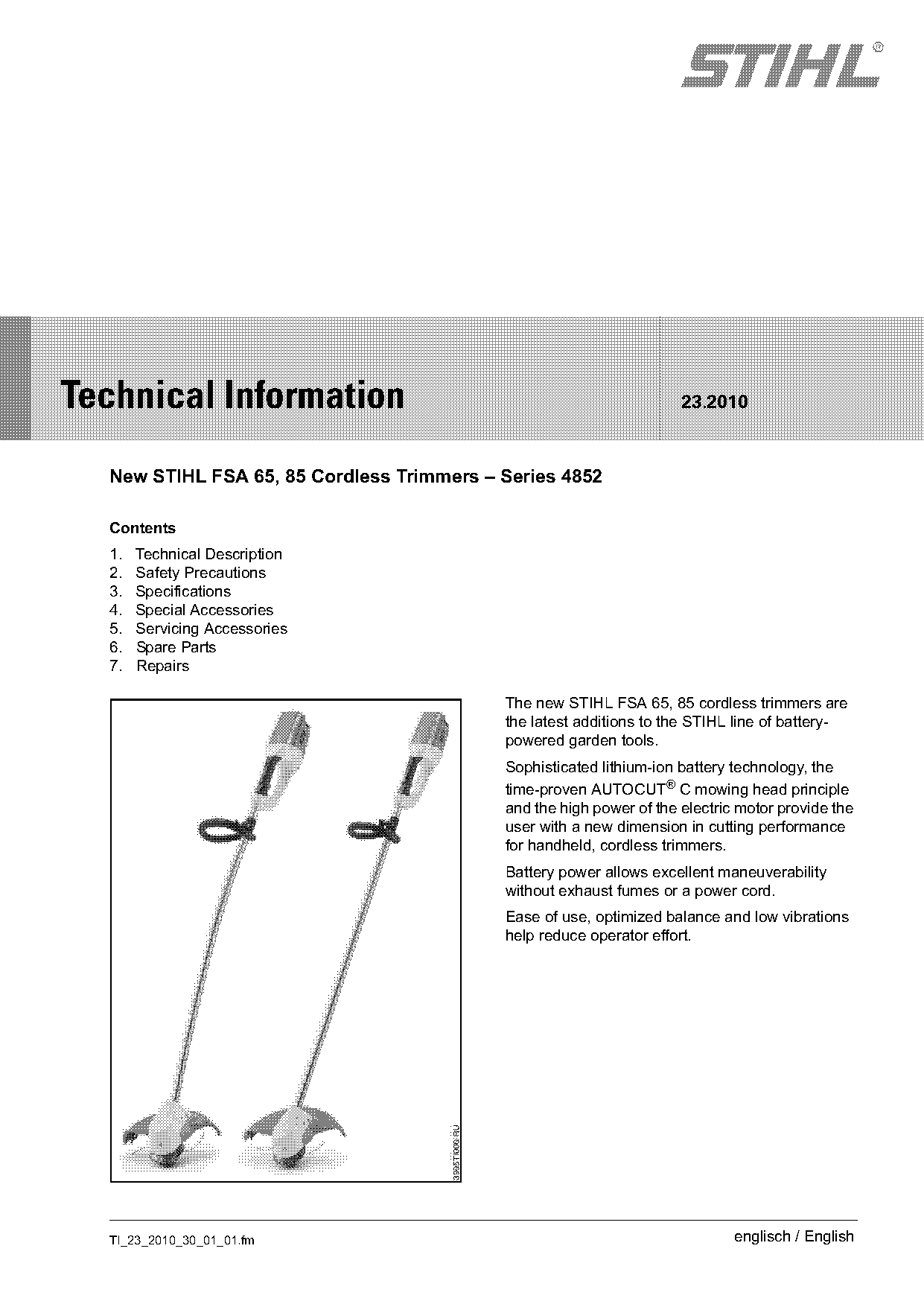

The new STIHL FSA 65, 85 cordless trimmers are
the latest additions to the STIHL line of battery-
powered garden tools.
Sophisticated lithium-ion battery technology, the
time-proven AUTOCUT® C mowing head principle
and the high power of the electric motor provide the
user with a new dimension in cutting performance
for handheld, cordless trimmers.
Battery power allows excellent maneuverability
without exhaust fumes or a power cord.
Ease of use, optimized balance and low vibrations
help reduce operator effort.
TI_23_2010_30_01_01.fm englisch / English
)m~ge 2 Technical Information 23.2010
The new STIHL FSA 65, 85 cordless trimmers are 1. Technical Description
suitable for professional landscape maintenance,
e.g. landscape gardeners and municipalities, as 1.1 Method of Operation
well as demanding homeowners.
STIHL FSA 65, 85 cordless trimmers are powered
The low noise level compared to gasoline-powered by a rechargeable battery.
trimmers makes the new units ideal for operation in
The cordless hedge trimmer, lithium-ion battery and
noise-sensitive locations, e.g. residential areas,
battery charger are parts of a modular system.
such as parks, schools and cemeteries.
Cordless trimmers may be used only with STIHL
rechargeable batteries. Only use STIHL chargers to
recharge STIHL batteries.
3905TI002 KN

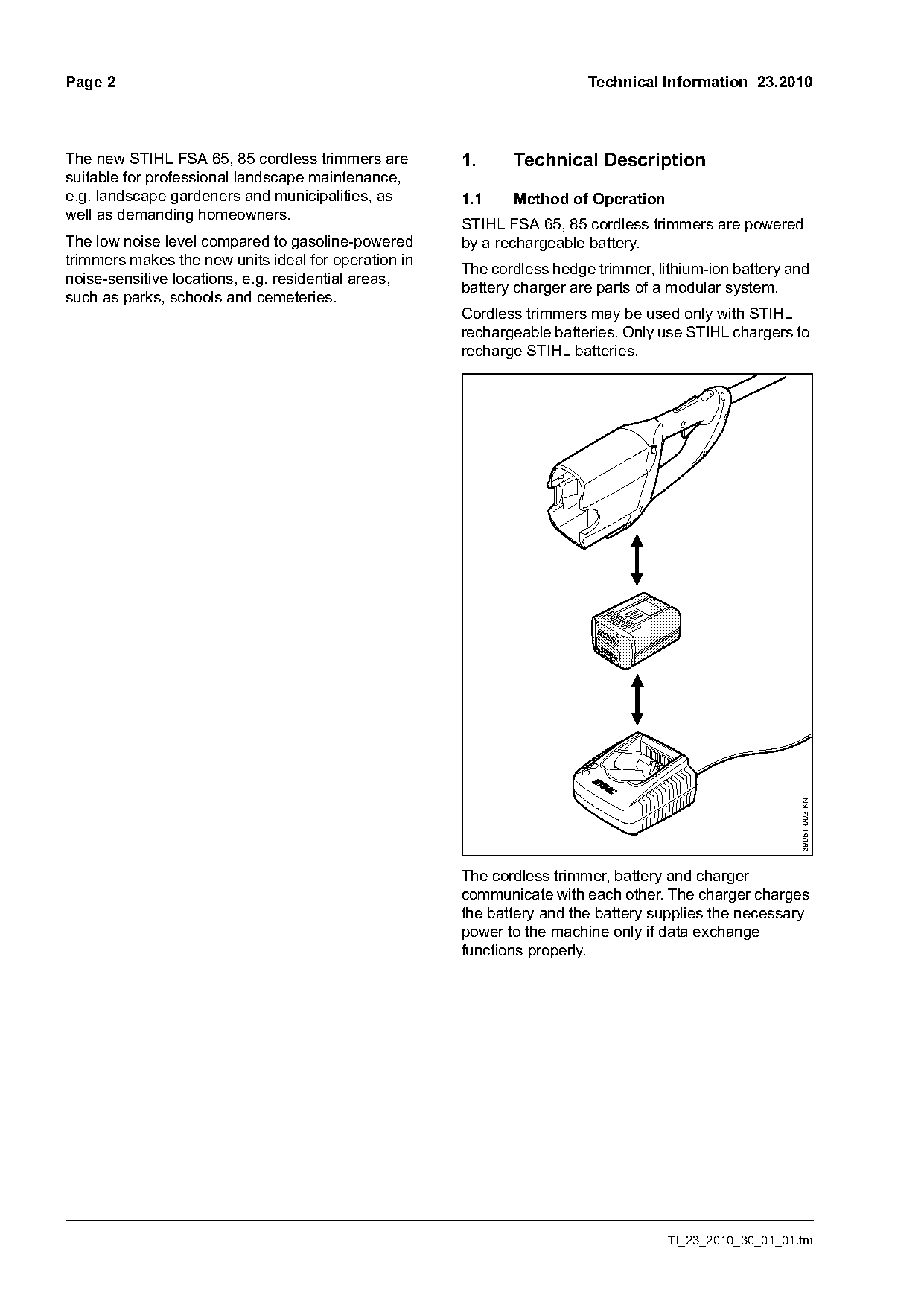

The cordless trimmer, battery and charger
communicate with each other. The charger charges
the battery and the battery supplies the necessary
power to the machine only if data exchange
functions properly.
TI_23_2010_30_01_01.fm Page 2 of 20
Technical Information 23.2010 Page 3
1.2 Identifying Features 1.4 AUTOCUT® C 4-2 Mowing Head
Compared to the FSA 65, the FSA 85 trimmer has a
number of additional or different features:

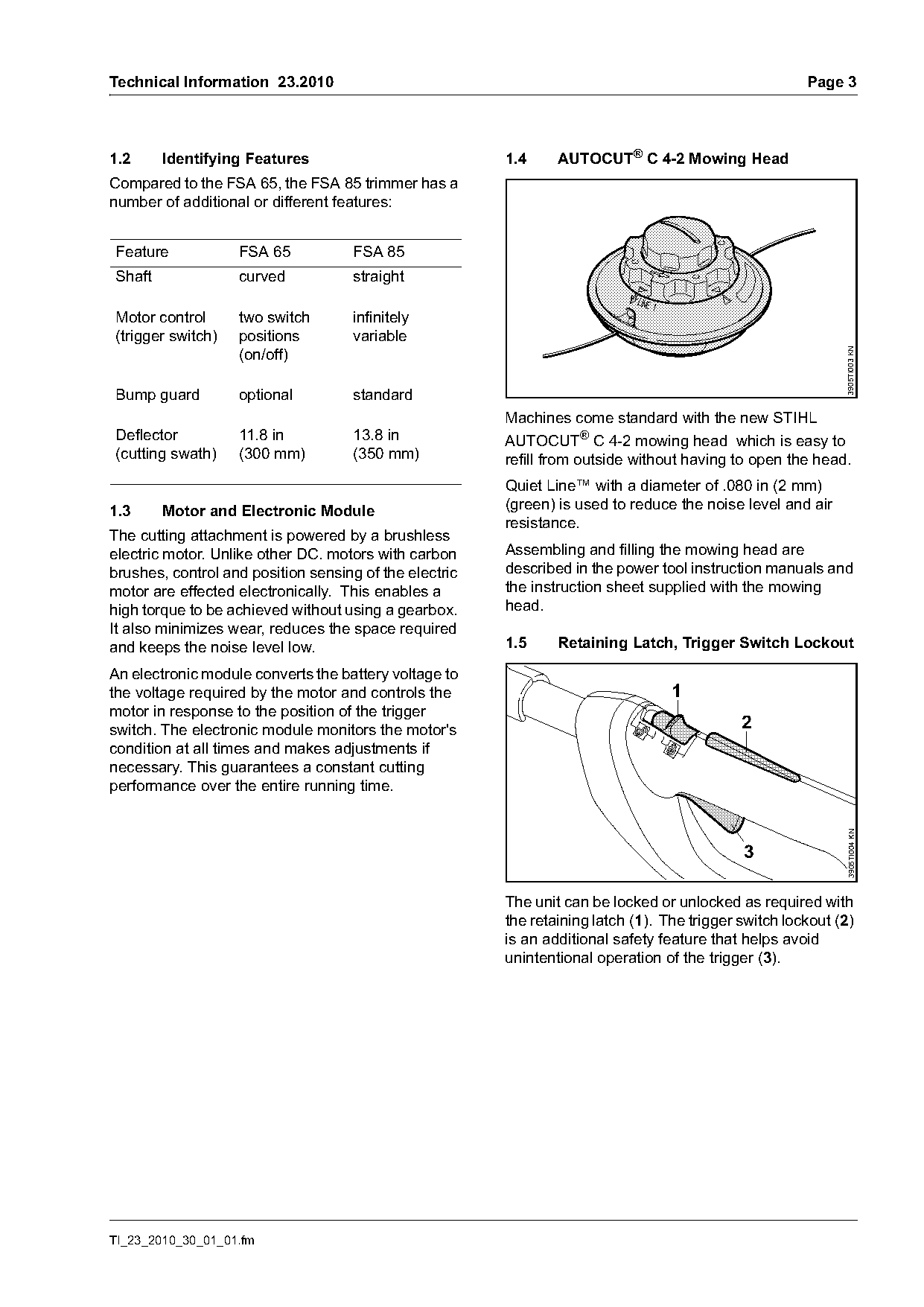

Feature FSA 65 FSA 85
Shaft curved straight
Motor control two switch infinitely
(trigger switch) positions variable
(on/off)
3905TI003 KN
Bump guard optional standard
Machines come standard with the new STIHL
Deflector 11.8 in 13.8 in AUTOCUT® C 4-2 mowing head which is easy to
(cutting swath) (300 mm) (350 mm) refill from outside without having to open the head.
Quiet Line™ with a diameter of .080 in (2 mm)
1.3 Motor and Electronic Module (green) is used to reduce the noise level and air
resistance.
The cutting attachment is powered by a brushless
electric motor. Unlike other DC. motors with carbon Assembling and filling the mowing head are
brushes, control and position sensing of the electric described in the power tool instruction manuals and
motor are effected electronically. This enables a the instruction sheet supplied with the mowing
high torque to be achieved without using a gearbox. head.
It also minimizes wear, reduces the space required
and keeps the noise level low. 1.5 Retaining Latch, Trigger Switch Lockout
An electronic module converts the battery voltage to
the voltage required by the motor and controls the 1
motor in response to the position of the trigger
switch. The electronic module monitors the motor's 2
condition at all times and makes adjustments if
necessary. This guarantees a constant cutting
performance over the entire running time.
3 3905TI004 KN
The unit can be locked or unlocked as required with
the retaining latch (1). The trigger switch lockout (2)
is an additional safety feature that helps avoid
unintentional operation of the trigger (3).
TI_23_2010_30_01_01.fm
)m~ge 4 Technical Information 23.2010

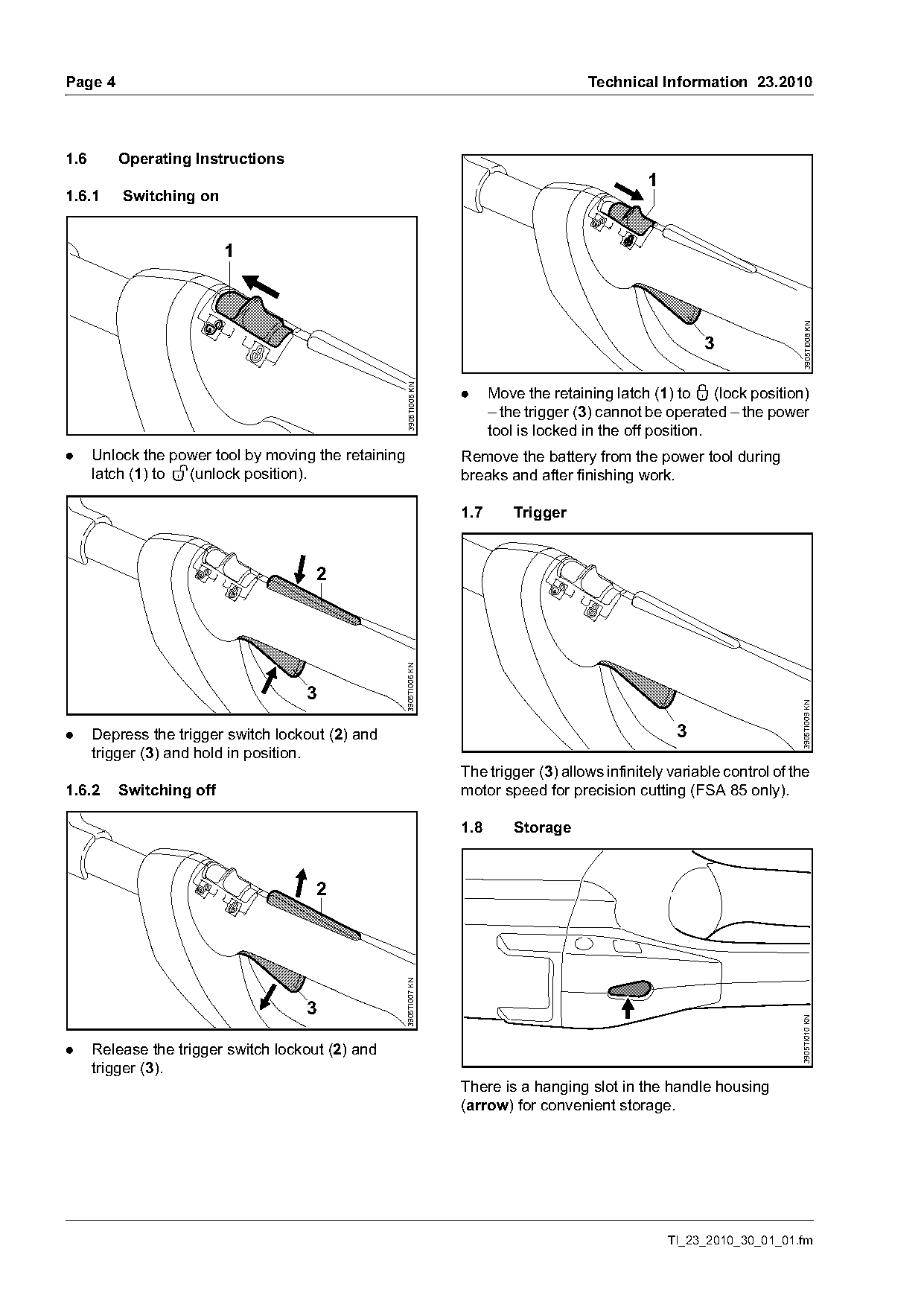

1.6 Operating Instructions
1
1.6.1 Switching on
3905TI008 KN
3
3905TI005 KN
. Move the retaining latch (1) to ƒ (lock position)
– the trigger (3) cannot be operated – the power
tool is locked in the off position.
. Unlock the power tool by moving the retaining Remove the battery from the power tool during
latch (1) to ‚ (unlock position). breaks and after finishing work.
1.7 Trigger
2
3905TI006 KN
3905TI009 KN
. Depress the trigger switch lockout (2) and 3
trigger (3) and hold in position.
The trigger (3) allows infinitely variable control of the
1.6.2 Switching off motor speed for precision cutting (FSA 85 only).
1.8 Storage
2
3905TI007 KN
3
3905TI010 KN
. Release the trigger switch lockout (2) and
trigger (3).
There is a hanging slot in the handle housing
(arrow) for convenient storage.
TI_23_2010_30_01_01.fm Page 3 of 20
Technical Information 23.2010 Page 5

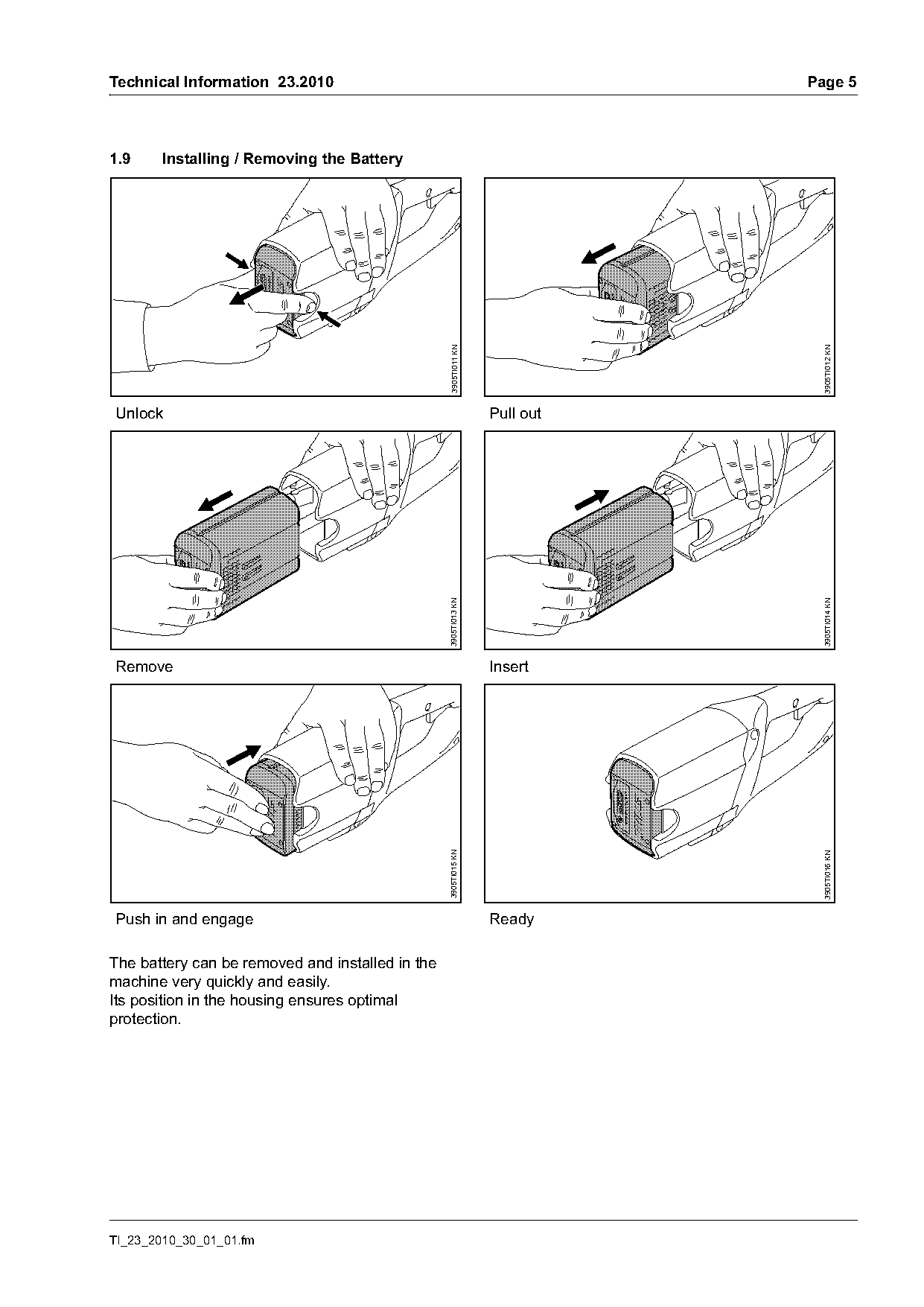

1.9 Installing / Removing the Battery
3905TI011 KN
3905TI012 KN
Unlock Pull out
3905TI013 KN
3905TI014 KN
Remove Insert
3905TI015 KN
3905TI016 KN
Push in and engage Ready
The battery can be removed and installed in the
machine very quickly and easily.
Its position in the housing ensures optimal
protection.
TI_23_2010_30_01_01.fm
)m~ge 6 Technical Information 23.2010

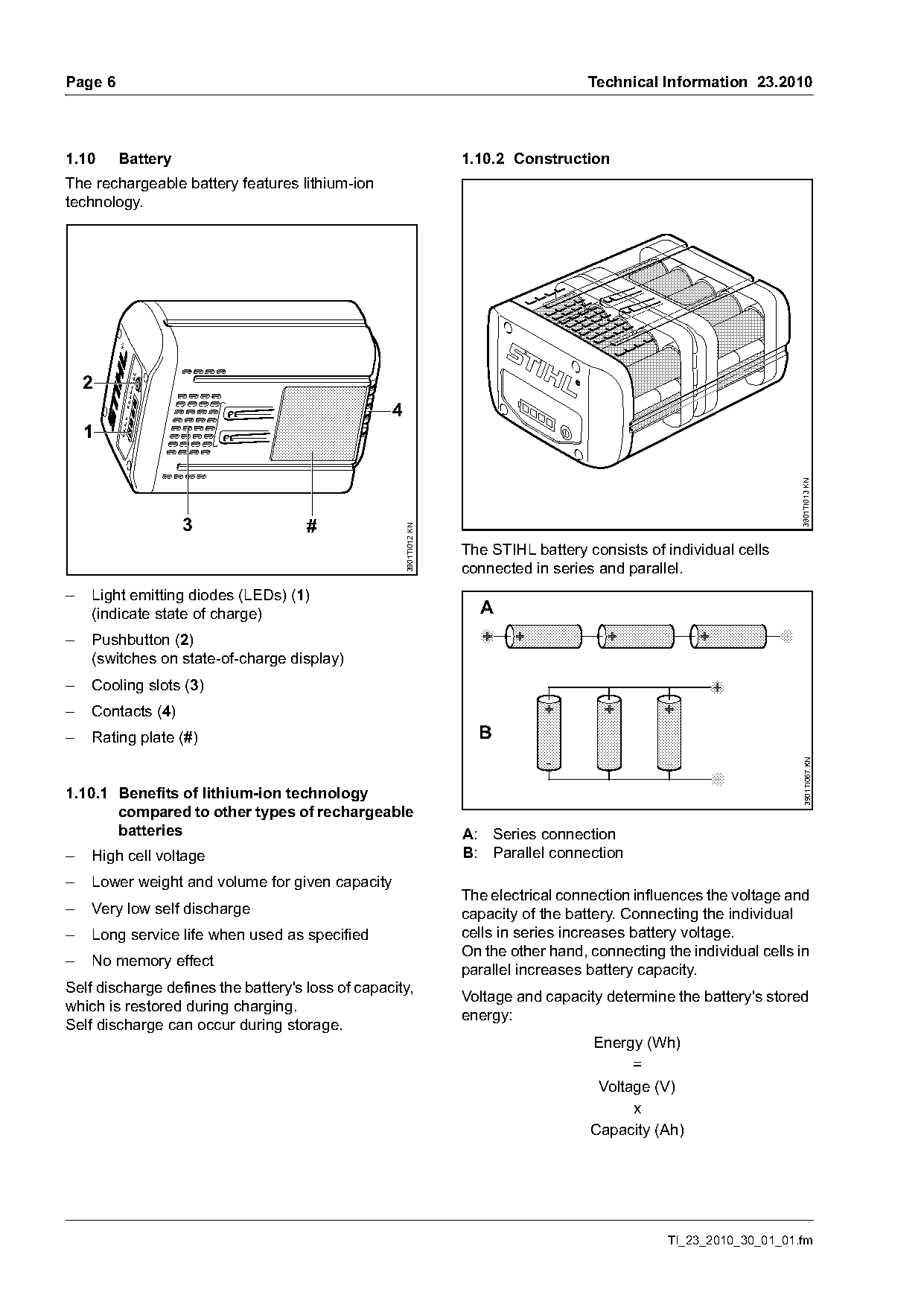

1.10 Battery 1.10.2 Construction
The rechargeable battery features lithium-ion
technology.
2
4
1
3901TI013 KN
3 #
3901TI012 KN
The STIHL battery consists of individual cells
connected in series and parallel.
– Light emitting diodes (LEDs) (1)
(indicate state of charge) A
– Pushbutton (2)
(switches on state-of-charge display)
– Cooling slots (3)
– Contacts (4)
– Rating plate (#) B
3901TI067 KN
1.10.1 Benefits of lithium-ion technology
compared to other types of rechargeable
batteries A: Series connection
– High cell voltage B: Parallel connection
– Lower weight and volume for given capacity
The electrical connection influences the voltage and
– Very low self discharge capacity of the battery. Connecting the individual
– Long service life when used as specified cells in series increases battery voltage.
On the other hand, connecting the individual cells in
– No memory effect
parallel increases battery capacity.
Self discharge defines the battery's loss of capacity,
Voltage and capacity determine the battery's stored
which is restored during charging.
energy:
Self discharge can occur during storage.
Energy (Wh)
=
Voltage (V)
x
Capacity (Ah)
TI_23_2010_30_01_01.fm Page 4 of 20
Technical Information 23.2010 Page 7
The individual cells are protected mechanically in a
robust housing and mounted in a cage for protection
against vibrations.

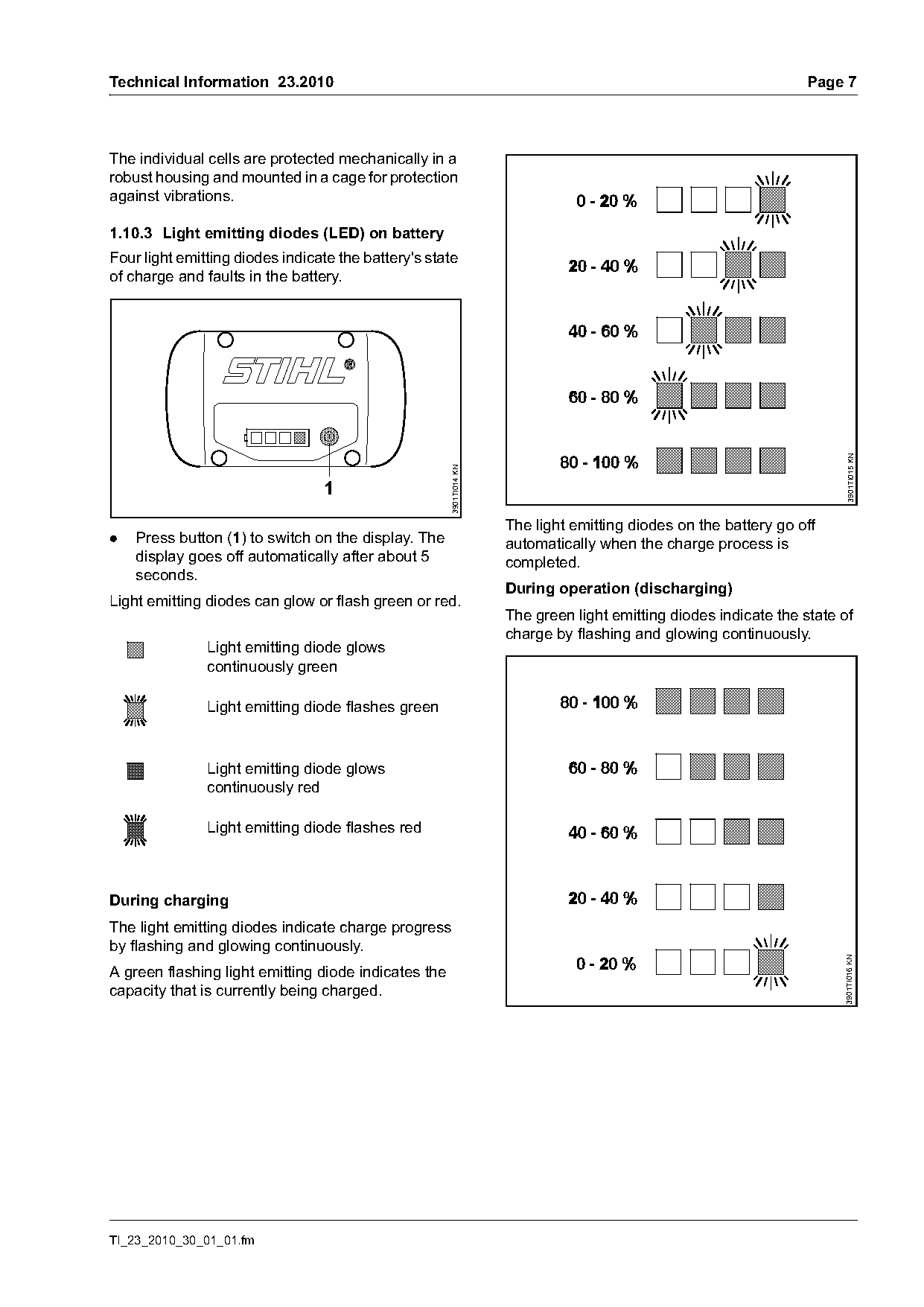

1.10.3 Light emitting diodes (LED) on battery
Four light emitting diodes indicate the battery's state
of charge and faults in the battery.
3901TI015 KN
3901TI014 KN
1
The light emitting diodes on the battery go off
. Press button (1) to switch on the display. The automatically when the charge process is
display goes off automatically after about 5 completed.
seconds.
During operation (discharging)
Light emitting diodes can glow or flash green or red.
The green light emitting diodes indicate the state of
charge by flashing and glowing continuously.
Light emitting diode glows
continuously green
Light emitting diode flashes green
Light emitting diode glows
continuously red
Light emitting diode flashes red
During charging
The light emitting diodes indicate charge progress
by flashing and glowing continuously.
3901TI016 KN
A green flashing light emitting diode indicates the
capacity that is currently being charged.
TI_23_2010_30_01_01.fm
)m~ge 8 Technical Information 23.2010

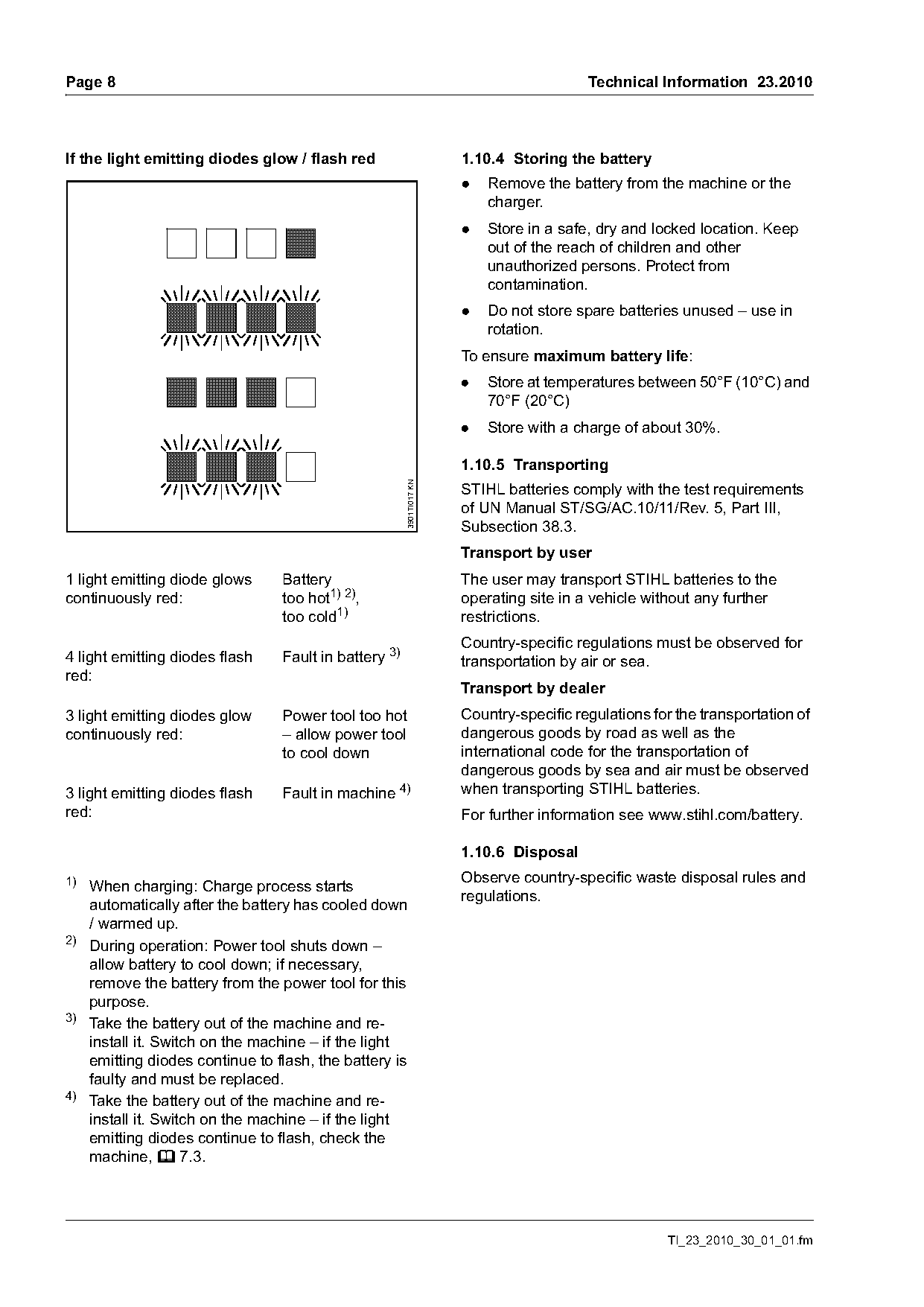

If the light emitting diodes glow / flash red 1.10.4 Storing the battery
. Remove the battery from the machine or the
charger.
. Store in a safe, dry and locked location. Keep
out of the reach of children and other
unauthorized persons. Protect from
contamination.
. Do not store spare batteries unused – use in
rotation.
To ensure maximum battery life:
. Store at temperatures between 50°F (10°C) and
70°F (20°C)
. Store with a charge of about 30%.
1.10.5 Transporting
3901TI017 KN
STIHL batteries comply with the test requirements
of UN Manual ST/SG/AC.10/11/Rev. 5, Part III,
Subsection 38.3.
Transport by user
1 light emitting diode glows Battery The user may transport STIHL batteries to the
continuously red: too hot1) 2), operating site in a vehicle without any further
too cold1) restrictions.
Country-specific regulations must be observed for
4 light emitting diodes flash Fault in battery 3) transportation by air or sea.
red:
Transport by dealer
3 light emitting diodes glow Power tool too hot Country-specific regulations for the transportation of
continuously red: – allow power tool dangerous goods by road as well as the
to cool down international code for the transportation of
dangerous goods by sea and air must be observed
3 light emitting diodes flash Fault in machine 4) when transporting STIHL batteries.
red: For further information see www.stihl.com/battery.
1.10.6 Disposal
1) Observe country-specific waste disposal rules and
When charging: Charge process starts
regulations.
automatically after the battery has cooled down
/ warmed up.
2) During operation: Power tool shuts down –
allow battery to cool down; if necessary,
remove the battery from the power tool for this
purpose.
3)
Take the battery out of the machine and re-
install it. Switch on the machine – if the light
emitting diodes continue to flash, the battery is
faulty and must be replaced.
4)
Take the battery out of the machine and re-
install it. Switch on the machine – if the light
emitting diodes continue to flash, check the
machine, b 7.3.
TI_23_2010_30_01_01.fm Page 5 of 20
Technical Information 23.2010 Page 9

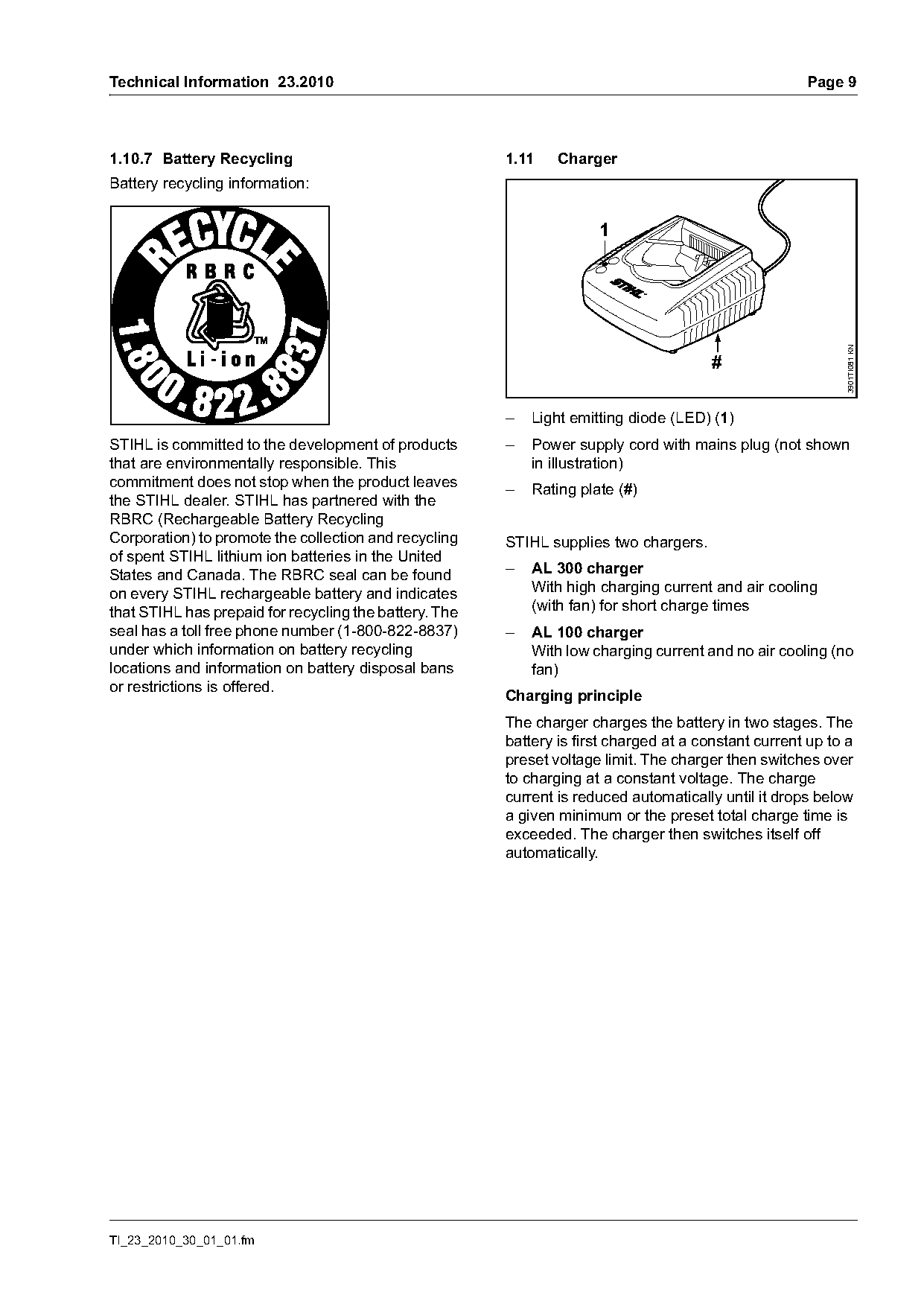

1.10.7 Battery Recycling 1.11 Charger
Battery recycling information:
3901TI081 KN
#
– Light emitting diode (LED) (1)
STIHL is committed to the development of products – Power supply cord with mains plug (not shown
that are environmentally responsible. This in illustration)
commitment does not stop when the product leaves – Rating plate (#)
the STIHL dealer. STIHL has partnered with the
RBRC (Rechargeable Battery Recycling
Corporation) to promote the collection and recycling STIHL supplies two chargers.
of spent STIHL lithium ion batteries in the United
States and Canada. The RBRC seal can be found – AL 300 charger
on every STIHL rechargeable battery and indicates With high charging current and air cooling
that STIHL has prepaid for recycling the battery. The (with fan) for short charge times
seal has a toll free phone number (1-800-822-8837) – AL 100 charger
under which information on battery recycling With low charging current and no air cooling (no
locations and information on battery disposal bans fan)
or restrictions is offered.
Charging principle
The charger charges the battery in two stages. The
battery is first charged at a constant current up to a
preset voltage limit. The charger then switches over
to charging at a constant voltage. The charge
current is reduced automatically until it drops below
a given minimum or the preset total charge time is
exceeded. The charger then switches itself off
automatically.
TI_23_2010_30_01_01.fm
)m~ge 10 Technical Information 23.2010

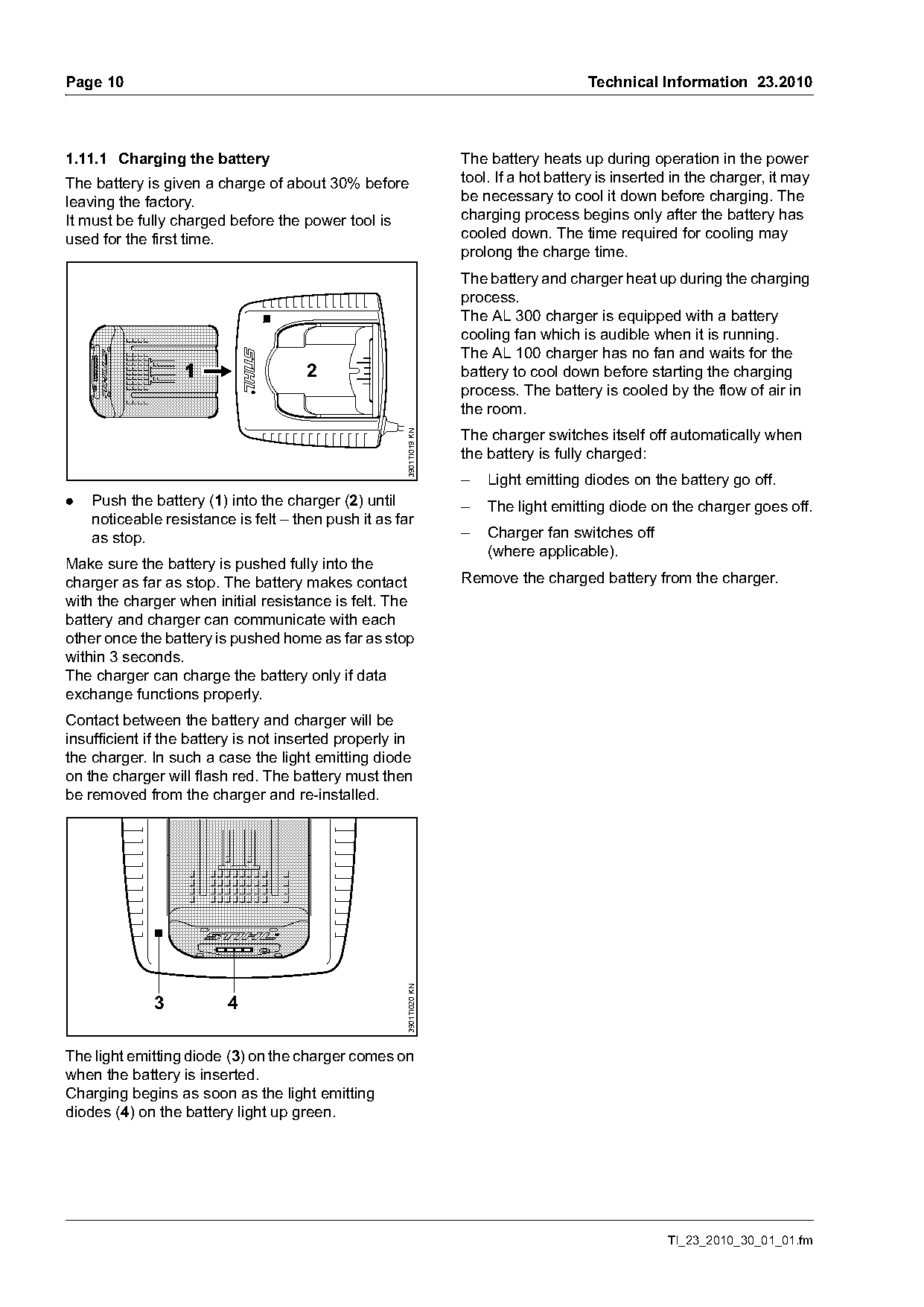

1.11.1 Charging the battery The battery heats up during operation in the power
The battery is given a charge of about 30% before tool. If a hot battery is inserted in the charger, it may
leaving the factory. be necessary to cool it down before charging. The
It must be fully charged before the power tool is charging process begins only after the battery has
used for the first time. cooled down. The time required for cooling may
prolong the charge time.
The battery and charger heat up during the charging
process.
The AL 300 charger is equipped with a battery
cooling fan which is audible when it is running.
The AL 100 charger has no fan and waits for the
2 battery to cool down before starting the charging
process. The battery is cooled by the flow of air in
the room.
The charger switches itself off automatically when
3901TI019 KN
the battery is fully charged:
– Light emitting diodes on the battery go off.
. Push the battery (1) into the charger (2) until – The light emitting diode on the charger goes off.
noticeable resistance is felt – then push it as far
as stop. – Charger fan switches off
(where applicable).
Make sure the battery is pushed fully into the
charger as far as stop. The battery makes contact Remove the charged battery from the charger.
with the charger when initial resistance is felt. The
battery and charger can communicate with each
other once the battery is pushed home as far as stop
within 3 seconds.
The charger can charge the battery only if data
exchange functions properly.
Contact between the battery and charger will be
insufficient if the battery is not inserted properly in
the charger. In such a case the light emitting diode
on the charger will flash red. The battery must then
be removed from the charger and re-installed.
3901TI020 KN
3 4
The light emitting diode (3) on the charger comes on
when the battery is inserted.
Charging begins as soon as the light emitting
diodes (4) on the battery light up green.
TI_23_2010_30_01_01.fm Page 6 of 20
Technical Information 23.2010 Page 11

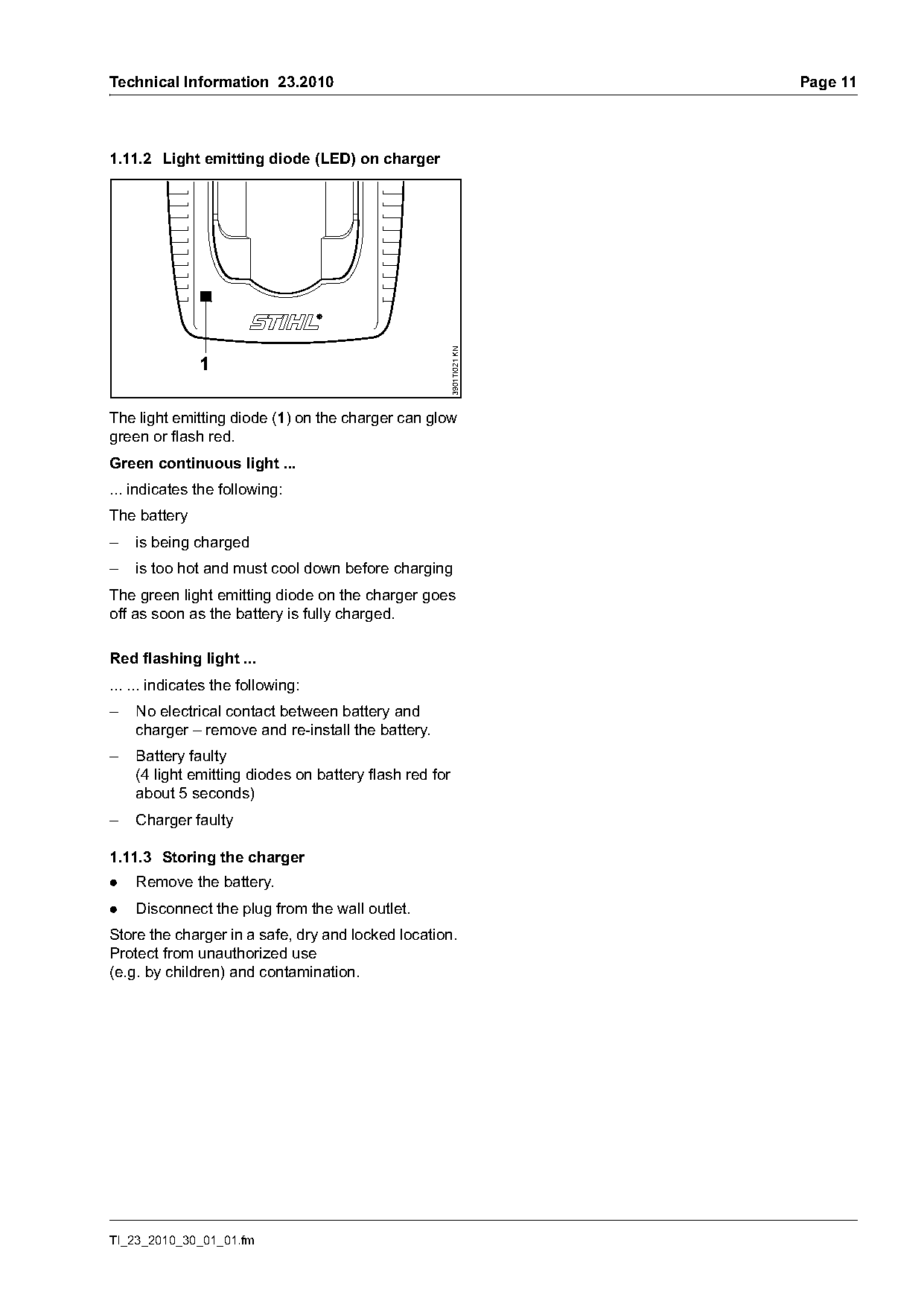

1.11.2 Light emitting diode (LED) on charger
3901TI021 KN
1
The light emitting diode (1) on the charger can glow
green or flash red.
Green continuous light ...
... indicates the following:
The battery
– is being charged
– is too hot and must cool down before charging
The green light emitting diode on the charger goes
off as soon as the battery is fully charged.
Red flashing light ...
... ... indicates the following:
– No electrical contact between battery and
charger – remove and re-install the battery.
– Battery faulty
(4 light emitting diodes on battery flash red for
about 5 seconds)
– Charger faulty
1.11.3 Storing the charger
. Remove the battery.
. Disconnect the plug from the wall outlet.
Store the charger in a safe, dry and locked location.
Protect from unauthorized use
(e.g. by children) and contamination.
TI_23_2010_30_01_01.fm
)m~ge 12 Technical Information 23.2010

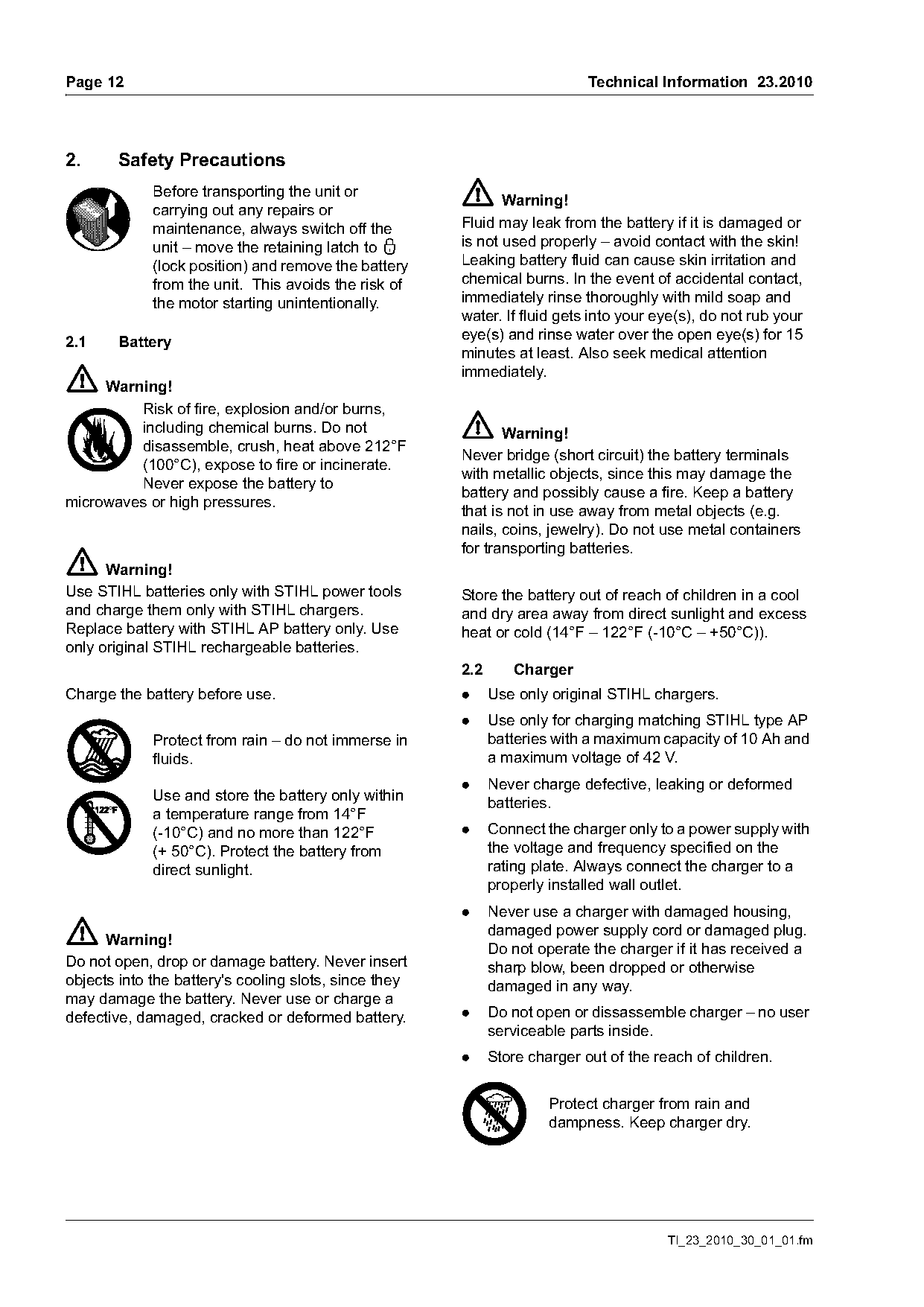

2. Safety Precautions
Before transporting the unit or
Warning!
carrying out any repairs or
maintenance, always switch off the Fluid may leak from the battery if it is damaged or
unit – move the retaining latch to ƒ is not used properly – avoid contact with the skin!
(lock position) and remove the battery Leaking battery fluid can cause skin irritation and
from the unit. This avoids the risk of chemical burns. In the event of accidental contact,
the motor starting unintentionally. immediately rinse thoroughly with mild soap and
water. If fluid gets into your eye(s), do not rub your
eye(s) and rinse water over the open eye(s) for 15
2.1 Battery
minutes at least. Also seek medical attention
immediately.
Warning!
Risk of fire, explosion and/or burns,
including chemical burns. Do not Warning!
disassemble, crush, heat above 212°F
Never bridge (short circuit) the battery terminals
(100°C), expose to fire or incinerate.
with metallic objects, since this may damage the
Never expose the battery to
battery and possibly cause a fire. Keep a battery
microwaves or high pressures.
that is not in use away from metal objects (e.g.
nails, coins, jewelry). Do not use metal containers
for transporting batteries.
Warning!
Use STIHL batteries only with STIHL power tools Store the battery out of reach of children in a cool
and charge them only with STIHL chargers. and dry area away from direct sunlight and excess
Replace battery with STIHL AP battery only. Use heat or cold (14°F – 122°F (-10°C – +50°C)).
only original STIHL rechargeable batteries.
2.2 Charger
Charge the battery before use. . Use only original STIHL chargers.
. Use only for charging matching STIHL type AP
Protect from rain – do not immerse in batteries with a maximum capacity of 10 Ah and
fluids. a maximum voltage of 42 V.
. Never charge defective, leaking or deformed
Use and store the battery only within batteries.
a temperature range from 14°F
(-10°C) and no more than 122°F . Connect the charger only to a power supply with
(+ 50°C). Protect the battery from the voltage and frequency specified on the
direct sunlight. rating plate. Always connect the charger to a
properly installed wall outlet.
. Never use a charger with damaged housing,
damaged power supply cord or damaged plug.
Warning!
Do not operate the charger if it has received a
Do not open, drop or damage battery. Never insert sharp blow, been dropped or otherwise
objects into the battery's cooling slots, since they damaged in any way.
may damage the battery. Never use or charge a
defective, damaged, cracked or deformed battery. . Do not open or dissassemble charger – no user
serviceable parts inside.
. Store charger out of the reach of children.
Protect charger from rain and
dampness. Keep charger dry.
TI_23_2010_30_01_01.fm Page 7 of 20
Technical Information 23.2010 Page 13

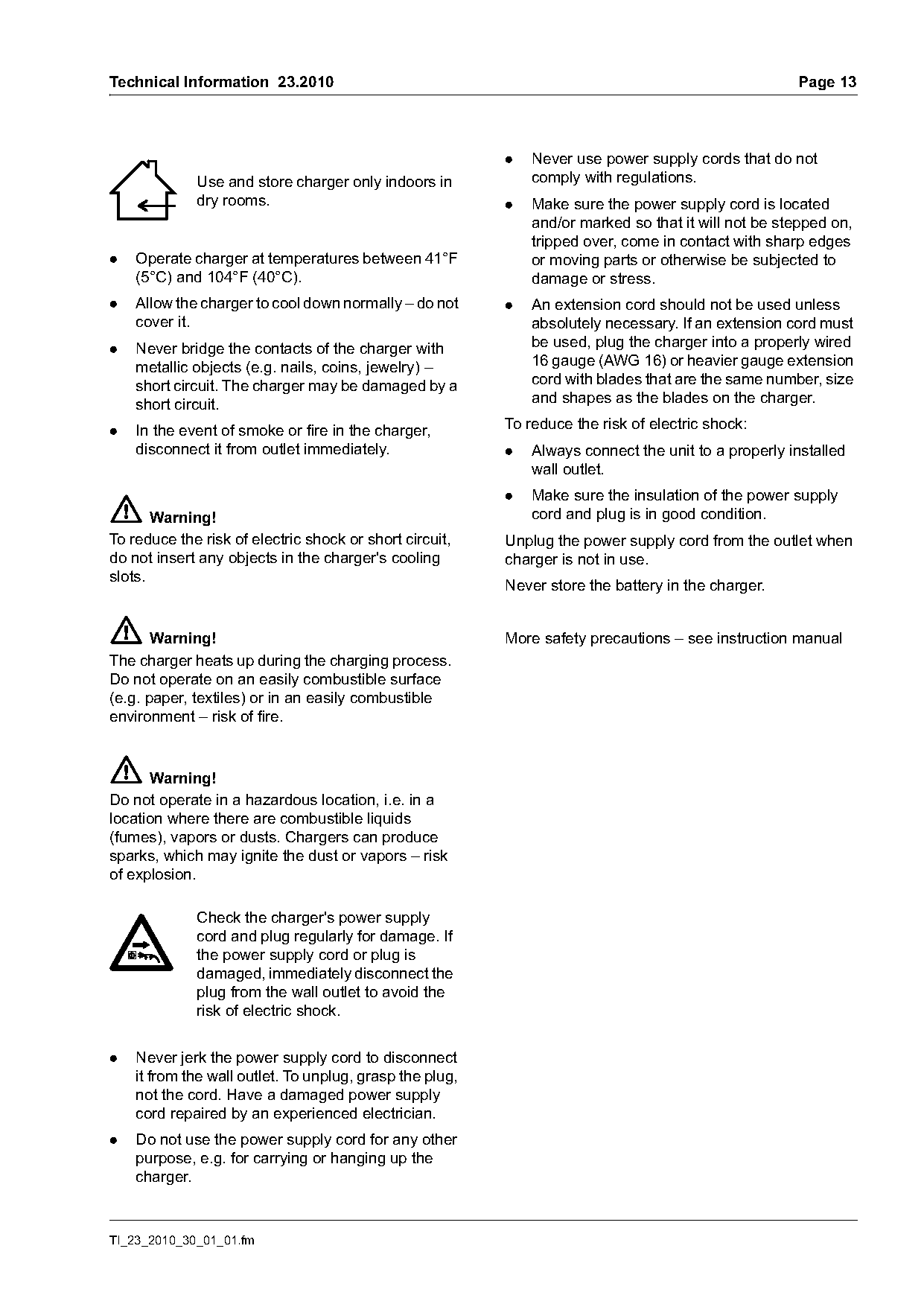

. Never use power supply cords that do not
Use and store charger only indoors in comply with regulations.
dry rooms. . Make sure the power supply cord is located
and/or marked so that it will not be stepped on,
tripped over, come in contact with sharp edges
. Operate charger at temperatures between 41°F or moving parts or otherwise be subjected to
(5°C) and 104°F (40°C). damage or stress.
. Allow the charger to cool down normally – do not . An extension cord should not be used unless
cover it. absolutely necessary. If an extension cord must
. Never bridge the contacts of the charger with be used, plug the charger into a properly wired
metallic objects (e.g. nails, coins, jewelry) – 16 gauge (AWG 16) or heavier gauge extension
short circuit. The charger may be damaged by a cord with blades that are the same number, size
short circuit. and shapes as the blades on the charger.
. In the event of smoke or fire in the charger, To reduce the risk of electric shock:
disconnect it from outlet immediately. . Always connect the unit to a properly installed
wall outlet.
. Make sure the insulation of the power supply
Warning! cord and plug is in good condition.
To reduce the risk of electric shock or short circuit, Unplug the power supply cord from the outlet when
do not insert any objects in the charger's cooling charger is not in use.
slots.
Never store the battery in the charger.
Warning! More safety precautions – see instruction manual
The charger heats up during the charging process.
Do not operate on an easily combustible surface
(e.g. paper, textiles) or in an easily combustible
environment – risk of fire.
Warning!
Do not operate in a hazardous location, i.e. in a
location where there are combustible liquids
(fumes), vapors or dusts. Chargers can produce
sparks, which may ignite the dust or vapors – risk
of explosion.
Check the charger's power supply
cord and plug regularly for damage. If
the power supply cord or plug is
damaged, immediately disconnect the
plug from the wall outlet to avoid the
risk of electric shock.
. Never jerk the power supply cord to disconnect
it from the wall outlet. To unplug, grasp the plug,
not the cord. Have a damaged power supply
cord repaired by an experienced electrician.
. Do not use the power supply cord for any other
purpose, e.g. for carrying or hanging up the
charger.
TI_23_2010_30_01_01.fm
)m~ge 14 Technical Information 23.2010

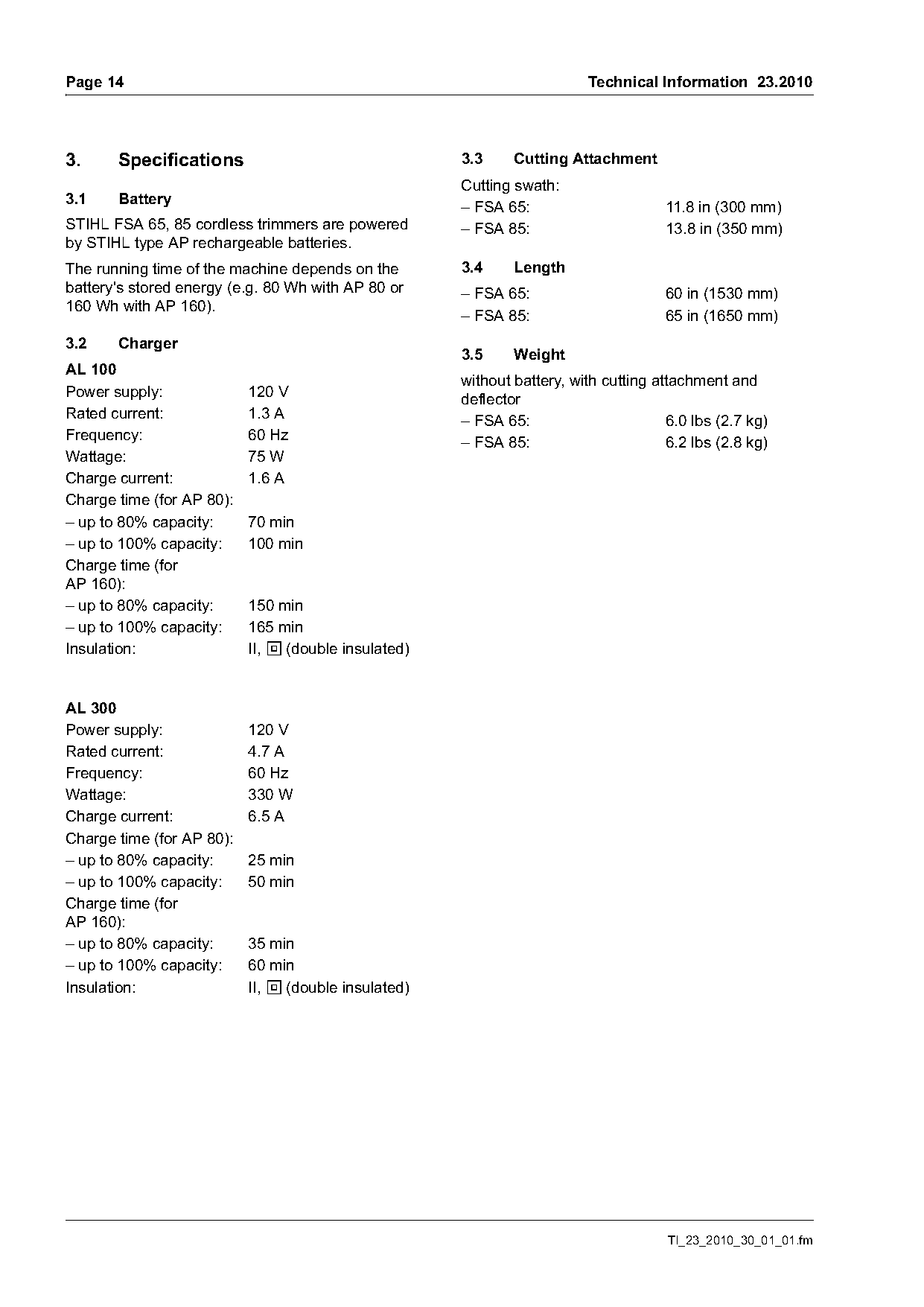

3. Specifications 3.3 Cutting Attachment
Cutting swath:
3.1 Battery
– FSA 65: 11.8 in (300 mm)
STIHL FSA 65, 85 cordless trimmers are powered – FSA 85: 13.8 in (350 mm)
by STIHL type AP rechargeable batteries.
The running time of the machine depends on the 3.4 Length
battery's stored energy (e.g. 80 Wh with AP 80 or – FSA 65: 60 in (1530 mm)
160 Wh with AP 160).
– FSA 85: 65 in (1650 mm)
3.2 Charger
3.5 Weight
AL 100
without battery, with cutting attachment and
Power supply: 120 V
deflector
Rated current: 1.3 A
– FSA 65: 6.0 lbs (2.7 kg)
Frequency: 60 Hz
– FSA 85: 6.2 lbs (2.8 kg)
Wattage: 75 W
Charge current: 1.6 A
Charge time (for AP 80):
– up to 80% capacity: 70 min
– up to 100% capacity: 100 min
Charge time (for
AP 160):
– up to 80% capacity: 150 min
– up to 100% capacity: 165 min
Insulation: II, E (double insulated)
AL 300
Power supply: 120 V
Rated current: 4.7 A
Frequency: 60 Hz
Wattage: 330 W
Charge current: 6.5 A
Charge time (for AP 80):
– up to 80% capacity: 25 min
– up to 100% capacity: 50 min
Charge time (for
AP 160):
– up to 80% capacity: 35 min
– up to 100% capacity: 60 min
Insulation: II, E (double insulated)
TI_23_2010_30_01_01.fm Page 8 of 20
Technical Information 23.2010 Page 15
4. Special Accessories
Description Part No. Application
STIHL battery:
– AP 80: 4850 400 6503
– AP 160: 4850 400 6505
STIHL charger: Charging the battery
– AL 100: 4850 430 2502
– AL 300: 4850 430 5502
STIHL battery belt 4850 490 0100 Reduces machine weight held by user
Bump guard (FSA 65) 4852 713 3400 Mowing next to solid obstacles
5. Servicing Accessories
The battery is tested with the ADG 1 battery
analyzer.
The power tool is tested with the ADG 2 digital
analyzer.
Item Description Part No. Application
1 Battery analyzer 4850 840 0102 Testing the battery
ADG 1
2 Digital analyzer 4850 840 0202 Testing cordless power tool
ADG 2
TI_23_2010_30_01_01.fm
)m~ge 16 Technical Information 23.2010

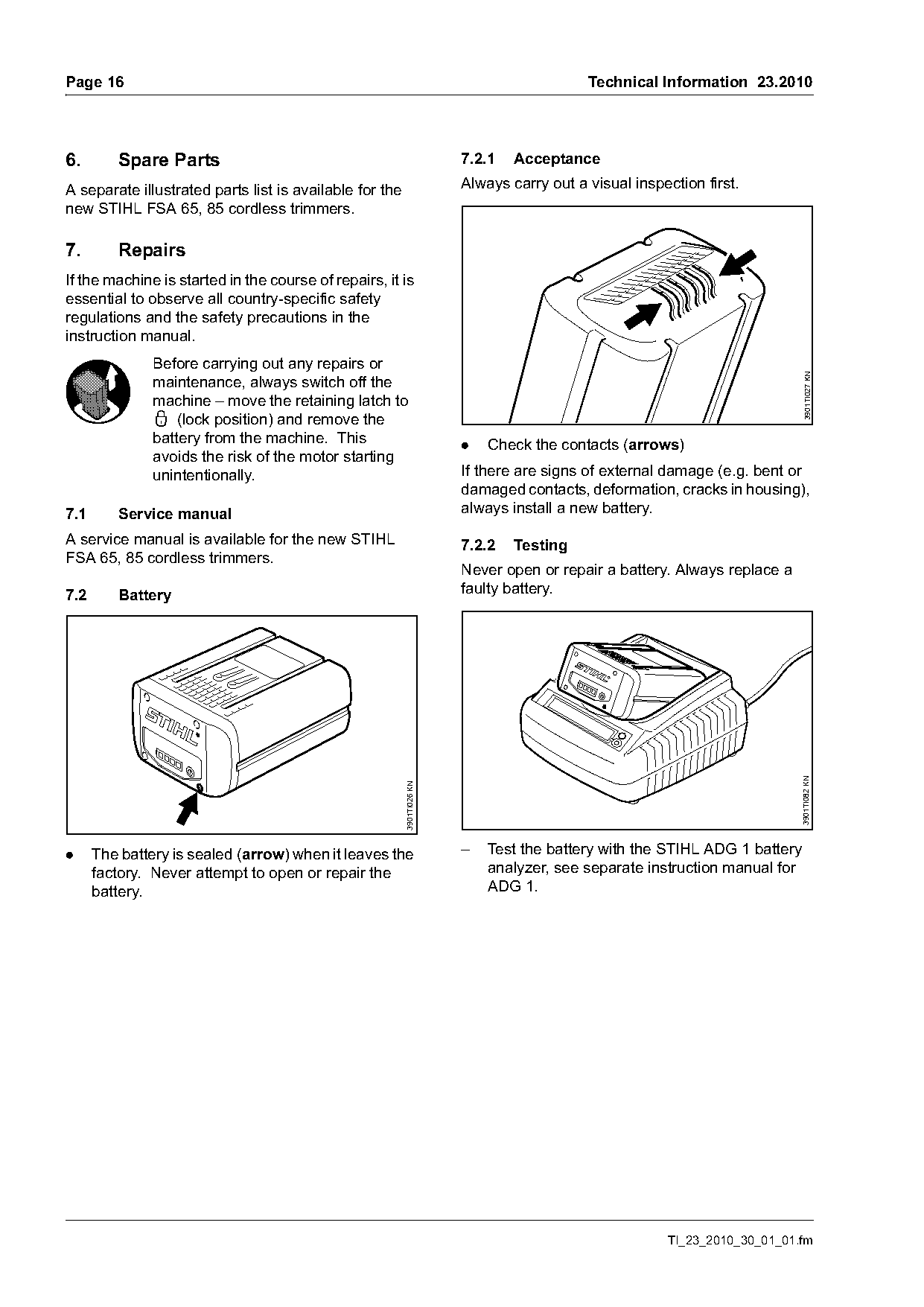

6. Spare Parts 7.2.1 Acceptance
A separate illustrated parts list is available for the Always carry out a visual inspection first.
new STIHL FSA 65, 85 cordless trimmers.
7. Repairs
If the machine is started in the course of repairs, it is
essential to observe all country-specific safety
regulations and the safety precautions in the
instruction manual.
Before carrying out any repairs or
3901TI027 KN
maintenance, always switch off the
machine – move the retaining latch to
ƒ (lock position) and remove the
battery from the machine. This . Check the contacts (arrows)
avoids the risk of the motor starting
unintentionally. If there are signs of external damage (e.g. bent or
damaged contacts, deformation, cracks in housing),
7.1 Service manual always install a new battery.
A service manual is available for the new STIHL 7.2.2 Testing
FSA 65, 85 cordless trimmers.
Never open or repair a battery. Always replace a
7.2 Battery faulty battery.
3901TI082 KN
3901TI026 KN
. The battery is sealed (arrow) when it leaves the – Test the battery with the STIHL ADG 1 battery
factory. Never attempt to open or repair the analyzer, see separate instruction manual for
battery. ADG 1.
TI_23_2010_30_01_01.fm Page 9 of 20
Technical Information 23.2010 Page 17

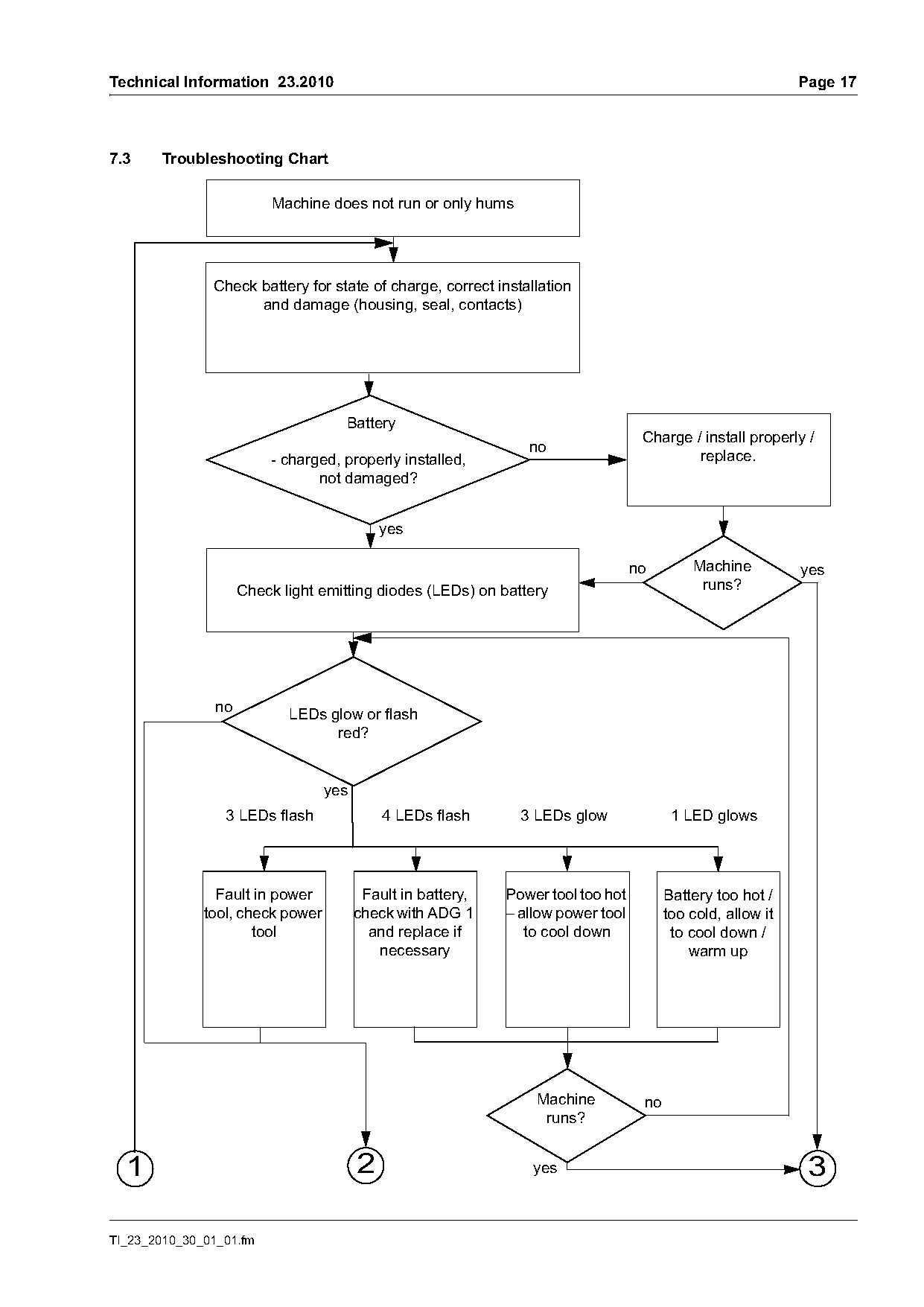

7.3 Troubleshooting Chart
Machine does not run or only hums
Check battery for state of charge, correct installation
and damage (housing, seal, contacts)
Battery
Charge / install properly /
- charged, properly installed, replace.
not damaged?
yes
no Machine yes
Check light emitting diodes (LEDs) on battery runs?
no LEDs glow or flash
red?
yes
3 LEDs flash 4 LEDs flash 3 LEDs glow 1 LED glows
Fault in power Fault in battery, Power tool too hot Battery too hot /
tool, check power check with ADG 1 – allow power tool too cold, allow it
tool and replace if to cool down to cool down /
necessary warm up
Machine no
runs?
1 2 yes 3
TI_23_2010_30_01_01.fm
)m~ge 18 Technical Information 23.2010
1 2 3

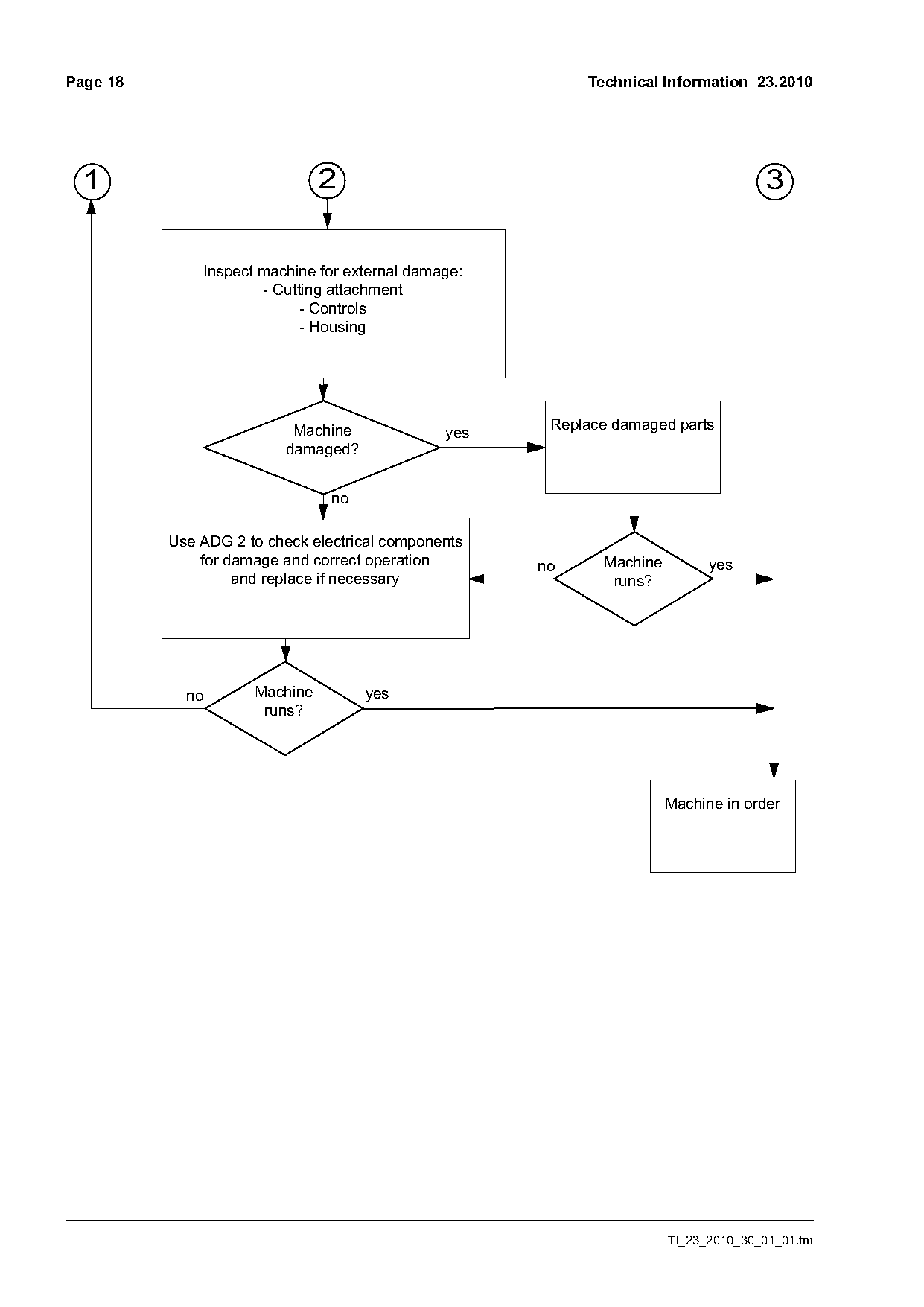

Inspect machine for external damage:
- Cutting attachment
- Controls
- Housing
Machine Replace damaged parts
yes
damaged?
Use ADG 2 to check electrical components
for damage and correct operation no Machine yes
and replace if necessary runs?
no Machine yes
runs?
Machine in order
TI_23_2010_30_01_01.fm Page 10 of 20
Technical Information 23.2010 Page 19

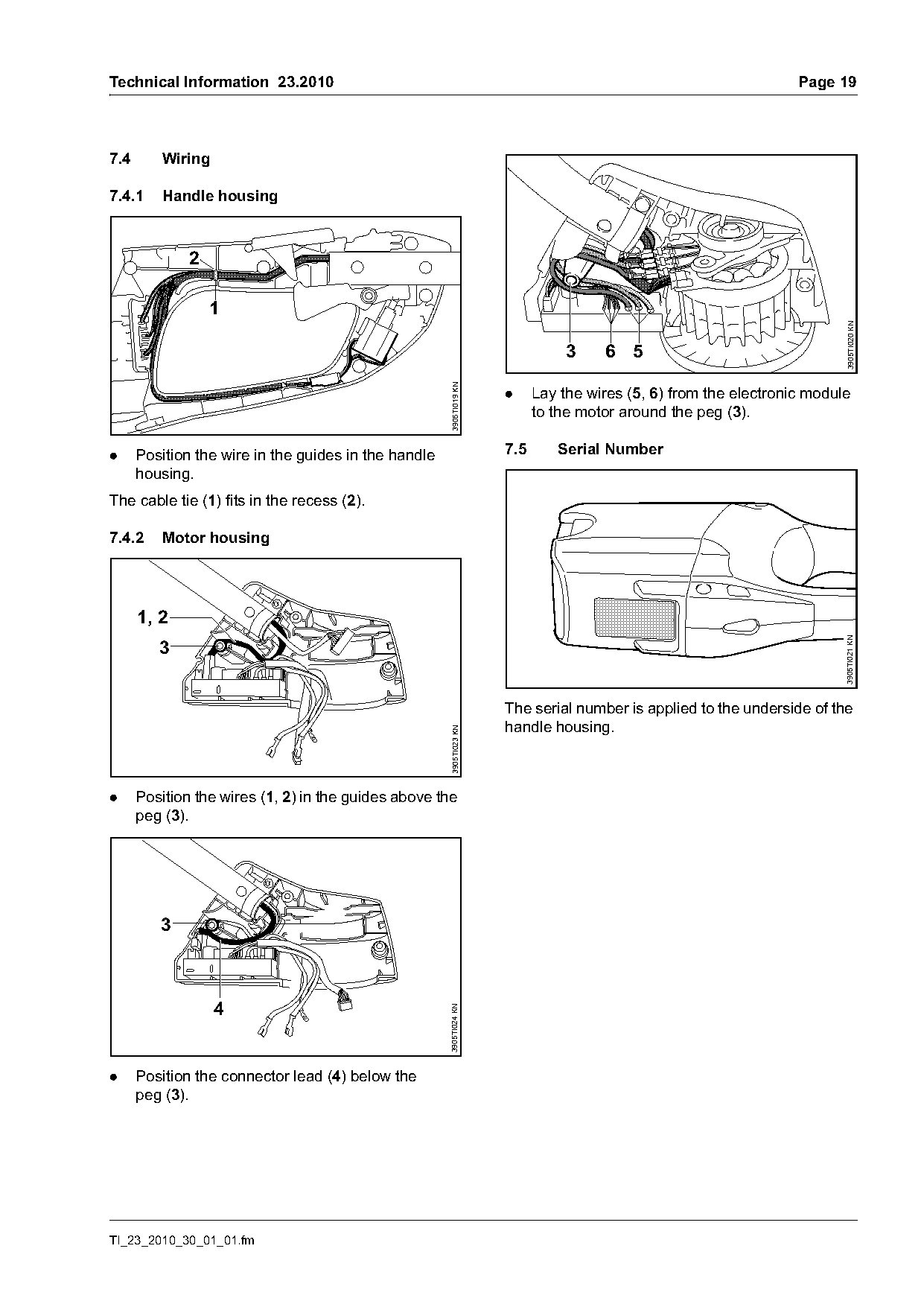

7.4 Wiring
7.4.1 Handle housing
3905TI020 KN
3 6 5
3905TI019 KN
. Lay the wires (5, 6) from the electronic module
to the motor around the peg (3).
. Position the wire in the guides in the handle 7.5 Serial Number
housing.
The cable tie (1) fits in the recess (2).
7.4.2 Motor housing
1, 2
3905TI021 KN
3
The serial number is applied to the underside of the
handle housing.
3905TI023 KN
. Position the wires (1, 2) in the guides above the
peg (3).
4
3905TI024 KN
. Position the connector lead (4) below the
peg (3).
TI_23_2010_30_01_01.fm
)m~ge 20 Technical Information 23.2010

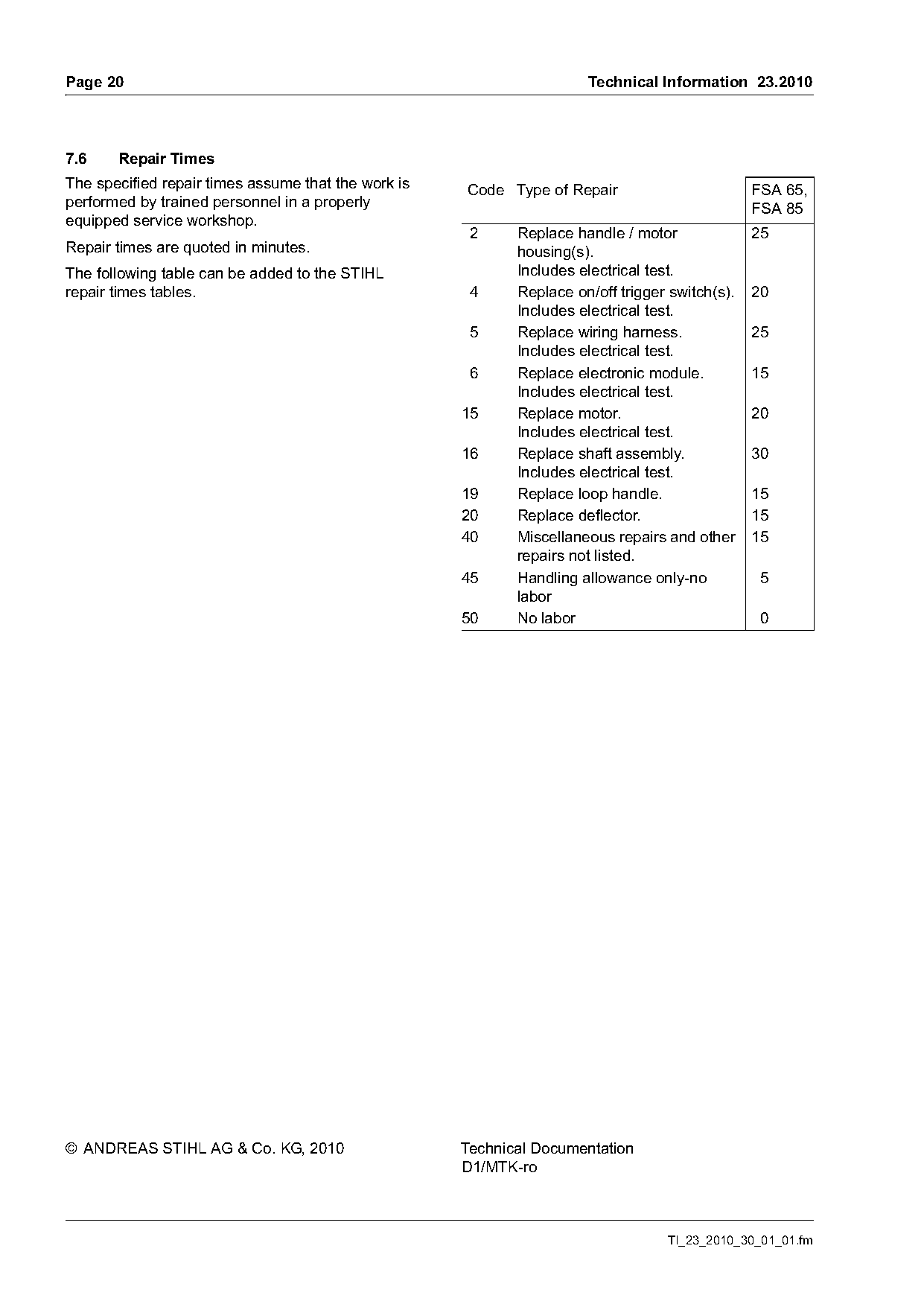

7.6 Repair Times
The specified repair times assume that the work is Code Type of Repair FSA 65,
performed by trained personnel in a properly FSA 85
equipped service workshop.
2 Replace handle / motor 25
Repair times are quoted in minutes. housing(s).
The following table can be added to the STIHL Includes electrical test.
repair times tables. 4 Replace on/off trigger switch(s). 20
Includes electrical test.
5 Replace wiring harness. 25
Includes electrical test.
6 Replace electronic module. 15
Includes electrical test.
15 Replace motor. 20
Includes electrical test.
16 Replace shaft assembly. 30
Includes electrical test.
19 Replace loop handle. 15
20 Replace deflector. 15
40 Miscellaneous repairs and other 15
repairs not listed.
45 Handling allowance only-no 5
labor
50 No labor 0
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-ro
TI_23_2010_30_01_01.fm Page 11 of 20
Page 12 of 20
Page 13 of 20
Page 14 of 20
Page 15 of 20
Page 16 of 20
Page 17 of 20
Page 18 of 20
Page 19 of 20
Page 20 of 20
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
