STIH)

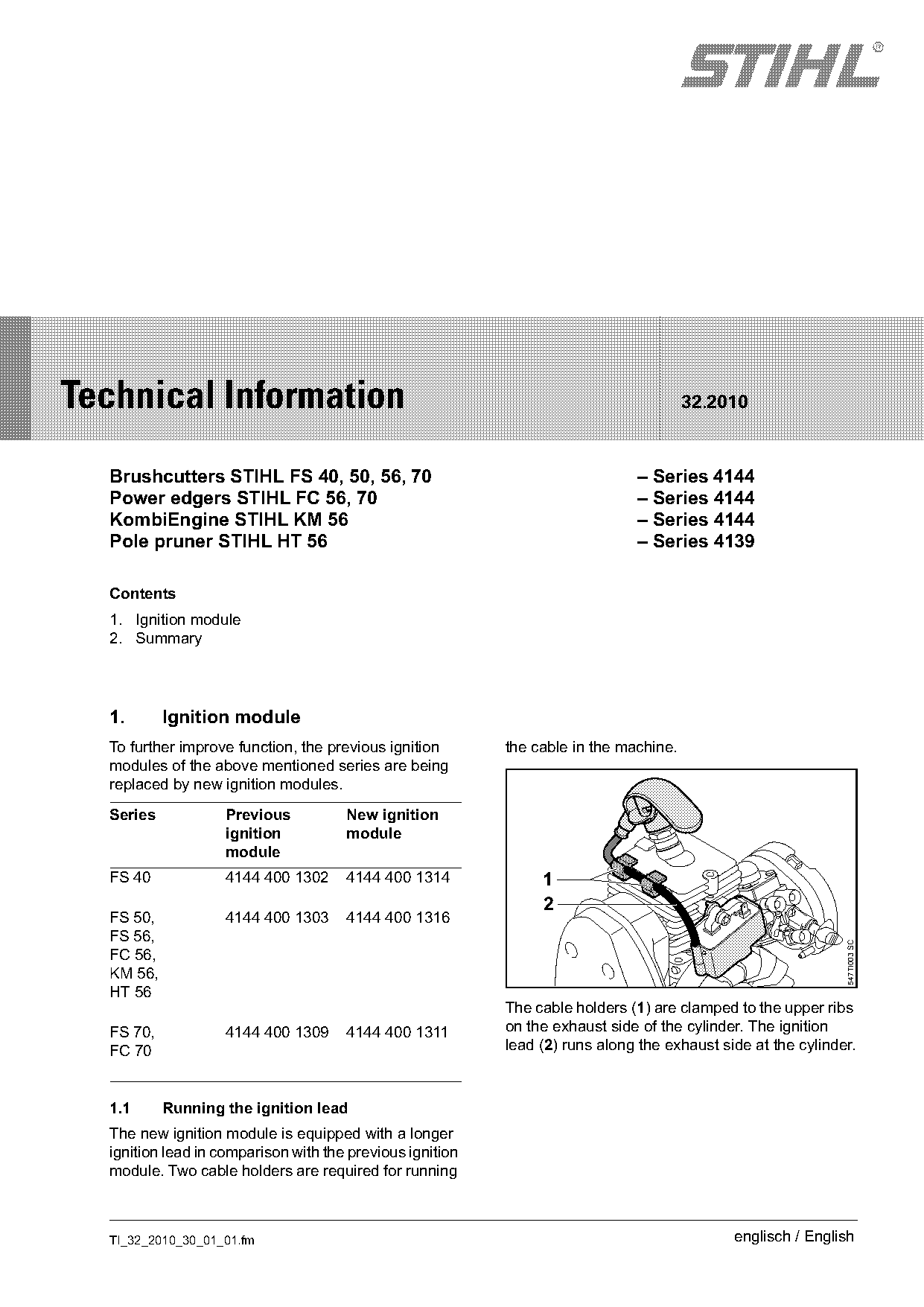

Technical Information 32.2010
Brushcutters STIHL FS 40, 50, 56, 70 – Series 4144
Power edgers STIHL FC 56, 70 – Series 4144
KombiEngine STIHL KM 56 – Series 4144
Pole pruner STIHL HT 56 – Series 4139
Contents
1. Ignition module
2. Summary
1. Ignition module
To further improve function, the previous ignition the cable in the machine.
modules of the above mentioned series are being
replaced by new ignition modules.
Series Previous New ignition
ignition module
module
FS 40 4144 400 1302 4144 400 1314 1
2
FS 50, 4144 400 1303 4144 400 1316
FS 56,
547TI003 SC
FC 56,
KM 56,
HT 56
The cable holders (1) are clamped to the upper ribs
FS 70, 4144 400 1309 4144 400 1311 on the exhaust side of the cylinder. The ignition
FC 70 lead (2) runs along the exhaust side at the cylinder.
1.1 Running the ignition lead
The new ignition module is equipped with a longer
ignition lead in comparison with the previous ignition
module. Two cable holders are required for running
TI_32_2010_30_01_01.fm englisch / English Page 2 of 3

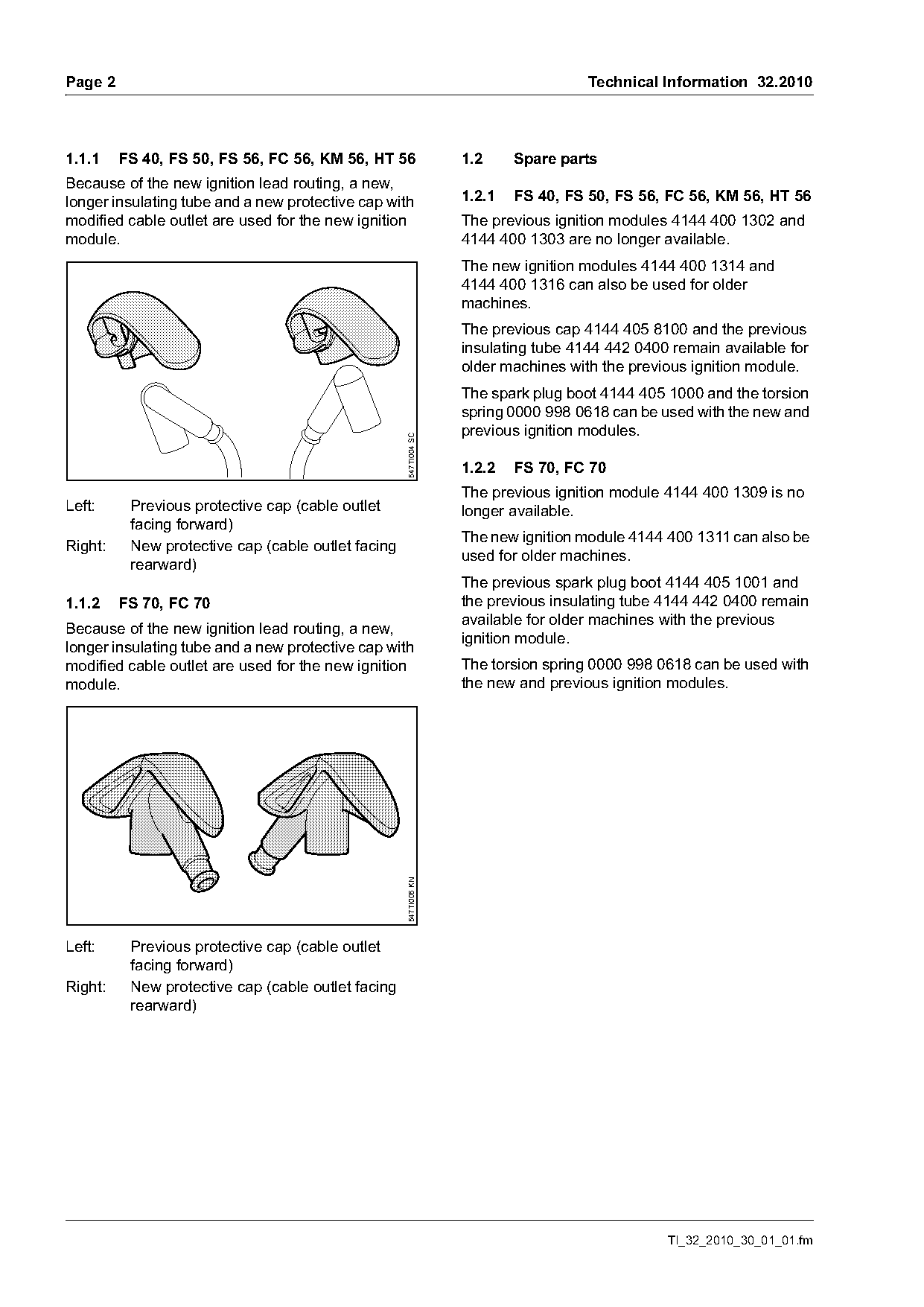

Page 2 Technical Information 32.2010
1.1.1 FS 40, FS 50, FS 56, FC 56, KM 56, HT 56 1.2 Spare parts
Because of the new ignition lead routing, a new,
longer insulating tube and a new protective cap with 1.2.1 FS 40, FS 50, FS 56, FC 56, KM 56, HT 56
modified cable outlet are used for the new ignition The previous ignition modules 4144 400 1302 and
module. 4144 400 1303 are no longer available.
The new ignition modules 4144 400 1314 and
4144 400 1316 can also be used for older
machines.
The previous cap 4144 405 8100 and the previous
insulating tube 4144 442 0400 remain available for
older machines with the previous ignition module.
The spark plug boot 4144 405 1000 and the torsion
spring 0000 998 0618 can be used with the new and
previous ignition modules.
547TI004 SC
1.2.2 FS 70, FC 70
The previous ignition module 4144 400 1309 is no
Left: Previous protective cap (cable outlet longer available.
facing forward)
The new ignition module 4144 400 1311 can also be
Right: New protective cap (cable outlet facing
used for older machines.
rearward)
The previous spark plug boot 4144 405 1001 and
1.1.2 FS 70, FC 70 the previous insulating tube 4144 442 0400 remain
available for older machines with the previous
Because of the new ignition lead routing, a new,
ignition module.
longer insulating tube and a new protective cap with
modified cable outlet are used for the new ignition The torsion spring 0000 998 0618 can be used with
module. the new and previous ignition modules.
547TI005 KN
Left: Previous protective cap (cable outlet
facing forward)
Right: New protective cap (cable outlet facing
rearward)
TI_32_2010_30_01_01.fm Page 3 of 3
Technical Information 32.2010 Page 3

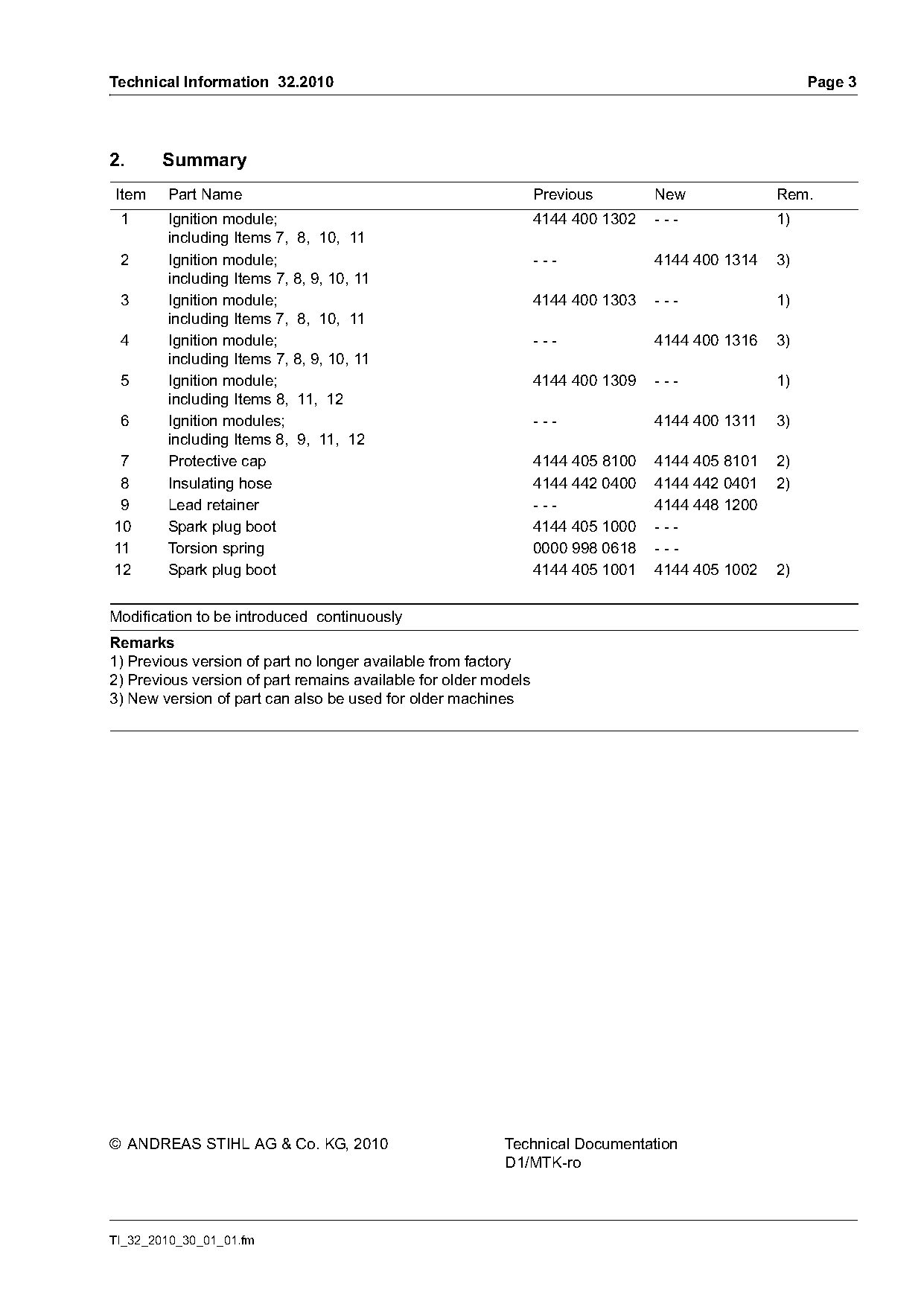

2. Summary
Item Part Name Previous New Rem.
1 Ignition module; 4144 400 1302 --- 1)
including Items 7, 8, 10, 11
2 Ignition module; --- 4144 400 1314 3)
including Items 7, 8, 9, 10, 11
3 Ignition module; 4144 400 1303 --- 1)
including Items 7, 8, 10, 11
4 Ignition module; --- 4144 400 1316 3)
including Items 7, 8, 9, 10, 11
5 Ignition module; 4144 400 1309 --- 1)
including Items 8, 11, 12
6 Ignition modules; --- 4144 400 1311 3)
including Items 8, 9, 11, 12
7 Protective cap 4144 405 8100 4144 405 8101 2)
8 Insulating hose 4144 442 0400 4144 442 0401 2)
9 Lead retainer --- 4144 448 1200
10 Spark plug boot 4144 405 1000 ---
11 Torsion spring 0000 998 0618 ---
12 Spark plug boot 4144 405 1001 4144 405 1002 2)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
3) New version of part can also be used for older machines
