Technical Information · issue 33 of 2010
Shaft brass sleeve for STIHL abrasive wheels with 1" mounting hole
IssueTI 33/2010
Full text

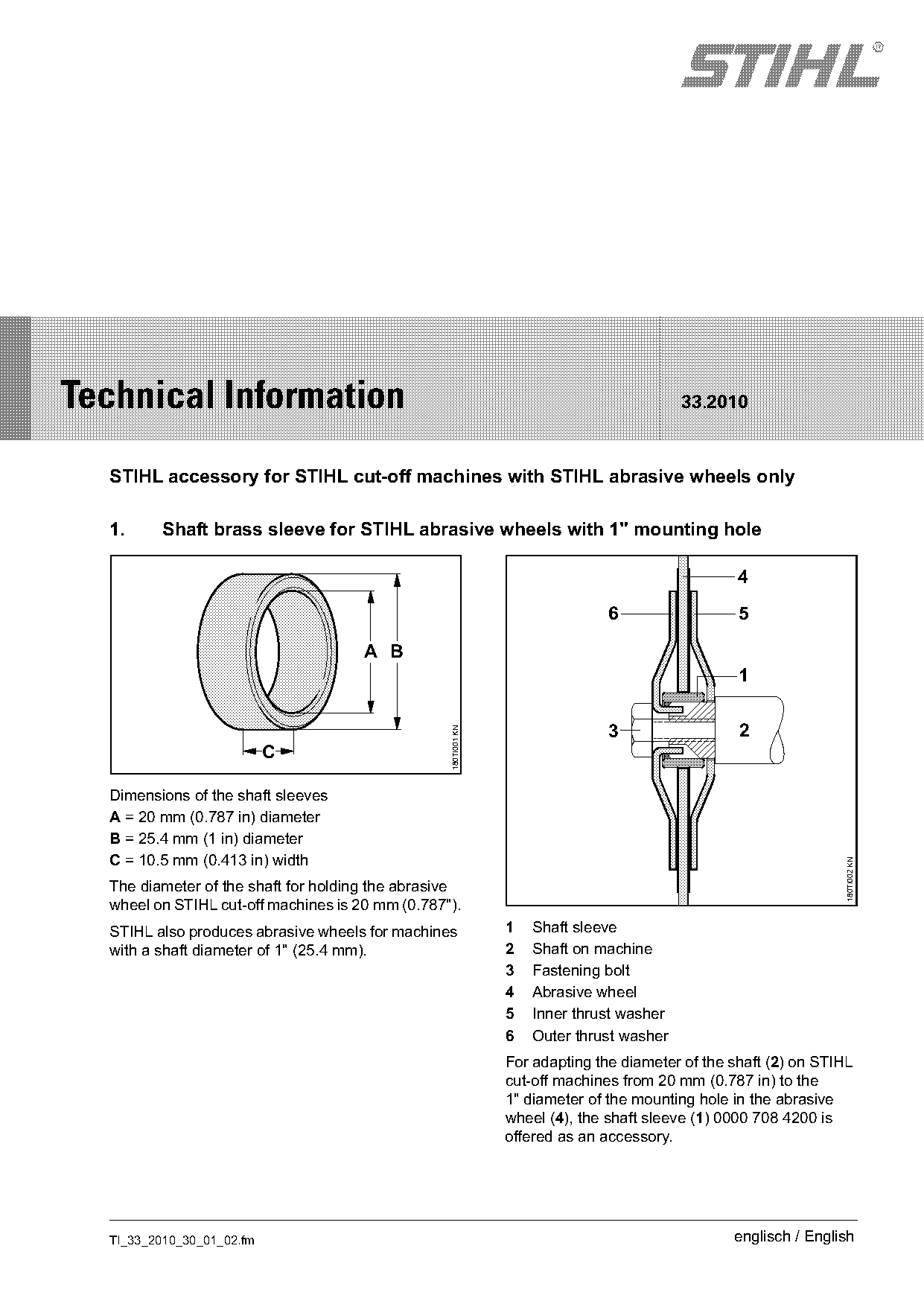

Page 1 of 2
STIH)
Technical Information 33.2010
STIHL accessory for STIHL cut-off machines with STIHL abrasive wheels only
1. Shaft brass sleeve for STIHL abrasive wheels with 1" mounting hole
4
6 5
A B
1
3 2
180TI001 KN
Dimensions of the shaft sleeves
A = 20 mm (0.787 in) diameter
B = 25.4 mm (1 in) diameter
C = 10.5 mm (0.413 in) width
180TI002 KN
The diameter of the shaft for holding the abrasive
wheel on STIHL cut-off machines is 20 mm (0.787").
STIHL also produces abrasive wheels for machines 1 Shaft sleeve
with a shaft diameter of 1" (25.4 mm). 2 Shaft on machine
3 Fastening bolt
4 Abrasive wheel
5 Inner thrust washer
6 Outer thrust washer
For adapting the diameter of the shaft (2) on STIHL
cut-off machines from 20 mm (0.787 in) to the
1" diameter of the mounting hole in the abrasive
wheel (4), the shaft sleeve (1) 0000 708 4200 is
offered as an accessory.
TI_33_2010_30_01_02.fm englisch / English

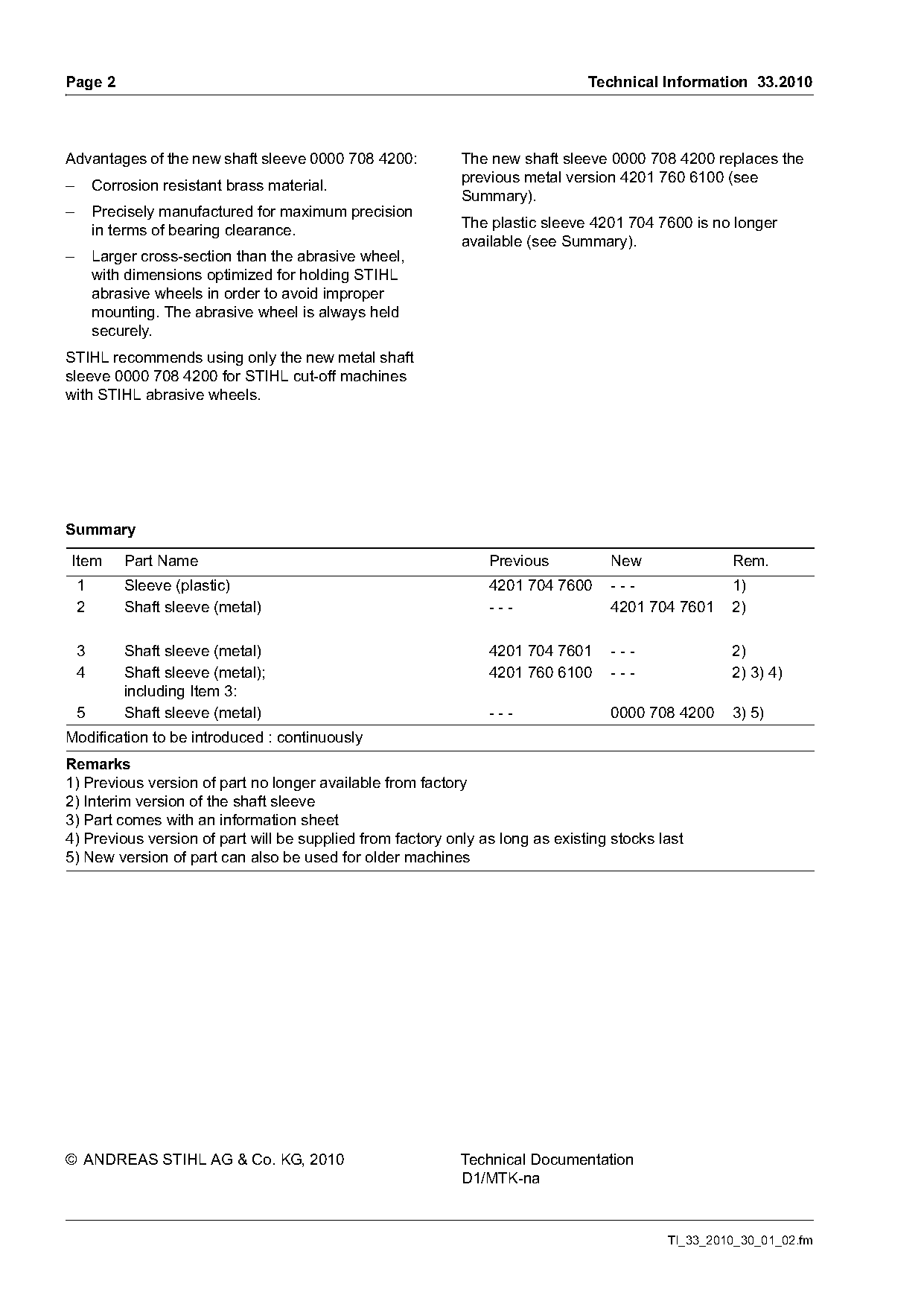

)m~ge 2 Technical Information 33.2010
Advantages of the new shaft sleeve 0000 708 4200: The new shaft sleeve 0000 708 4200 replaces the
previous metal version 4201 760 6100 (see
– Corrosion resistant brass material.
Summary).
– Precisely manufactured for maximum precision
The plastic sleeve 4201 704 7600 is no longer
in terms of bearing clearance.
available (see Summary).
– Larger cross-section than the abrasive wheel,
with dimensions optimized for holding STIHL
abrasive wheels in order to avoid improper
mounting. The abrasive wheel is always held
securely.
STIHL recommends using only the new metal shaft
sleeve 0000 708 4200 for STIHL cut-off machines
with STIHL abrasive wheels.
Summary
Item Part Name Previous New Rem.
1 Sleeve (plastic) 4201 704 7600 --- 1)
2 Shaft sleeve (metal) --- 4201 704 7601 2)
3 Shaft sleeve (metal) 4201 704 7601 --- 2)
4 Shaft sleeve (metal); 4201 760 6100 --- 2) 3) 4)
including Item 3:
5 Shaft sleeve (metal) --- 0000 708 4200 3) 5)
Modification to be introduced : continuously
Remarks
1) Previous version of part no longer available from factory
2) Interim version of the shaft sleeve
3) Part comes with an information sheet
4) Previous version of part will be supplied from factory only as long as existing stocks last
5) New version of part can also be used for older machines
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-na
TI_33_2010_30_01_02.fm Page 2 of 2
