Technical Information 34.2010
STIHL HT 250 Pole Pruner – Series 4134
Contents

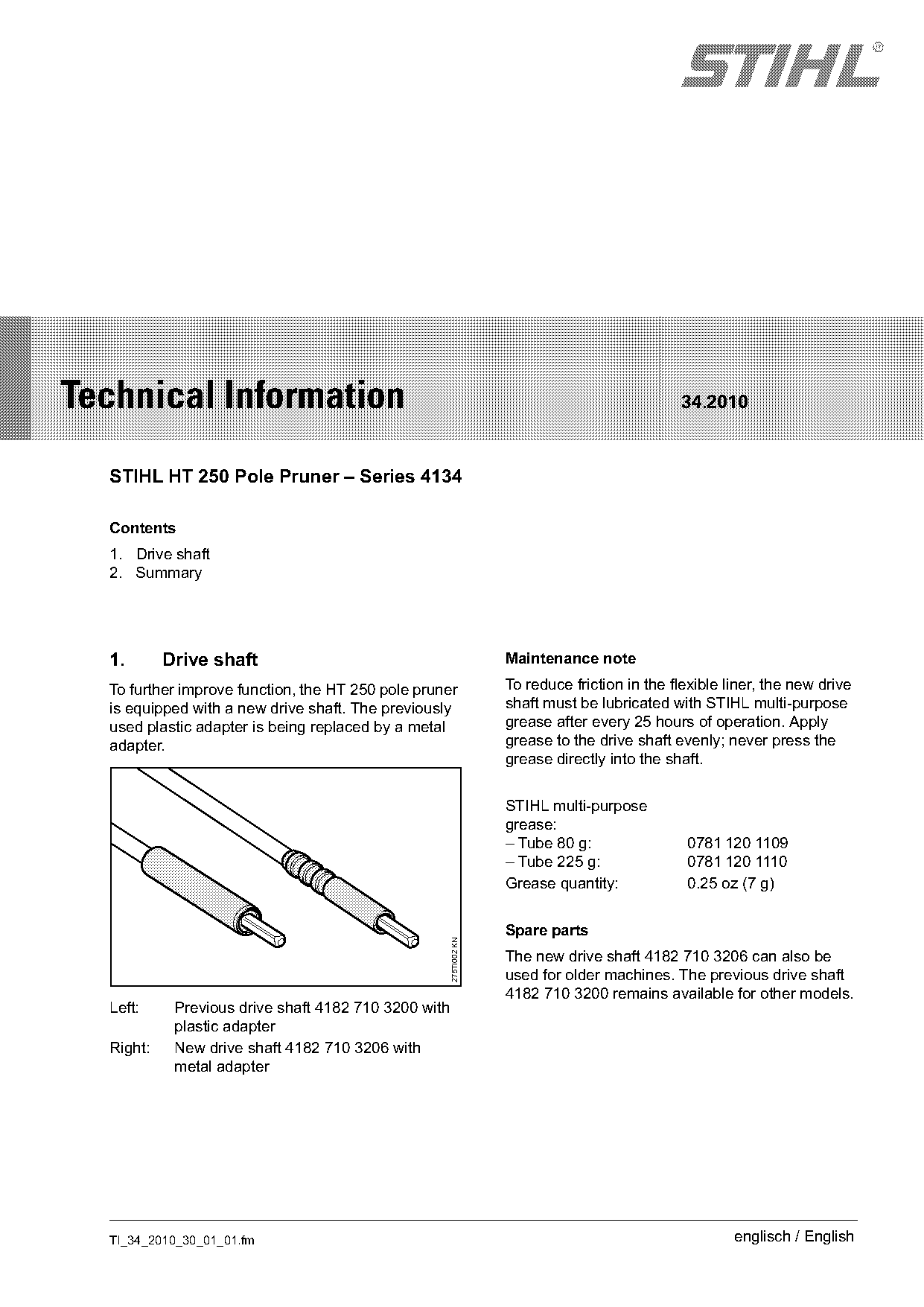

1. Drive shaft
2. Summary
1. Drive shaft Maintenance note
To further improve function, the HT 250 pole pruner To reduce friction in the flexible liner, the new drive
is equipped with a new drive shaft. The previously shaft must be lubricated with STIHL multi-purpose
used plastic adapter is being replaced by a metal grease after every 25 hours of operation. Apply
adapter. grease to the drive shaft evenly; never press the
grease directly into the shaft.
STIHL multi-purpose
grease:
– Tube 80 g: 0781 120 1109
– Tube 225 g: 0781 120 1110
Grease quantity: 0.25 oz (7 g)
Spare parts
275TI002 KN
The new drive shaft 4182 710 3206 can also be
used for older machines. The previous drive shaft
4182 710 3200 remains available for other models.
Left: Previous drive shaft 4182 710 3200 with
plastic adapter
Right: New drive shaft 4182 710 3206 with
metal adapter
TI_34_2010_30_01_01.fm englisch / English Page 2 of 2
Page 2 Technical Information 34.2010

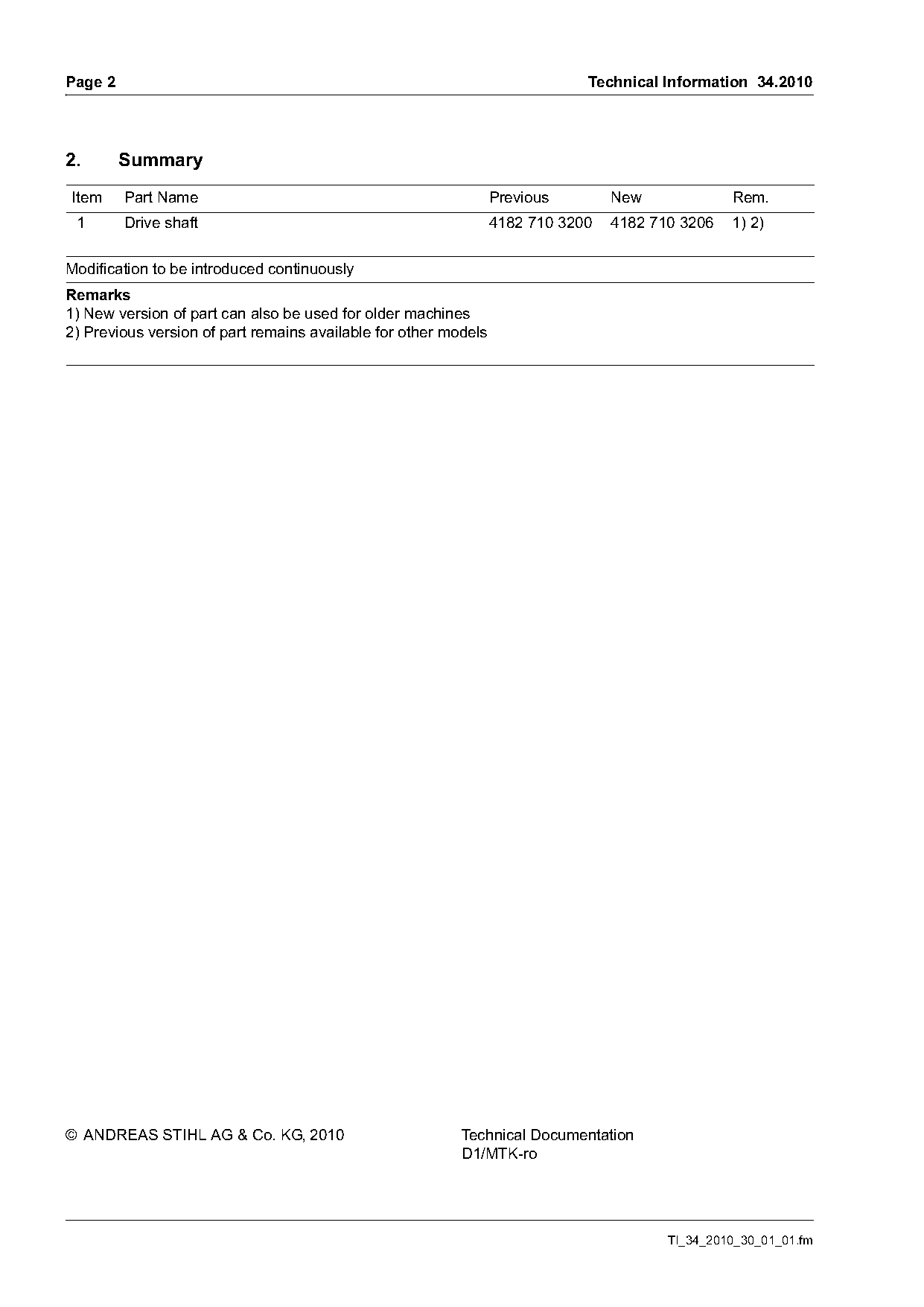

2. Summary
Item Part Name Previous New Rem.
1 Drive shaft 4182 710 3200 4182 710 3206 1) 2)
Modification to be introduced continuously
Remarks
1) New version of part can also be used for older machines
2) Previous version of part remains available for other models
