Sharpening devices STIHL HOS and STIHL USG – Series 5202, 5203
Electric motor
The STIHL HOS and STIHL USG sharpening
devices contain a new electric motor.

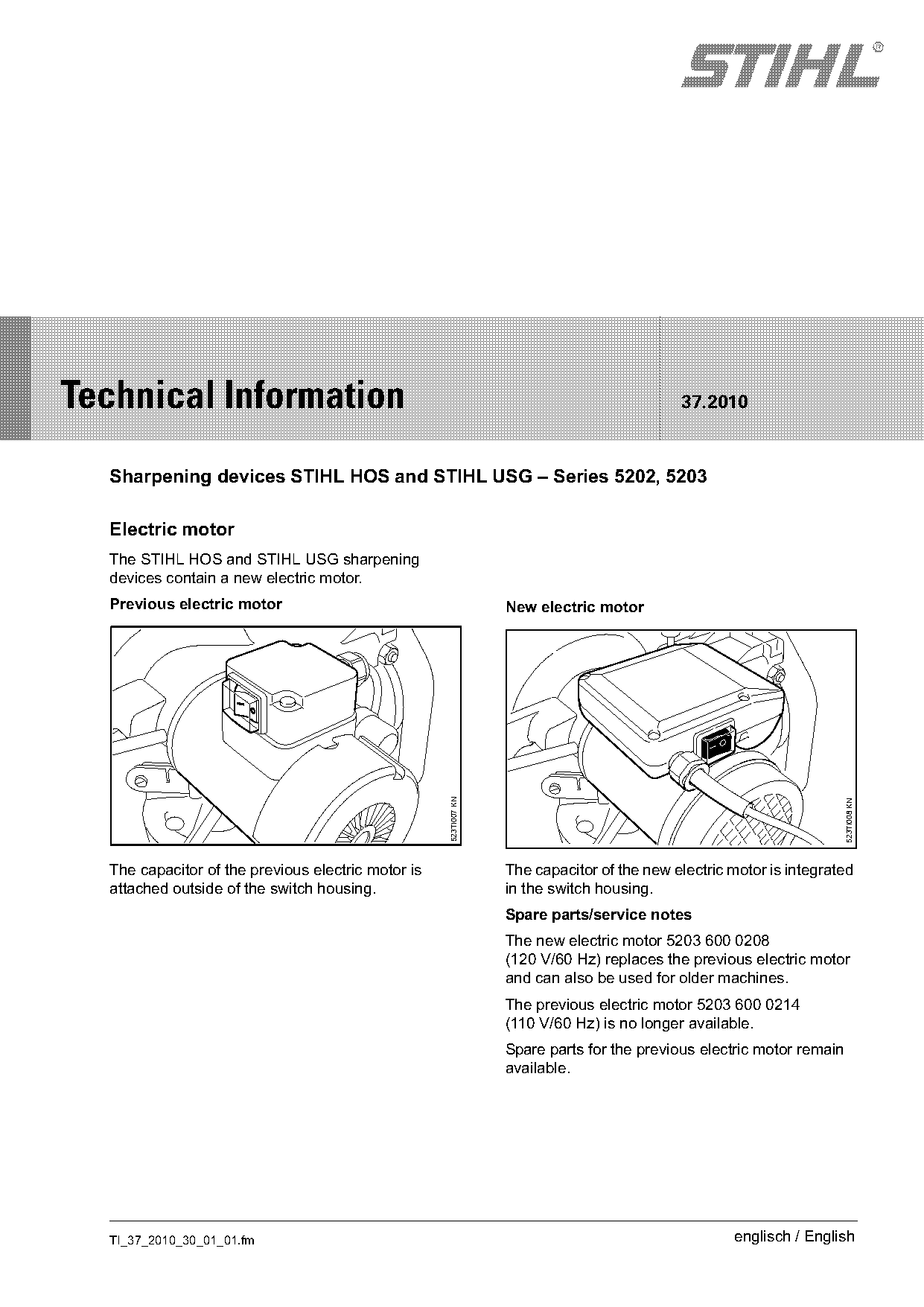

Previous electric motor New electric motor
523TI007 KN
523TI008 KN
The capacitor of the previous electric motor is The capacitor of the new electric motor is integrated
attached outside of the switch housing. in the switch housing.
Spare parts/service notes
The new electric motor 5203 600 0208
(120 V/60 Hz) replaces the previous electric motor
and can also be used for older machines.
The previous electric motor 5203 600 0214
(110 V/60 Hz) is no longer available.
Spare parts for the previous electric motor remain
available.
TI_37_2010_30_01_01.fm englisch / English Page 2 of 2
Page 2 Technical Information 37.2010

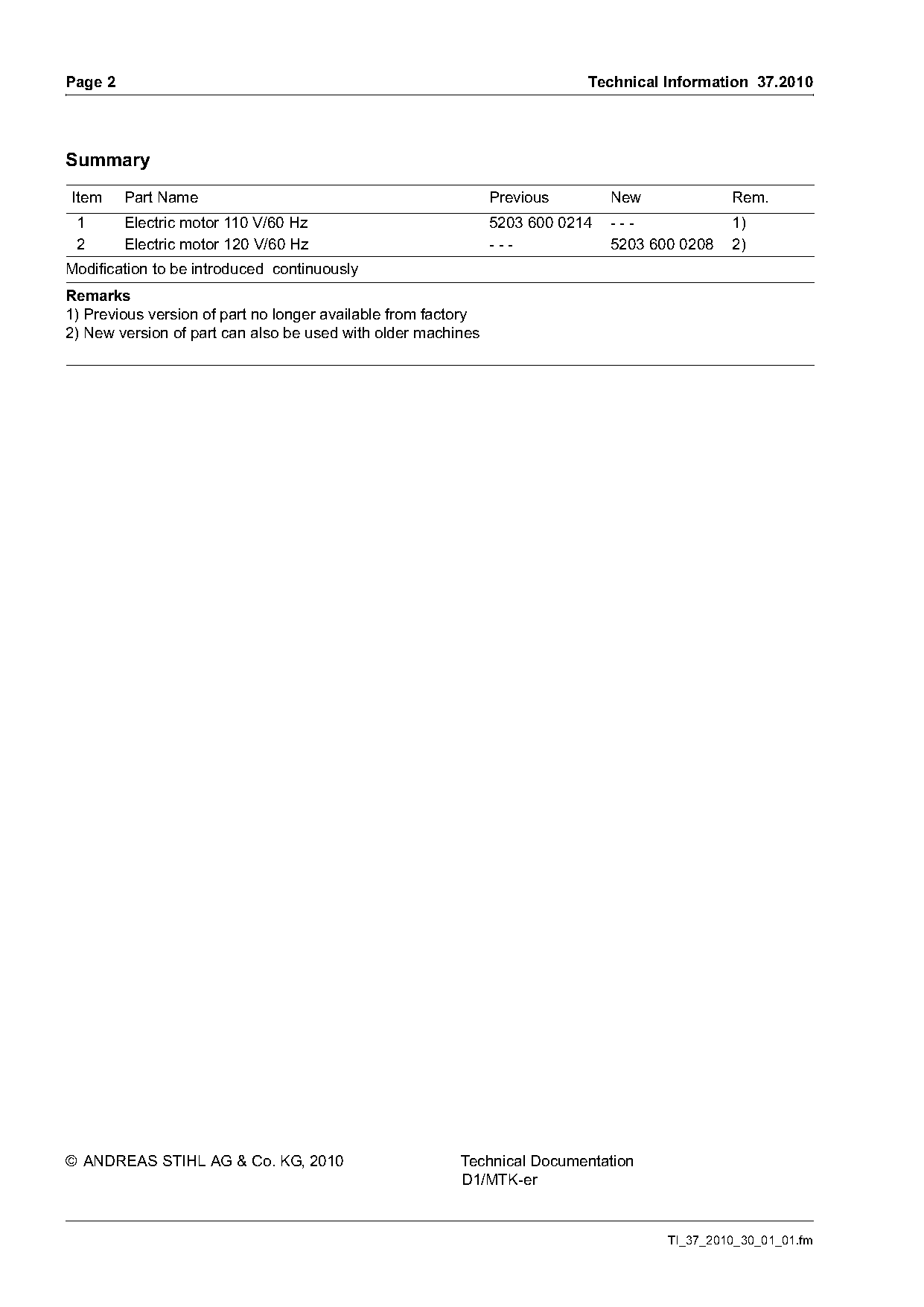

Summary
Item Part Name Previous New Rem.
1 Electric motor 110 V/60 Hz 5203 600 0214 --- 1)
2 Electric motor 120 V/60 Hz --- 5203 600 0208 2)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used with older machines
