Technical Information · issue 38 of 2010
New battery STIHL AP 160
IssueTI 38/2010
Full text

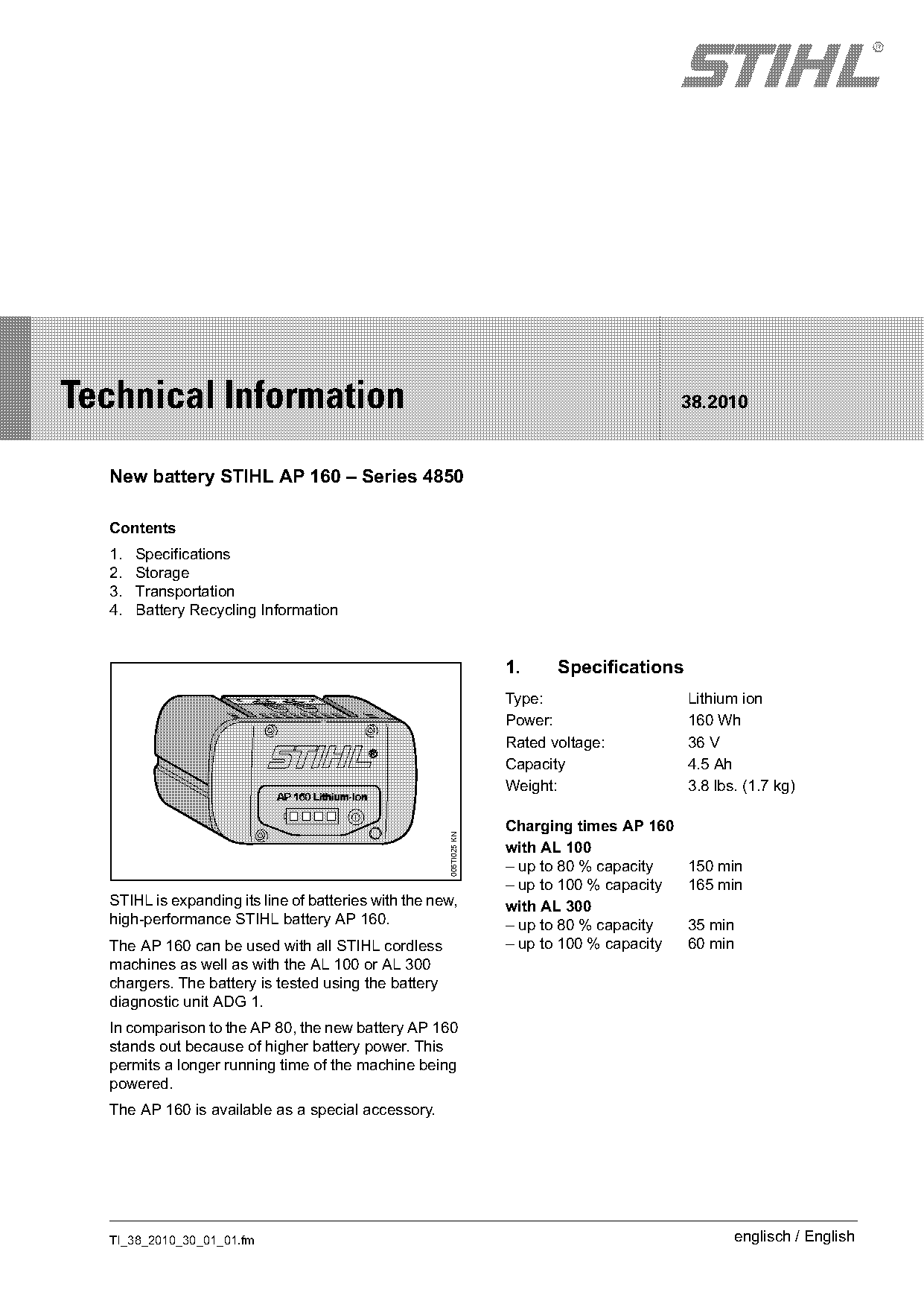

Page 1 of 2
STIH)
Technical Information 38.2010
New battery STIHL AP 160 – Series 4850
Contents
1. Specifications
2. Storage
3. Transportation
4. Battery Recycling Information
1. Specifications
Type: Lithium ion
Power: 160 Wh
Rated voltage: 36 V
Capacity 4.5 Ah
Weight: 3.8 lbs. (1.7 kg)
Charging times AP 160
005TI025 KN
with AL 100
– up to 80 % capacity 150 min
– up to 100 % capacity 165 min
STIHL is expanding its line of batteries with the new, with AL 300
high-performance STIHL battery AP 160. – up to 80 % capacity 35 min
The AP 160 can be used with all STIHL cordless – up to 100 % capacity 60 min
machines as well as with the AL 100 or AL 300
chargers. The battery is tested using the battery
diagnostic unit ADG 1.
In comparison to the AP 80, the new battery AP 160
stands out because of higher battery power. This
permits a longer running time of the machine being
powered.
The AP 160 is available as a special accessory.
TI_38_2010_30_01_01.fm englisch / English

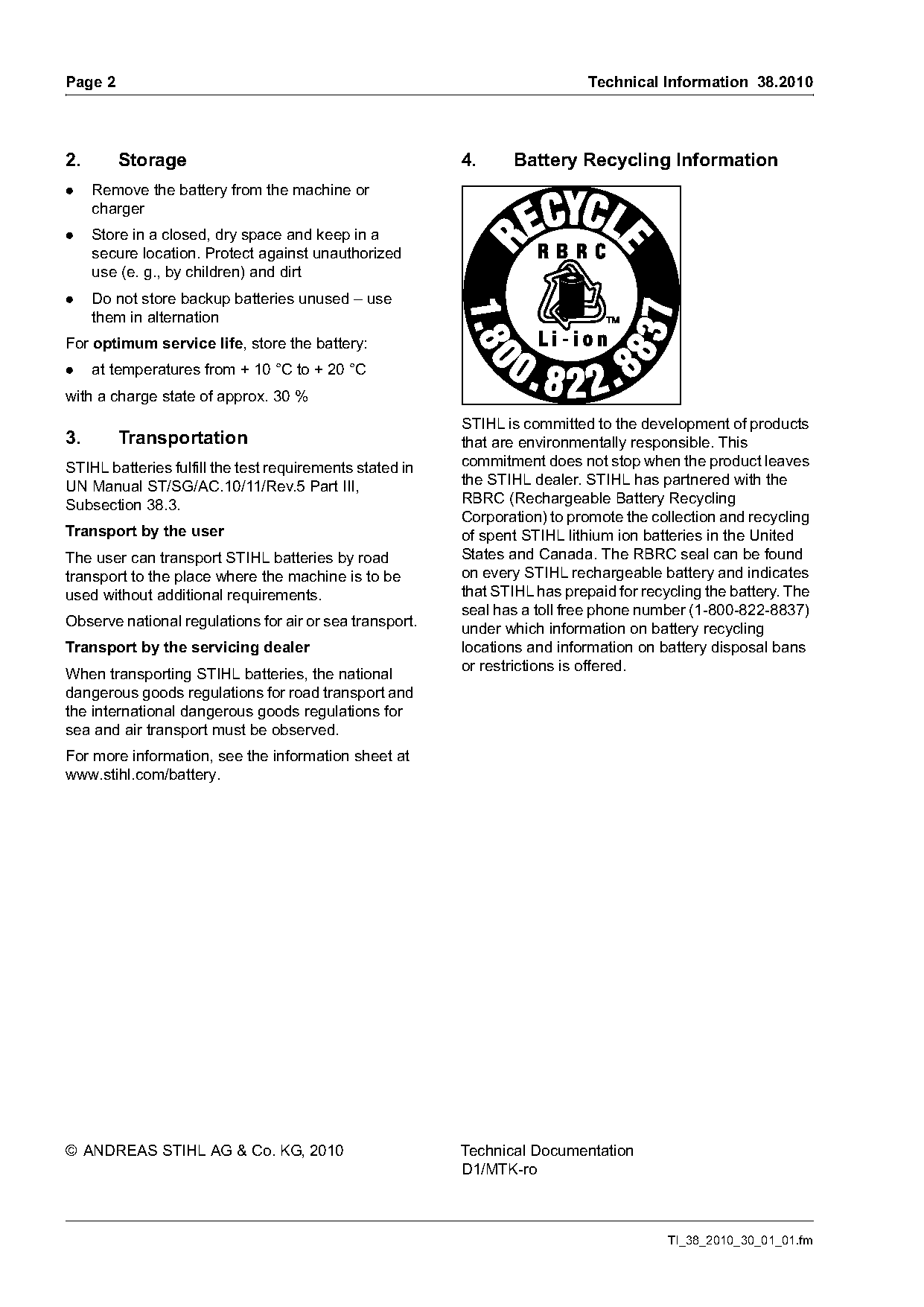

)m~ge 2 Technical Information 38.2010
2. Storage 4. Battery Recycling Information
. Remove the battery from the machine or
charger
. Store in a closed, dry space and keep in a
secure location. Protect against unauthorized
use (e. g., by children) and dirt
. Do not store backup batteries unused – use
them in alternation
For optimum service life, store the battery:
. at temperatures from + 10 °C to + 20 °C
with a charge state of approx. 30 %
STIHL is committed to the development of products
3. Transportation that are environmentally responsible. This
STIHL batteries fulfill the test requirements stated in commitment does not stop when the product leaves
UN Manual ST/SG/AC.10/11/Rev.5 Part III, the STIHL dealer. STIHL has partnered with the
Subsection 38.3. RBRC (Rechargeable Battery Recycling
Corporation) to promote the collection and recycling
Transport by the user of spent STIHL lithium ion batteries in the United
The user can transport STIHL batteries by road States and Canada. The RBRC seal can be found
transport to the place where the machine is to be on every STIHL rechargeable battery and indicates
used without additional requirements. that STIHL has prepaid for recycling the battery. The
seal has a toll free phone number (1-800-822-8837)
Observe national regulations for air or sea transport.
under which information on battery recycling
Transport by the servicing dealer locations and information on battery disposal bans
or restrictions is offered.
When transporting STIHL batteries, the national
dangerous goods regulations for road transport and
the international dangerous goods regulations for
sea and air transport must be observed.
For more information, see the information sheet at
www.stihl.com/battery.
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-ro
TI_38_2010_30_01_01.fm Page 2 of 2
