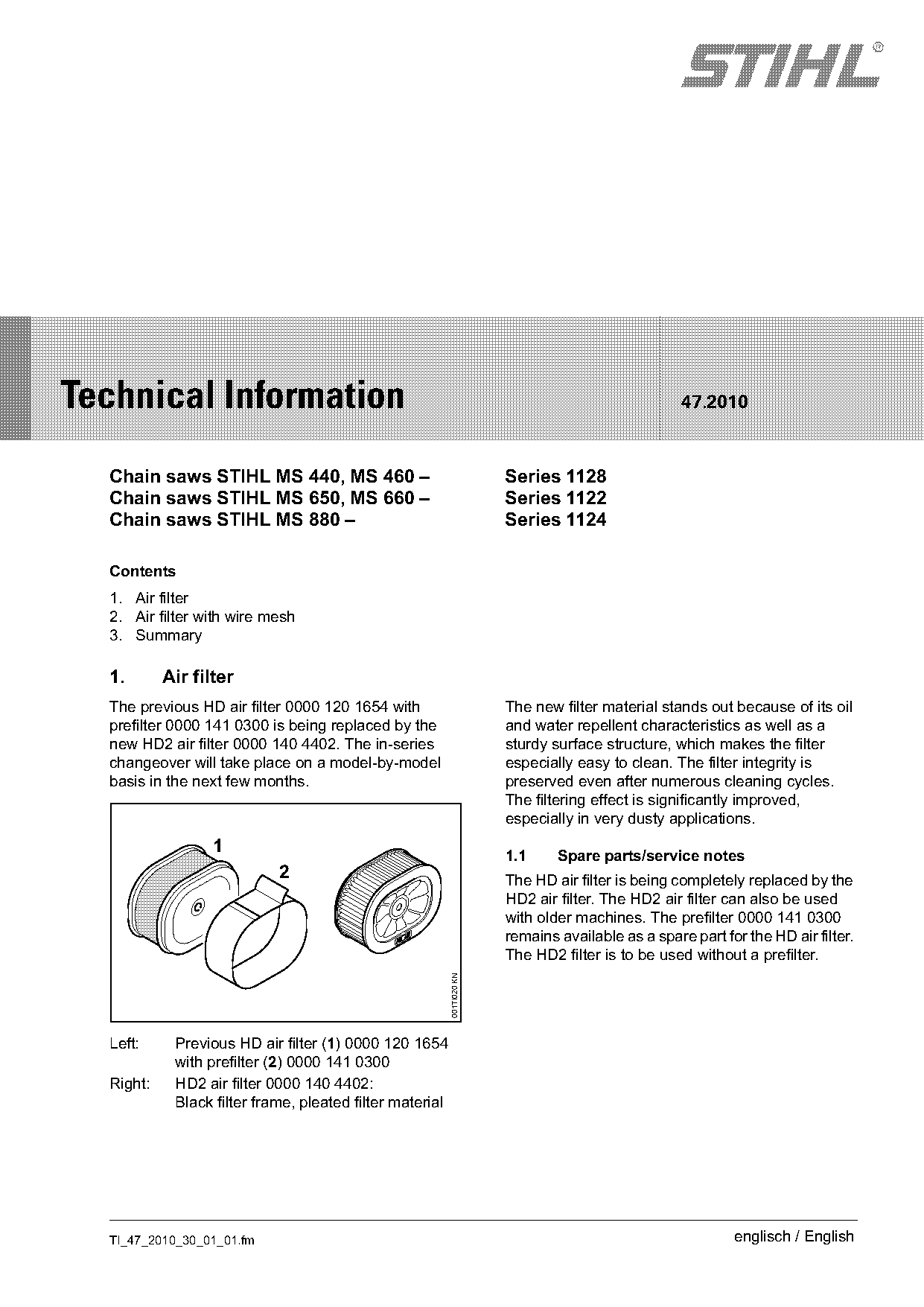

Technical Information 47.2010
Chain saws STIHL MS 440, MS 460 – Series 1128
Chain saws STIHL MS 650, MS 660 – Series 1122
Chain saws STIHL MS 880 – Series 1124
Contents
1. Air filter
2. Air filter with wire mesh
3. Summary
1. Air filter
The previous HD air filter 0000 120 1654 with The new filter material stands out because of its oil
prefilter 0000 141 0300 is being replaced by the and water repellent characteristics as well as a
new HD2 air filter 0000 140 4402. The in-series sturdy surface structure, which makes the filter
changeover will take place on a model-by-model especially easy to clean. The filter integrity is
basis in the next few months. preserved even after numerous cleaning cycles.
The filtering effect is significantly improved,
especially in very dusty applications.
1 1.1 Spare parts/service notes
2 The HD air filter is being completely replaced by the
HD2 air filter. The HD2 air filter can also be used
with older machines. The prefilter 0000 141 0300
remains available as a spare part for the HD air filter.
The HD2 filter is to be used without a prefilter.
001TI020 KN
Left: Previous HD air filter (1) 0000 120 1654
with prefilter (2) 0000 141 0300
Right: HD2 air filter 0000 140 4402:
Black filter frame, pleated filter material
TI_47_2010_30_01_01.fm englisch / English Page 2 of 3

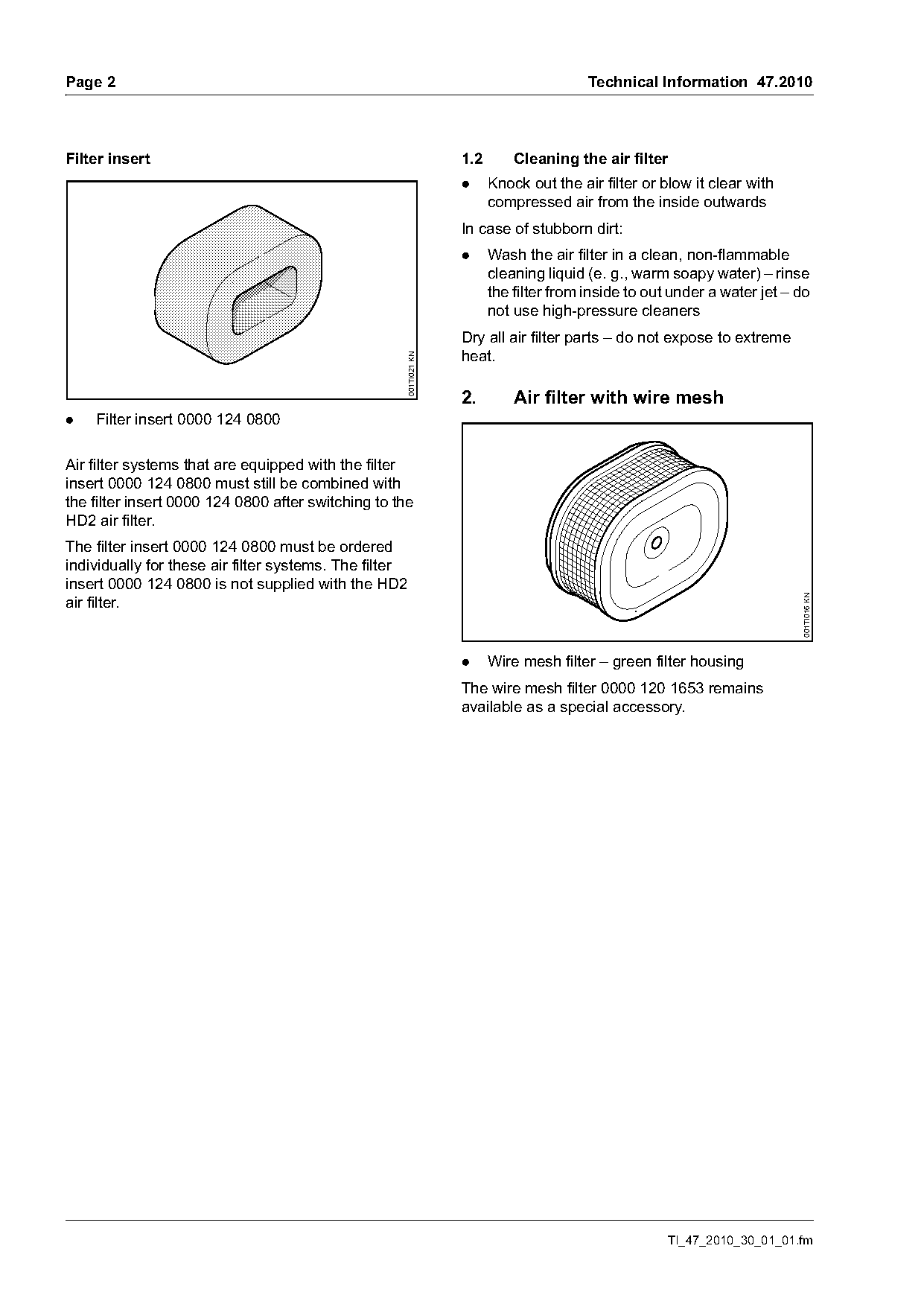

Page 2 Technical Information 47.2010
Filter insert 1.2 Cleaning the air filter
. Knock out the air filter or blow it clear with
compressed air from the inside outwards
In case of stubborn dirt:
. Wash the air filter in a clean, non-flammable
cleaning liquid (e. g., warm soapy water) – rinse
the filter from inside to out under a water jet – do
not use high-pressure cleaners
Dry all air filter parts – do not expose to extreme
heat.
001TI021 KN
2. Air filter with wire mesh
. Filter insert 0000 124 0800
Air filter systems that are equipped with the filter
insert 0000 124 0800 must still be combined with
the filter insert 0000 124 0800 after switching to the
HD2 air filter.
The filter insert 0000 124 0800 must be ordered
individually for these air filter systems. The filter
insert 0000 124 0800 is not supplied with the HD2
001TI016 KN
air filter.
. Wire mesh filter – green filter housing
The wire mesh filter 0000 120 1653 remains
available as a special accessory.
TI_47_2010_30_01_01.fm Page 3 of 3

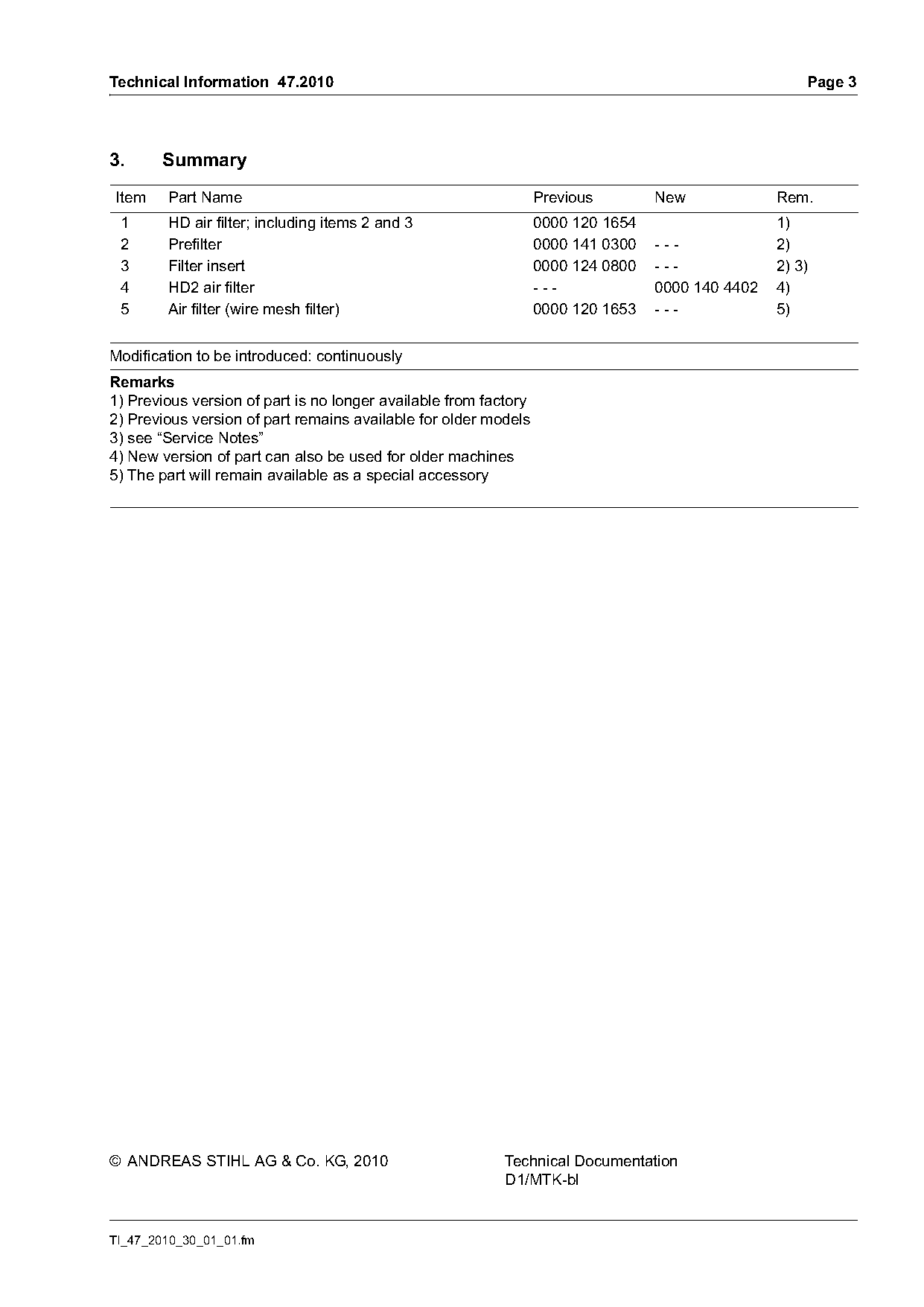

Technical Information 47.2010 Page 3
3. Summary
Item Part Name Previous New Rem.
1 HD air filter; including items 2 and 3 0000 120 1654 1)
2 Prefilter 0000 141 0300 --- 2)
3 Filter insert 0000 124 0800 --- 2) 3)
4 HD2 air filter --- 0000 140 4402 4)
5 Air filter (wire mesh filter) 0000 120 1653 --- 5)
Modification to be introduced: continuously
Remarks
1) Previous version of part is no longer available from factory
2) Previous version of part remains available for older models
3) see “Service Notes”
4) New version of part can also be used for older machines
5) The part will remain available as a special accessory
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
