Technical Information · issue 50 of 2010
New saw chain 3/8" STIHL PICCO™ Super 3 (63 PS3)
IssueTI 50/2010
Full text

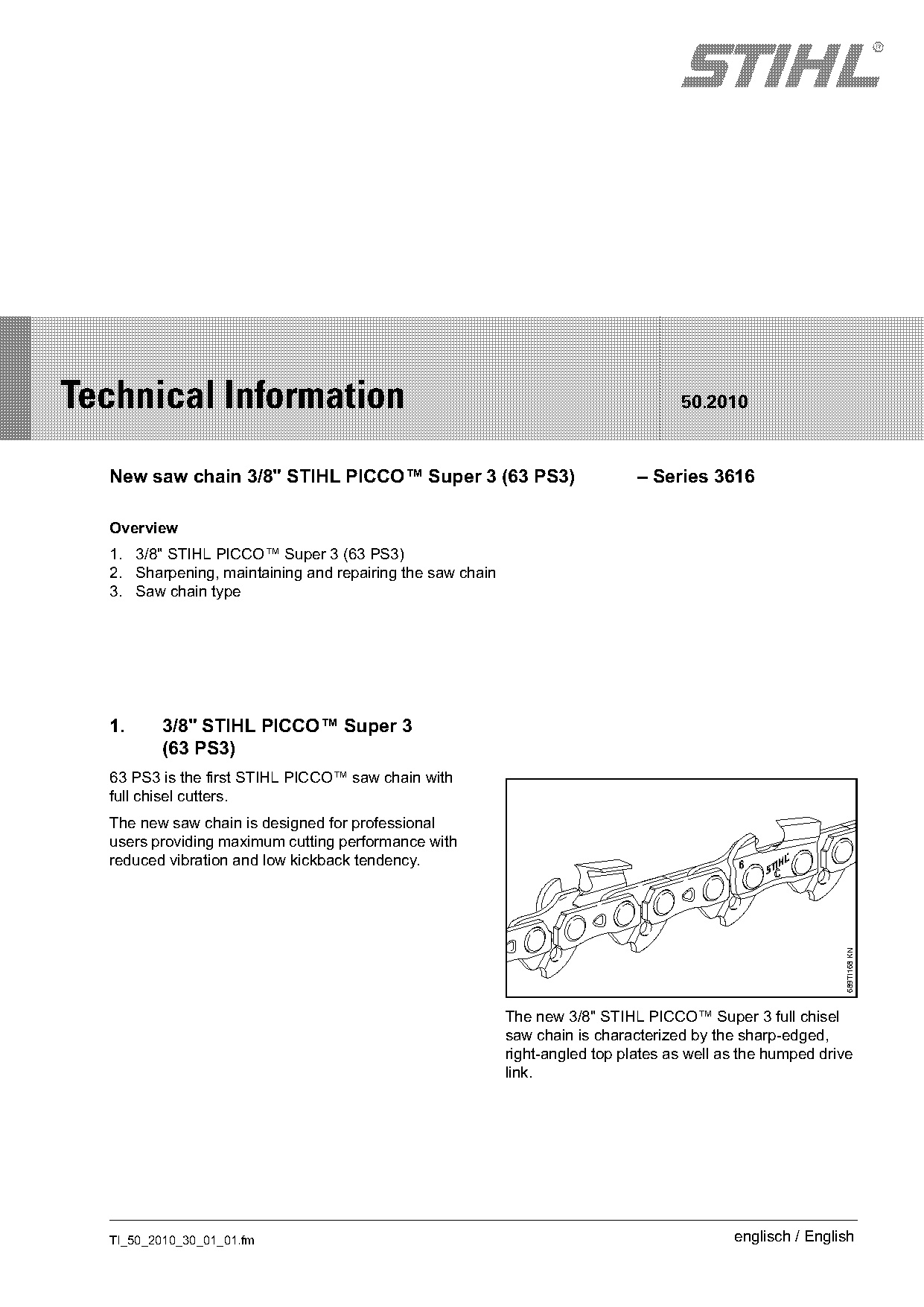

Page 1 of 4
STIH)
Technical Information 50.2010
New saw chain 3/8" STIHL PICCO™ Super 3 (63 PS3) – Series 3616
Overview
1. 3/8" STIHL PICCO™ Super 3 (63 PS3)
2. Sharpening, maintaining and repairing the saw chain
3. Saw chain type
1. 3/8" STIHL PICCO™ Super 3
(63 PS3)
63 PS3 is the first STIHL PICCO™ saw chain with
full chisel cutters.
The new saw chain is designed for professional
users providing maximum cutting performance with
reduced vibration and low kickback tendency.
689TI168 KN
The new 3/8" STIHL PICCO™ Super 3 full chisel
saw chain is characterized by the sharp-edged,
right-angled top plates as well as the humped drive
link.
TI_50_2010_30_01_01.fm englisch / English Page 2 of 4

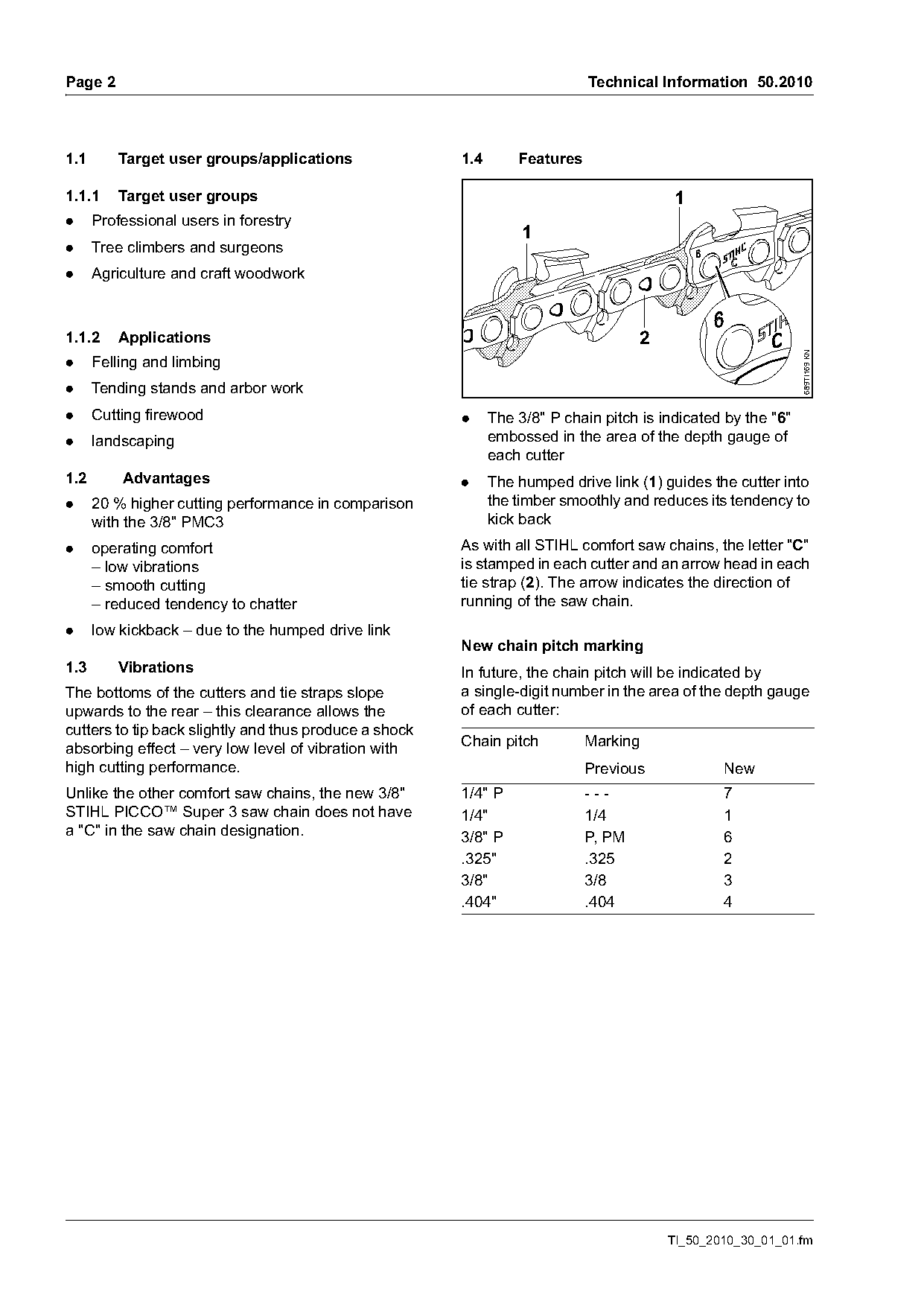

Page 2 Technical Information 50.2010
1.1 Target user groups/applications 1.4 Features
1.1.1 Target user groups 1
. Professional users in forestry
1
. Tree climbers and surgeons
. Agriculture and craft woodwork
1.1.2 Applications 2
689TI169 KN
. Felling and limbing
. Tending stands and arbor work
. Cutting firewood . The 3/8" P chain pitch is indicated by the "6"
. landscaping embossed in the area of the depth gauge of
each cutter
1.2 Advantages . The humped drive link (1) guides the cutter into
. 20 % higher cutting performance in comparison the timber smoothly and reduces its tendency to
with the 3/8" PMC3 kick back
. operating comfort As with all STIHL comfort saw chains, the letter "C"
– low vibrations is stamped in each cutter and an arrow head in each
– smooth cutting tie strap (2). The arrow indicates the direction of
– reduced tendency to chatter running of the saw chain.
. low kickback – due to the humped drive link
New chain pitch marking
1.3 Vibrations In future, the chain pitch will be indicated by
The bottoms of the cutters and tie straps slope a single-digit number in the area of the depth gauge
upwards to the rear – this clearance allows the of each cutter:
cutters to tip back slightly and thus produce a shock
absorbing effect – very low level of vibration with Chain pitch Marking
high cutting performance. Previous New
Unlike the other comfort saw chains, the new 3/8" 1/4" P --- 7
STIHL PICCO™ Super 3 saw chain does not have 1/4" 1/4 1
a "C" in the saw chain designation. 3/8" P P, PM 6
.325" .325 2
3/8" 3/8 3
.404" .404 4
TI_50_2010_30_01_01.fm Page 3 of 4

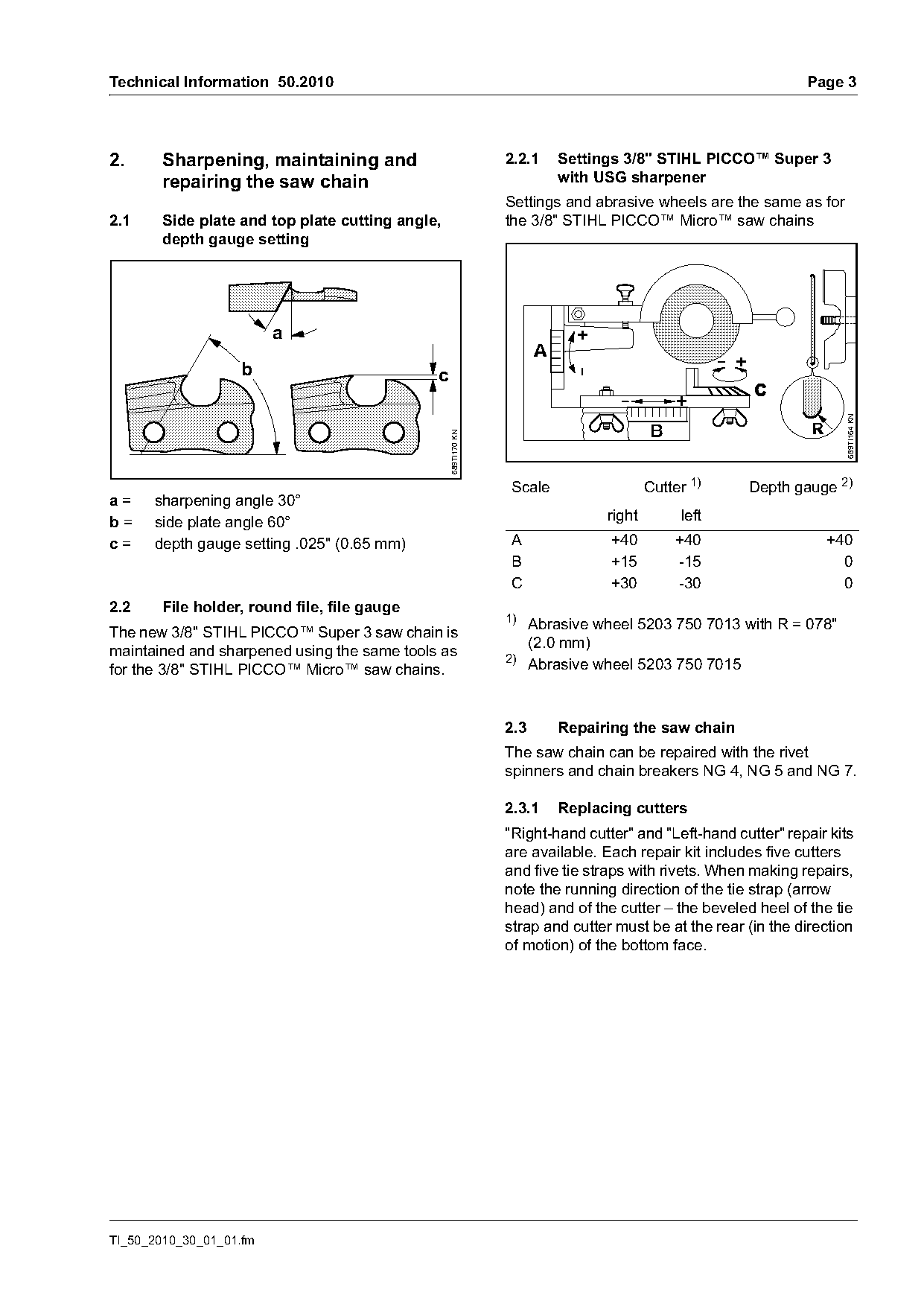

Technical Information 50.2010 Page 3
2. Sharpening, maintaining and 2.2.1 Settings 3/8" STIHL PICCO™ Super 3
repairing the saw chain with USG sharpener
Settings and abrasive wheels are the same as for
2.1 Side plate and top plate cutting angle, the 3/8" STIHL PICCO™ Micro™ saw chains
depth gauge setting
a
b c
689TI164 KN
689TI170 KN
Scale Cutter 1) Depth gauge 2)
a= sharpening angle 30°
b= side plate angle 60° right left
c= depth gauge setting .025" (0.65 mm) A +40 +40 +40
B +15 -15 0
C +30 -30 0
2.2 File holder, round file, file gauge
1)
Abrasive wheel 5203 750 7013 with R = 078"
The new 3/8" STIHL PICCO™ Super 3 saw chain is
(2.0 mm)
maintained and sharpened using the same tools as 2) Abrasive wheel 5203 750 7015
for the 3/8" STIHL PICCO™ Micro™ saw chains.
2.3 Repairing the saw chain
The saw chain can be repaired with the rivet
spinners and chain breakers NG 4, NG 5 and NG 7.
2.3.1 Replacing cutters
"Right-hand cutter" and "Left-hand cutter" repair kits
are available. Each repair kit includes five cutters
and five tie straps with rivets. When making repairs,
note the running direction of the tie strap (arrow
head) and of the cutter – the beveled heel of the tie
strap and cutter must be at the rear (in the direction
of motion) of the bottom face.
TI_50_2010_30_01_01.fm Page 4 of 4

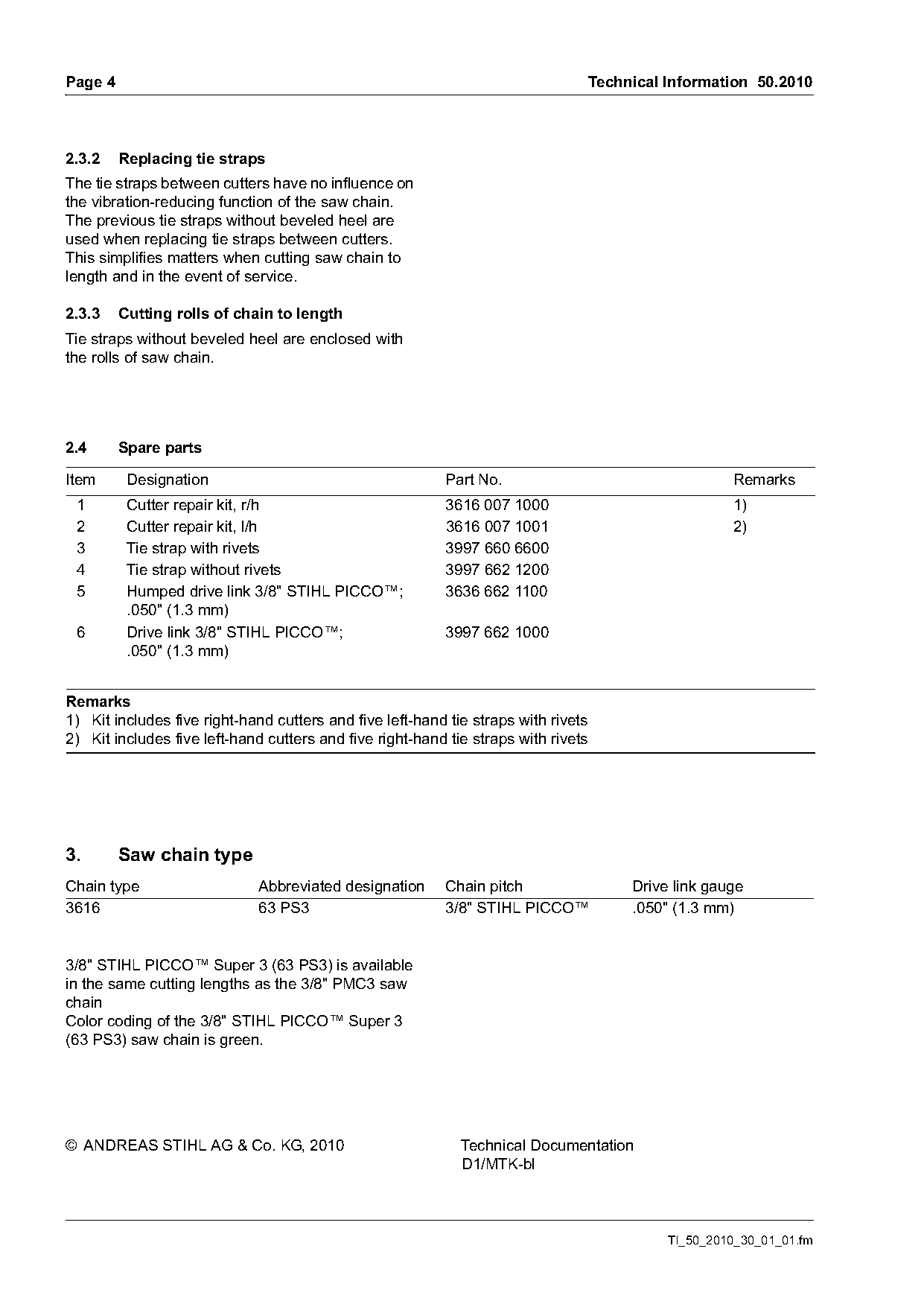

Page 4 Technical Information 50.2010
2.3.2 Replacing tie straps
The tie straps between cutters have no influence on
the vibration-reducing function of the saw chain.
The previous tie straps without beveled heel are
used when replacing tie straps between cutters.
This simplifies matters when cutting saw chain to
length and in the event of service.
2.3.3 Cutting rolls of chain to length
Tie straps without beveled heel are enclosed with
the rolls of saw chain.
2.4 Spare parts
Item Designation Part No. Remarks
1 Cutter repair kit, r/h 3616 007 1000 1)
2 Cutter repair kit, l/h 3616 007 1001 2)
3 Tie strap with rivets 3997 660 6600
4 Tie strap without rivets 3997 662 1200
5 Humped drive link 3/8" STIHL PICCO™; 3636 662 1100
.050" (1.3 mm)
6 Drive link 3/8" STIHL PICCO™; 3997 662 1000
.050" (1.3 mm)
Remarks
1) Kit includes five right-hand cutters and five left-hand tie straps with rivets
2) Kit includes five left-hand cutters and five right-hand tie straps with rivets
3. Saw chain type
Chain type Abbreviated designation Chain pitch Drive link gauge
3616 63 PS3 3/8" STIHL PICCO™ .050" (1.3 mm)
3/8" STIHL PICCO™ Super 3 (63 PS3) is available
in the same cutting lengths as the 3/8" PMC3 saw
chain
Color coding of the 3/8" STIHL PICCO™ Super 3
(63 PS3) saw chain is green.
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-bl
