Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4140 190 4000 | 4140 190 4009 | 1 FS 45, 46 KM 55 FS 55 with loop handle The previous rewind starter 4140 190 4000 is KM 55 replaced by the new version 4140 190 4009. |
| 4140 080 1600 | 4140 080 1602 | The previous shroud 4140 080 1600 is replaced by the new shroud 4140 080 1602. |
| 4140 080 1601 | 4140 080 1603 | 2 FS 55 with bicycle handle The previous shroud 4140 080 1601 is replaced by the new shroud 4140 080 1603. |
Full text
Page 1 of 2
STIH)
Draft

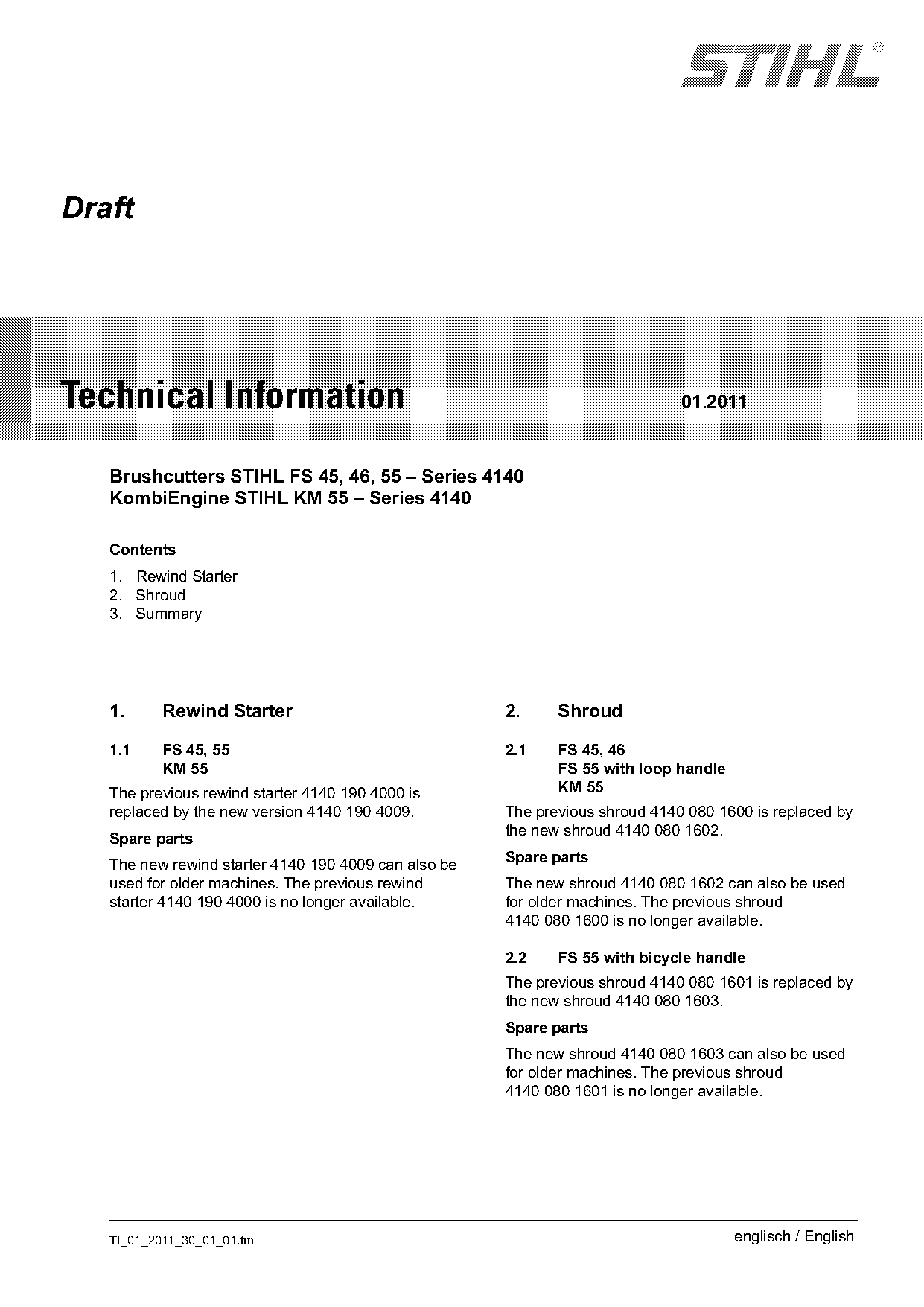

Technical Information 01.2011
Brushcutters STIHL FS 45, 46, 55 – Series 4140
KombiEngine STIHL KM 55 – Series 4140
Contents
1. Rewind Starter
2. Shroud
3. Summary
1. Rewind Starter 2. Shroud
1.1 FS 45, 55 2.1 FS 45, 46
KM 55 FS 55 with loop handle
The previous rewind starter 4140 190 4000 is KM 55
replaced by the new version 4140 190 4009. The previous shroud 4140 080 1600 is replaced by
the new shroud 4140 080 1602.
Spare parts
Spare parts
The new rewind starter 4140 190 4009 can also be
used for older machines. The previous rewind The new shroud 4140 080 1602 can also be used
starter 4140 190 4000 is no longer available. for older machines. The previous shroud
4140 080 1600 is no longer available.
2.2 FS 55 with bicycle handle
The previous shroud 4140 080 1601 is replaced by
the new shroud 4140 080 1603.
Spare parts
The new shroud 4140 080 1603 can also be used
for older machines. The previous shroud
4140 080 1601 is no longer available.
TI_01_2011_30_01_01.fm englisch / English
)m~ge 2 Technical Information 01.2011

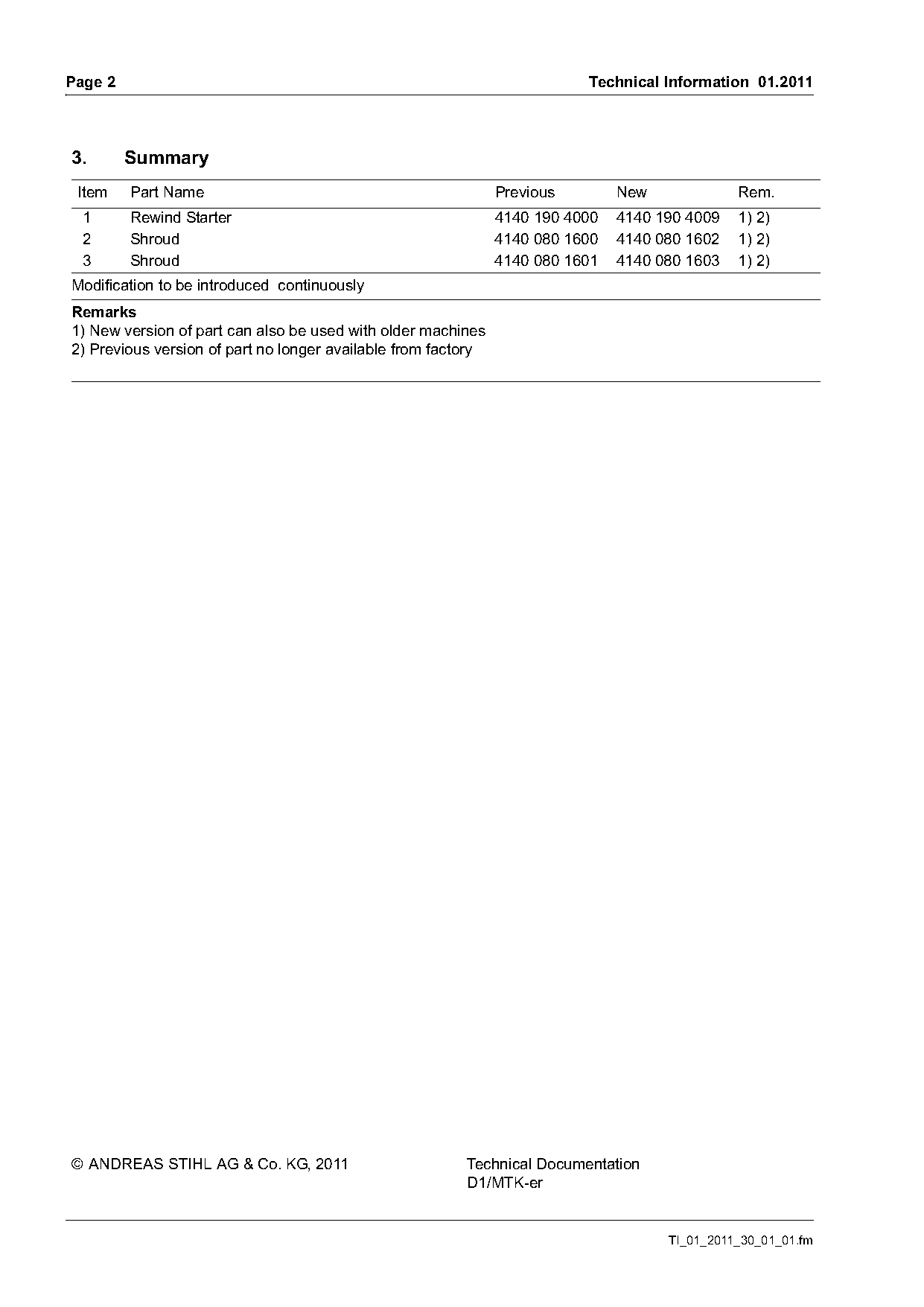

3. Summary
Item Part Name Previous New Rem.
1 Rewind Starter 4140 190 4000 4140 190 4009 1) 2)
2 Shroud 4140 080 1600 4140 080 1602 1) 2)
3 Shroud 4140 080 1601 4140 080 1603 1) 2)
Modification to be introduced continuously
Remarks
1) New version of part can also be used with older machines
2) Previous version of part no longer available from factory
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTK-er
TI_01_2011_30_01_01.fm Page 2 of 2
