Technical Information · issue 14 of 2011
New STIHL BGA 85 Cordless Blower
IssueTI 14/2011
Full text
Page 1 of 20
STIH)

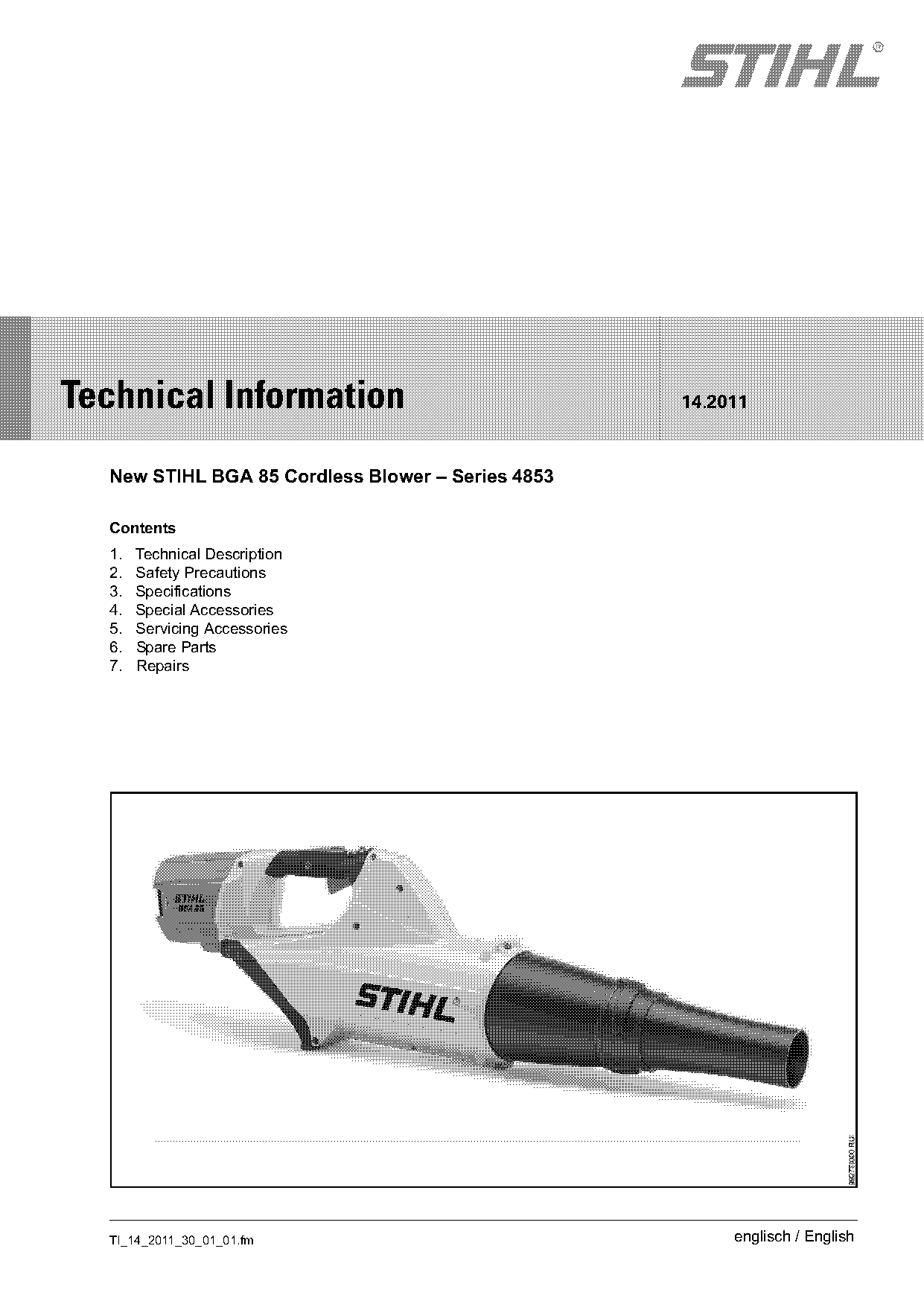

Technical Information 14.2011
New STIHL BGA 85 Cordless Blower – Series 4853
Contents
1. Technical Description
2. Safety Precautions

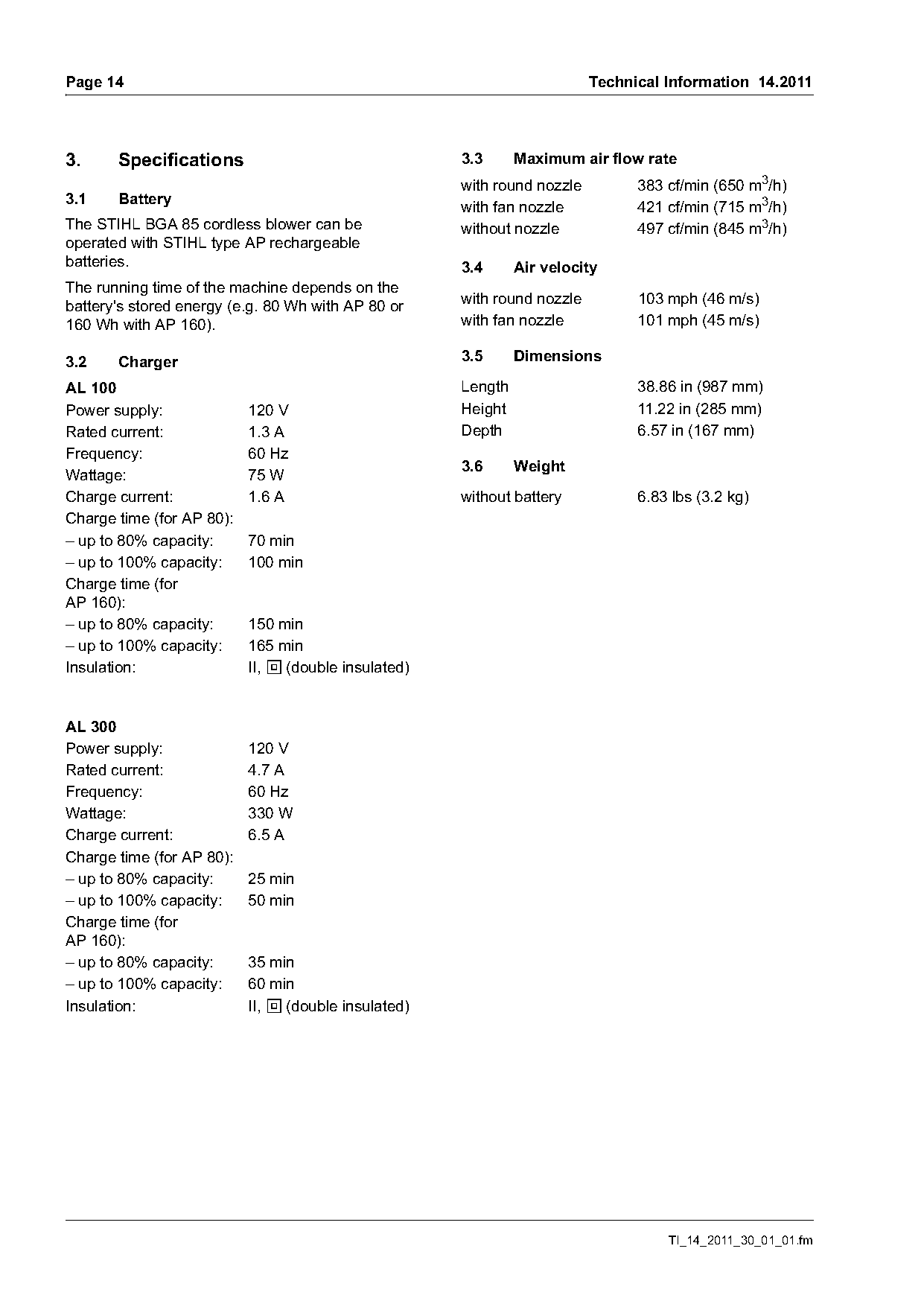

3. Specifications

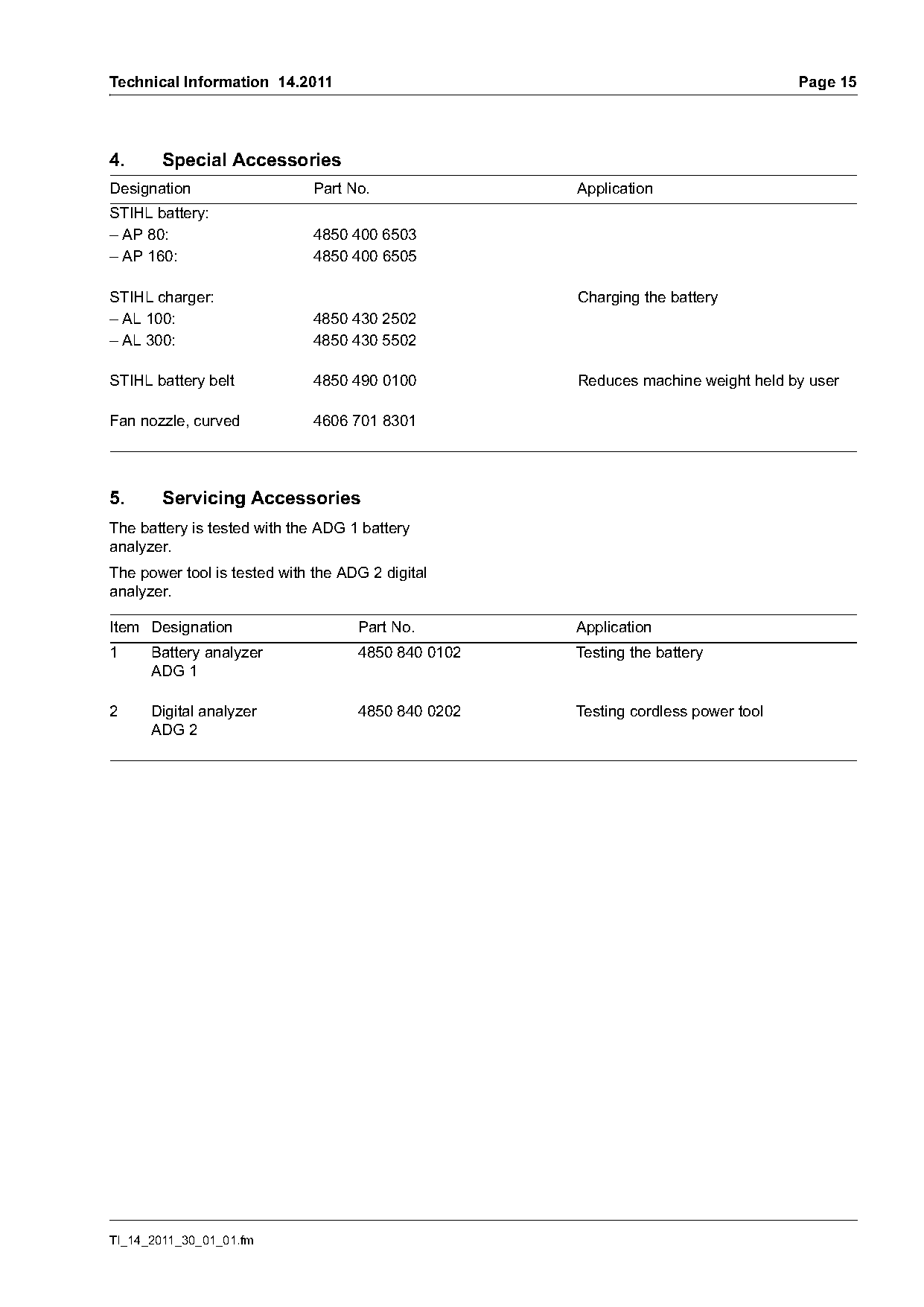

4. Special Accessories
5. Servicing Accessories
6. Spare Parts

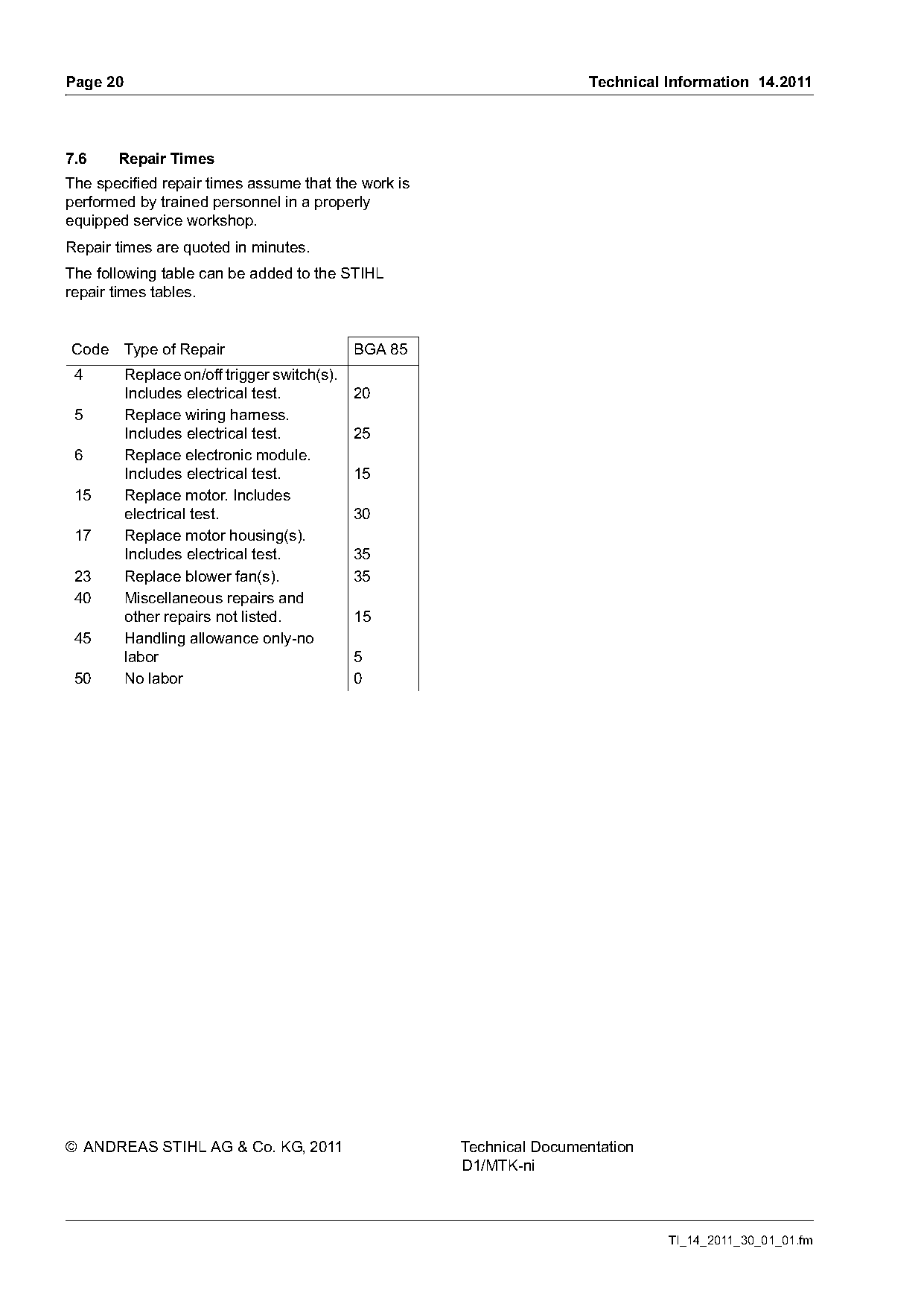

7. Repairs
TI_14_2011_30_01_01.fm englisch / English

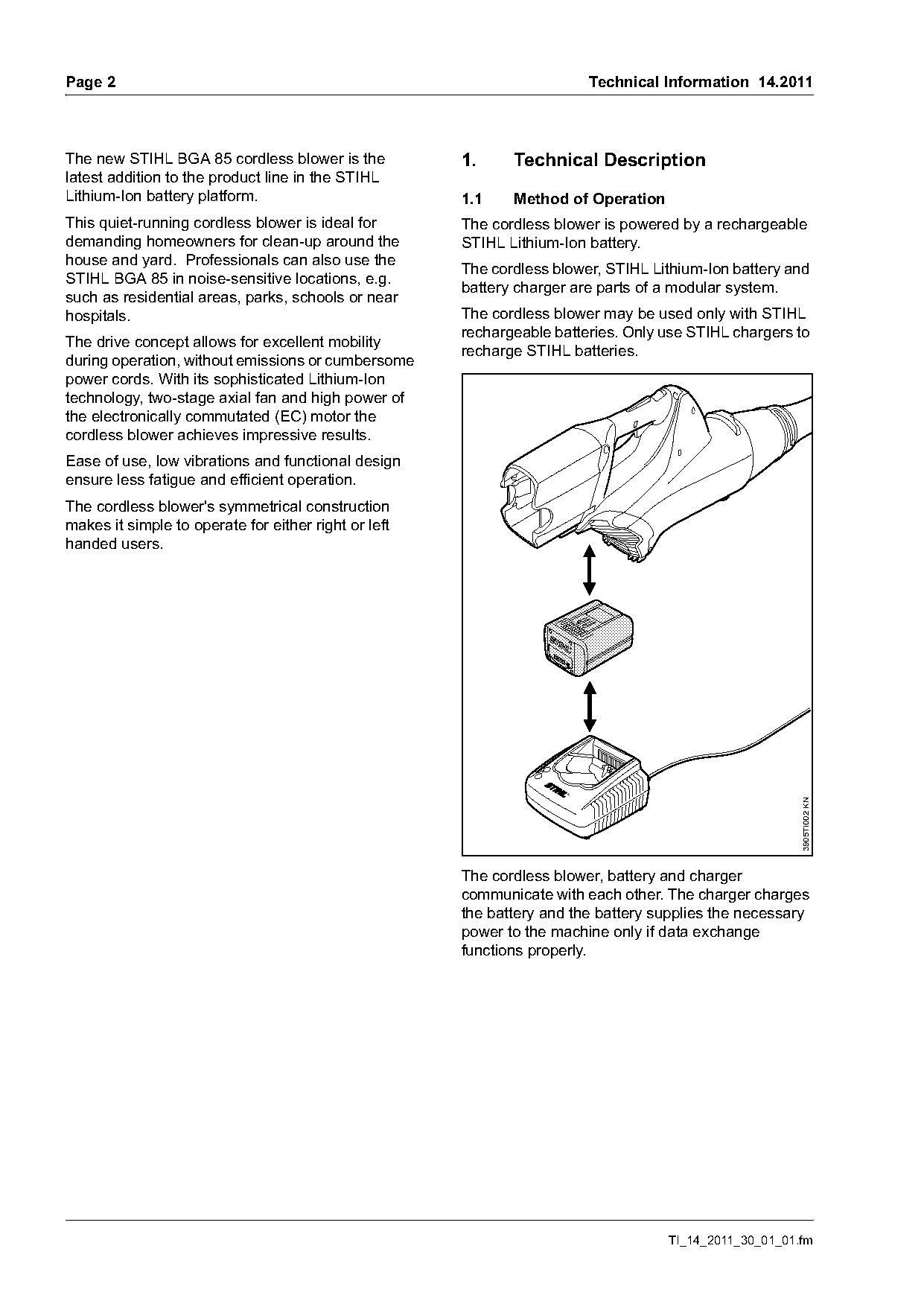

)m~ge 2 Technical Information 14.2011
The new STIHL BGA 85 cordless blower is the 1. Technical Description
latest addition to the product line in the STIHL
Lithium-Ion battery platform. 1.1 Method of Operation
This quiet-running cordless blower is ideal for The cordless blower is powered by a rechargeable
demanding homeowners for clean-up around the STIHL Lithium-Ion battery.
house and yard. Professionals can also use the
The cordless blower, STIHL Lithium-Ion battery and
STIHL BGA 85 in noise-sensitive locations, e.g.
battery charger are parts of a modular system.
such as residential areas, parks, schools or near
hospitals. The cordless blower may be used only with STIHL
rechargeable batteries. Only use STIHL chargers to
The drive concept allows for excellent mobility
recharge STIHL batteries.
during operation, without emissions or cumbersome
power cords. With its sophisticated Lithium-Ion
technology, two-stage axial fan and high power of
the electronically commutated (EC) motor the
cordless blower achieves impressive results.
Ease of use, low vibrations and functional design
ensure less fatigue and efficient operation.
The cordless blower's symmetrical construction
makes it simple to operate for either right or left
handed users.
3905TI002 KN
The cordless blower, battery and charger
communicate with each other. The charger charges
the battery and the battery supplies the necessary
power to the machine only if data exchange
functions properly.
TI_14_2011_30_01_01.fm Page 2 of 20

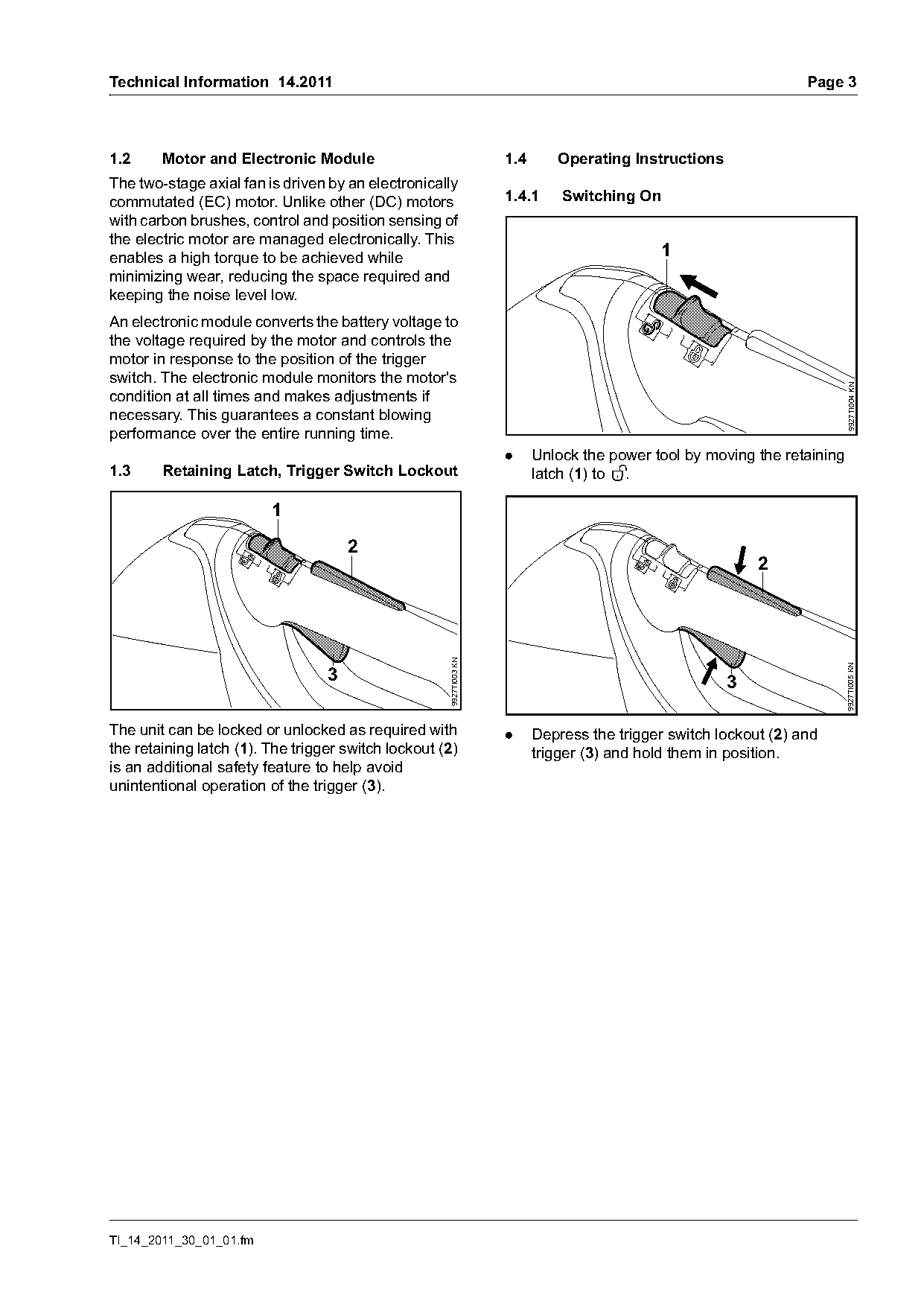

Technical Information 14.2011 Page 3
1.2 Motor and Electronic Module 1.4 Operating Instructions
The two-stage axial fan is driven by an electronically
commutated (EC) motor. Unlike other (DC) motors 1.4.1 Switching On
with carbon brushes, control and position sensing of
the electric motor are managed electronically. This
enables a high torque to be achieved while 1
minimizing wear, reducing the space required and
keeping the noise level low.
An electronic module converts the battery voltage to
the voltage required by the motor and controls the
motor in response to the position of the trigger
switch. The electronic module monitors the motor's
9927TI004 KN
condition at all times and makes adjustments if
necessary. This guarantees a constant blowing
performance over the entire running time.
. Unlock the power tool by moving the retaining
1.3 Retaining Latch, Trigger Switch Lockout latch (1) to ‚.
2
2
9927TI003 KN
9927TI005 KN
3 3
The unit can be locked or unlocked as required with . Depress the trigger switch lockout (2) and
the retaining latch (1). The trigger switch lockout (2) trigger (3) and hold them in position.
is an additional safety feature to help avoid
unintentional operation of the trigger (3).
TI_14_2011_30_01_01.fm
)m~ge 4 Technical Information 14.2011

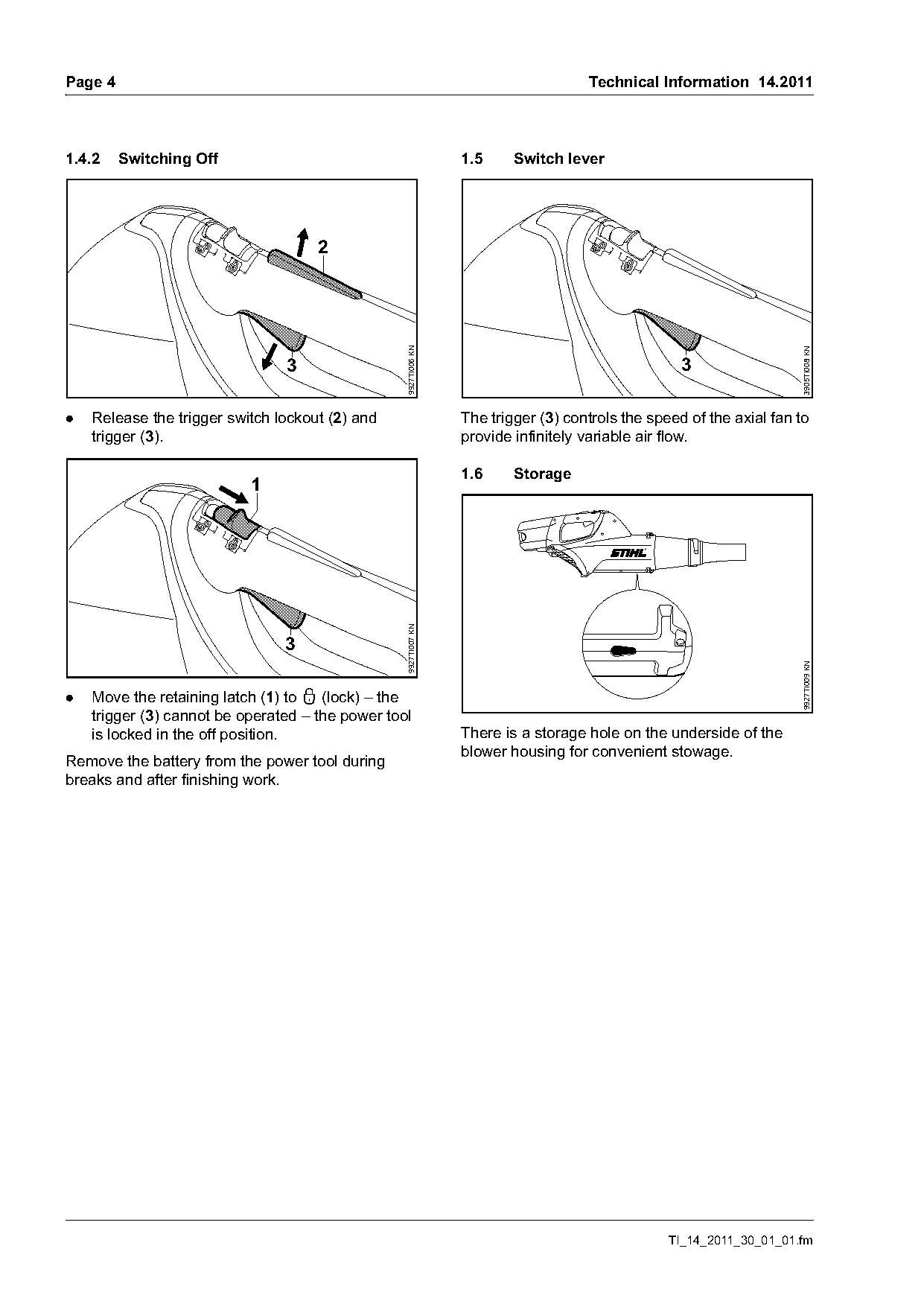

1.4.2 Switching Off 1.5 Switch lever
9927TI006 KN
3905TI008 KN
3 3
. Release the trigger switch lockout (2) and The trigger (3) controls the speed of the axial fan to
trigger (3). provide infinitely variable air flow.
1.6 Storage
1
9927TI007 KN
9927TI009 KN
. Move the retaining latch (1) to ƒ (lock) – the
trigger (3) cannot be operated – the power tool
is locked in the off position. There is a storage hole on the underside of the
blower housing for convenient stowage.
Remove the battery from the power tool during
breaks and after finishing work.
TI_14_2011_30_01_01.fm Page 3 of 20

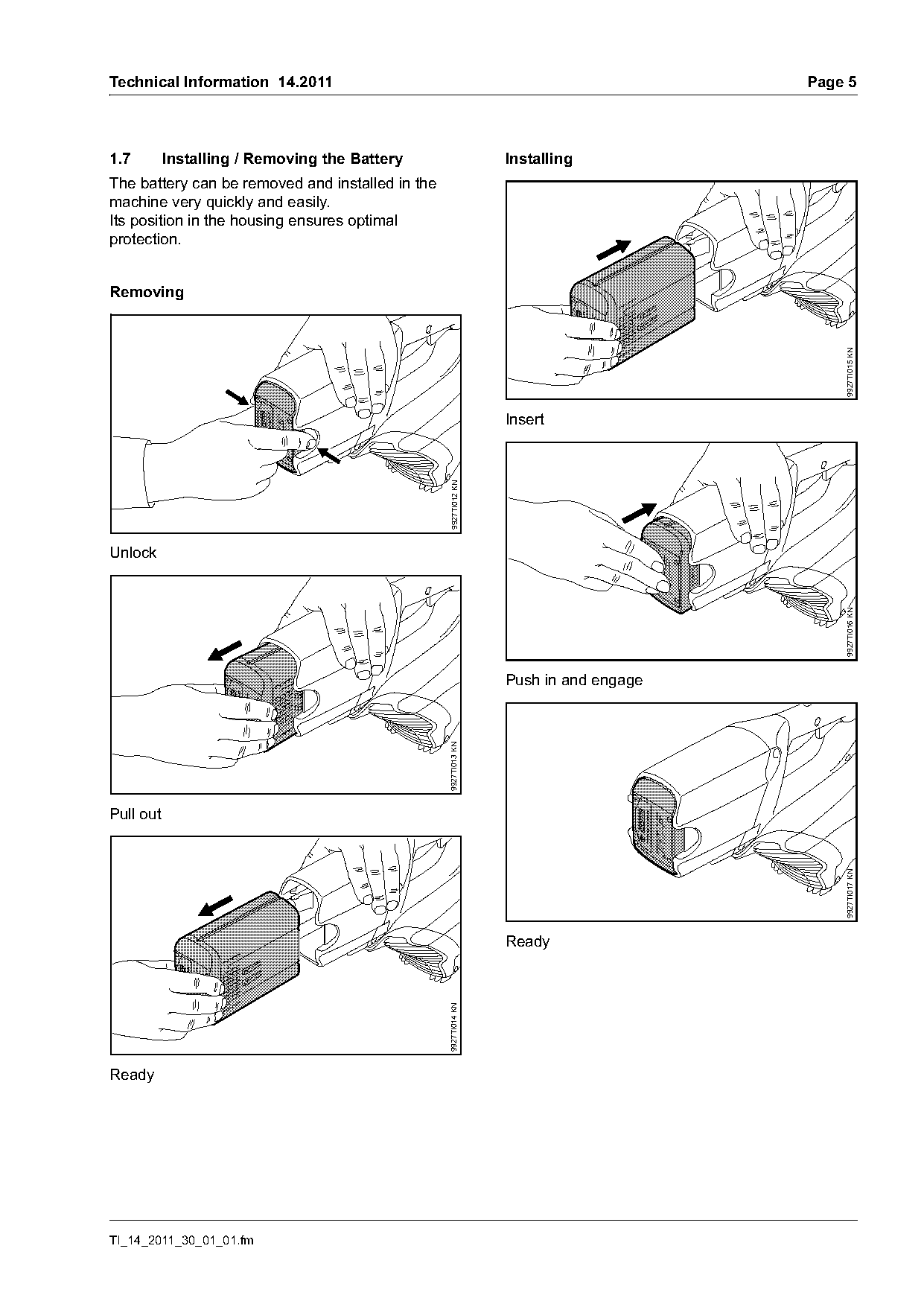

Technical Information 14.2011 Page 5
1.7 Installing / Removing the Battery Installing
The battery can be removed and installed in the
machine very quickly and easily.
Its position in the housing ensures optimal
protection.
Removing
9927TI015 KN
Insert
9927TI012 KN
Unlock
9927TI016 KN
Push in and engage
9927TI013 KN
Pull out
9927TI017 KN
Ready
9927TI014 KN
Ready
TI_14_2011_30_01_01.fm

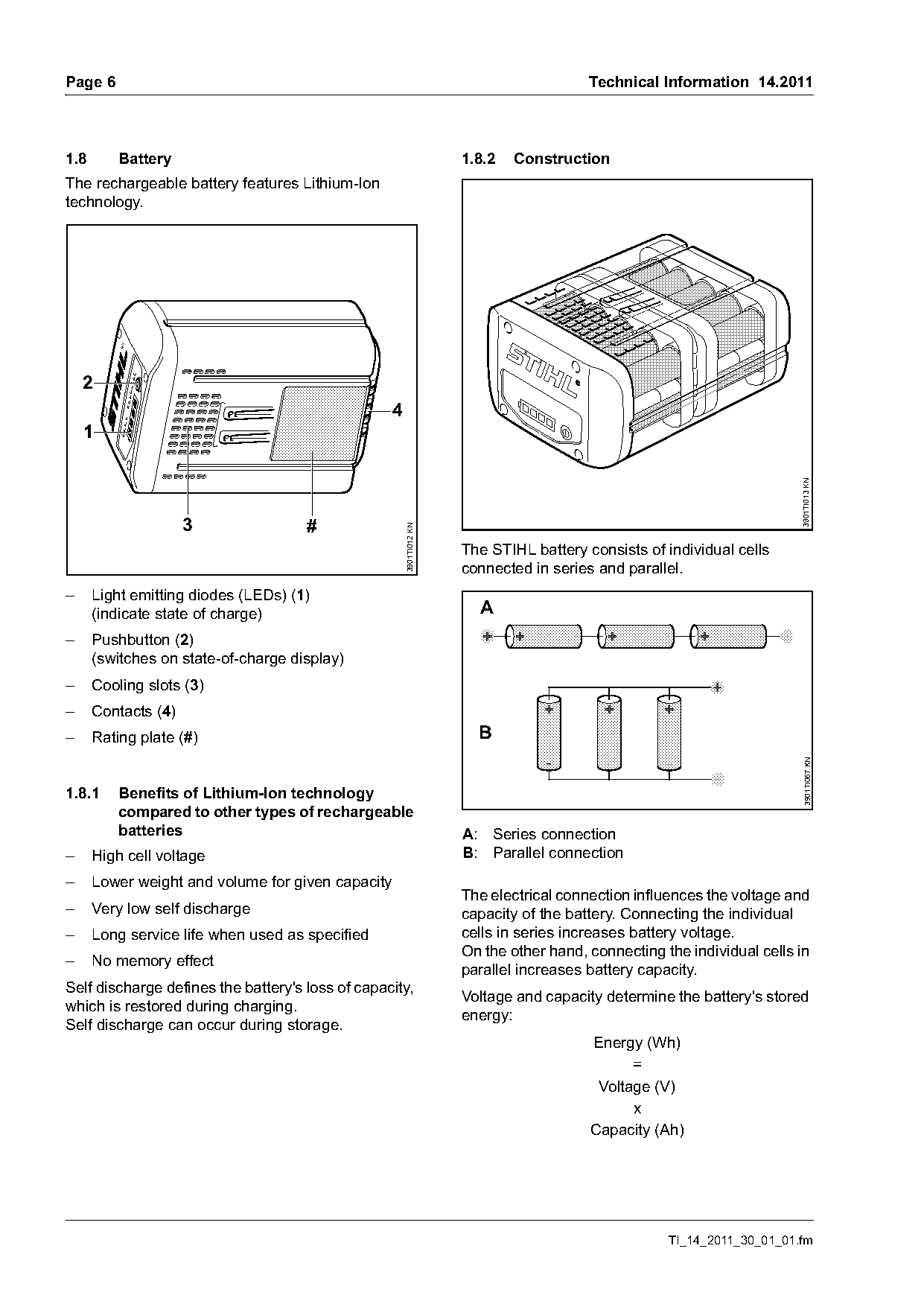

)m~ge 6 Technical Information 14.2011
1.8 Battery 1.8.2 Construction
The rechargeable battery features Lithium-Ion
technology.
2
4
1
3901TI013 KN
3 #
3901TI012 KN
The STIHL battery consists of individual cells
connected in series and parallel.
– Light emitting diodes (LEDs) (1)
(indicate state of charge) A
– Pushbutton (2)
(switches on state-of-charge display)
– Cooling slots (3)
– Contacts (4)
– Rating plate (#) B
3901TI067 KN
1.8.1 Benefits of Lithium-Ion technology
compared to other types of rechargeable
batteries A: Series connection
– High cell voltage B: Parallel connection
– Lower weight and volume for given capacity
The electrical connection influences the voltage and
– Very low self discharge capacity of the battery. Connecting the individual
– Long service life when used as specified cells in series increases battery voltage.
On the other hand, connecting the individual cells in
– No memory effect
parallel increases battery capacity.
Self discharge defines the battery's loss of capacity,
Voltage and capacity determine the battery's stored
which is restored during charging.
energy:
Self discharge can occur during storage.
Energy (Wh)
=
Voltage (V)
x
Capacity (Ah)
TI_14_2011_30_01_01.fm Page 4 of 20

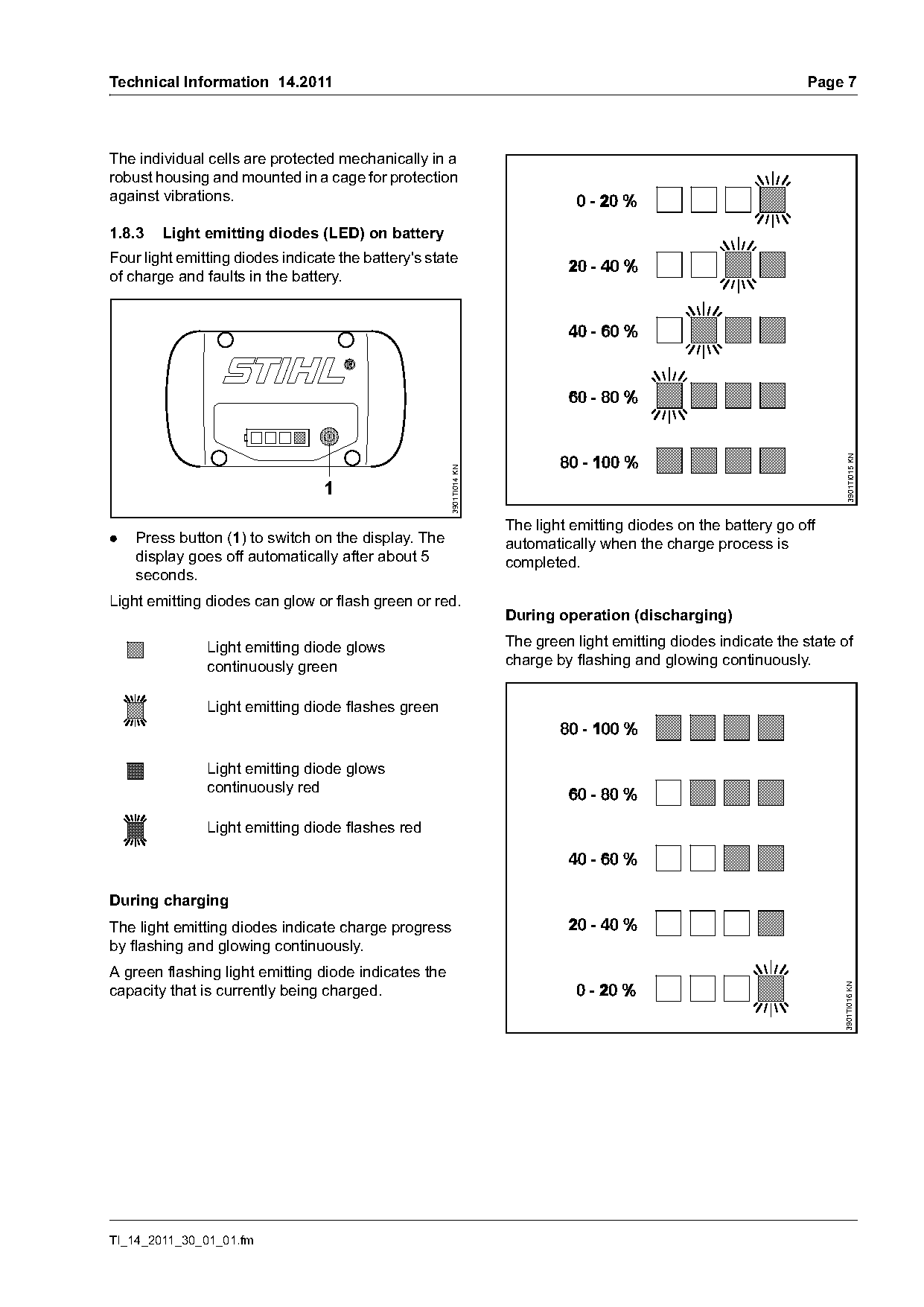

Technical Information 14.2011 Page 7
The individual cells are protected mechanically in a
robust housing and mounted in a cage for protection
against vibrations.
1.8.3 Light emitting diodes (LED) on battery
Four light emitting diodes indicate the battery's state
of charge and faults in the battery.
3901TI015 KN
3901TI014 KN
1
The light emitting diodes on the battery go off
. Press button (1) to switch on the display. The automatically when the charge process is
display goes off automatically after about 5 completed.
seconds.
Light emitting diodes can glow or flash green or red.
During operation (discharging)
Light emitting diode glows The green light emitting diodes indicate the state of
continuously green charge by flashing and glowing continuously.
Light emitting diode flashes green
Light emitting diode glows
continuously red
Light emitting diode flashes red
During charging
The light emitting diodes indicate charge progress
by flashing and glowing continuously.
A green flashing light emitting diode indicates the
3901TI016 KN
capacity that is currently being charged.
TI_14_2011_30_01_01.fm
)m~ge 8 Technical Information 14.2011

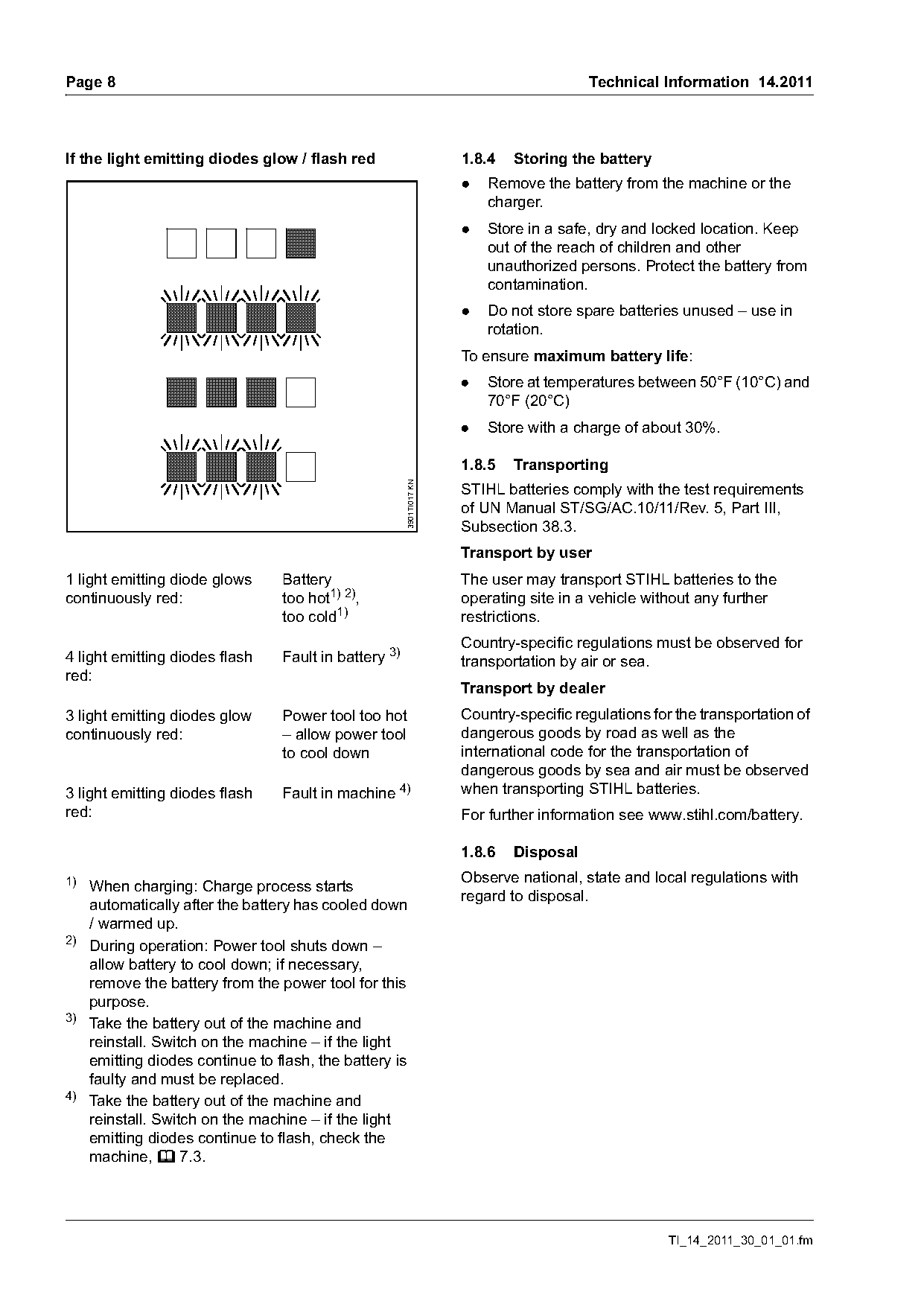

If the light emitting diodes glow / flash red 1.8.4 Storing the battery
. Remove the battery from the machine or the
charger.
. Store in a safe, dry and locked location. Keep
out of the reach of children and other
unauthorized persons. Protect the battery from
contamination.
. Do not store spare batteries unused – use in
rotation.
To ensure maximum battery life:
. Store at temperatures between 50°F (10°C) and
70°F (20°C)
. Store with a charge of about 30%.
1.8.5 Transporting
3901TI017 KN
STIHL batteries comply with the test requirements
of UN Manual ST/SG/AC.10/11/Rev. 5, Part III,
Subsection 38.3.
Transport by user
1 light emitting diode glows Battery The user may transport STIHL batteries to the
continuously red: too hot1) 2), operating site in a vehicle without any further
too cold1) restrictions.
Country-specific regulations must be observed for
4 light emitting diodes flash Fault in battery 3) transportation by air or sea.
red:
Transport by dealer
3 light emitting diodes glow Power tool too hot Country-specific regulations for the transportation of
continuously red: – allow power tool dangerous goods by road as well as the
to cool down international code for the transportation of
dangerous goods by sea and air must be observed
3 light emitting diodes flash Fault in machine 4) when transporting STIHL batteries.
red: For further information see www.stihl.com/battery.
1.8.6 Disposal
1) Observe national, state and local regulations with
When charging: Charge process starts
regard to disposal.
automatically after the battery has cooled down
/ warmed up.
2) During operation: Power tool shuts down –
allow battery to cool down; if necessary,
remove the battery from the power tool for this
purpose.
3)
Take the battery out of the machine and
reinstall. Switch on the machine – if the light
emitting diodes continue to flash, the battery is
faulty and must be replaced.
4)
Take the battery out of the machine and
reinstall. Switch on the machine – if the light
emitting diodes continue to flash, check the
machine, b 7.3.
TI_14_2011_30_01_01.fm Page 5 of 20

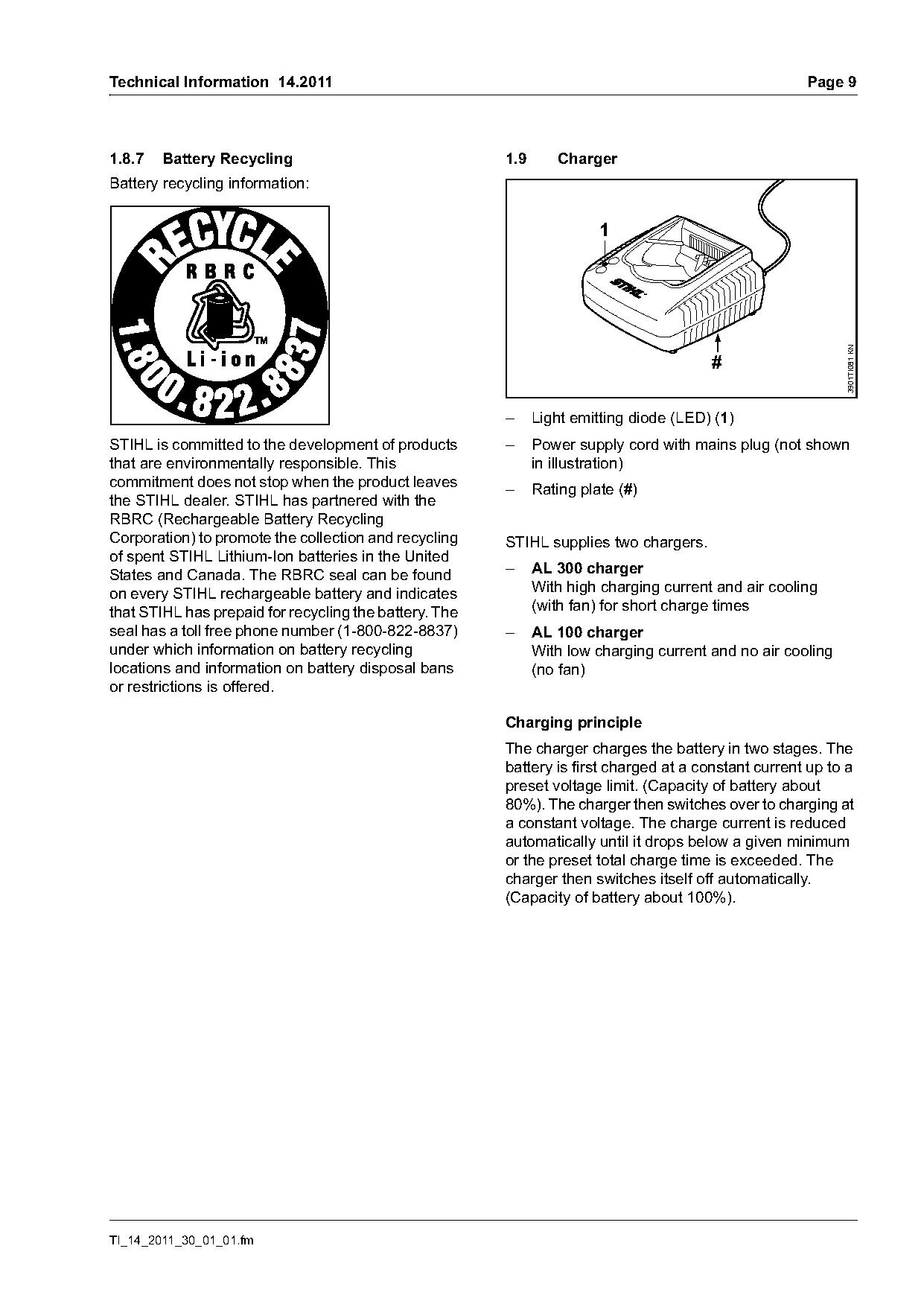

Technical Information 14.2011 Page 9
1.8.7 Battery Recycling 1.9 Charger
Battery recycling information:
3901TI081 KN
#
– Light emitting diode (LED) (1)
STIHL is committed to the development of products – Power supply cord with mains plug (not shown
that are environmentally responsible. This in illustration)
commitment does not stop when the product leaves – Rating plate (#)
the STIHL dealer. STIHL has partnered with the
RBRC (Rechargeable Battery Recycling
Corporation) to promote the collection and recycling STIHL supplies two chargers.
of spent STIHL Lithium-Ion batteries in the United
States and Canada. The RBRC seal can be found – AL 300 charger
on every STIHL rechargeable battery and indicates With high charging current and air cooling
that STIHL has prepaid for recycling the battery. The (with fan) for short charge times
seal has a toll free phone number (1-800-822-8837) – AL 100 charger
under which information on battery recycling With low charging current and no air cooling
locations and information on battery disposal bans (no fan)
or restrictions is offered.
Charging principle
The charger charges the battery in two stages. The
battery is first charged at a constant current up to a
preset voltage limit. (Capacity of battery about
80%). The charger then switches over to charging at
a constant voltage. The charge current is reduced
automatically until it drops below a given minimum
or the preset total charge time is exceeded. The
charger then switches itself off automatically.
(Capacity of battery about 100%).
TI_14_2011_30_01_01.fm
)m~ge 10 Technical Information 14.2011

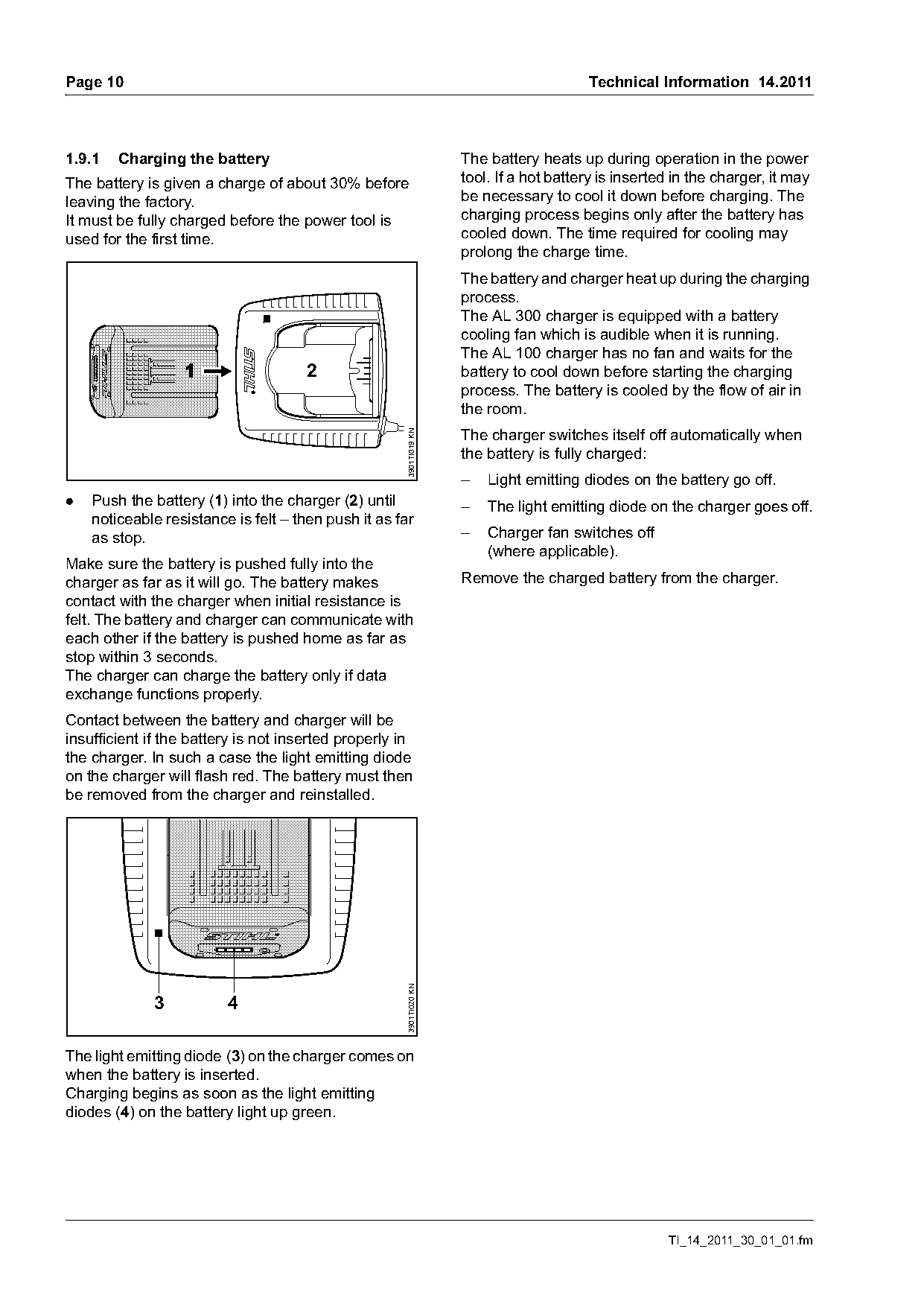

1.9.1 Charging the battery The battery heats up during operation in the power
The battery is given a charge of about 30% before tool. If a hot battery is inserted in the charger, it may
leaving the factory. be necessary to cool it down before charging. The
It must be fully charged before the power tool is charging process begins only after the battery has
used for the first time. cooled down. The time required for cooling may
prolong the charge time.
The battery and charger heat up during the charging
process.
The AL 300 charger is equipped with a battery
cooling fan which is audible when it is running.
The AL 100 charger has no fan and waits for the
2 battery to cool down before starting the charging
process. The battery is cooled by the flow of air in
the room.
The charger switches itself off automatically when
3901TI019 KN
the battery is fully charged:
– Light emitting diodes on the battery go off.
. Push the battery (1) into the charger (2) until – The light emitting diode on the charger goes off.
noticeable resistance is felt – then push it as far
as stop. – Charger fan switches off
(where applicable).
Make sure the battery is pushed fully into the
charger as far as it will go. The battery makes Remove the charged battery from the charger.
contact with the charger when initial resistance is
felt. The battery and charger can communicate with
each other if the battery is pushed home as far as
stop within 3 seconds.
The charger can charge the battery only if data
exchange functions properly.
Contact between the battery and charger will be
insufficient if the battery is not inserted properly in
the charger. In such a case the light emitting diode
on the charger will flash red. The battery must then
be removed from the charger and reinstalled.
3901TI020 KN
3 4
The light emitting diode (3) on the charger comes on
when the battery is inserted.
Charging begins as soon as the light emitting
diodes (4) on the battery light up green.
TI_14_2011_30_01_01.fm Page 6 of 20
Technical Information 14.2011 Page 11

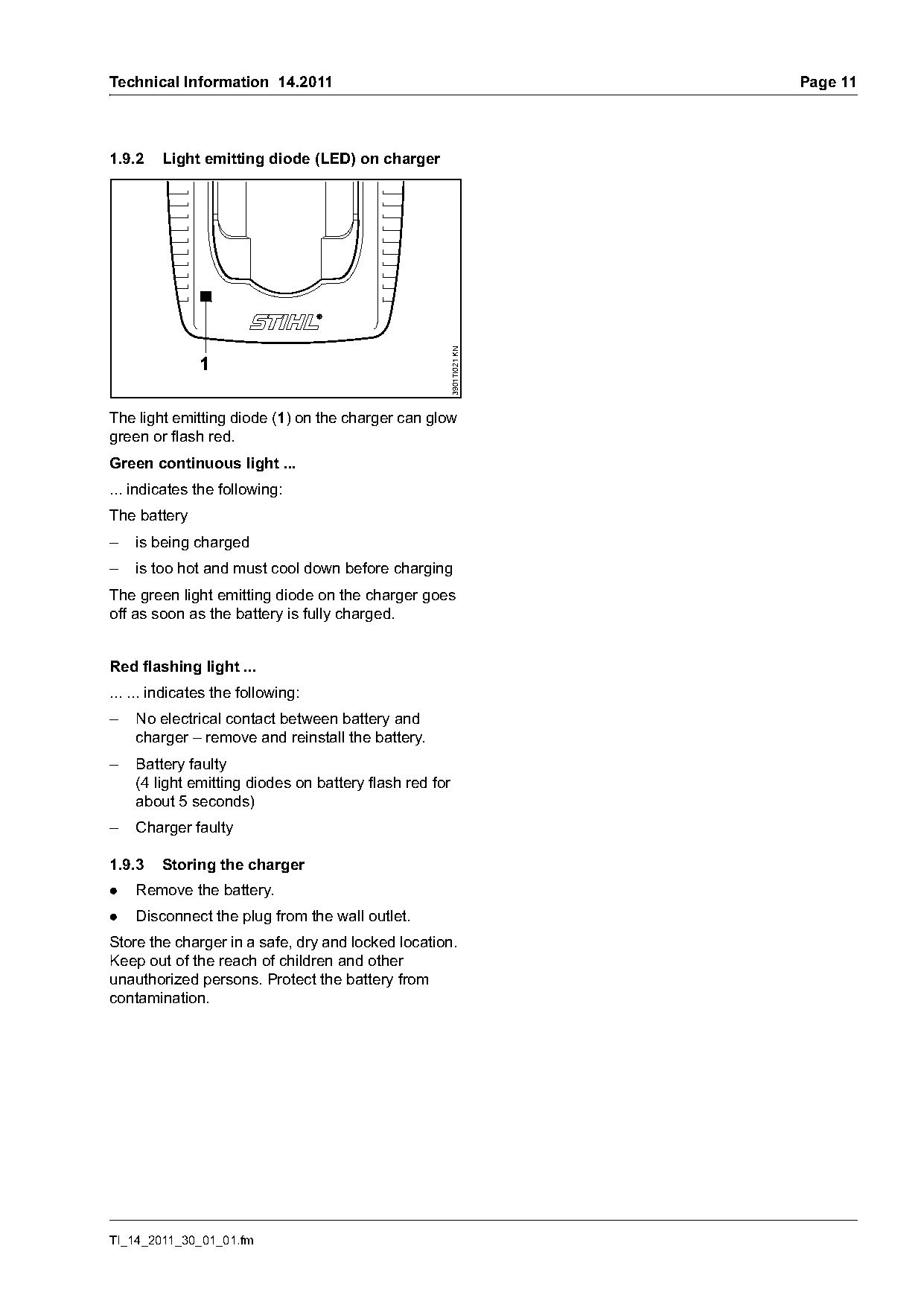

1.9.2 Light emitting diode (LED) on charger
3901TI021 KN
1
The light emitting diode (1) on the charger can glow
green or flash red.
Green continuous light ...
... indicates the following:
The battery
– is being charged
– is too hot and must cool down before charging
The green light emitting diode on the charger goes
off as soon as the battery is fully charged.
Red flashing light ...
... ... indicates the following:
– No electrical contact between battery and
charger – remove and reinstall the battery.
– Battery faulty
(4 light emitting diodes on battery flash red for
about 5 seconds)
– Charger faulty
1.9.3 Storing the charger
. Remove the battery.
. Disconnect the plug from the wall outlet.
Store the charger in a safe, dry and locked location.
Keep out of the reach of children and other
unauthorized persons. Protect the battery from
contamination.
TI_14_2011_30_01_01.fm
)m~ge 12 Technical Information 14.2011

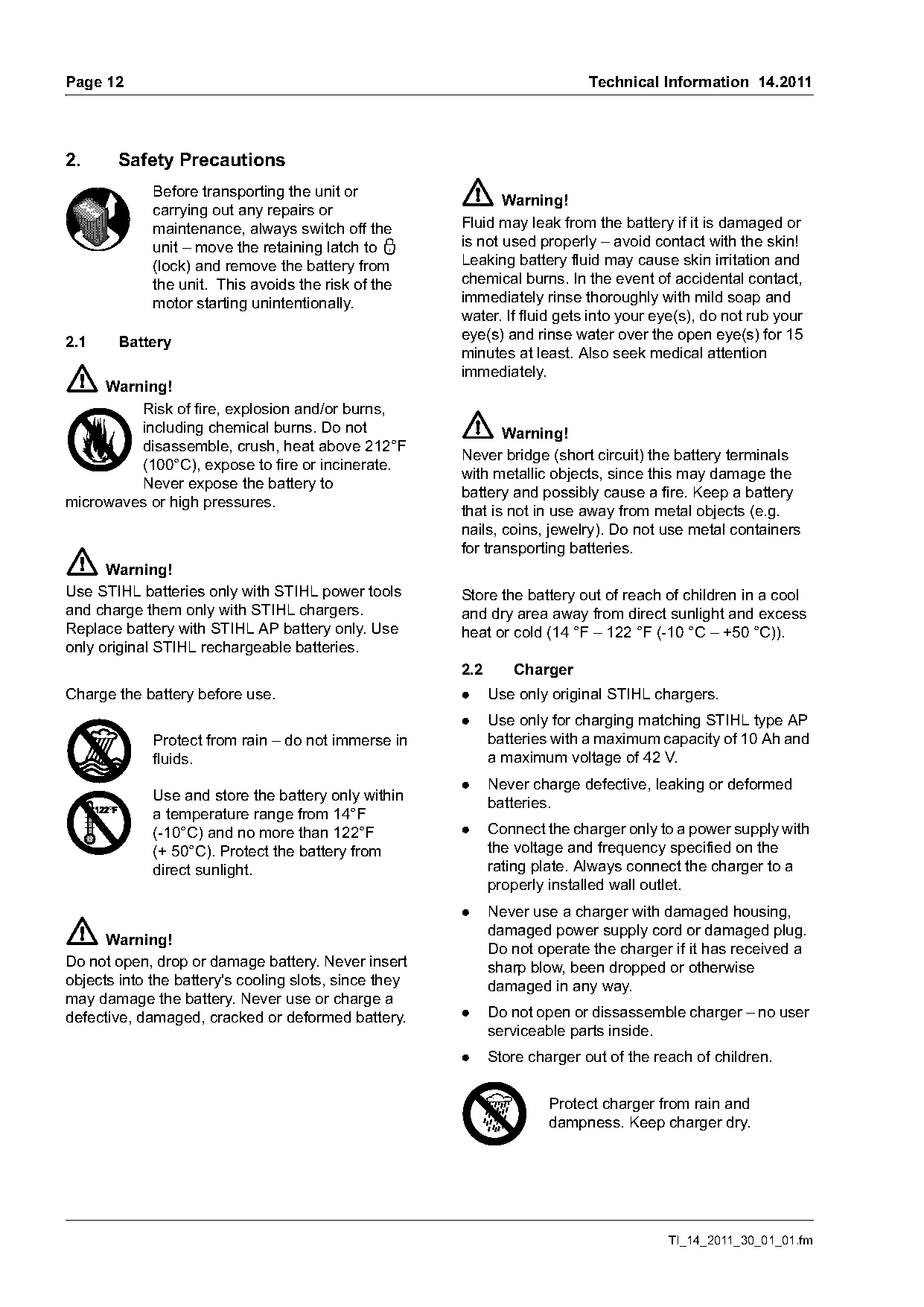

2. Safety Precautions
Before transporting the unit or
Warning!
carrying out any repairs or
maintenance, always switch off the Fluid may leak from the battery if it is damaged or
unit – move the retaining latch to ƒ is not used properly – avoid contact with the skin!
(lock) and remove the battery from Leaking battery fluid may cause skin irritation and
the unit. This avoids the risk of the chemical burns. In the event of accidental contact,
motor starting unintentionally. immediately rinse thoroughly with mild soap and
water. If fluid gets into your eye(s), do not rub your
eye(s) and rinse water over the open eye(s) for 15
2.1 Battery
minutes at least. Also seek medical attention
immediately.
Warning!
Risk of fire, explosion and/or burns,
including chemical burns. Do not Warning!
disassemble, crush, heat above 212°F
Never bridge (short circuit) the battery terminals
(100°C), expose to fire or incinerate.
with metallic objects, since this may damage the
Never expose the battery to
battery and possibly cause a fire. Keep a battery
microwaves or high pressures.
that is not in use away from metal objects (e.g.
nails, coins, jewelry). Do not use metal containers
for transporting batteries.
Warning!
Use STIHL batteries only with STIHL power tools Store the battery out of reach of children in a cool
and charge them only with STIHL chargers. and dry area away from direct sunlight and excess
Replace battery with STIHL AP battery only. Use heat or cold (14 °F – 122 °F (-10 °C – +50 °C)).
only original STIHL rechargeable batteries.
2.2 Charger
Charge the battery before use. . Use only original STIHL chargers.
. Use only for charging matching STIHL type AP
Protect from rain – do not immerse in batteries with a maximum capacity of 10 Ah and
fluids. a maximum voltage of 42 V.
. Never charge defective, leaking or deformed
Use and store the battery only within batteries.
a temperature range from 14°F
(-10°C) and no more than 122°F . Connect the charger only to a power supply with
(+ 50°C). Protect the battery from the voltage and frequency specified on the
direct sunlight. rating plate. Always connect the charger to a
properly installed wall outlet.
. Never use a charger with damaged housing,
damaged power supply cord or damaged plug.
Warning!
Do not operate the charger if it has received a
Do not open, drop or damage battery. Never insert sharp blow, been dropped or otherwise
objects into the battery's cooling slots, since they damaged in any way.
may damage the battery. Never use or charge a
defective, damaged, cracked or deformed battery. . Do not open or dissassemble charger – no user
serviceable parts inside.
. Store charger out of the reach of children.
Protect charger from rain and
dampness. Keep charger dry.
TI_14_2011_30_01_01.fm Page 7 of 20

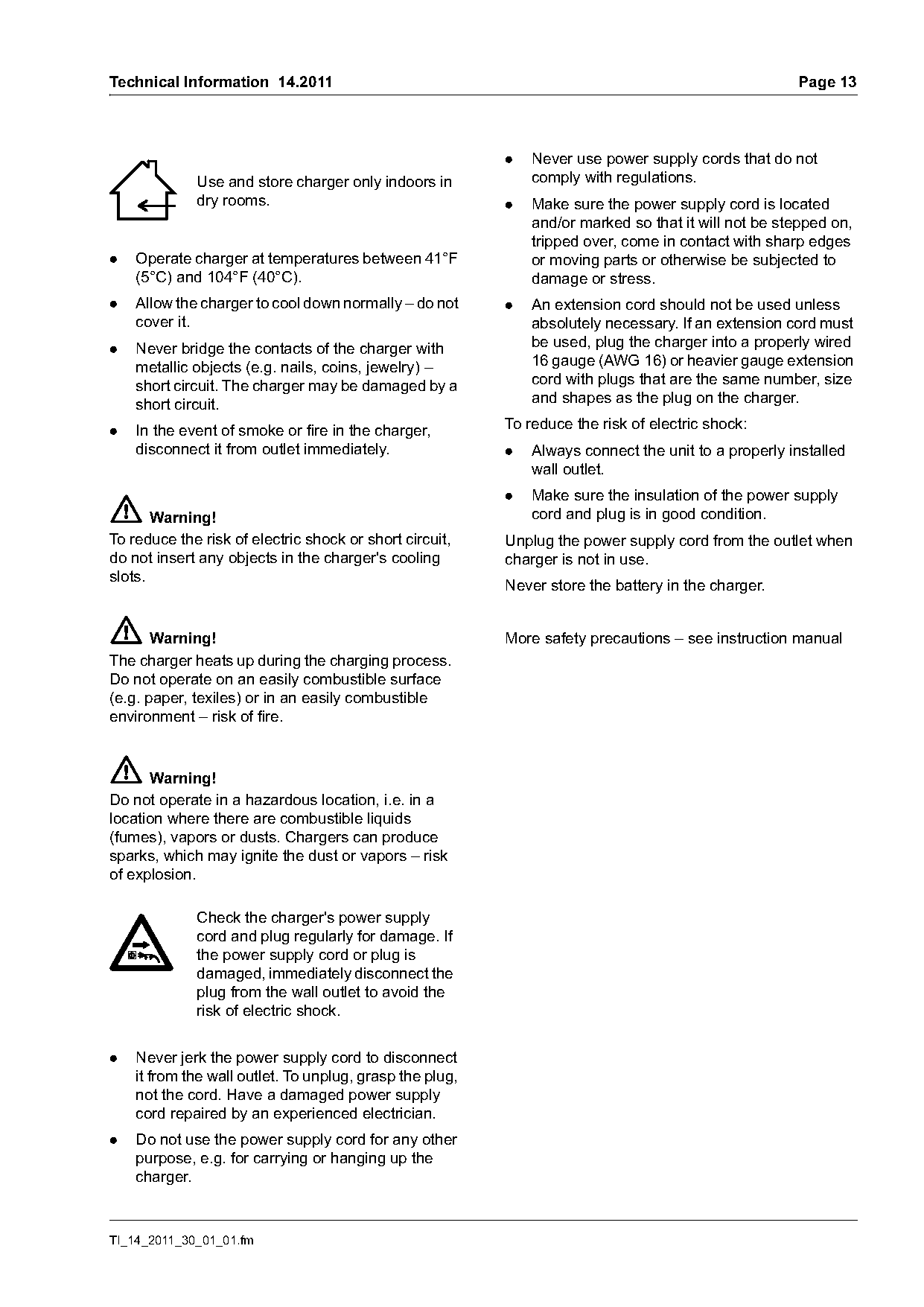

Technical Information 14.2011 Page 13
. Never use power supply cords that do not
Use and store charger only indoors in comply with regulations.
dry rooms. . Make sure the power supply cord is located
and/or marked so that it will not be stepped on,
tripped over, come in contact with sharp edges
. Operate charger at temperatures between 41°F or moving parts or otherwise be subjected to
(5°C) and 104°F (40°C). damage or stress.
. Allow the charger to cool down normally – do not . An extension cord should not be used unless
cover it. absolutely necessary. If an extension cord must
. Never bridge the contacts of the charger with be used, plug the charger into a properly wired
metallic objects (e.g. nails, coins, jewelry) – 16 gauge (AWG 16) or heavier gauge extension
short circuit. The charger may be damaged by a cord with plugs that are the same number, size
short circuit. and shapes as the plug on the charger.
. In the event of smoke or fire in the charger, To reduce the risk of electric shock:
disconnect it from outlet immediately. . Always connect the unit to a properly installed
wall outlet.
. Make sure the insulation of the power supply
Warning! cord and plug is in good condition.
To reduce the risk of electric shock or short circuit, Unplug the power supply cord from the outlet when
do not insert any objects in the charger's cooling charger is not in use.
slots.
Never store the battery in the charger.
Warning! More safety precautions – see instruction manual
The charger heats up during the charging process.
Do not operate on an easily combustible surface
(e.g. paper, texiles) or in an easily combustible
environment – risk of fire.
Warning!
Do not operate in a hazardous location, i.e. in a
location where there are combustible liquids
(fumes), vapors or dusts. Chargers can produce
sparks, which may ignite the dust or vapors – risk
of explosion.
Check the charger's power supply
cord and plug regularly for damage. If
the power supply cord or plug is
damaged, immediately disconnect the
plug from the wall outlet to avoid the
risk of electric shock.
. Never jerk the power supply cord to disconnect
it from the wall outlet. To unplug, grasp the plug,
not the cord. Have a damaged power supply
cord repaired by an experienced electrician.
. Do not use the power supply cord for any other
purpose, e.g. for carrying or hanging up the
charger.
TI_14_2011_30_01_01.fm
)m~ge 14 Technical Information 14.2011
3. Specifications 3.3 Maximum air flow rate
with round nozzle 383 cf/min (650 m3/h)
3.1 Battery with fan nozzle 421 cf/min (715 m3/h)
The STIHL BGA 85 cordless blower can be without nozzle 497 cf/min (845 m3/h)
operated with STIHL type AP rechargeable
batteries. 3.4 Air velocity
The running time of the machine depends on the
with round nozzle 103 mph (46 m/s)
battery's stored energy (e.g. 80 Wh with AP 80 or
160 Wh with AP 160). with fan nozzle 101 mph (45 m/s)
3.2 Charger 3.5 Dimensions
AL 100 Length 38.86 in (987 mm)
Power supply: 120 V Height 11.22 in (285 mm)
Rated current: 1.3 A Depth 6.57 in (167 mm)
Frequency: 60 Hz
3.6 Weight
Wattage: 75 W
Charge current: 1.6 A without battery 6.83 lbs (3.2 kg)
Charge time (for AP 80):
– up to 80% capacity: 70 min
– up to 100% capacity: 100 min
Charge time (for
AP 160):
– up to 80% capacity: 150 min
– up to 100% capacity: 165 min
Insulation: II, E (double insulated)
AL 300
Power supply: 120 V
Rated current: 4.7 A
Frequency: 60 Hz
Wattage: 330 W
Charge current: 6.5 A
Charge time (for AP 80):
– up to 80% capacity: 25 min
– up to 100% capacity: 50 min
Charge time (for
AP 160):
– up to 80% capacity: 35 min
– up to 100% capacity: 60 min
Insulation: II, E (double insulated)
TI_14_2011_30_01_01.fm Page 8 of 20
Technical Information 14.2011 Page 15
4. Special Accessories
Designation Part No. Application
STIHL battery:
– AP 80: 4850 400 6503
– AP 160: 4850 400 6505
STIHL charger: Charging the battery
– AL 100: 4850 430 2502
– AL 300: 4850 430 5502
STIHL battery belt 4850 490 0100 Reduces machine weight held by user
Fan nozzle, curved 4606 701 8301
5. Servicing Accessories
The battery is tested with the ADG 1 battery
analyzer.
The power tool is tested with the ADG 2 digital
analyzer.
Item Designation Part No. Application
1 Battery analyzer 4850 840 0102 Testing the battery
ADG 1
2 Digital analyzer 4850 840 0202 Testing cordless power tool
ADG 2
TI_14_2011_30_01_01.fm
)m~ge 16 Technical Information 14.2011

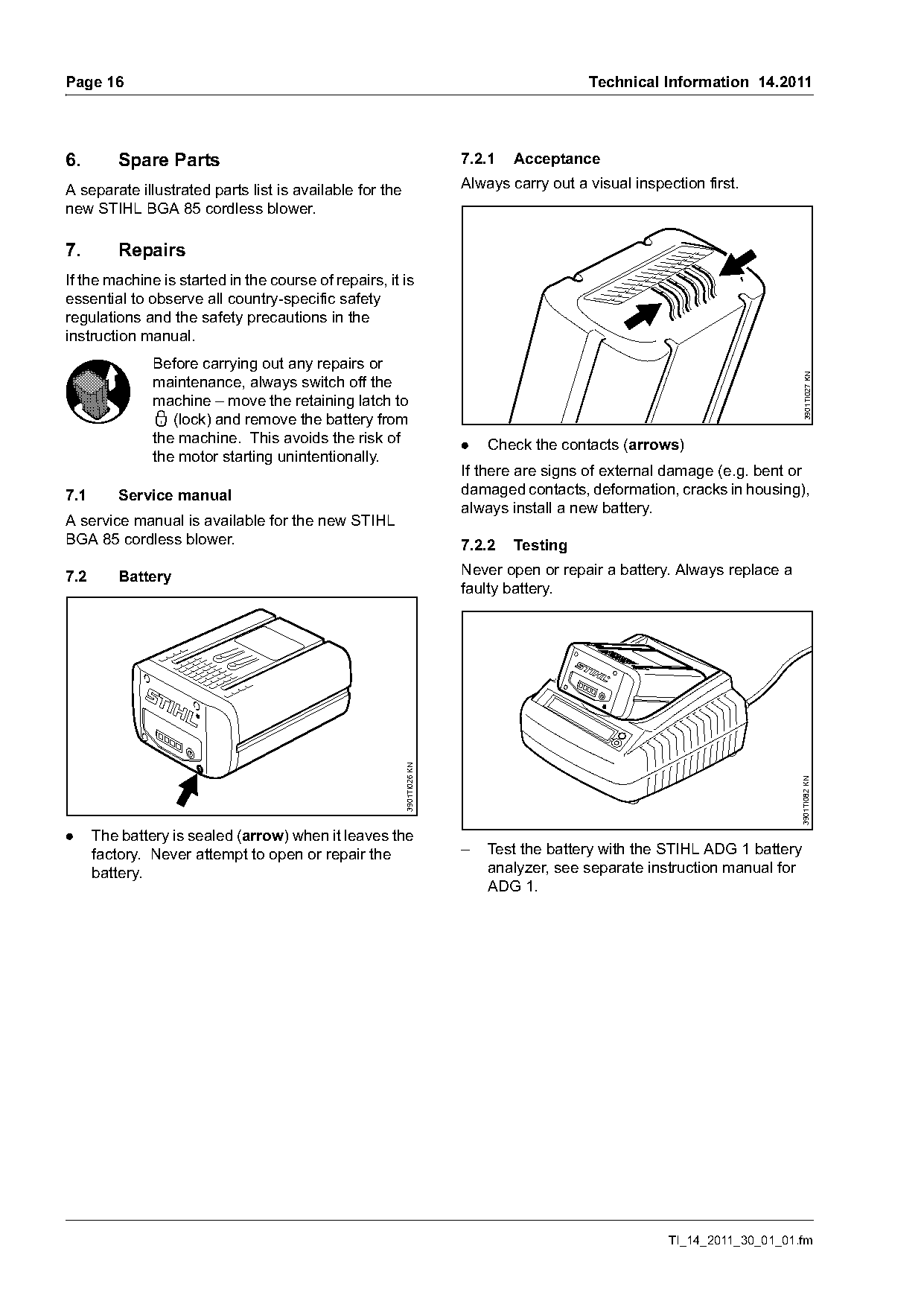

6. Spare Parts 7.2.1 Acceptance
A separate illustrated parts list is available for the Always carry out a visual inspection first.
new STIHL BGA 85 cordless blower.
7. Repairs
If the machine is started in the course of repairs, it is
essential to observe all country-specific safety
regulations and the safety precautions in the
instruction manual.
Before carrying out any repairs or
3901TI027 KN
maintenance, always switch off the
machine – move the retaining latch to
ƒ (lock) and remove the battery from
the machine. This avoids the risk of . Check the contacts (arrows)
the motor starting unintentionally.
If there are signs of external damage (e.g. bent or
7.1 Service manual damaged contacts, deformation, cracks in housing),
always install a new battery.
A service manual is available for the new STIHL
BGA 85 cordless blower. 7.2.2 Testing
7.2 Battery Never open or repair a battery. Always replace a
faulty battery.
3901TI026 KN
3901TI082 KN
. The battery is sealed (arrow) when it leaves the
factory. Never attempt to open or repair the – Test the battery with the STIHL ADG 1 battery
battery. analyzer, see separate instruction manual for
ADG 1.
TI_14_2011_30_01_01.fm Page 9 of 20
Technical Information 14.2011 Page 17
7.3 Troubleshooting Chart
Machine does not run or only hums
Check battery for state of charge, correct installation
and damage (housing, seal, contacts)
Battery
Charge / install properly /
- charged, properly installed, replace.
not damaged?
yes
no yes
Check light emitting diodes (LEDs) on battery Machine
no LEDs glow or flash
red?
yes
3 LEDs flash 4 LEDs flash 3 LEDs glow 1 LED glows
Fault in Fault in Power tool Battery
power tool, battery, too hot – too hot /
check check allow power tool too cold,
power tool with ADG 1 to cool down allow it to
and replace if cool down /
necessary warm up
Machine
1 2 yes 3
TI_14_2011_30_01_01.fm
)m~ge 18 Technical Information 14.2011

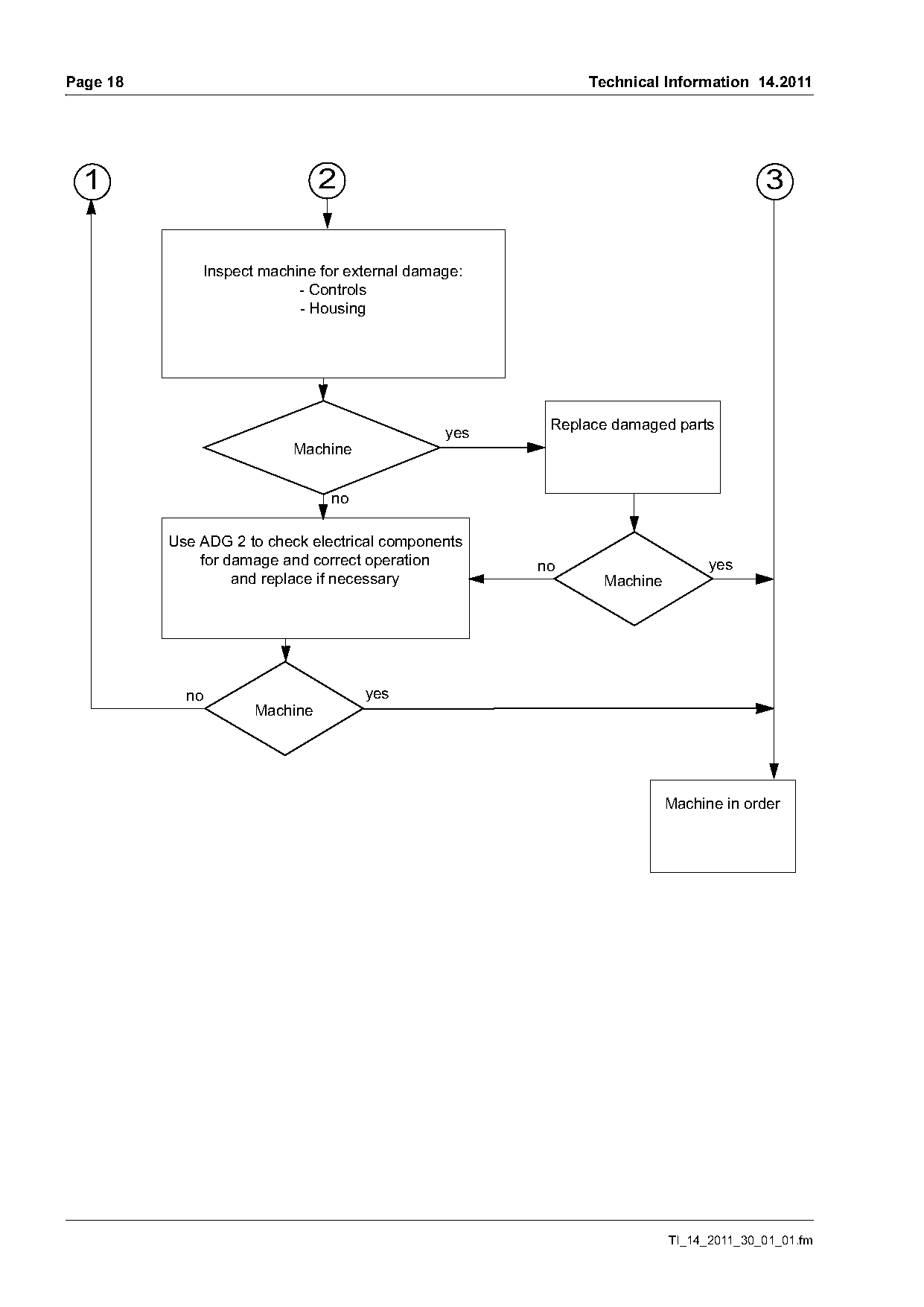

1 2 3
Inspect machine for external damage:
- Controls
- Housing
Replace damaged parts
yes
Machine
Use ADG 2 to check electrical components
for damage and correct operation no yes
and replace if necessary Machine
no yes
Machine
Machine in order
TI_14_2011_30_01_01.fm Page 10 of 20
Technical Information 14.2011 Page 19

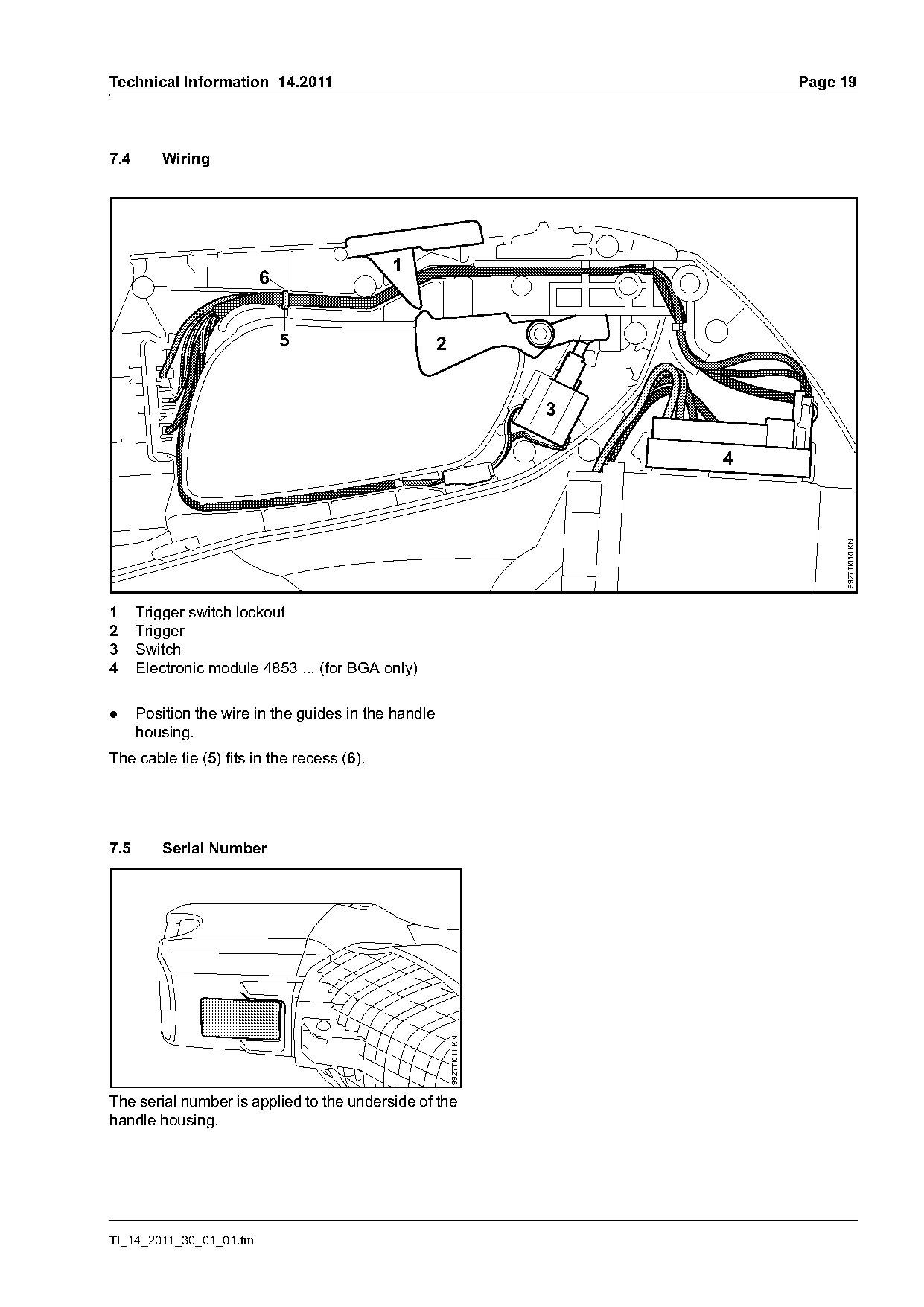

7.4 Wiring
1
6
5 2
9927TI010 KN
1 Trigger switch lockout
2 Trigger
3 Switch
4 Electronic module 4853 ... (for BGA only)
. Position the wire in the guides in the handle
housing.
The cable tie (5) fits in the recess (6).
7.5 Serial Number
9927TI011 KN
The serial number is applied to the underside of the
handle housing.
TI_14_2011_30_01_01.fm
)m~ge 20 Technical Information 14.2011
7.6 Repair Times
The specified repair times assume that the work is
performed by trained personnel in a properly
equipped service workshop.
Repair times are quoted in minutes.
The following table can be added to the STIHL
repair times tables.
Code Type of Repair BGA 85
4 Replace on/off trigger switch(s).
Includes electrical test. 20
5 Replace wiring harness.
Includes electrical test. 25
6 Replace electronic module.
Includes electrical test. 15
15 Replace motor. Includes
electrical test. 30
17 Replace motor housing(s).
Includes electrical test. 35
23 Replace blower fan(s). 35
40 Miscellaneous repairs and
other repairs not listed. 15
45 Handling allowance only-no
labor 5
50 No labor 0
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTK-ni
TI_14_2011_30_01_01.fm Page 11 of 20
Page 12 of 20
Page 13 of 20
Page 14 of 20
Page 15 of 20
Page 16 of 20
Page 17 of 20
Page 18 of 20
Page 19 of 20
Page 20 of 20
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
