Technical Information · issue 18 of 2011
New chain saws STIHL MS 201 T
IssueTI 18/2011
Engine family 1145
Full text
Page 1 of 12
STIH)

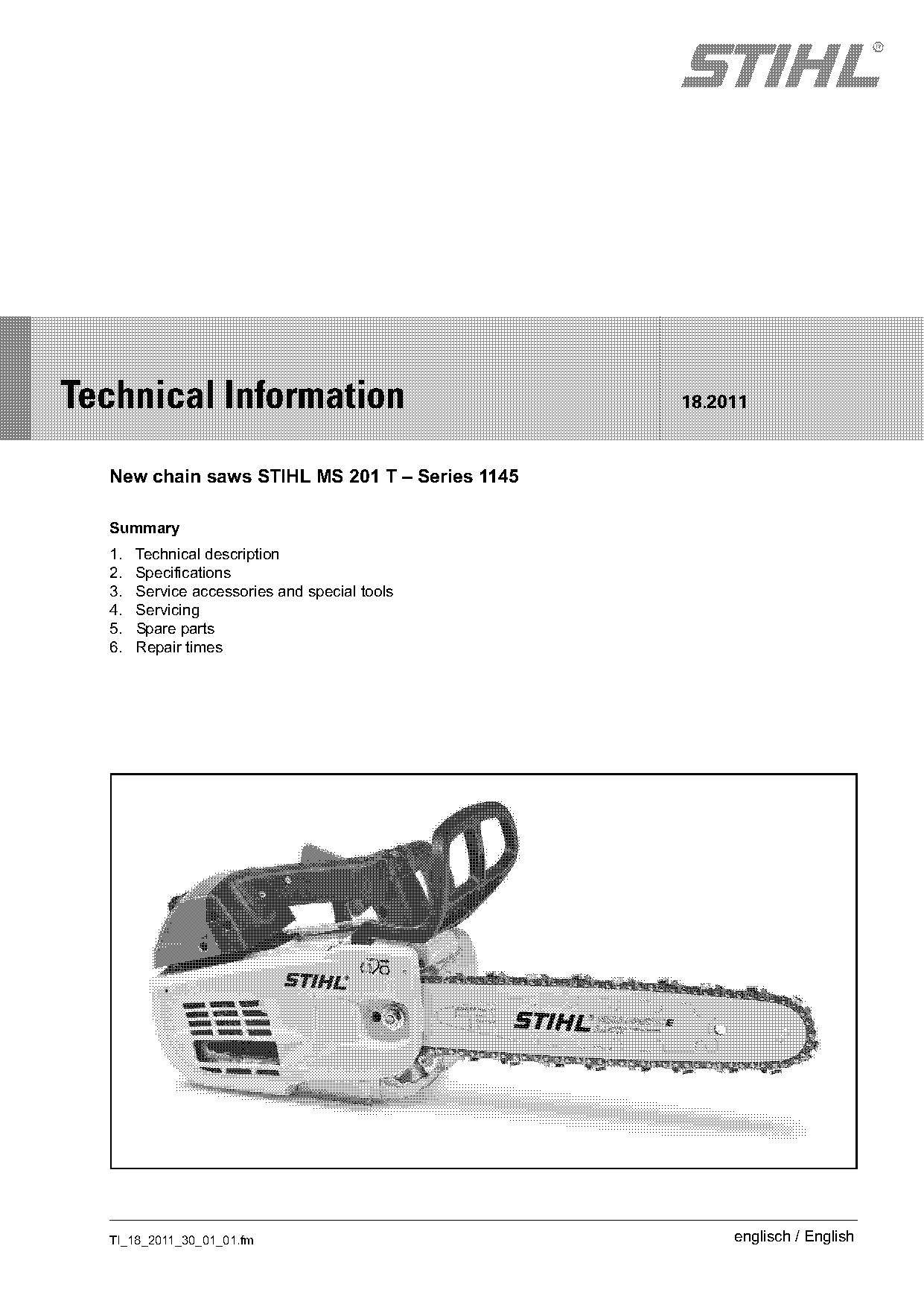

Technical Information 18.2011
New chain saws STIHL MS 201 T – Series 1145
Summary
1. Technical description
2. Specifications
3. Service accessories and special tools
4. Servicing

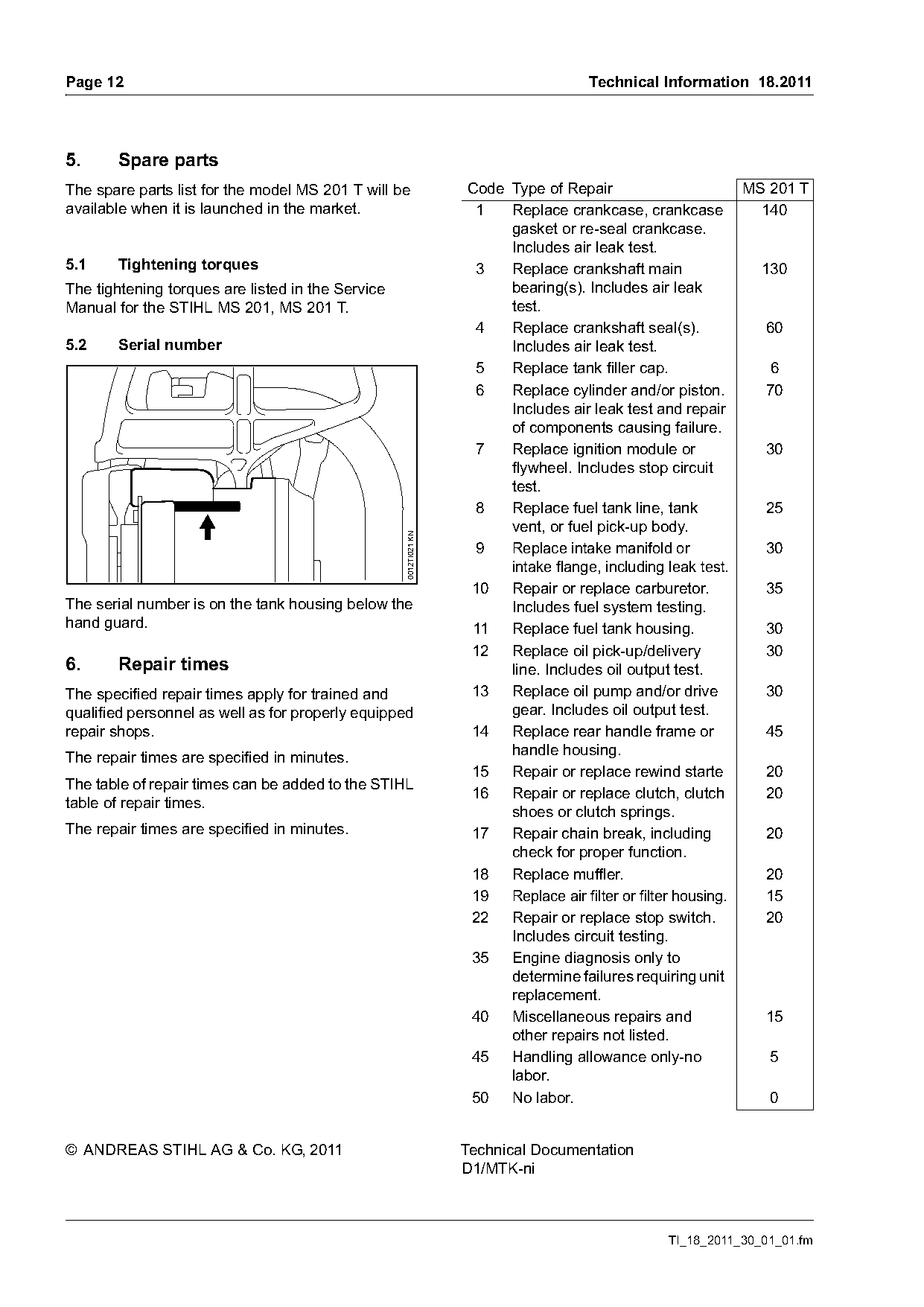

5. Spare parts
6. Repair times
TI_18_2011_30_01_01.fm englisch / English
)m~ge 2 Technical Information 18.2011

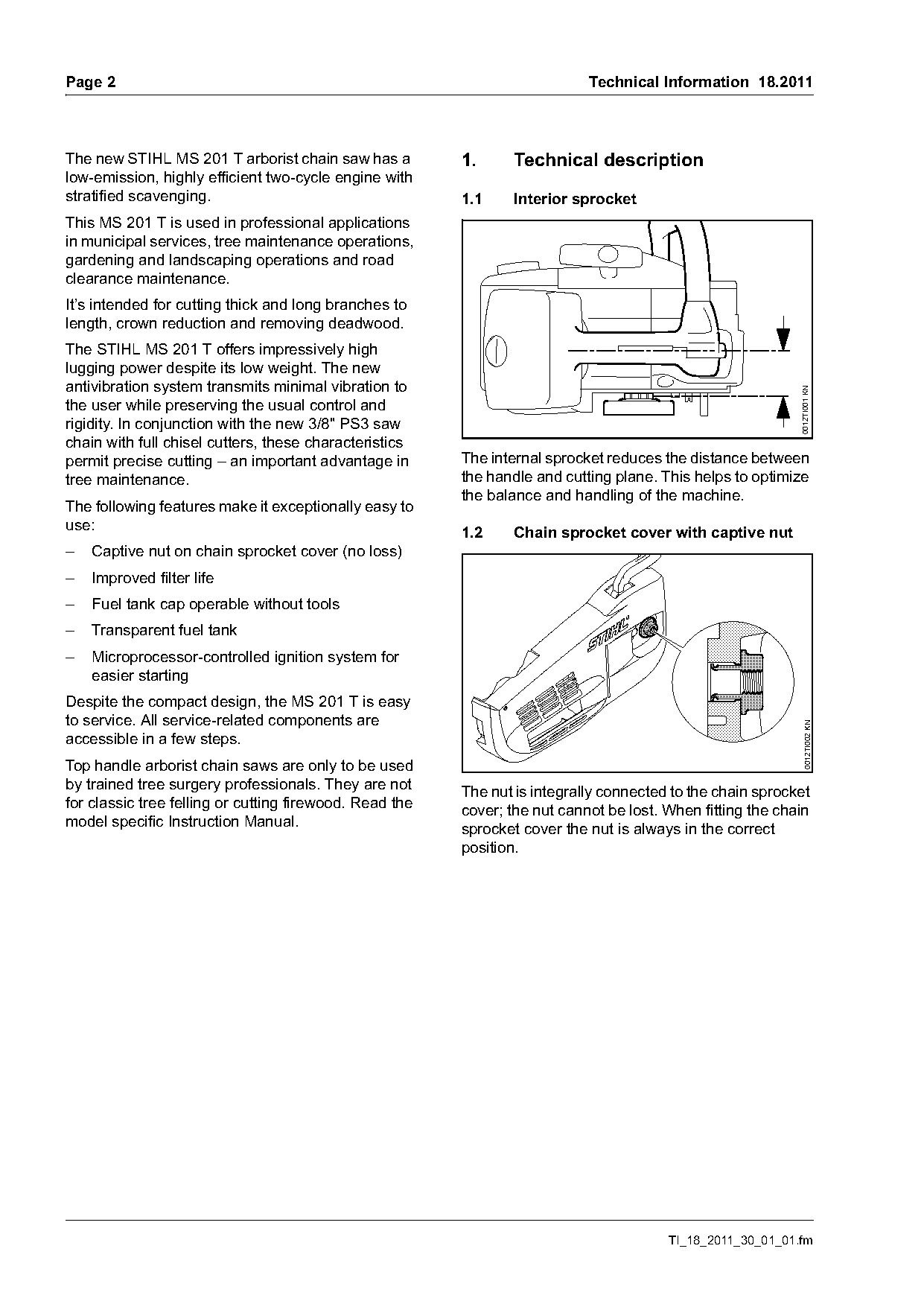

The new STIHL MS 201 T arborist chain saw has a 1. Technical description
low-emission, highly efficient two-cycle engine with
stratified scavenging. 1.1 Interior sprocket
This MS 201 T is used in professional applications
in municipal services, tree maintenance operations,
gardening and landscaping operations and road
clearance maintenance.
It’s intended for cutting thick and long branches to
length, crown reduction and removing deadwood.
The STIHL MS 201 T offers impressively high
lugging power despite its low weight. The new
antivibration system transmits minimal vibration to
0012TI001 KN
the user while preserving the usual control and
rigidity. In conjunction with the new 3/8" PS3 saw
chain with full chisel cutters, these characteristics
permit precise cutting – an important advantage in The internal sprocket reduces the distance between
tree maintenance. the handle and cutting plane. This helps to optimize
the balance and handling of the machine.
The following features make it exceptionally easy to
use:
1.2 Chain sprocket cover with captive nut
– Captive nut on chain sprocket cover (no loss)
– Improved filter life
– Fuel tank cap operable without tools
– Transparent fuel tank
– Microprocessor-controlled ignition system for
easier starting
Despite the compact design, the MS 201 T is easy
to service. All service-related components are
0012TI002 KN
accessible in a few steps.
Top handle arborist chain saws are only to be used
by trained tree surgery professionals. They are not
The nut is integrally connected to the chain sprocket
for classic tree felling or cutting firewood. Read the
cover; the nut cannot be lost. When fitting the chain
model specific Instruction Manual.
sprocket cover the nut is always in the correct
position.
TI_18_2011_30_01_01.fm Page 2 of 12

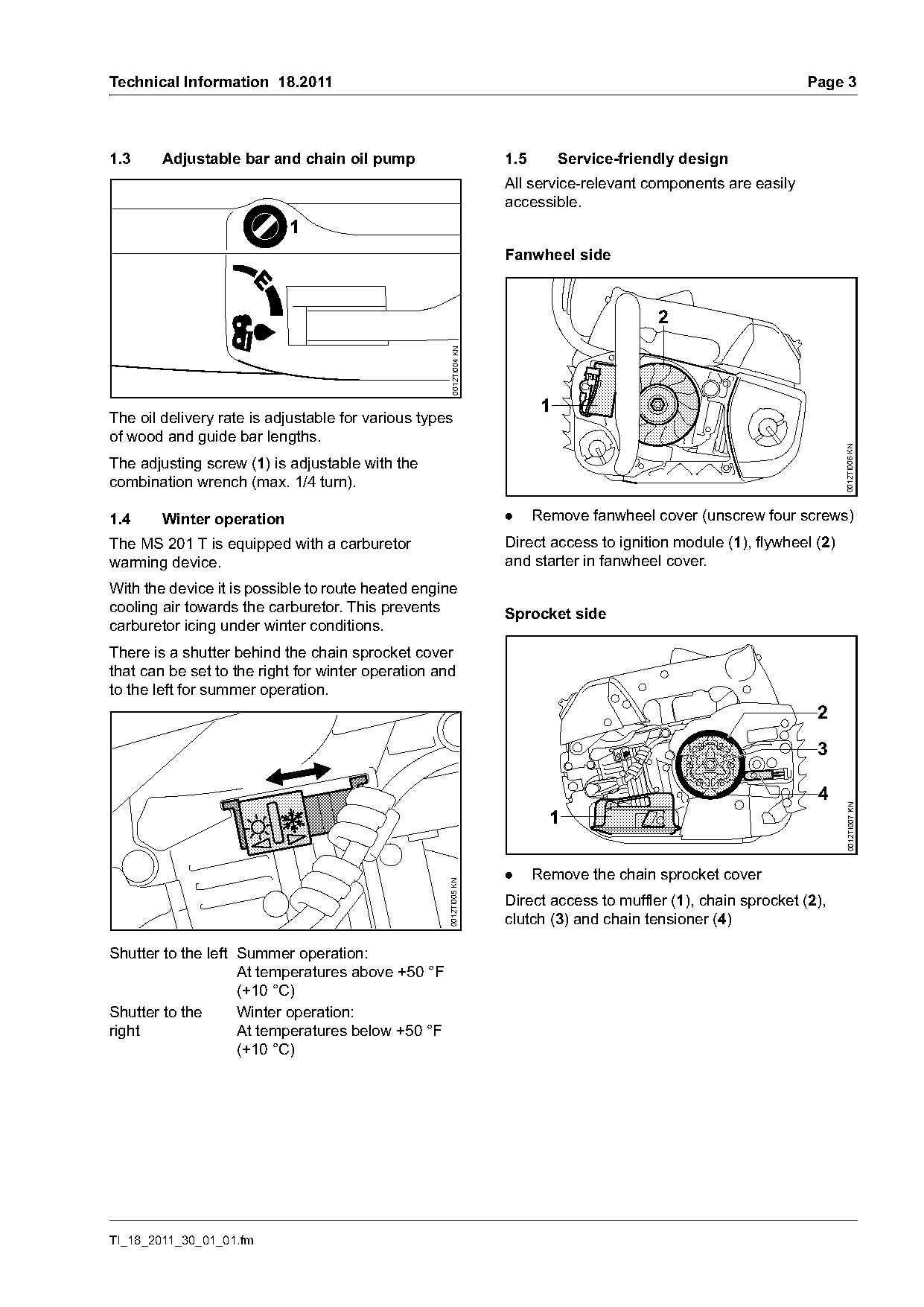

Technical Information 18.2011 Page 3
1.3 Adjustable bar and chain oil pump 1.5 Service-friendly design
All service-relevant components are easily
accessible.
1
Fanwheel side
0012TI004 KN
1
The oil delivery rate is adjustable for various types
of wood and guide bar lengths.
0012TI006 KN
The adjusting screw (1) is adjustable with the
combination wrench (max. 1/4 turn).
1.4 Winter operation . Remove fanwheel cover (unscrew four screws)
The MS 201 T is equipped with a carburetor Direct access to ignition module (1), flywheel (2)
warming device. and starter in fanwheel cover.
With the device it is possible to route heated engine
cooling air towards the carburetor. This prevents Sprocket side
carburetor icing under winter conditions.
There is a shutter behind the chain sprocket cover
that can be set to the right for winter operation and
to the left for summer operation.
2
3
0012TI007 KN
1
. Remove the chain sprocket cover
0012TI005 KN
Direct access to muffler (1), chain sprocket (2),
clutch (3) and chain tensioner (4)
Shutter to the left Summer operation:
At temperatures above +50 °F
(+10 °C)
Shutter to the Winter operation:
right At temperatures below +50 °F
(+10 °C)
TI_18_2011_30_01_01.fm
)m~ge 4 Technical Information 18.2011

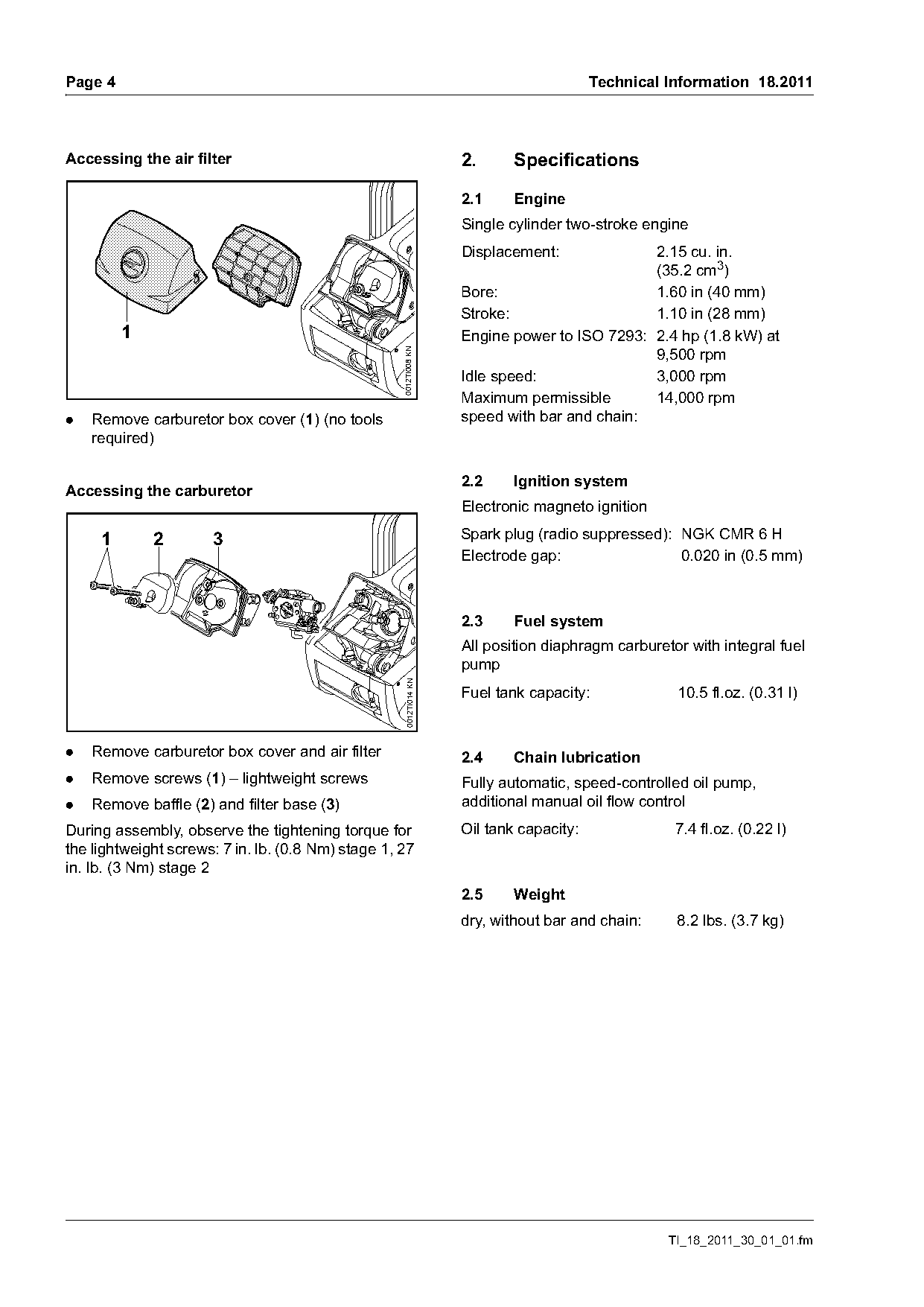

Accessing the air filter 2. Specifications
2.1 Engine
Single cylinder two-stroke engine
Displacement: 2.15 cu. in.
(35.2 cm3)
Bore: 1.60 in (40 mm)
Stroke: 1.10 in (28 mm)
1 Engine power to ISO 7293: 2.4 hp (1.8 kW) at
9,500 rpm
0012TI008 KN
Idle speed: 3,000 rpm
Maximum permissible 14,000 rpm
. Remove carburetor box cover (1) (no tools speed with bar and chain:
required)
2.2 Ignition system
Accessing the carburetor
Electronic magneto ignition
1 2 3 Spark plug (radio suppressed): NGK CMR 6 H
Electrode gap: 0.020 in (0.5 mm)
2.3 Fuel system
All position diaphragm carburetor with integral fuel
pump
0012TI014 KN
Fuel tank capacity: 10.5 fl.oz. (0.31 l)
. Remove carburetor box cover and air filter 2.4 Chain lubrication
. Remove screws (1) – lightweight screws Fully automatic, speed-controlled oil pump,
. Remove baffle (2) and filter base (3) additional manual oil flow control
During assembly, observe the tightening torque for Oil tank capacity: 7.4 fl.oz. (0.22 l)
the lightweight screws: 7 in. lb. (0.8 Nm) stage 1, 27
in. lb. (3 Nm) stage 2
2.5 Weight
dry, without bar and chain: 8.2 lbs. (3.7 kg)
TI_18_2011_30_01_01.fm Page 3 of 12
Technical Information 18.2011 Page 5

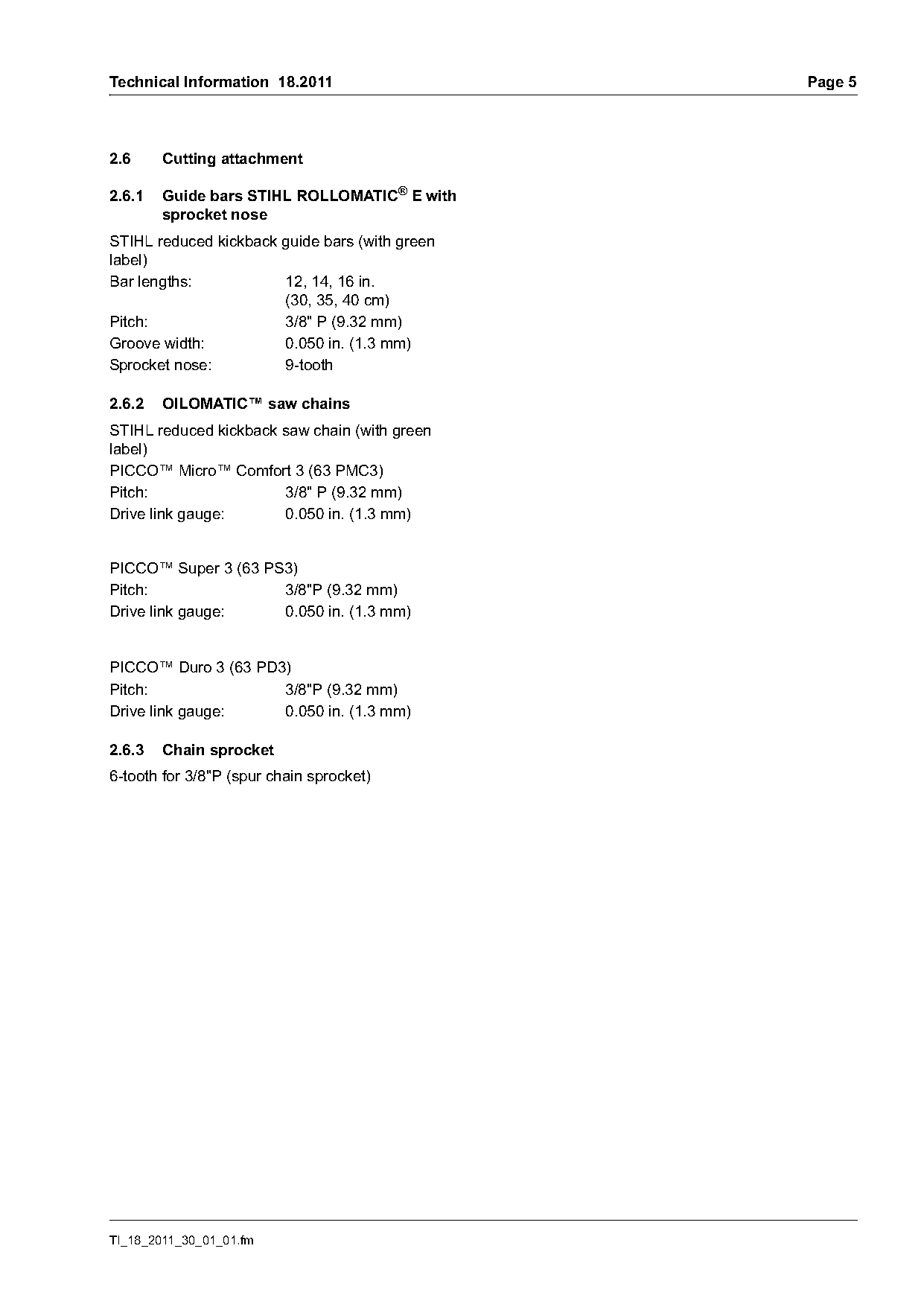

2.6 Cutting attachment
2.6.1 Guide bars STIHL ROLLOMATIC® E with
sprocket nose
STIHL reduced kickback guide bars (with green
label)
Bar lengths: 12, 14, 16 in.
(30, 35, 40 cm)
Pitch: 3/8" P (9.32 mm)
Groove width: 0.050 in. (1.3 mm)
Sprocket nose: 9-tooth
2.6.2 OILOMATIC™ saw chains
STIHL reduced kickback saw chain (with green
label)
PICCO™ Micro™ Comfort 3 (63 PMC3)
Pitch: 3/8" P (9.32 mm)
Drive link gauge: 0.050 in. (1.3 mm)
PICCO™ Super 3 (63 PS3)
Pitch: 3/8"P (9.32 mm)
Drive link gauge: 0.050 in. (1.3 mm)
PICCO™ Duro 3 (63 PD3)
Pitch: 3/8"P (9.32 mm)
Drive link gauge: 0.050 in. (1.3 mm)
2.6.3 Chain sprocket
6-tooth for 3/8"P (spur chain sprocket)
TI_18_2011_30_01_01.fm

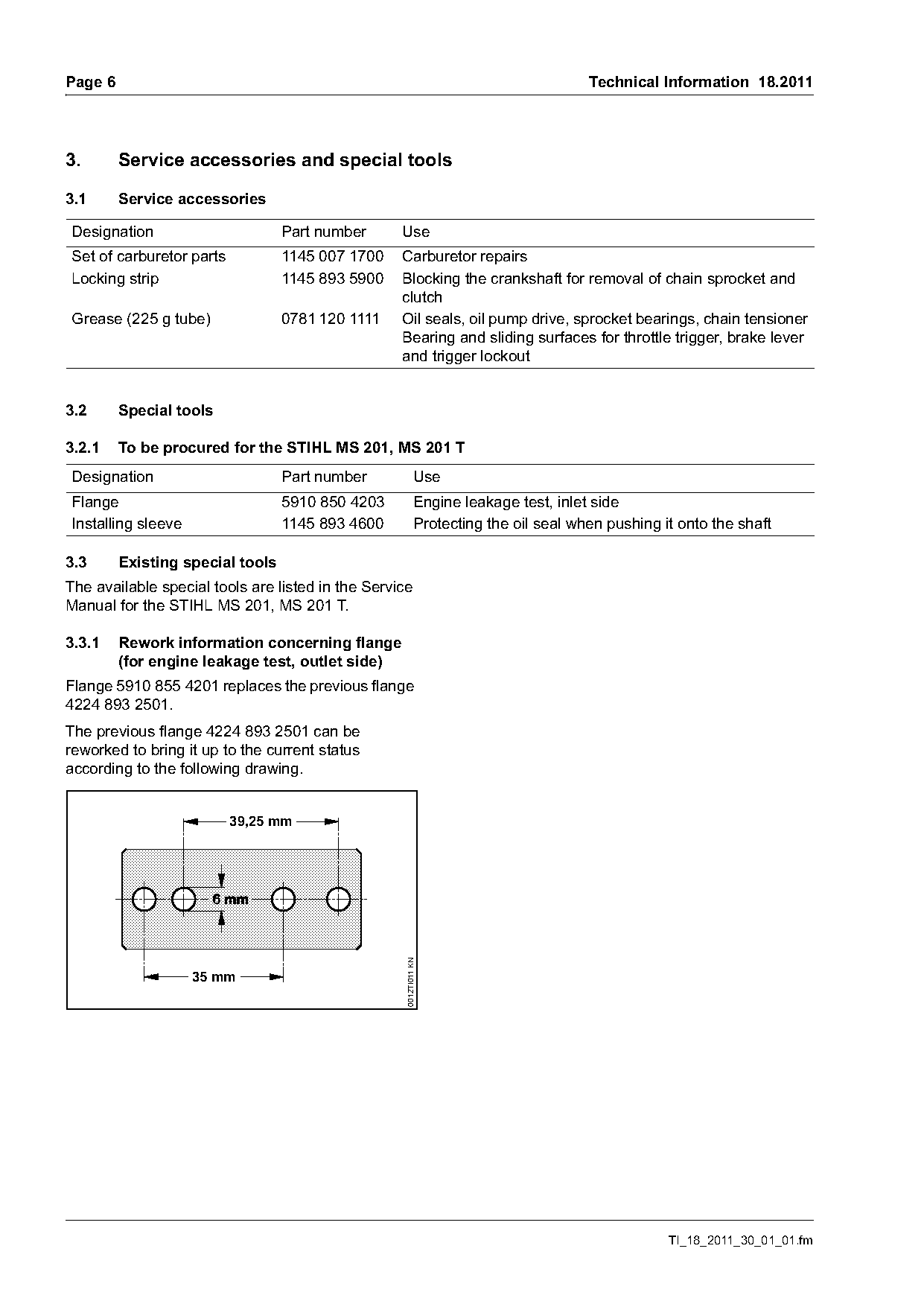

)m~ge 6 Technical Information 18.2011
3. Service accessories and special tools
3.1 Service accessories
Designation Part number Use
Set of carburetor parts 1145 007 1700 Carburetor repairs
Locking strip 1145 893 5900 Blocking the crankshaft for removal of chain sprocket and
clutch
Grease (225 g tube) 0781 120 1111 Oil seals, oil pump drive, sprocket bearings, chain tensioner
Bearing and sliding surfaces for throttle trigger, brake lever
and trigger lockout
3.2 Special tools
3.2.1 To be procured for the STIHL MS 201, MS 201 T
Designation Part number Use
Flange 5910 850 4203 Engine leakage test, inlet side
Installing sleeve 1145 893 4600 Protecting the oil seal when pushing it onto the shaft
3.3 Existing special tools
The available special tools are listed in the Service
Manual for the STIHL MS 201, MS 201 T.
3.3.1 Rework information concerning flange
(for engine leakage test, outlet side)
Flange 5910 855 4201 replaces the previous flange
4224 893 2501.
The previous flange 4224 893 2501 can be
reworked to bring it up to the current status
according to the following drawing.
39,25 mm
0012TI011 KN
35 mm
TI_18_2011_30_01_01.fm Page 4 of 12

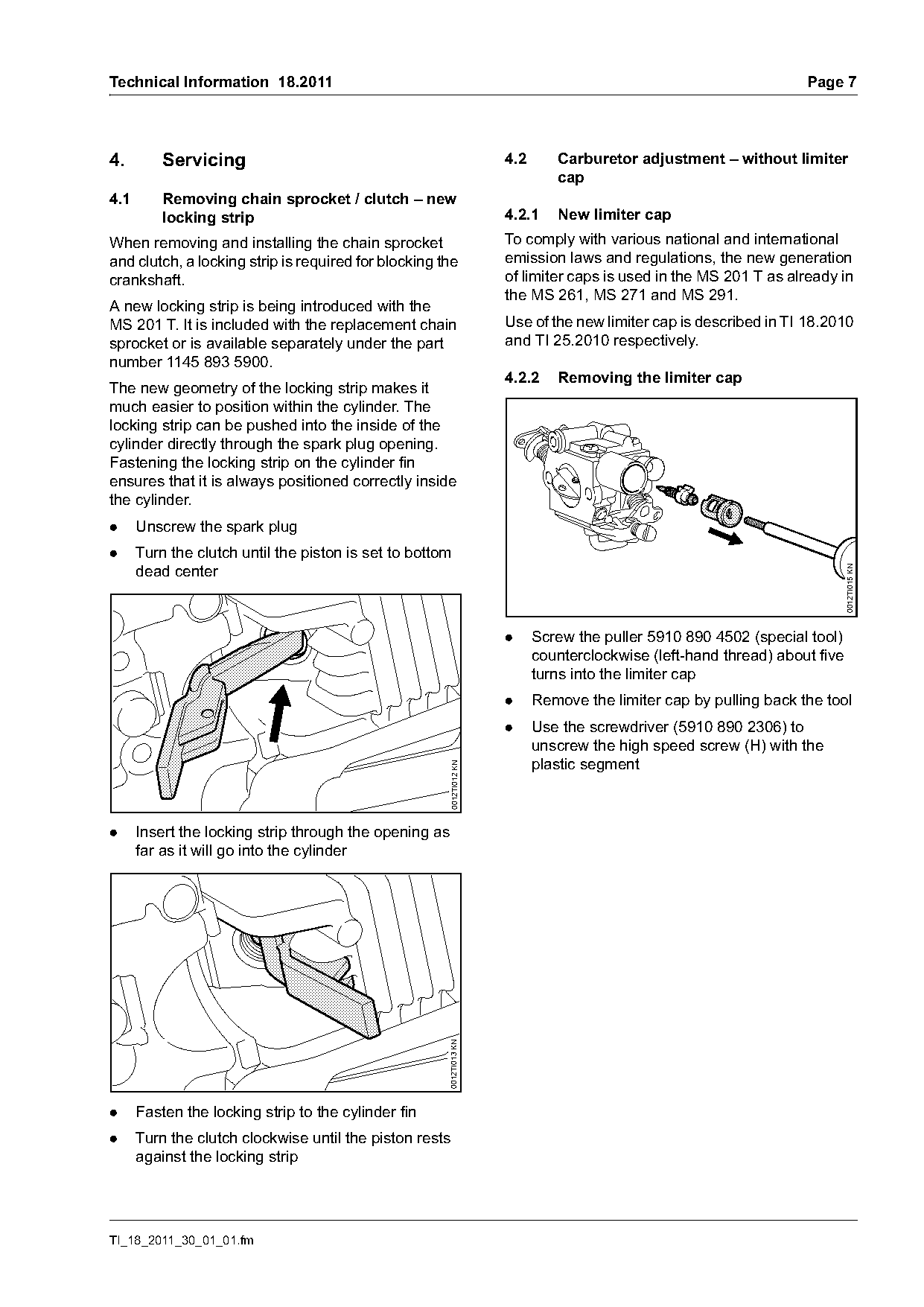

Technical Information 18.2011 Page 7
4. Servicing 4.2 Carburetor adjustment – without limiter
cap
4.1 Removing chain sprocket / clutch – new
locking strip 4.2.1 New limiter cap
When removing and installing the chain sprocket To comply with various national and international
and clutch, a locking strip is required for blocking the emission laws and regulations, the new generation
crankshaft. of limiter caps is used in the MS 201 T as already in
the MS 261, MS 271 and MS 291.
A new locking strip is being introduced with the
MS 201 T. It is included with the replacement chain Use of the new limiter cap is described in TI 18.2010
sprocket or is available separately under the part and TI 25.2010 respectively.
number 1145 893 5900.
4.2.2 Removing the limiter cap
The new geometry of the locking strip makes it
much easier to position within the cylinder. The
locking strip can be pushed into the inside of the
cylinder directly through the spark plug opening.
Fastening the locking strip on the cylinder fin
ensures that it is always positioned correctly inside
the cylinder.
. Unscrew the spark plug
. Turn the clutch until the piston is set to bottom
dead center
0012TI015 KN
. Screw the puller 5910 890 4502 (special tool)
counterclockwise (left-hand thread) about five
turns into the limiter cap
. Remove the limiter cap by pulling back the tool
. Use the screwdriver (5910 890 2306) to
unscrew the high speed screw (H) with the
plastic segment
0012TI012 KN
. Insert the locking strip through the opening as
far as it will go into the cylinder
0012TI013 KN
. Fasten the locking strip to the cylinder fin
. Turn the clutch clockwise until the piston rests
against the locking strip
TI_18_2011_30_01_01.fm
)m~ge 8 Technical Information 18.2011

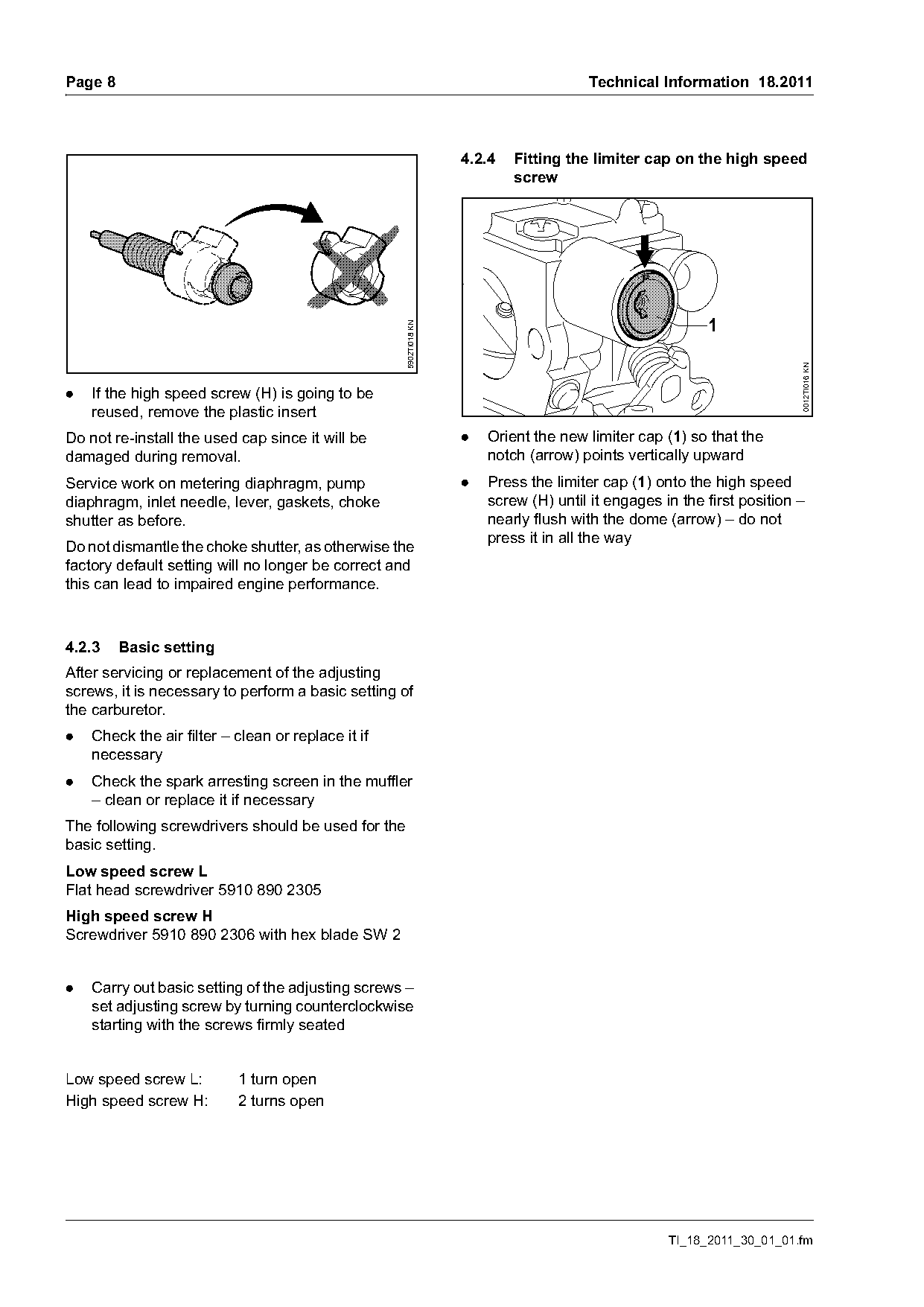

4.2.4 Fitting the limiter cap on the high speed
screw
5902TI018 KN
0012TI016 KN
. If the high speed screw (H) is going to be
reused, remove the plastic insert
Do not re-install the used cap since it will be . Orient the new limiter cap (1) so that the
damaged during removal. notch (arrow) points vertically upward
Service work on metering diaphragm, pump . Press the limiter cap (1) onto the high speed
diaphragm, inlet needle, lever, gaskets, choke screw (H) until it engages in the first position –
shutter as before. nearly flush with the dome (arrow) – do not
press it in all the way
Do not dismantle the choke shutter, as otherwise the
factory default setting will no longer be correct and
this can lead to impaired engine performance.
4.2.3 Basic setting
After servicing or replacement of the adjusting
screws, it is necessary to perform a basic setting of
the carburetor.
. Check the air filter – clean or replace it if
necessary
. Check the spark arresting screen in the muffler
– clean or replace it if necessary
The following screwdrivers should be used for the
basic setting.
Low speed screw L
Flat head screwdriver 5910 890 2305
High speed screw H
Screwdriver 5910 890 2306 with hex blade SW 2
. Carry out basic setting of the adjusting screws –
set adjusting screw by turning counterclockwise
starting with the screws firmly seated
Low speed screw L: 1 turn open
High speed screw H: 2 turns open
TI_18_2011_30_01_01.fm Page 5 of 12

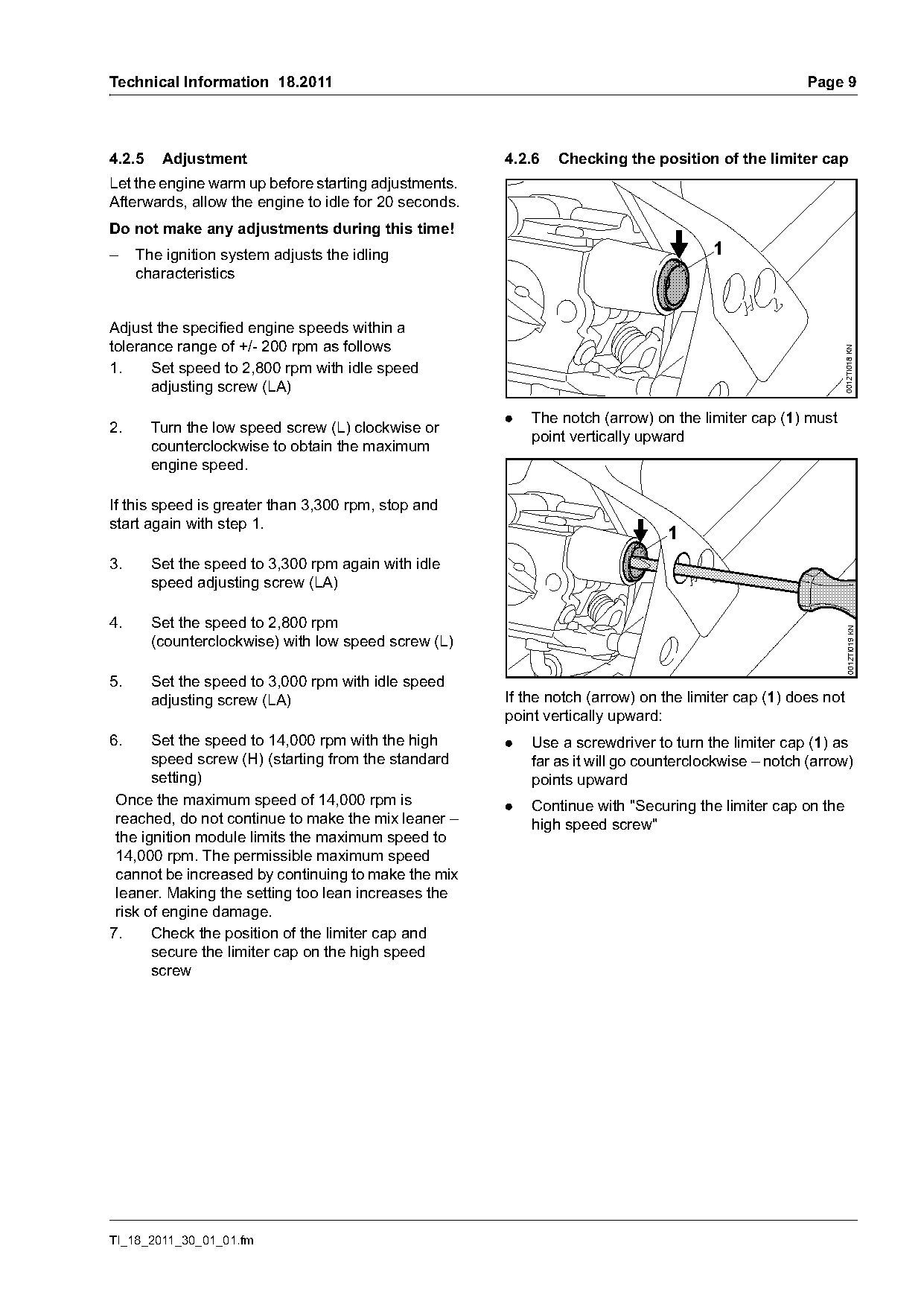

Technical Information 18.2011 Page 9
4.2.5 Adjustment 4.2.6 Checking the position of the limiter cap
Let the engine warm up before starting adjustments.
Afterwards, allow the engine to idle for 20 seconds.
Do not make any adjustments during this time!
– The ignition system adjusts the idling 1
characteristics
Adjust the specified engine speeds within a
tolerance range of +/- 200 rpm as follows
0012TI018 KN
1. Set speed to 2,800 rpm with idle speed
adjusting screw (LA)
. The notch (arrow) on the limiter cap (1) must
2. Turn the low speed screw (L) clockwise or
point vertically upward
counterclockwise to obtain the maximum
engine speed.
If this speed is greater than 3,300 rpm, stop and
start again with step 1.
1
3. Set the speed to 3,300 rpm again with idle
speed adjusting screw (LA)
4. Set the speed to 2,800 rpm
0012TI019 KN
(counterclockwise) with low speed screw (L)
5. Set the speed to 3,000 rpm with idle speed
adjusting screw (LA) If the notch (arrow) on the limiter cap (1) does not
point vertically upward:
6. Set the speed to 14,000 rpm with the high . Use a screwdriver to turn the limiter cap (1) as
speed screw (H) (starting from the standard far as it will go counterclockwise – notch (arrow)
setting) points upward
Once the maximum speed of 14,000 rpm is . Continue with "Securing the limiter cap on the
reached, do not continue to make the mix leaner – high speed screw"
the ignition module limits the maximum speed to
14,000 rpm. The permissible maximum speed
cannot be increased by continuing to make the mix
leaner. Making the setting too lean increases the
risk of engine damage.
7. Check the position of the limiter cap and
secure the limiter cap on the high speed
screw
TI_18_2011_30_01_01.fm

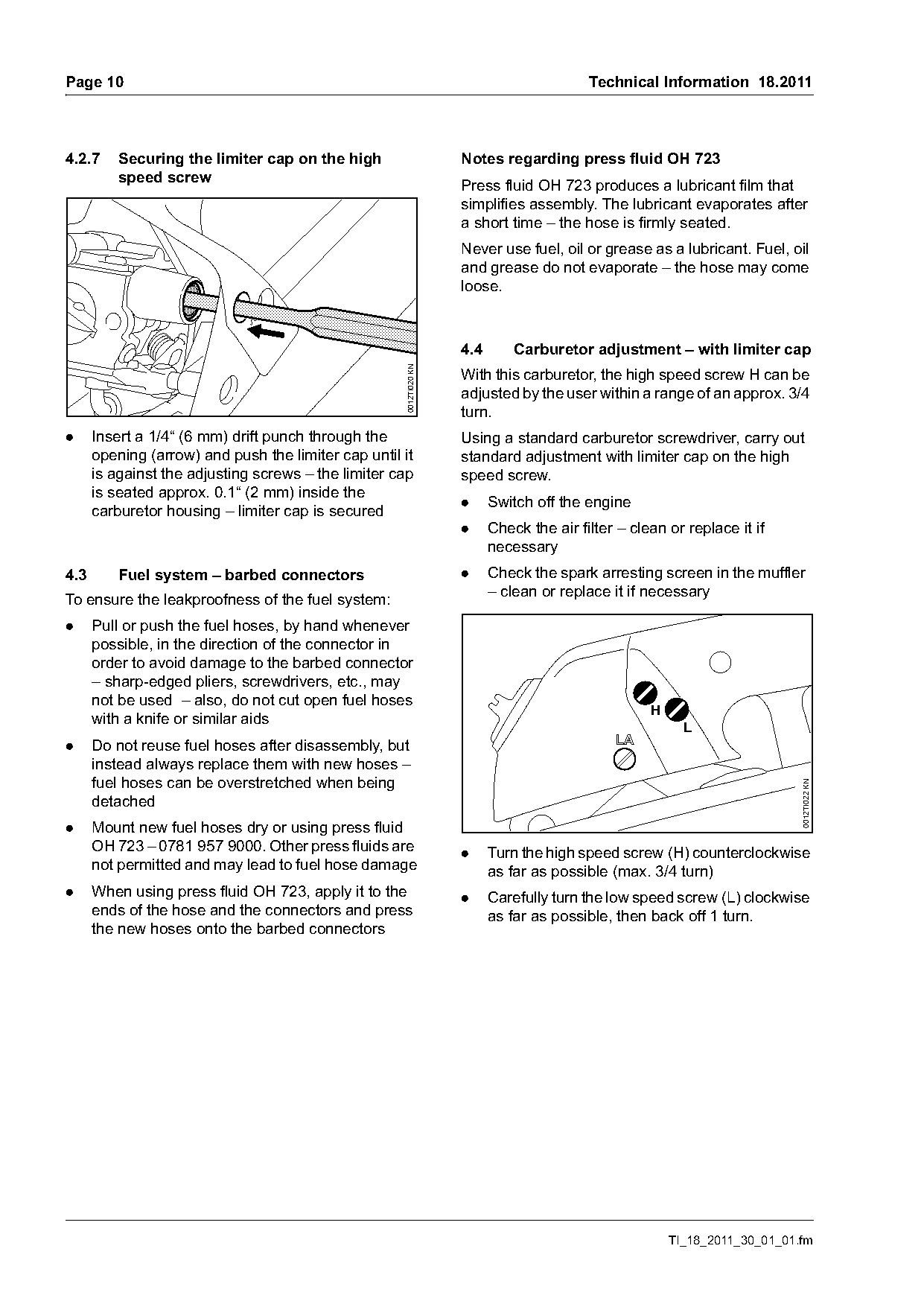

)m~ge 10 Technical Information 18.2011
4.2.7 Securing the limiter cap on the high Notes regarding press fluid OH 723
speed screw
Press fluid OH 723 produces a lubricant film that
simplifies assembly. The lubricant evaporates after
a short time – the hose is firmly seated.
Never use fuel, oil or grease as a lubricant. Fuel, oil
and grease do not evaporate – the hose may come
loose.
4.4 Carburetor adjustment – with limiter cap
0012TI020 KN
With this carburetor, the high speed screw H can be
adjusted by the user within a range of an approx. 3/4
turn.
. Insert a 1/4“ (6 mm) drift punch through the Using a standard carburetor screwdriver, carry out
opening (arrow) and push the limiter cap until it standard adjustment with limiter cap on the high
is against the adjusting screws – the limiter cap speed screw.
is seated approx. 0.1“ (2 mm) inside the
. Switch off the engine
carburetor housing – limiter cap is secured
. Check the air filter – clean or replace it if
necessary
4.3 Fuel system – barbed connectors . Check the spark arresting screen in the muffler
– clean or replace it if necessary
To ensure the leakproofness of the fuel system:
. Pull or push the fuel hoses, by hand whenever
possible, in the direction of the connector in
order to avoid damage to the barbed connector
– sharp-edged pliers, screwdrivers, etc., may
not be used – also, do not cut open fuel hoses
H
with a knife or similar aids
. Do not reuse fuel hoses after disassembly, but
instead always replace them with new hoses –
fuel hoses can be overstretched when being
detached 0012TI022 KN
. Mount new fuel hoses dry or using press fluid
OH 723 – 0781 957 9000. Other press fluids are . Turn the high speed screw (H) counterclockwise
not permitted and may lead to fuel hose damage as far as possible (max. 3/4 turn)
. When using press fluid OH 723, apply it to the . Carefully turn the low speed screw (L) clockwise
ends of the hose and the connectors and press as far as possible, then back off 1 turn.
the new hoses onto the barbed connectors
TI_18_2011_30_01_01.fm Page 6 of 12

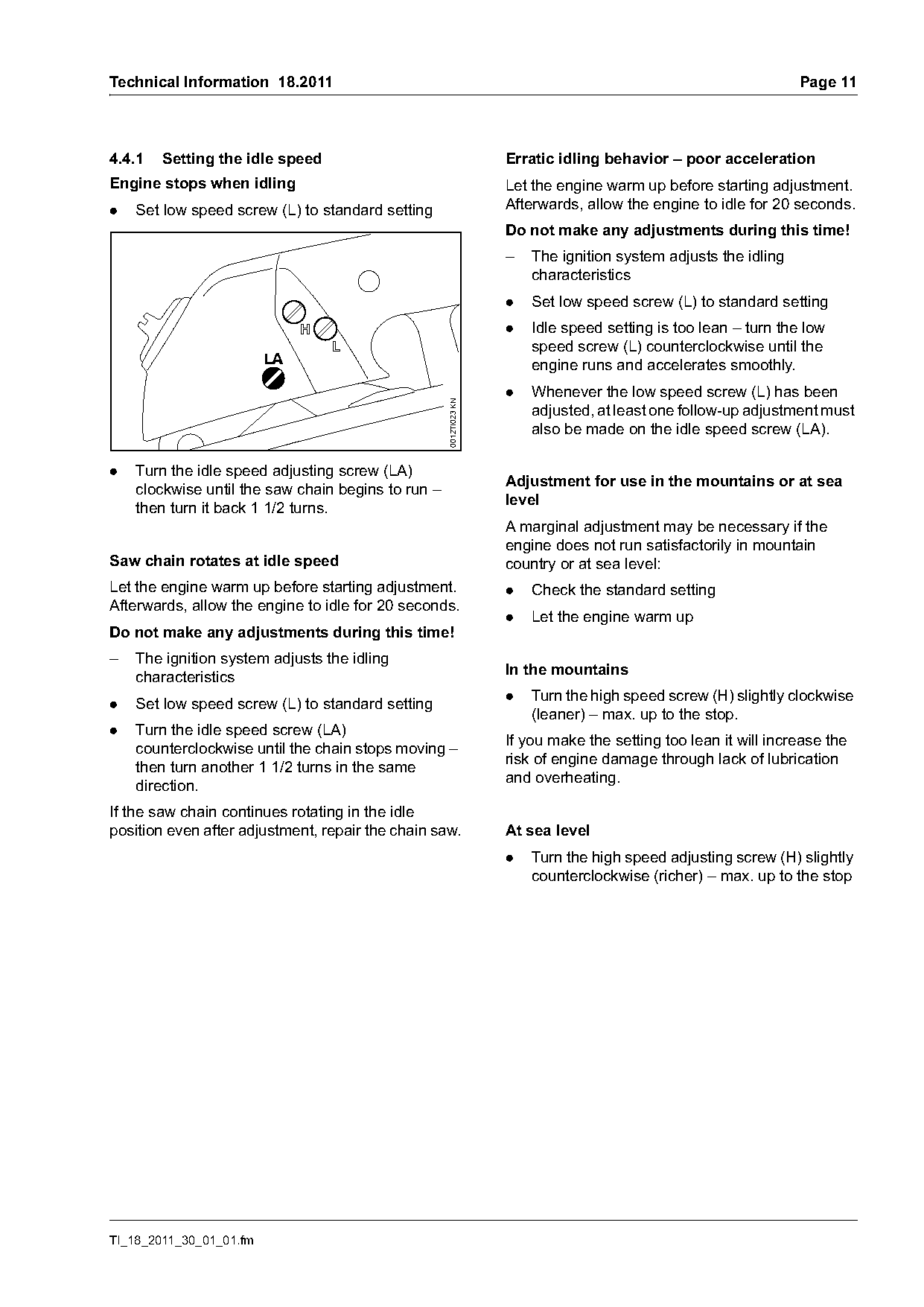

Technical Information 18.2011 Page 11
4.4.1 Setting the idle speed Erratic idling behavior – poor acceleration
Engine stops when idling Let the engine warm up before starting adjustment.
. Set low speed screw (L) to standard setting Afterwards, allow the engine to idle for 20 seconds.
Do not make any adjustments during this time!
– The ignition system adjusts the idling
characteristics
. Set low speed screw (L) to standard setting
. Idle speed setting is too lean – turn the low
speed screw (L) counterclockwise until the
engine runs and accelerates smoothly.
. Whenever the low speed screw (L) has been
0012TI023 KN
adjusted, at least one follow-up adjustment must
also be made on the idle speed screw (LA).
. Turn the idle speed adjusting screw (LA)
Adjustment for use in the mountains or at sea
clockwise until the saw chain begins to run –
level
then turn it back 1 1/2 turns.
A marginal adjustment may be necessary if the
engine does not run satisfactorily in mountain
Saw chain rotates at idle speed country or at sea level:
Let the engine warm up before starting adjustment. . Check the standard setting
Afterwards, allow the engine to idle for 20 seconds.
. Let the engine warm up
Do not make any adjustments during this time!
– The ignition system adjusts the idling
In the mountains
characteristics
. Turn the high speed screw (H) slightly clockwise
. Set low speed screw (L) to standard setting
(leaner) – max. up to the stop.
. Turn the idle speed screw (LA)
If you make the setting too lean it will increase the
counterclockwise until the chain stops moving –
risk of engine damage through lack of lubrication
then turn another 1 1/2 turns in the same
and overheating.
direction.
If the saw chain continues rotating in the idle
position even after adjustment, repair the chain saw. At sea level
. Turn the high speed adjusting screw (H) slightly
counterclockwise (richer) – max. up to the stop
TI_18_2011_30_01_01.fm
)m~ge 12 Technical Information 18.2011
5. Spare parts
The spare parts list for the model MS 201 T will be Code Type of Repair MS 201 T
available when it is launched in the market. 1 Replace crankcase, crankcase 140
gasket or re-seal crankcase.
Includes air leak test.
5.1 Tightening torques 3 Replace crankshaft main 130
The tightening torques are listed in the Service bearing(s). Includes air leak
Manual for the STIHL MS 201, MS 201 T. test.
4 Replace crankshaft seal(s). 60
5.2 Serial number Includes air leak test.
5 Replace tank filler cap. 6
6 Replace cylinder and/or piston. 70
Includes air leak test and repair
of components causing failure.
7 Replace ignition module or 30
flywheel. Includes stop circuit
test.
8 Replace fuel tank line, tank 25
vent, or fuel pick-up body.
0012TI021 KN
9 Replace intake manifold or 30
intake flange, including leak test.
10 Repair or replace carburetor. 35
The serial number is on the tank housing below the Includes fuel system testing.
hand guard. 11 Replace fuel tank housing. 30
12 Replace oil pick-up/delivery 30
6. Repair times line. Includes oil output test.
The specified repair times apply for trained and 13 Replace oil pump and/or drive 30
qualified personnel as well as for properly equipped gear. Includes oil output test.
repair shops. 14 Replace rear handle frame or 45
handle housing.
The repair times are specified in minutes.
15 Repair or replace rewind starte 20
The table of repair times can be added to the STIHL
16 Repair or replace clutch, clutch 20
table of repair times.
shoes or clutch springs.
The repair times are specified in minutes. 17 Repair chain break, including 20
check for proper function.
18 Replace muffler. 20
19 Replace air filter or filter housing. 15
22 Repair or replace stop switch. 20
Includes circuit testing.
35 Engine diagnosis only to
determine failures requiring unit
replacement.
40 Miscellaneous repairs and 15
other repairs not listed.
45 Handling allowance only-no 5
labor.
50 No labor. 0
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTK-ni
TI_18_2011_30_01_01.fm Page 7 of 12
Page 8 of 12
Page 9 of 12
Page 10 of 12
Page 11 of 12
Page 12 of 12
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
