Technical Information · issue 21 of 2011
Carburetor; Set of gaskets; Service notes; Summary
IssueTI 21/2011
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4224 120 0600 | 4224 120 0650 | Service notes The previous carburetor HS-314A – 4224 120 0600 The following service notes refer to the following is being replaced by the new carburetor WJ-114A – parts: 4224 120 0650. |
Full text

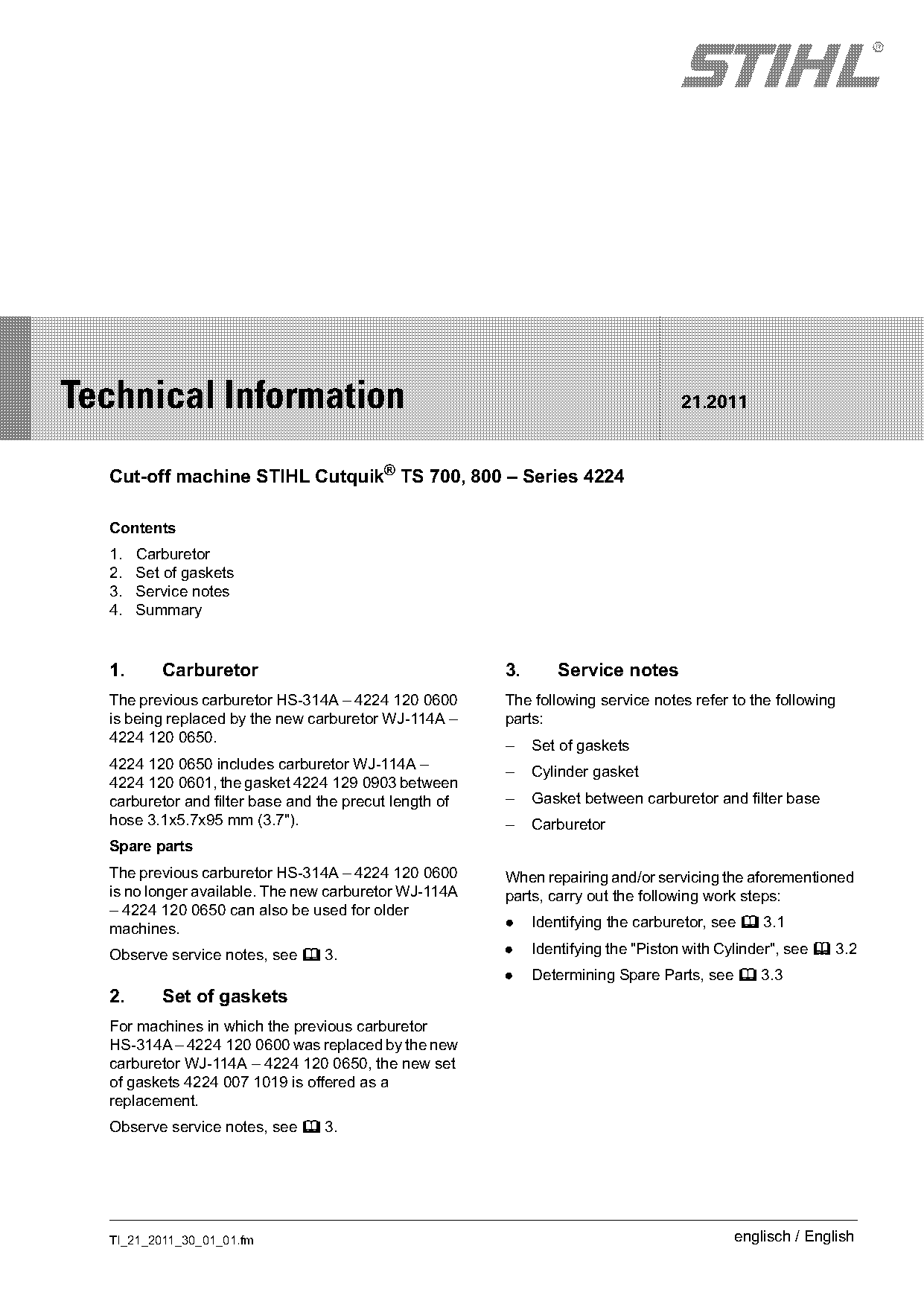

Page 1 of 4
STIH)
Technical Information 21.2011
Cut-off machine STIHL Cutquik® TS 700, 800 – Series 4224
Contents
1. Carburetor
2. Set of gaskets
3. Service notes
4. Summary
1. Carburetor 3. Service notes
The previous carburetor HS-314A – 4224 120 0600 The following service notes refer to the following
is being replaced by the new carburetor WJ-114A – parts:
4224 120 0650.
– Set of gaskets
4224 120 0650 includes carburetor WJ-114A –
– Cylinder gasket
4224 120 0601, the gasket 4224 129 0903 between
carburetor and filter base and the precut length of – Gasket between carburetor and filter base
hose 3.1x5.7x95 mm (3.7"). – Carburetor
Spare parts
The previous carburetor HS-314A – 4224 120 0600 When repairing and/or servicing the aforementioned
is no longer available. The new carburetor WJ-114A parts, carry out the following work steps:
– 4224 120 0650 can also be used for older
machines. . Identifying the carburetor, see b 3.1
Observe service notes, see b 3. . Identifying the "Piston with Cylinder", see b 3.2
. Determining Spare Parts, see b 3.3
2. Set of gaskets
For machines in which the previous carburetor
HS-314A – 4224 120 0600 was replaced by the new
carburetor WJ-114A – 4224 120 0650, the new set
of gaskets 4224 007 1019 is offered as a
replacement.
Observe service notes, see b 3.
TI_21_2011_30_01_01.fm englisch / English

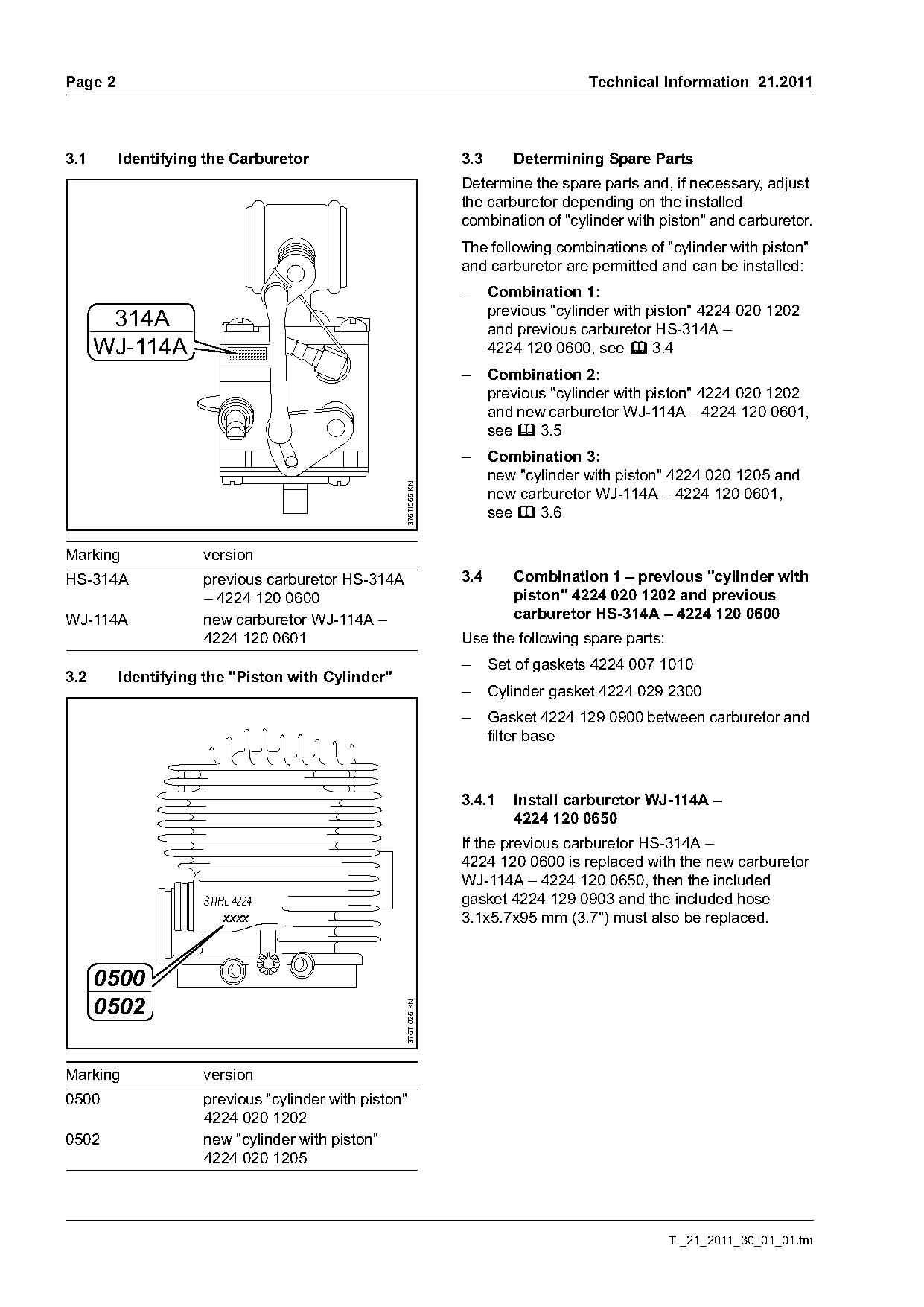

)m~ge 2 Technical Information 21.2011
3.1 Identifying the Carburetor 3.3 Determining Spare Parts
Determine the spare parts and, if necessary, adjust
the carburetor depending on the installed
combination of "cylinder with piston" and carburetor.
The following combinations of "cylinder with piston"
and carburetor are permitted and can be installed:
– Combination 1:
previous "cylinder with piston" 4224 020 1202
314A and previous carburetor HS-314A –
WJ-114A 4224 120 0600, see b 3.4
– Combination 2:
previous "cylinder with piston" 4224 020 1202
and new carburetor WJ-114A – 4224 120 0601,
see b 3.5
– Combination 3:
new "cylinder with piston" 4224 020 1205 and
376TI066 KN
new carburetor WJ-114A – 4224 120 0601,
see b 3.6
Marking version
HS-314A previous carburetor HS-314A 3.4 Combination 1 – previous "cylinder with
– 4224 120 0600 piston" 4224 020 1202 and previous
WJ-114A new carburetor WJ-114A – carburetor HS-314A – 4224 120 0600
4224 120 0601 Use the following spare parts:
– Set of gaskets 4224 007 1010
3.2 Identifying the "Piston with Cylinder"
– Cylinder gasket 4224 029 2300
– Gasket 4224 129 0900 between carburetor and
filter base
3.4.1 Install carburetor WJ-114A –
4224 120 0650
If the previous carburetor HS-314A –
4224 120 0600 is replaced with the new carburetor
WJ-114A – 4224 120 0650, then the included
STIHL 4224 gasket 4224 129 0903 and the included hose
XXXX 3.1x5.7x95 mm (3.7") must also be replaced.
0500
0502
376TI026 KN
Marking version
0500 previous "cylinder with piston"
4224 020 1202
0502 new "cylinder with piston"
4224 020 1205
TI_21_2011_30_01_01.fm Page 2 of 4

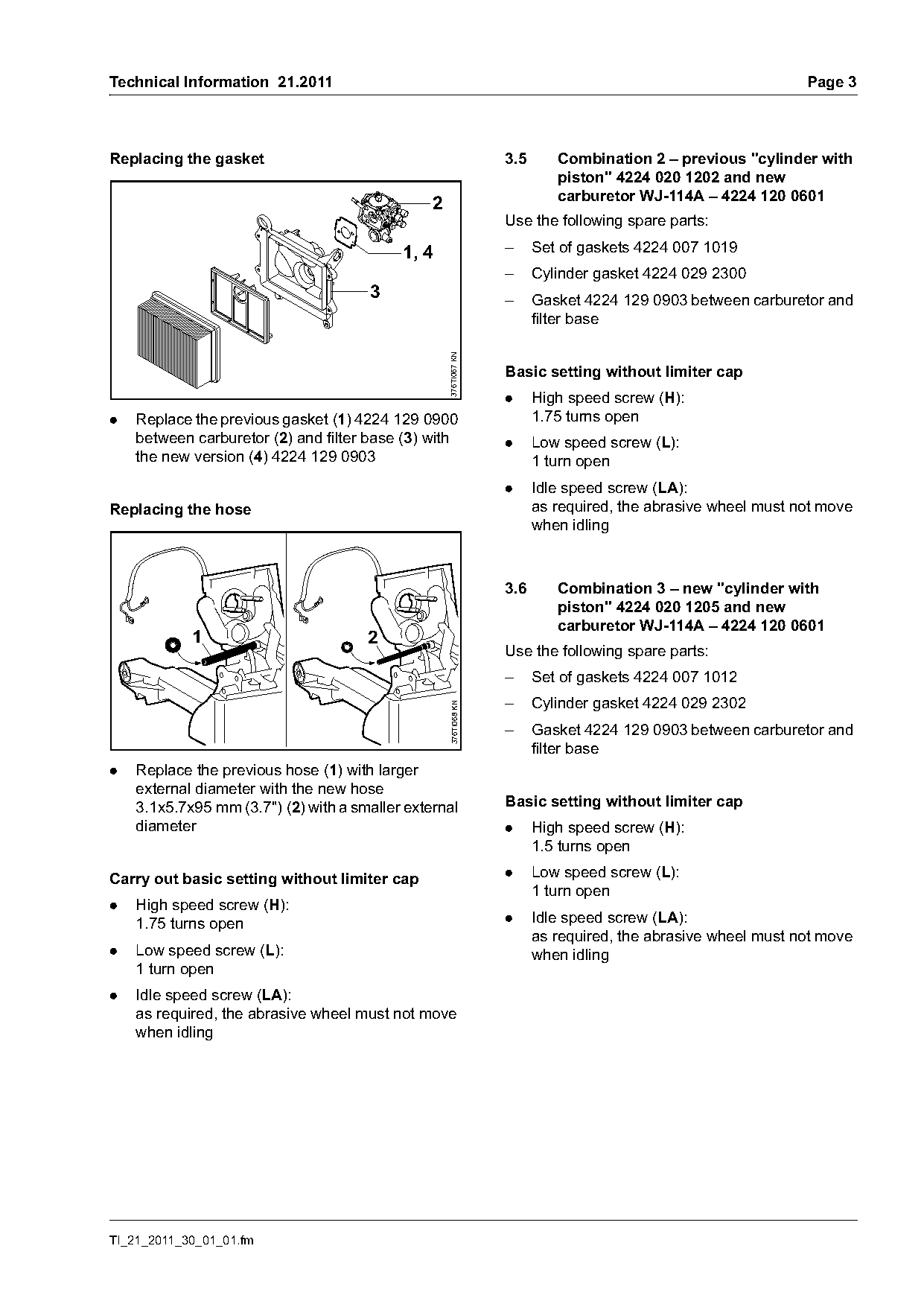

Technical Information 21.2011 Page 3
Replacing the gasket 3.5 Combination 2 – previous "cylinder with
piston" 4224 020 1202 and new
carburetor WJ-114A – 4224 120 0601
2
Use the following spare parts:
1, 4 – Set of gaskets 4224 007 1019
– Cylinder gasket 4224 029 2300
3 – Gasket 4224 129 0903 between carburetor and
filter base
376TI067 KN
Basic setting without limiter cap
. High speed screw (H):
. Replace the previous gasket (1) 4224 129 0900 1.75 turns open
between carburetor (2) and filter base (3) with . Low speed screw (L):
the new version (4) 4224 129 0903 1 turn open
. Idle speed screw (LA):
Replacing the hose as required, the abrasive wheel must not move
when idling
3.6 Combination 3 – new "cylinder with
piston" 4224 020 1205 and new
carburetor WJ-114A – 4224 120 0601
1 2
Use the following spare parts:
– Set of gaskets 4224 007 1012
– Cylinder gasket 4224 029 2302
376TI068 KN
– Gasket 4224 129 0903 between carburetor and
filter base
. Replace the previous hose (1) with larger
external diameter with the new hose
3.1x5.7x95 mm (3.7") (2) with a smaller external Basic setting without limiter cap
diameter . High speed screw (H):
1.5 turns open
Carry out basic setting without limiter cap . Low speed screw (L):
1 turn open
. High speed screw (H):
1.75 turns open . Idle speed screw (LA):
as required, the abrasive wheel must not move
. Low speed screw (L): when idling
1 turn open
. Idle speed screw (LA):
as required, the abrasive wheel must not move
when idling
TI_21_2011_30_01_01.fm

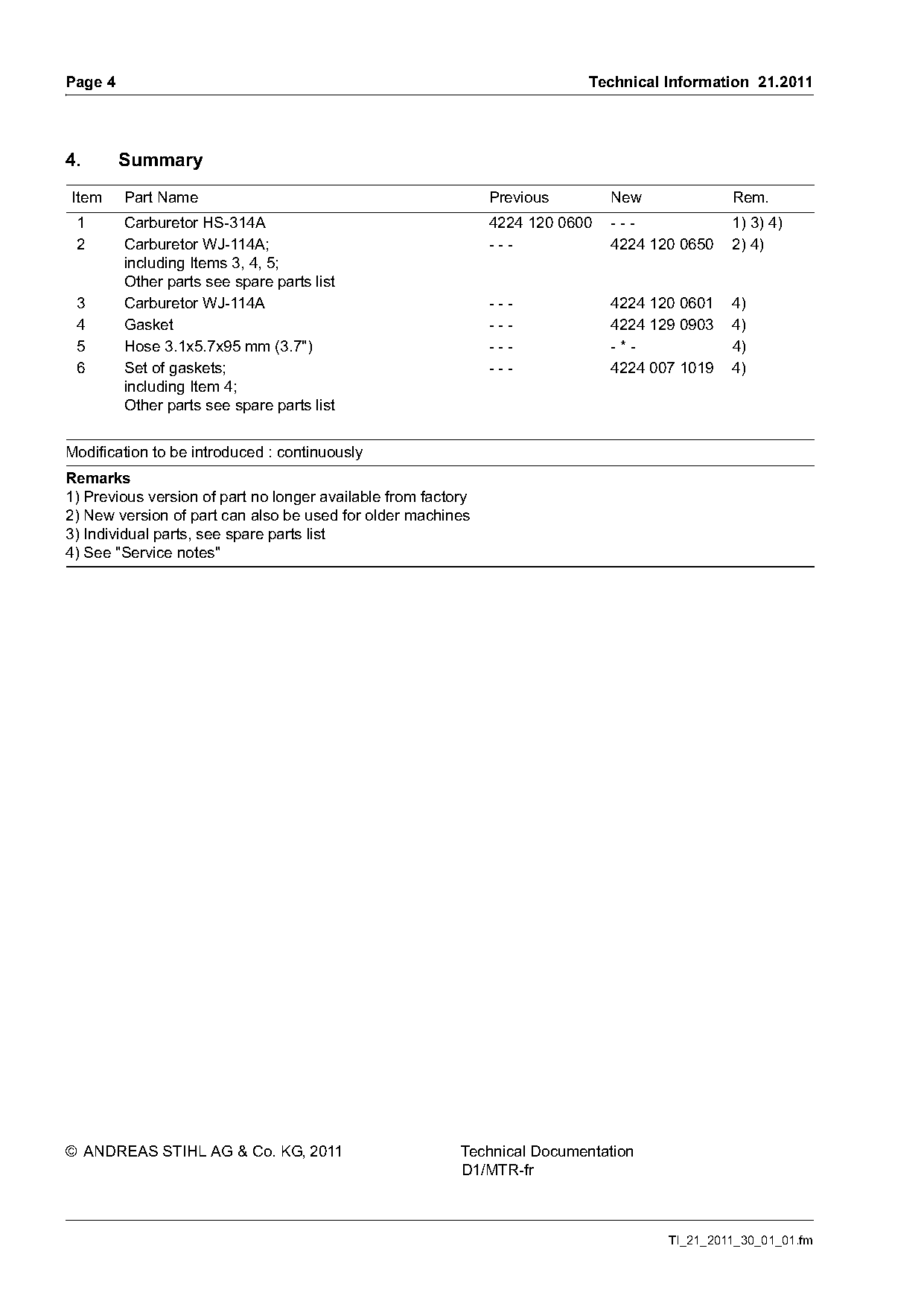

)m~ge 4 Technical Information 21.2011
4. Summary
Item Part Name Previous New Rem.
1 Carburetor HS-314A 4224 120 0600 --- 1) 3) 4)
2 Carburetor WJ-114A; --- 4224 120 0650 2) 4)
including Items 3, 4, 5;
Other parts see spare parts list
3 Carburetor WJ-114A --- 4224 120 0601 4)
4 Gasket --- 4224 129 0903 4)
5 Hose 3.1x5.7x95 mm (3.7") --- -*- 4)
6 Set of gaskets; --- 4224 007 1019 4)
including Item 4;
Other parts see spare parts list
Modification to be introduced : continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used for older machines
3) Individual parts, see spare parts list
4) See "Service notes"
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTR-fr
TI_21_2011_30_01_01.fm Page 3 of 4
Page 4 of 4
