Technical Information · issue 37 of 2011
New guide bar STIHL ROLLOMATIC® E Mini (1/4" P) – Series 3005
IssueTI 37/2011
Full text

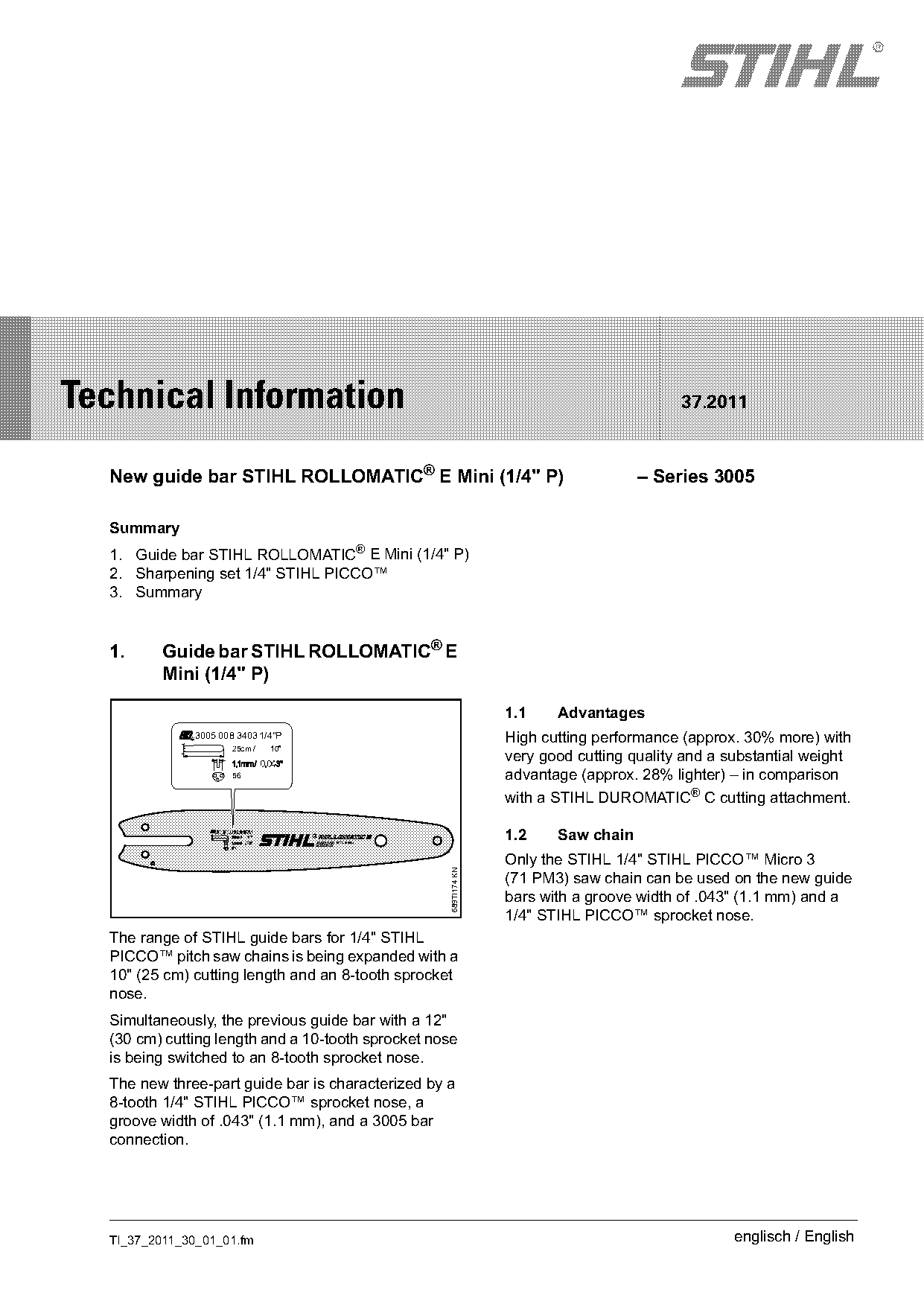

Page 1 of 2
STIH)
Technical Information 37.2011
New guide bar STIHL ROLLOMATIC® E Mini (1/4" P) – Series 3005
Summary
1. Guide bar STIHL ROLLOMATIC® E Mini (1/4" P)
2. Sharpening set 1/4" STIHL PICCO™
3. Summary
1. Guide bar STIHL ROLLOMATIC® E
Mini (1/4" P)
1.1 Advantages
3005 008 3403 1/4"P High cutting performance (approx. 30% more) with
25cm / 10"
very good cutting quality and a substantial weight
56 advantage (approx. 28% lighter) – in comparison
with a STIHL DUROMATIC® C cutting attachment.
1.2 Saw chain
Only the STIHL 1/4" STIHL PICCO™ Micro 3
689TI174 KN
(71 PM3) saw chain can be used on the new guide
bars with a groove width of .043" (1.1 mm) and a
1/4" STIHL PICCO™ sprocket nose.
The range of STIHL guide bars for 1/4" STIHL
PICCO™ pitch saw chains is being expanded with a
10" (25 cm) cutting length and an 8-tooth sprocket
nose.
Simultaneously, the previous guide bar with a 12"
(30 cm) cutting length and a 10-tooth sprocket nose
is being switched to an 8-tooth sprocket nose.
The new three-part guide bar is characterized by a
8-tooth 1/4" STIHL PICCO™ sprocket nose, a
groove width of .043" (1.1 mm), and a 3005 bar
connection.
TI_37_2011_30_01_01.fm englisch / English

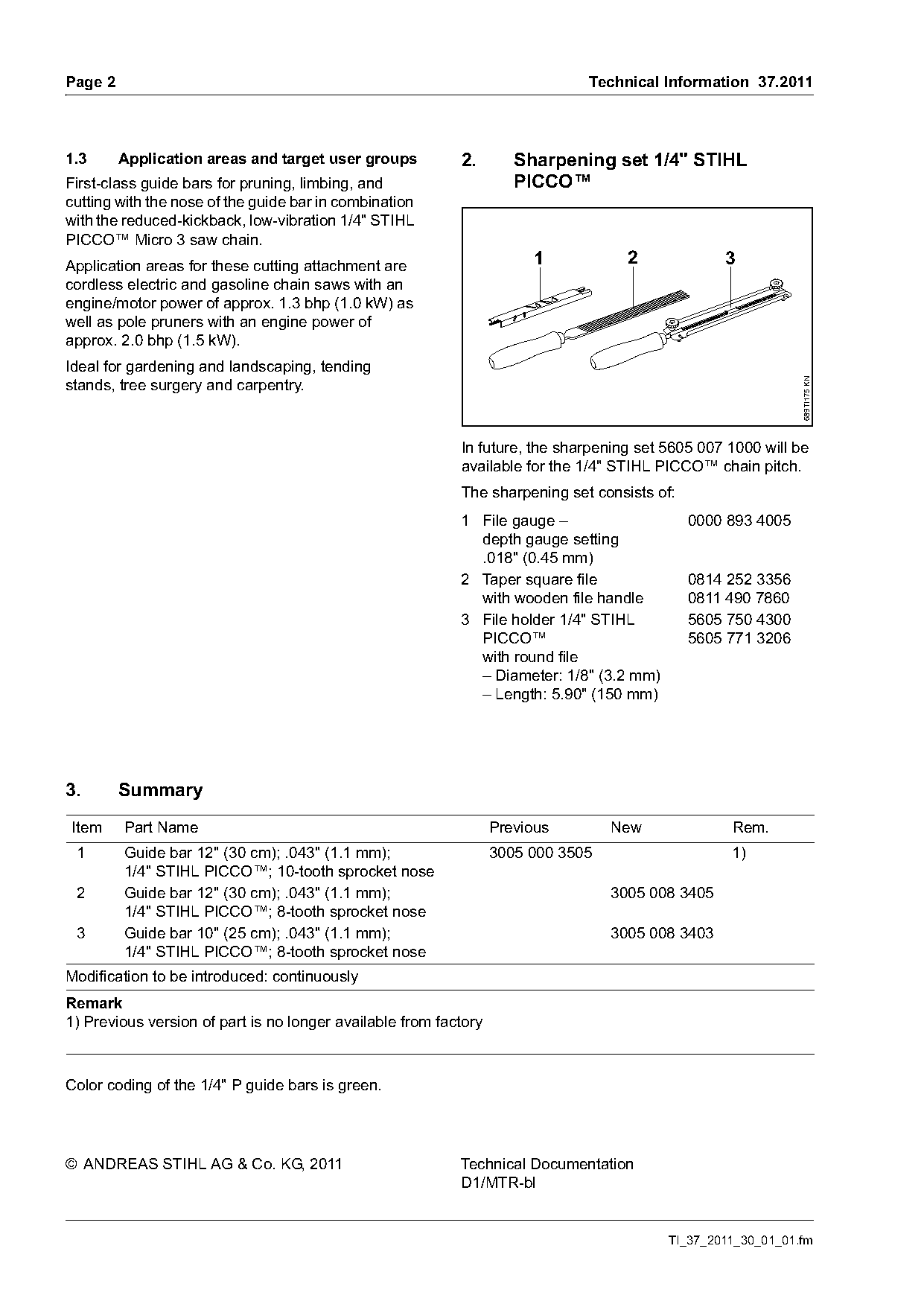

)m~ge 2 Technical Information 37.2011
1.3 Application areas and target user groups 2. Sharpening set 1/4" STIHL
First-class guide bars for pruning, limbing, and PICCO™
cutting with the nose of the guide bar in combination
with the reduced-kickback, low-vibration 1/4" STIHL
PICCO™ Micro 3 saw chain.
Application areas for these cutting attachment are 1 2 3
cordless electric and gasoline chain saws with an
engine/motor power of approx. 1.3 bhp (1.0 kW) as
well as pole pruners with an engine power of
approx. 2.0 bhp (1.5 kW).
Ideal for gardening and landscaping, tending
689TI175 KN
stands, tree surgery and carpentry.
In future, the sharpening set 5605 007 1000 will be
available for the 1/4" STIHL PICCO™ chain pitch.
The sharpening set consists of:
1 File gauge – 0000 893 4005
depth gauge setting
.018" (0.45 mm)
2 Taper square file 0814 252 3356
with wooden file handle 0811 490 7860
3 File holder 1/4" STIHL 5605 750 4300
PICCO™ 5605 771 3206
with round file
– Diameter: 1/8" (3.2 mm)
– Length: 5.90" (150 mm)
3. Summary
Item Part Name Previous New Rem.
1 Guide bar 12" (30 cm); .043" (1.1 mm); 3005 000 3505 1)
1/4" STIHL PICCO™; 10-tooth sprocket nose
2 Guide bar 12" (30 cm); .043" (1.1 mm); 3005 008 3405
1/4" STIHL PICCO™; 8-tooth sprocket nose
3 Guide bar 10" (25 cm); .043" (1.1 mm); 3005 008 3403
1/4" STIHL PICCO™; 8-tooth sprocket nose
Modification to be introduced: continuously
Remark
1) Previous version of part is no longer available from factory
Color coding of the 1/4" P guide bars is green.
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTR-bl
TI_37_2011_30_01_01.fm Page 2 of 2
