STIH)

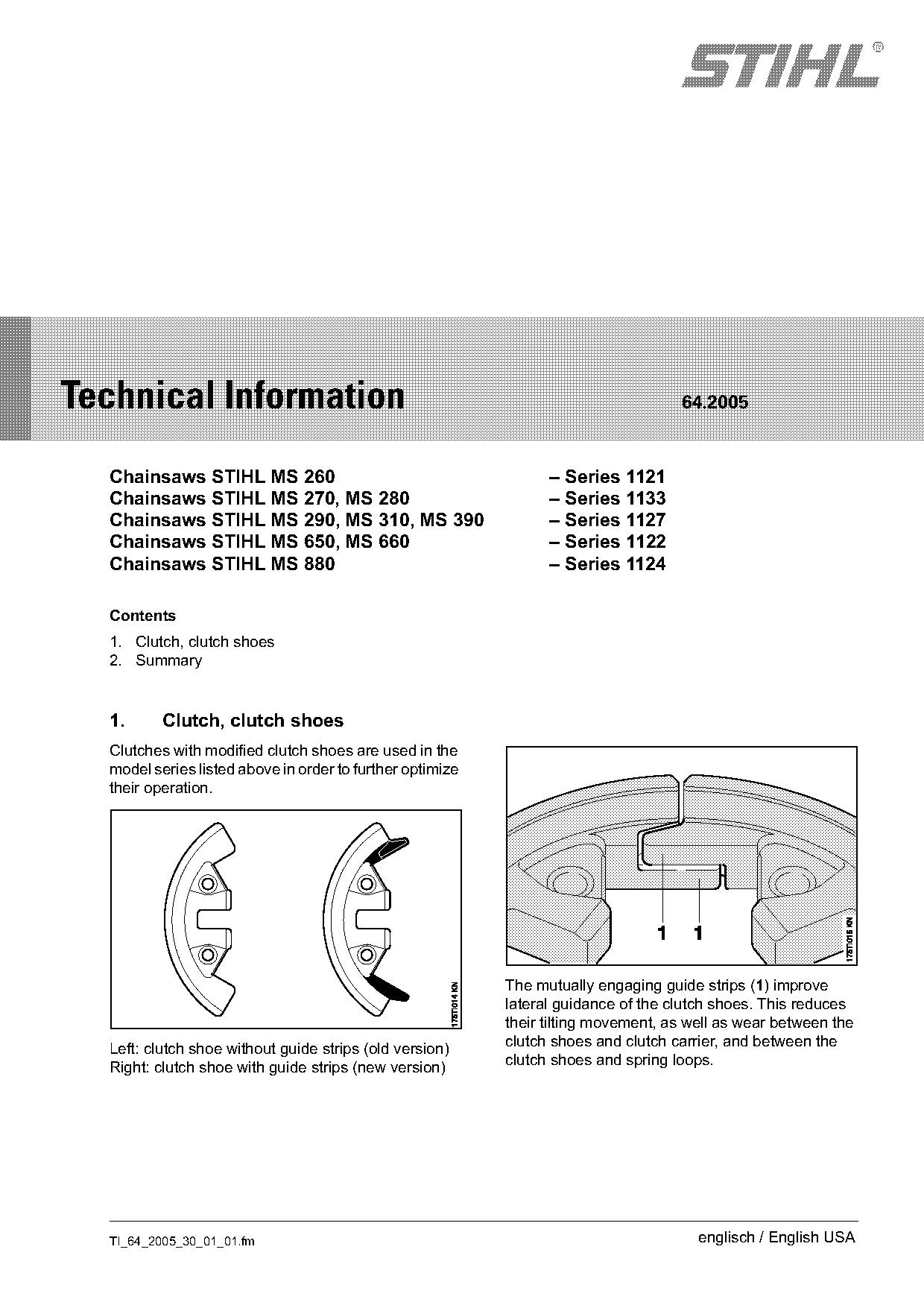

Technical Information 64.2005
Chainsaws STIHL MS 260 – Series 1121
Chainsaws STIHL MS 270, MS 280 – Series 1133
Chainsaws STIHL MS 290, MS 310, MS 390 – Series 1127
Chainsaws STIHL MS 650, MS 660 – Series 1122
Chainsaws STIHL MS 880 – Series 1124
Contents
1. Clutch, clutch shoes
2. Summary
1. Clutch, clutch shoes
Clutches with modified clutch shoes are used in the
model series listed above in order to further optimize
their operation.
The mutually engaging guide strips (1) improve
lateral guidance of the clutch shoes. This reduces
their tilting movement, as well as wear between the
clutch shoes and clutch carrier, and between the
Left: clutch shoe without guide strips (old version)
clutch shoes and spring loops.
Right: clutch shoe with guide strips (new version)
TI_64_2005_30_01_01.fm englisch / English USA

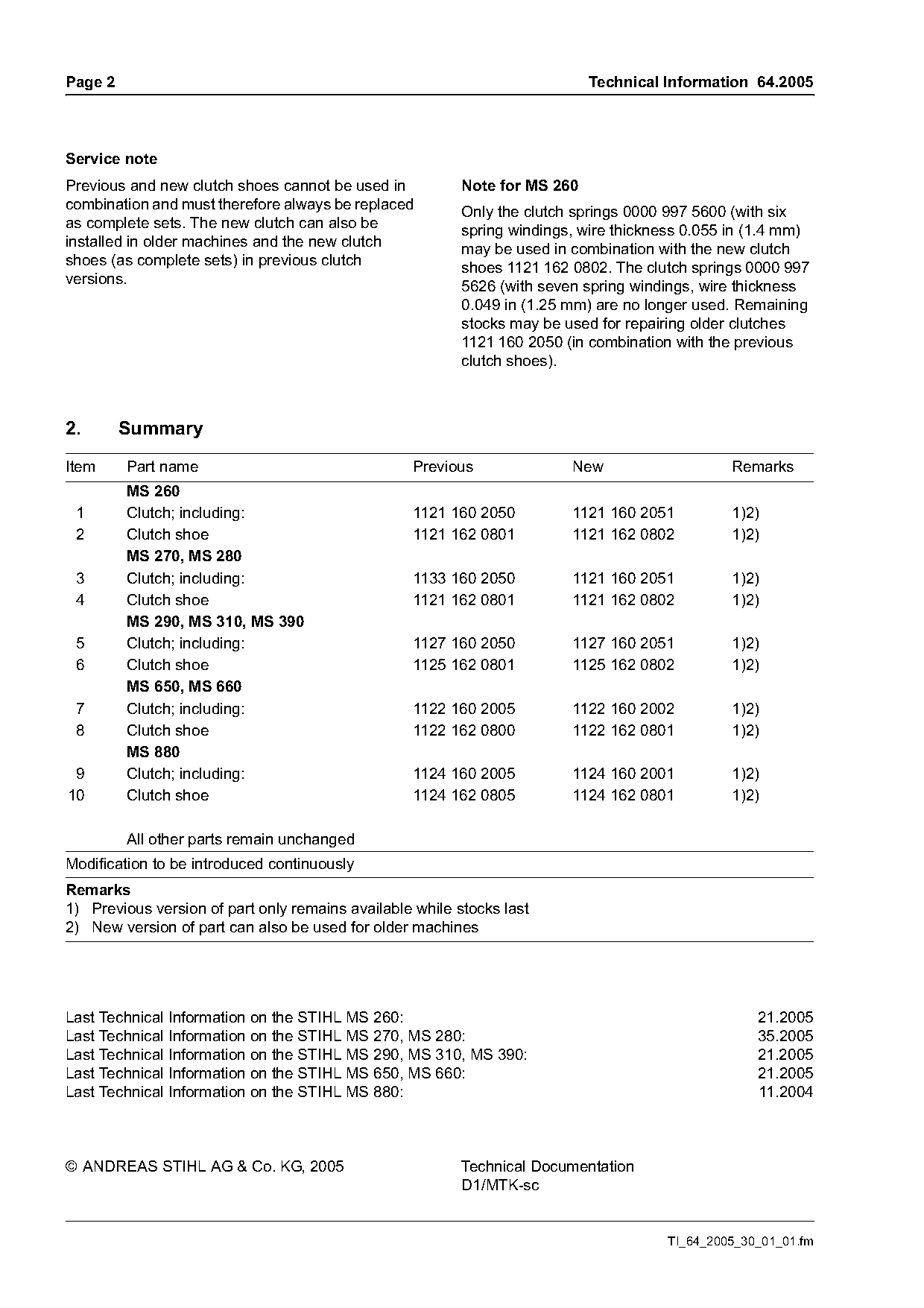

)m~ge 2 Technical Information 64.2005
Service note
Previous and new clutch shoes cannot be used in Note for MS 260
combination and must therefore always be replaced Only the clutch springs 0000 997 5600 (with six
as complete sets. The new clutch can also be spring windings, wire thickness 0.055 in (1.4 mm)
installed in older machines and the new clutch may be used in combination with the new clutch
shoes (as complete sets) in previous clutch shoes 1121 162 0802. The clutch springs 0000 997
versions. 5626 (with seven spring windings, wire thickness
0.049 in (1.25 mm) are no longer used. Remaining
stocks may be used for repairing older clutches
1121 160 2050 (in combination with the previous
clutch shoes).
2. Summary
Item Part name Previous New Remarks
MS 260
1 Clutch; including: 1121 160 2050 1121 160 2051 1)2)
2 Clutch shoe 1121 162 0801 1121 162 0802 1)2)
MS 270, MS 280
3 Clutch; including: 1133 160 2050 1121 160 2051 1)2)
4 Clutch shoe 1121 162 0801 1121 162 0802 1)2)
MS 290, MS 310, MS 390
5 Clutch; including: 1127 160 2050 1127 160 2051 1)2)
6 Clutch shoe 1125 162 0801 1125 162 0802 1)2)
MS 650, MS 660
7 Clutch; including: 1122 160 2005 1122 160 2002 1)2)
8 Clutch shoe 1122 162 0800 1122 162 0801 1)2)
MS 880
9 Clutch; including: 1124 160 2005 1124 160 2001 1)2)
10 Clutch shoe 1124 162 0805 1124 162 0801 1)2)
All other parts remain unchanged
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available while stocks last
2) New version of part can also be used for older machines
Last Technical Information on the STIHL MS 260: 21.2005
Last Technical Information on the STIHL MS 270, MS 280: 35.2005
Last Technical Information on the STIHL MS 290, MS 310, MS 390: 21.2005
Last Technical Information on the STIHL MS 650, MS 660: 21.2005
Last Technical Information on the STIHL MS 880: 11.2004
