Technical Information · issue 45 of 2007
Housing, wiring harness, ground wire; Summary
IssueTI 45/2007
Engine family 1138
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1138 440 3000 | 1138 440 3004 | The new housing The previous wiring harness 1138 440 3000 is is characterized by a retainer which makes it easier replaced by the new version 1138 440 3004. |
| 1138 440 2201 | 1138 440 2202 | 4 Ground wire The previous ground wire 1138 440 2201 is replaced by the new version 1138 440 2202. |
Full text
Page 1 of 5
STIH)

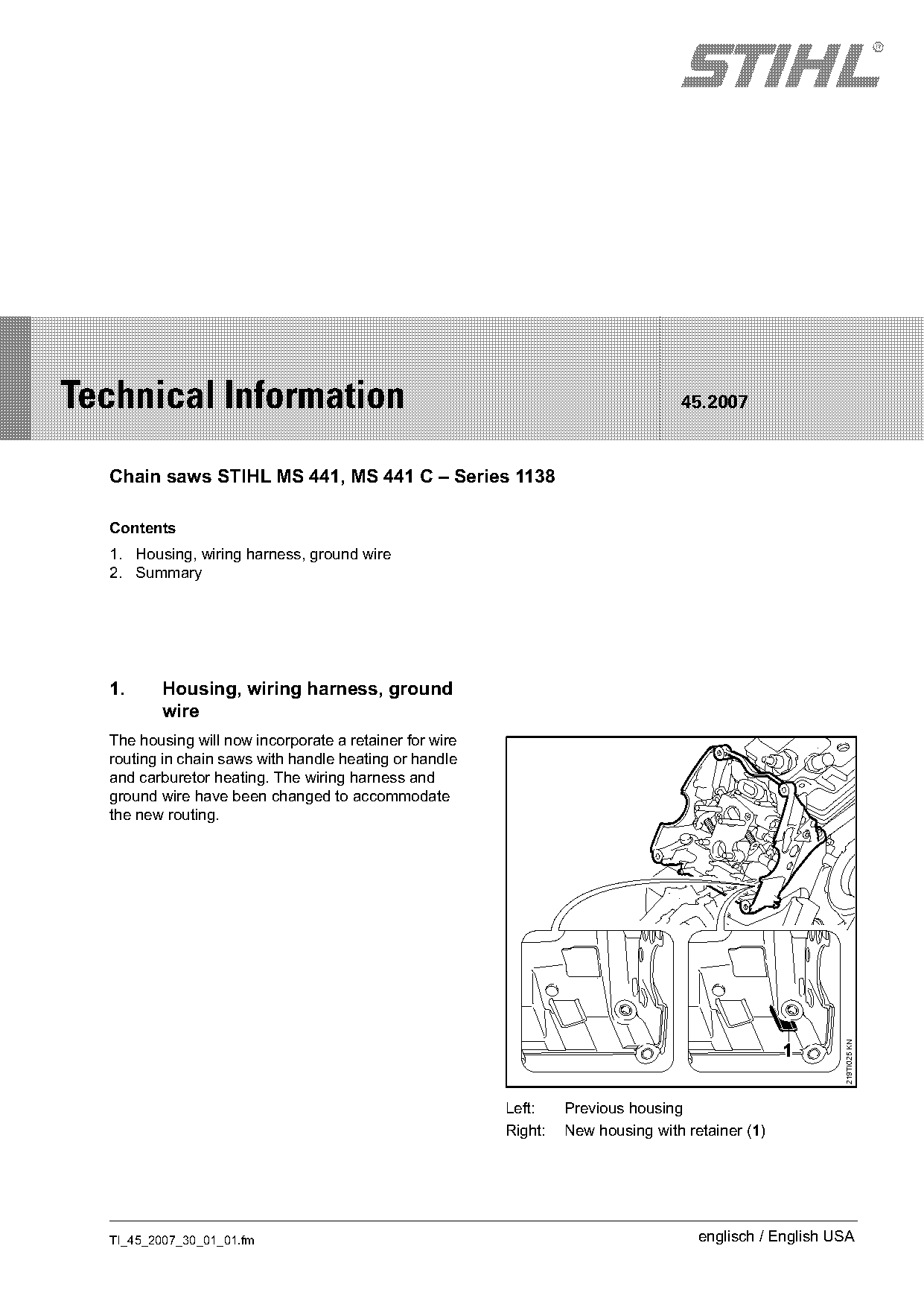

Technical Information 45.2007
Chain saws STIHL MS 441, MS 441 C – Series 1138
Contents
1. Housing, wiring harness, ground wire
2. Summary
1. Housing, wiring harness, ground
wire
The housing will now incorporate a retainer for wire
routing in chain saws with handle heating or handle
and carburetor heating. The wiring harness and
ground wire have been changed to accommodate
the new routing.
219TI025 KN
Left: Previous housing
Right: New housing with retainer (1)
TI_45_2007_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 45.2007

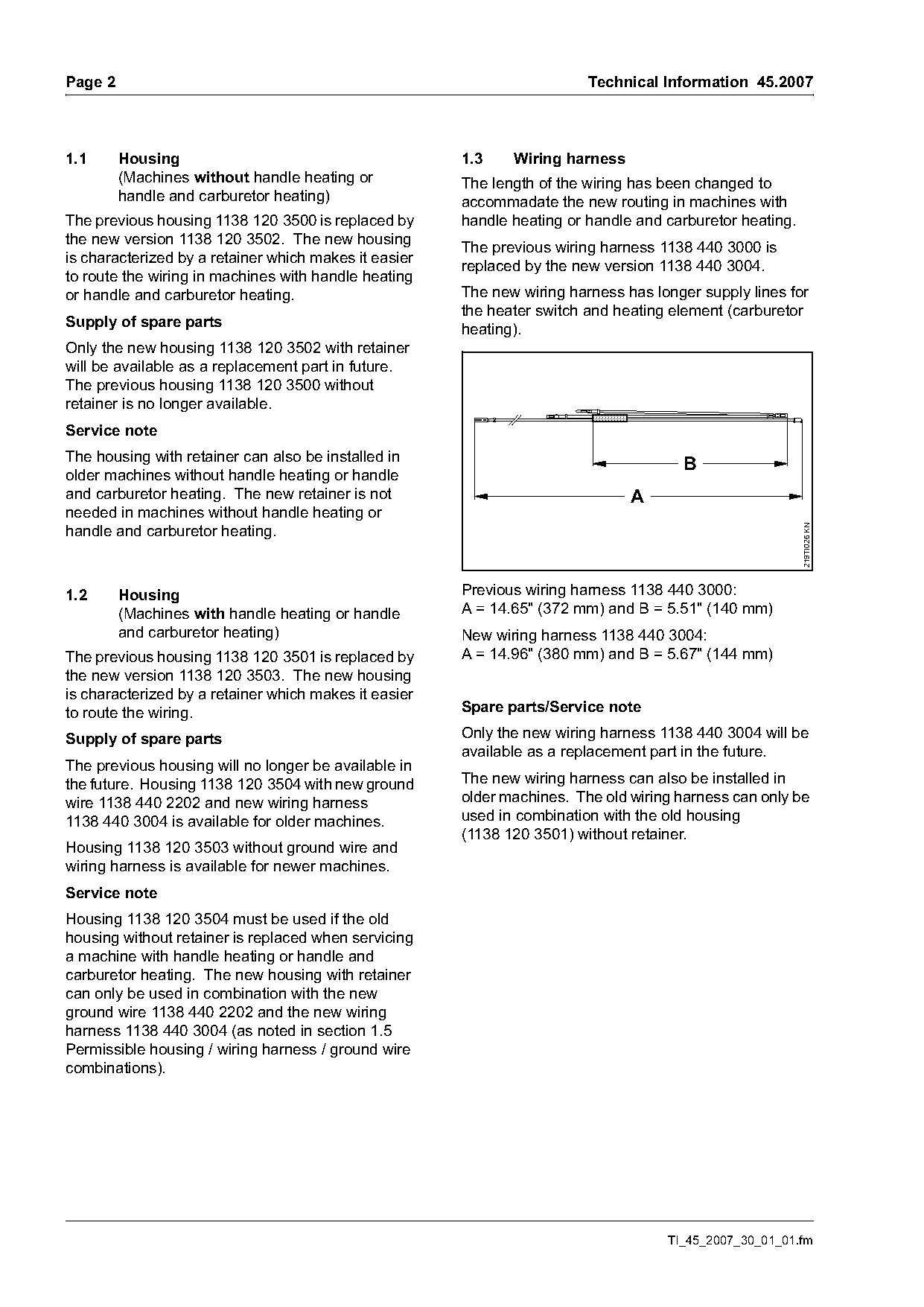

1.1 Housing 1.3 Wiring harness
(Machines without handle heating or The length of the wiring has been changed to
handle and carburetor heating) accommadate the new routing in machines with
The previous housing 1138 120 3500 is replaced by handle heating or handle and carburetor heating.
the new version 1138 120 3502. The new housing
The previous wiring harness 1138 440 3000 is
is characterized by a retainer which makes it easier
replaced by the new version 1138 440 3004.
to route the wiring in machines with handle heating
or handle and carburetor heating. The new wiring harness has longer supply lines for
the heater switch and heating element (carburetor
Supply of spare parts
heating).
Only the new housing 1138 120 3502 with retainer
will be available as a replacement part in future.
The previous housing 1138 120 3500 without
retainer is no longer available.
Service note
The housing with retainer can also be installed in
B
older machines without handle heating or handle
and carburetor heating. The new retainer is not A
needed in machines without handle heating or
handle and carburetor heating.
219TI026 KN
1.2 Housing Previous wiring harness 1138 440 3000:
(Machines with handle heating or handle A = 14.65" (372 mm) and B = 5.51" (140 mm)
and carburetor heating) New wiring harness 1138 440 3004:
The previous housing 1138 120 3501 is replaced by A = 14.96" (380 mm) and B = 5.67" (144 mm)
the new version 1138 120 3503. The new housing
is characterized by a retainer which makes it easier
to route the wiring. Spare parts/Service note
Supply of spare parts Only the new wiring harness 1138 440 3004 will be
available as a replacement part in the future.
The previous housing will no longer be available in
the future. Housing 1138 120 3504 with new ground The new wiring harness can also be installed in
wire 1138 440 2202 and new wiring harness older machines. The old wiring harness can only be
1138 440 3004 is available for older machines. used in combination with the old housing
(1138 120 3501) without retainer.
Housing 1138 120 3503 without ground wire and
wiring harness is available for newer machines.
Service note
Housing 1138 120 3504 must be used if the old
housing without retainer is replaced when servicing
a machine with handle heating or handle and
carburetor heating. The new housing with retainer
can only be used in combination with the new
ground wire 1138 440 2202 and the new wiring
harness 1138 440 3004 (as noted in section 1.5
Permissible housing / wiring harness / ground wire
combinations).
TI_45_2007_30_01_01.fm Page 2 of 5
Technical Information 45.2007 Page 3

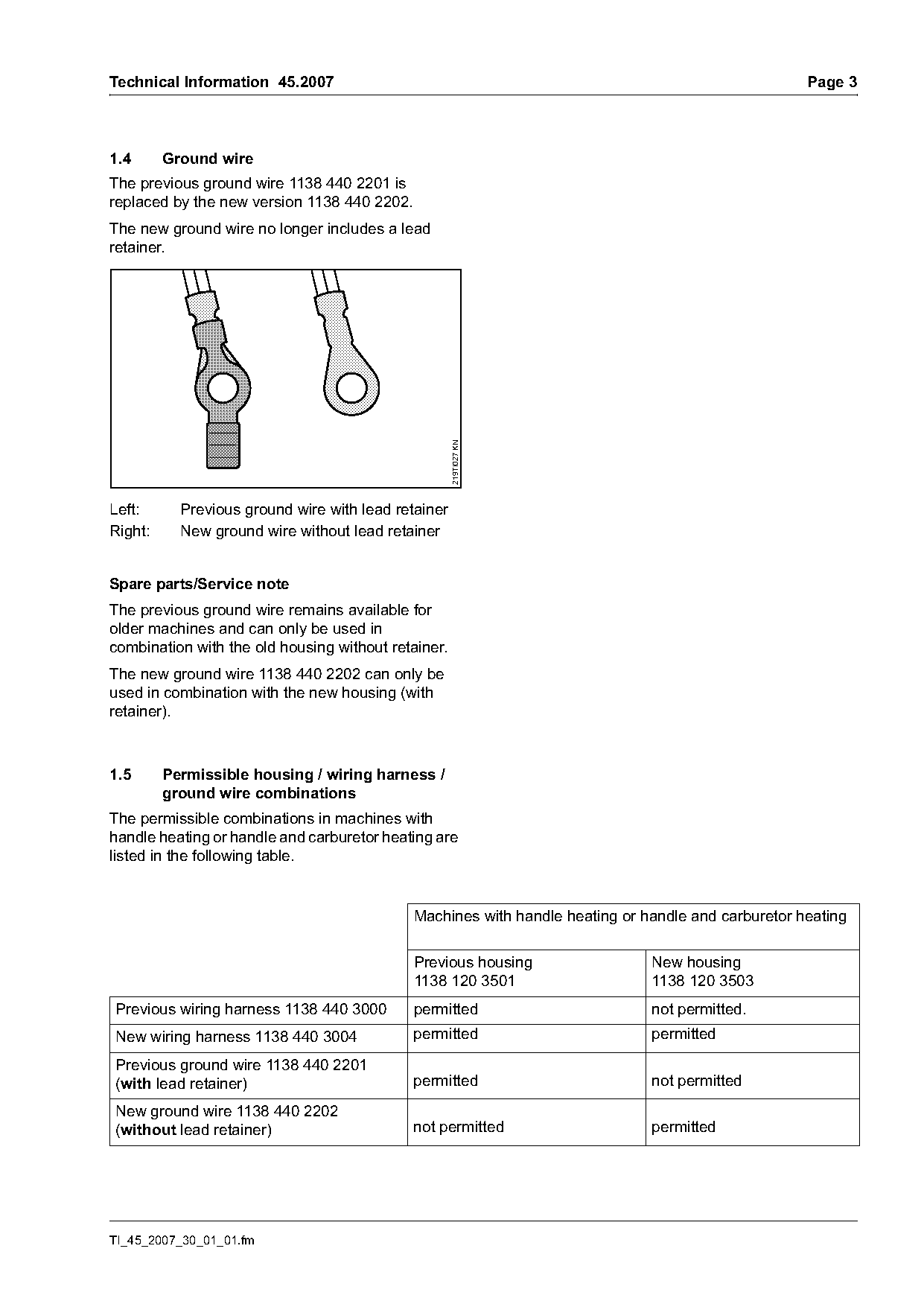

1.4 Ground wire
The previous ground wire 1138 440 2201 is
replaced by the new version 1138 440 2202.
The new ground wire no longer includes a lead
retainer.
219TI027 KN
Left: Previous ground wire with lead retainer
Right: New ground wire without lead retainer
Spare parts/Service note
The previous ground wire remains available for
older machines and can only be used in
combination with the old housing without retainer.
The new ground wire 1138 440 2202 can only be
used in combination with the new housing (with
retainer).
1.5 Permissible housing / wiring harness /
ground wire combinations
The permissible combinations in machines with
handle heating or handle and carburetor heating are
listed in the following table.
Machines with handle heating or handle and carburetor heating
Previous housing New housing
1138 120 3501 1138 120 3503
Previous wiring harness 1138 440 3000 permitted not permitted.
New wiring harness 1138 440 3004 permitted permitted
Previous ground wire 1138 440 2201
(with lead retainer) permitted not permitted
New ground wire 1138 440 2202
(without lead retainer) not permitted permitted
TI_45_2007_30_01_01.fm
)m~ge 4 Technical Information 45.2007

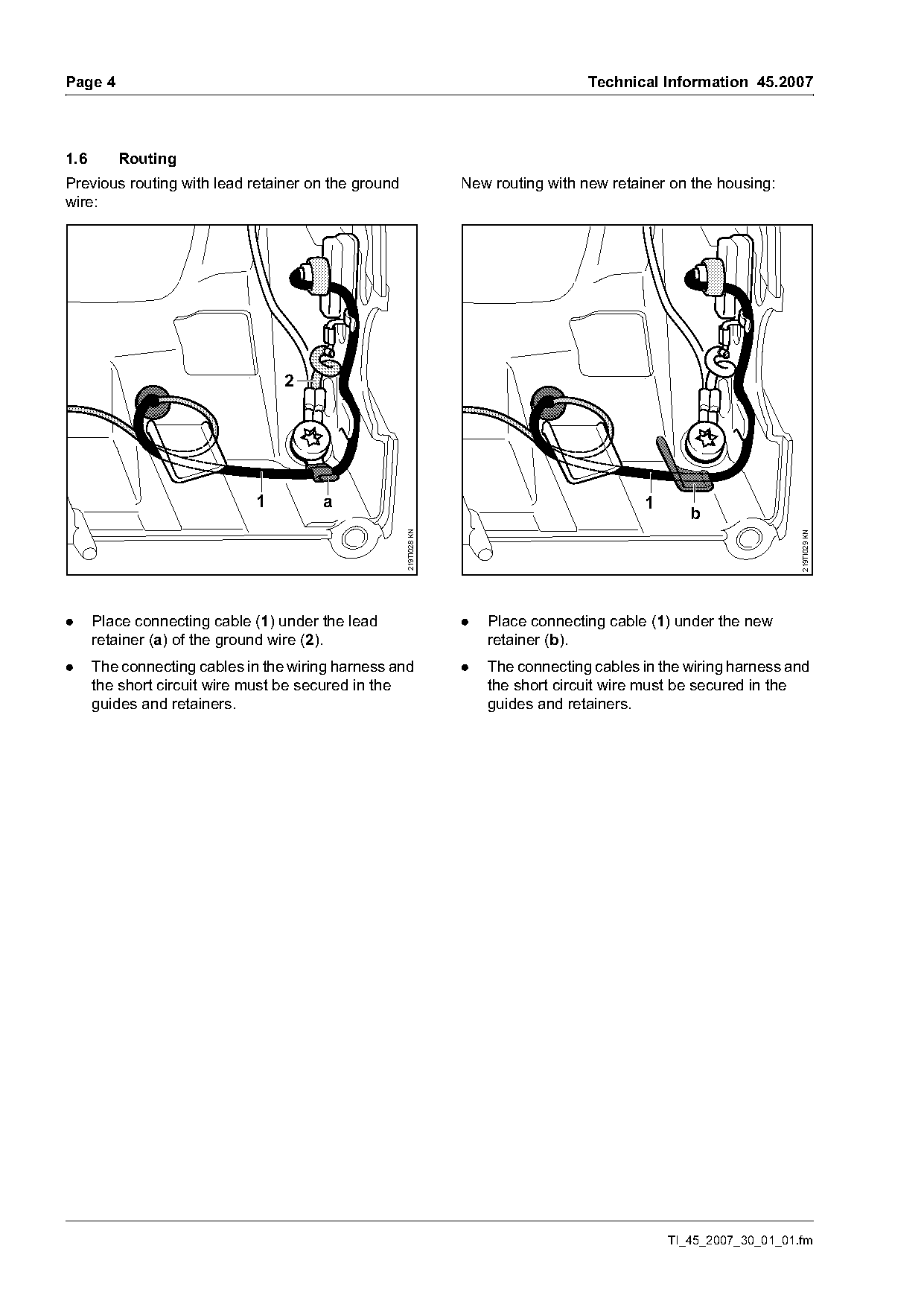

1.6 Routing
Previous routing with lead retainer on the ground New routing with new retainer on the housing:
wire:
1 a 1
b
219TI028 KN
219TI029 KN
. Place connecting cable (1) under the lead . Place connecting cable (1) under the new
retainer (a) of the ground wire (2). retainer (b).
. The connecting cables in the wiring harness and . The connecting cables in the wiring harness and
the short circuit wire must be secured in the the short circuit wire must be secured in the
guides and retainers. guides and retainers.
TI_45_2007_30_01_01.fm Page 3 of 5
Technical Information 45.2007 Page 5

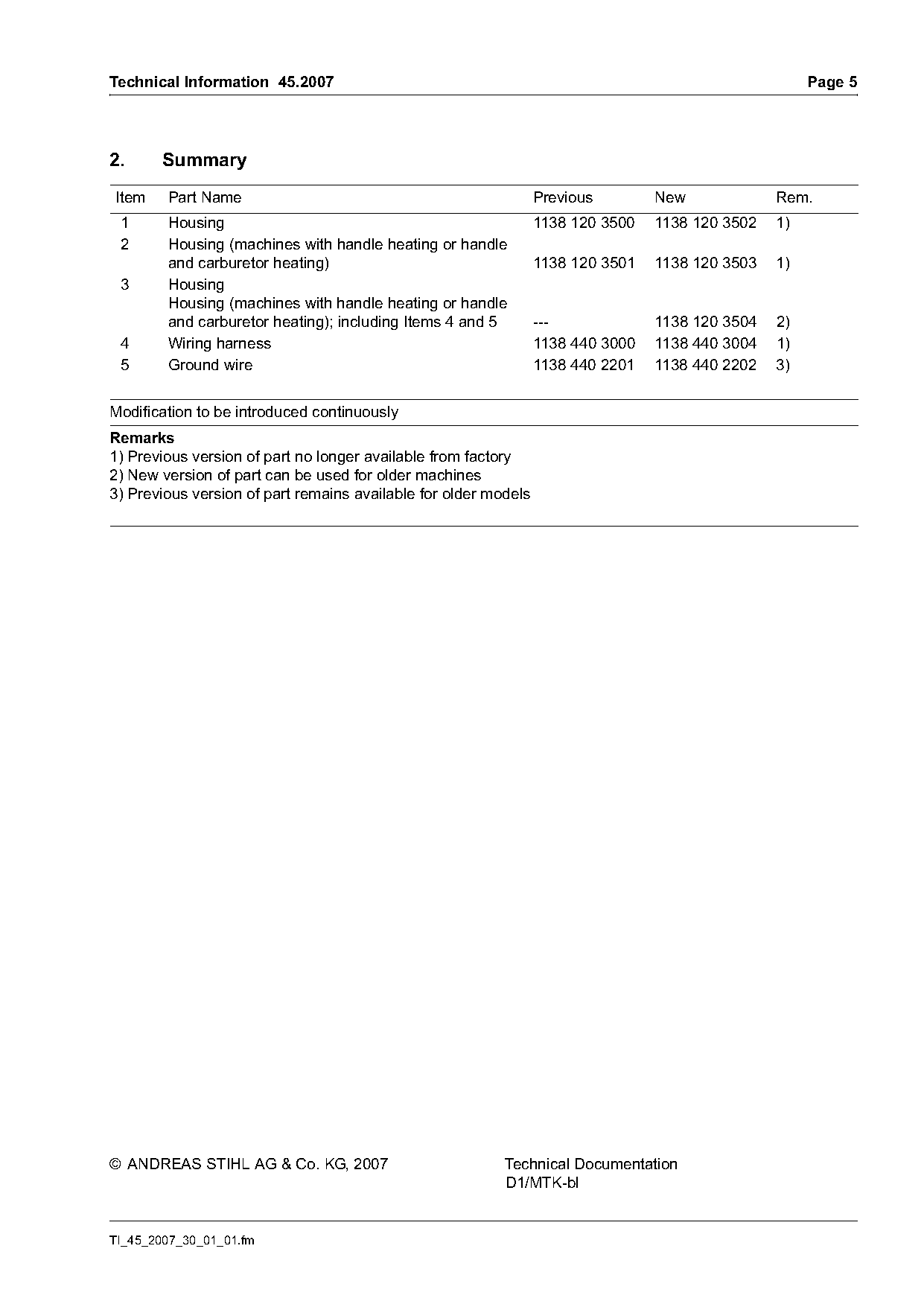

2. Summary
Item Part Name Previous New Rem.
1 Housing 1138 120 3500 1138 120 3502 1)
2 Housing (machines with handle heating or handle
and carburetor heating) 1138 120 3501 1138 120 3503 1)
3 Housing
Housing (machines with handle heating or handle
and carburetor heating); including Items 4 and 5 --- 1138 120 3504 2)
4 Wiring harness 1138 440 3000 1138 440 3004 1)
5 Ground wire 1138 440 2201 1138 440 2202 3)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can be used for older machines
3) Previous version of part remains available for older models
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
TI_45_2007_30_01_01.fm Page 4 of 5
Page 5 of 5
