Technical Information 45.2008
Chain saws STIHL MS 441, MS 441 C – Series 1138
Contents
1. Throttle cable, support
2. Fastening the generator
3. Flywheel, tightening torque
4. Summary

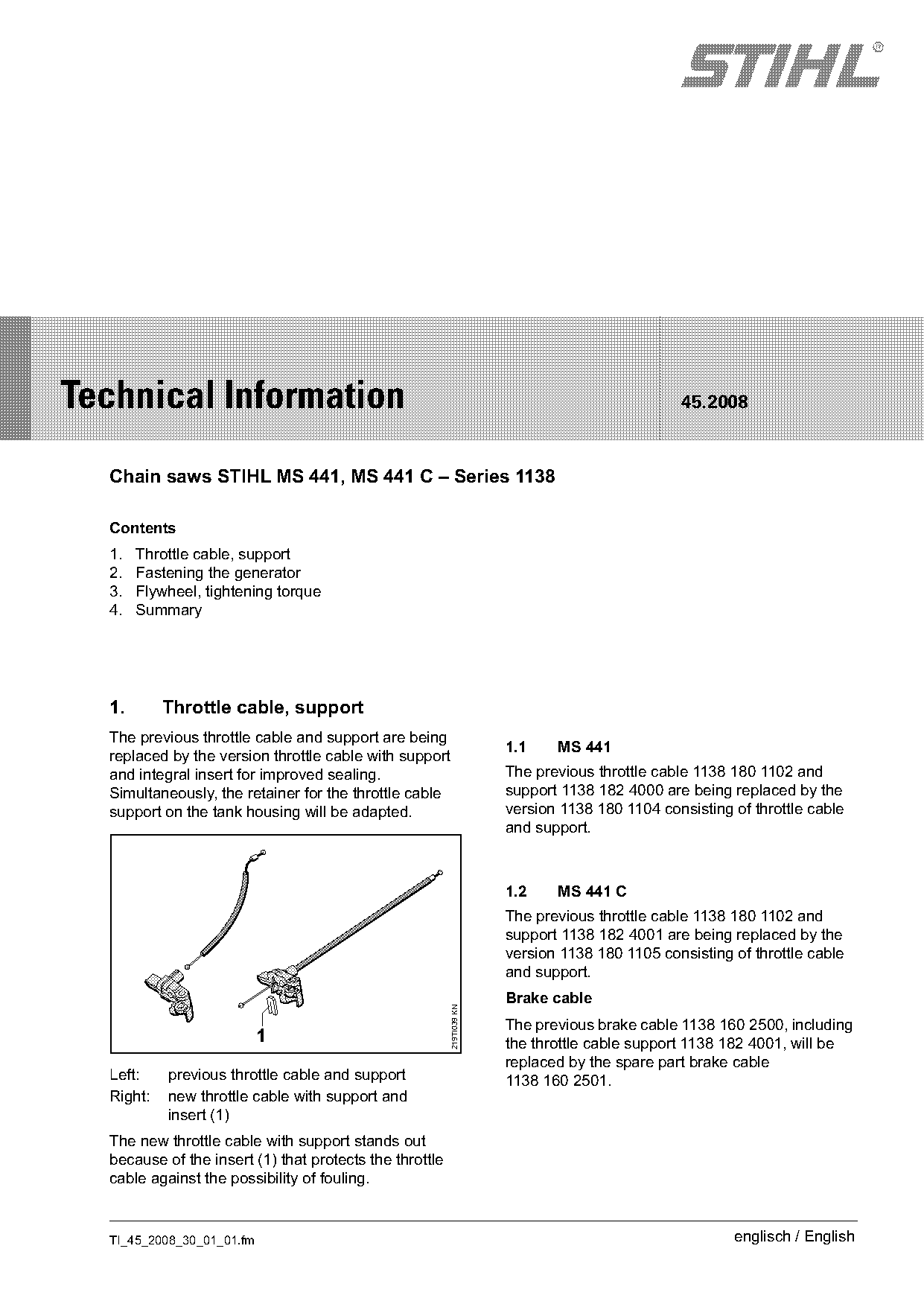

1. Throttle cable, support
The previous throttle cable and support are being
1.1 MS 441
replaced by the version throttle cable with support
and integral insert for improved sealing. The previous throttle cable 1138 180 1102 and
Simultaneously, the retainer for the throttle cable support 1138 182 4000 are being replaced by the
support on the tank housing will be adapted. version 1138 180 1104 consisting of throttle cable
and support.
1.2 MS 441 C
The previous throttle cable 1138 180 1102 and
support 1138 182 4001 are being replaced by the
version 1138 180 1105 consisting of throttle cable
and support.
Brake cable
219TI039 KN
The previous brake cable 1138 160 2500, including
1 the throttle cable support 1138 182 4001, will be
replaced by the spare part brake cable
Left: previous throttle cable and support 1138 160 2501.
Right: new throttle cable with support and
insert (1)
The new throttle cable with support stands out
because of the insert (1) that protects the throttle
cable against the possibility of fouling.
TI_45_2008_30_01_01.fm englisch / English
)m~ge 2 Technical Information 45.2008

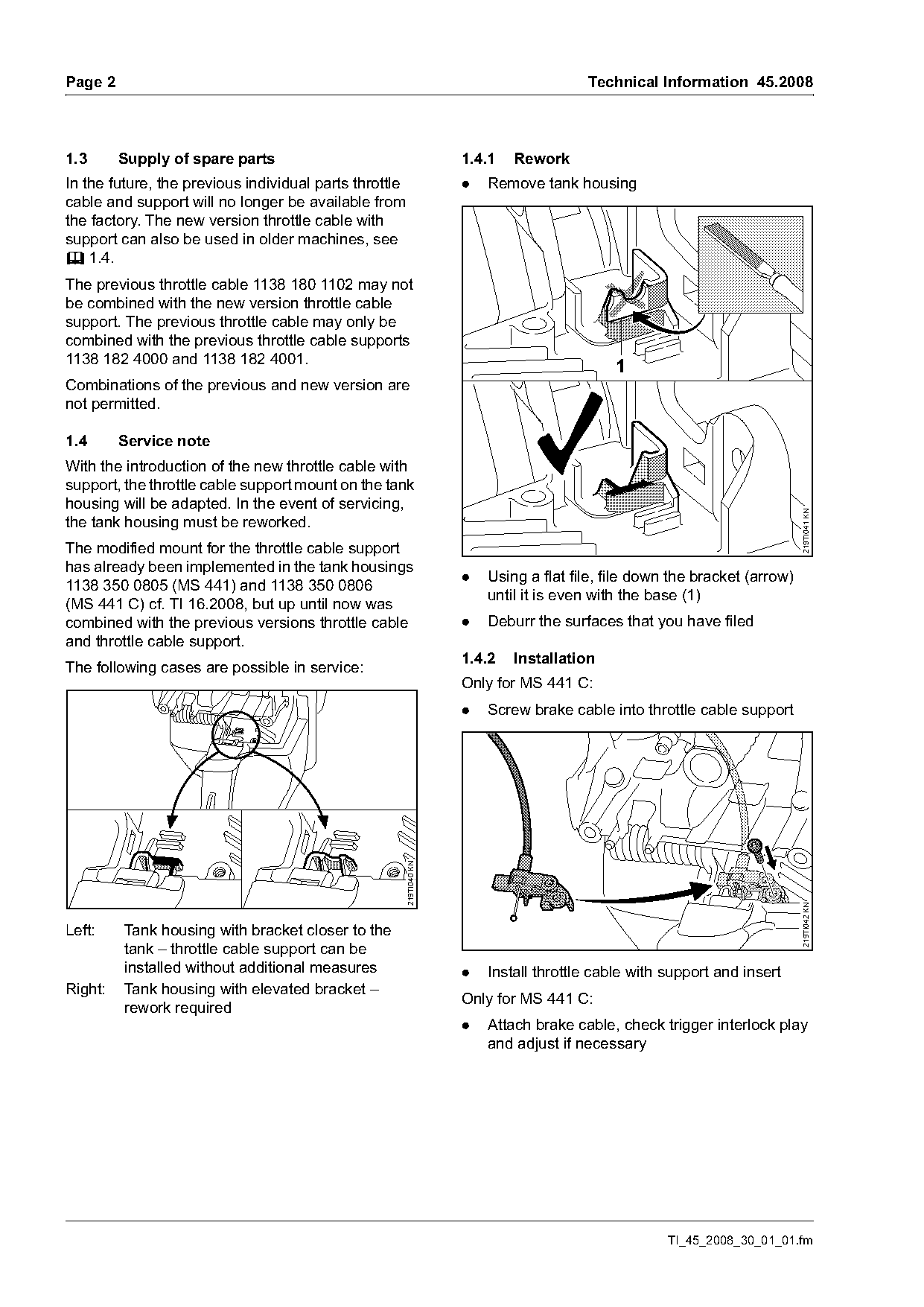

1.3 Supply of spare parts 1.4.1 Rework
In the future, the previous individual parts throttle . Remove tank housing
cable and support will no longer be available from
the factory. The new version throttle cable with
support can also be used in older machines, see
b 1.4.
The previous throttle cable 1138 180 1102 may not
be combined with the new version throttle cable
support. The previous throttle cable may only be
combined with the previous throttle cable supports
1138 182 4000 and 1138 182 4001.
1
Combinations of the previous and new version are
not permitted.
1.4 Service note
With the introduction of the new throttle cable with
support, the throttle cable support mount on the tank
housing will be adapted. In the event of servicing,
219TI041 KN
the tank housing must be reworked.
The modified mount for the throttle cable support
has already been implemented in the tank housings
. Using a flat file, file down the bracket (arrow)
1138 350 0805 (MS 441) and 1138 350 0806
until it is even with the base (1)
(MS 441 C) cf. TI 16.2008, but up until now was
combined with the previous versions throttle cable . Deburr the surfaces that you have filed
and throttle cable support.
1.4.2 Installation
The following cases are possible in service:
Only for MS 441 C:
. Screw brake cable into throttle cable support
219TI040 KN
219TI042 KN
Left: Tank housing with bracket closer to the
tank – throttle cable support can be
installed without additional measures . Install throttle cable with support and insert
Right: Tank housing with elevated bracket –
Only for MS 441 C:
rework required
. Attach brake cable, check trigger interlock play
and adjust if necessary
TI_45_2008_30_01_01.fm Page 2 of 3
Technical Information 45.2008 Page 3

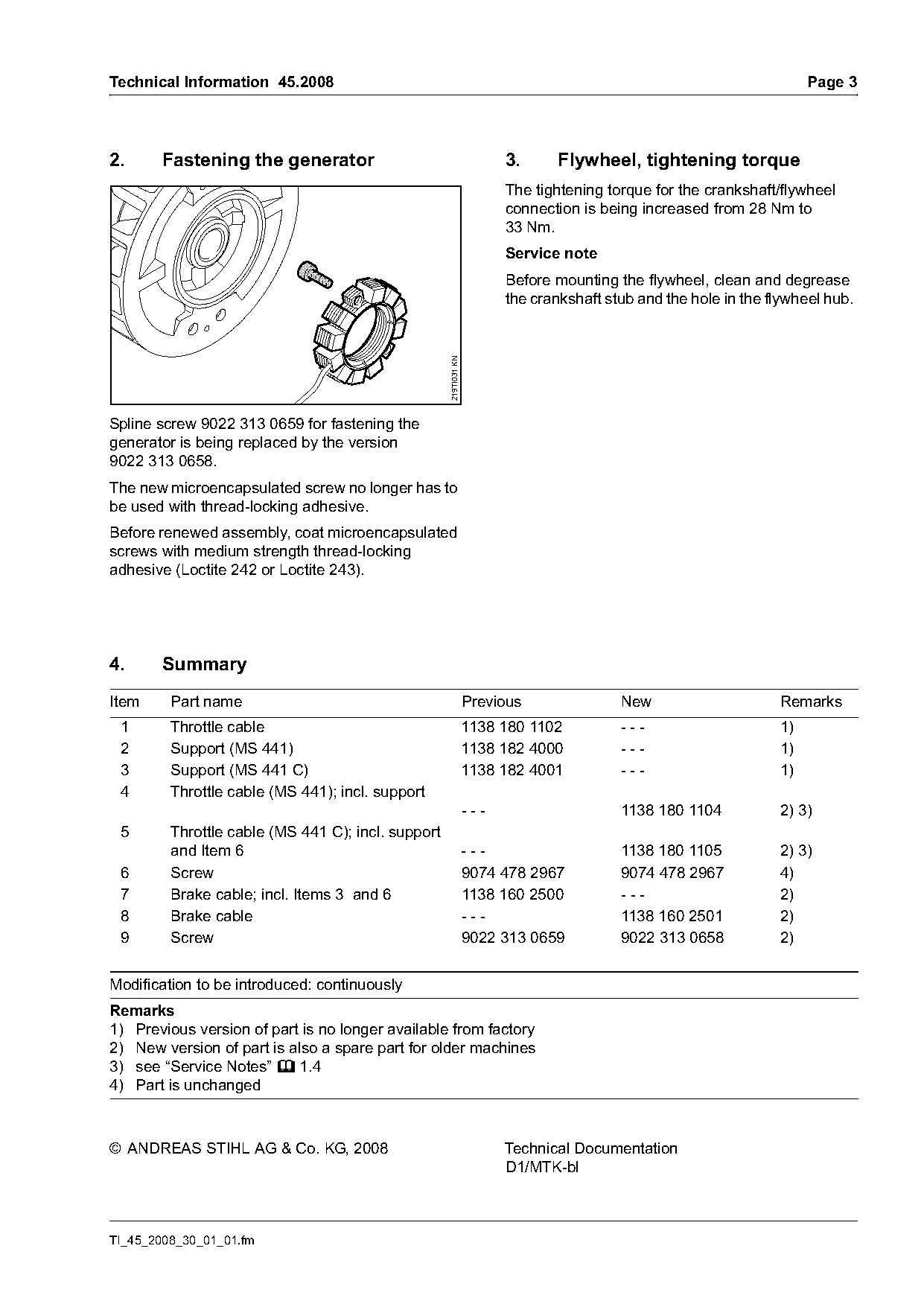

2. Fastening the generator 3. Flywheel, tightening torque
The tightening torque for the crankshaft/flywheel
connection is being increased from 28 Nm to
33 Nm.
Service note
Before mounting the flywheel, clean and degrease
the crankshaft stub and the hole in the flywheel hub.
219TI031 KN
Spline screw 9022 313 0659 for fastening the
generator is being replaced by the version
9022 313 0658.
The new microencapsulated screw no longer has to
be used with thread-locking adhesive.
Before renewed assembly, coat microencapsulated
screws with medium strength thread-locking
adhesive (Loctite 242 or Loctite 243).
4. Summary
Item Part name Previous New Remarks
1 Throttle cable 1138 180 1102 --- 1)
2 Support (MS 441) 1138 182 4000 --- 1)
3 Support (MS 441 C) 1138 182 4001 --- 1)
4 Throttle cable (MS 441); incl. support
--- 1138 180 1104 2) 3)
5 Throttle cable (MS 441 C); incl. support
and Item 6 --- 1138 180 1105 2) 3)
6 Screw 9074 478 2967 9074 478 2967 4)
7 Brake cable; incl. Items 3 and 6 1138 160 2500 --- 2)
8 Brake cable --- 1138 160 2501 2)
9 Screw 9022 313 0659 9022 313 0658 2)
Modification to be introduced: continuously
Remarks
1) Previous version of part is no longer available from factory
2) New version of part is also a spare part for older machines
3) see “Service Notes” b 1.4
4) Part is unchanged
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-bl
TI_45_2008_30_01_01.fm Page 3 of 3
