Technical Information · issue 13 of 2009
Shroud, grommet; Summary
IssueTI 13/2009
Engine family 1138
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1138 084 0900 | 1138 084 0902 | 2 Grommet The previous shroud 1138 084 0900 is being Simultaneously, the grommet on the cylinder is being replaced by version 1138 084 0902. |
| 1138 028 1002 | 1138 028 1004 | The previous grommet 1138 028 1002 is being replaced by the version 1138 028 1004. |
| 1138 007 1001 | 1138 007 1005 | 3 Shroud kit The previous set of grommets 1138 007 1001 is A new shroud kit 1138 080 1650 is available for use replaced by the version 1138 007 1005. |
Full text

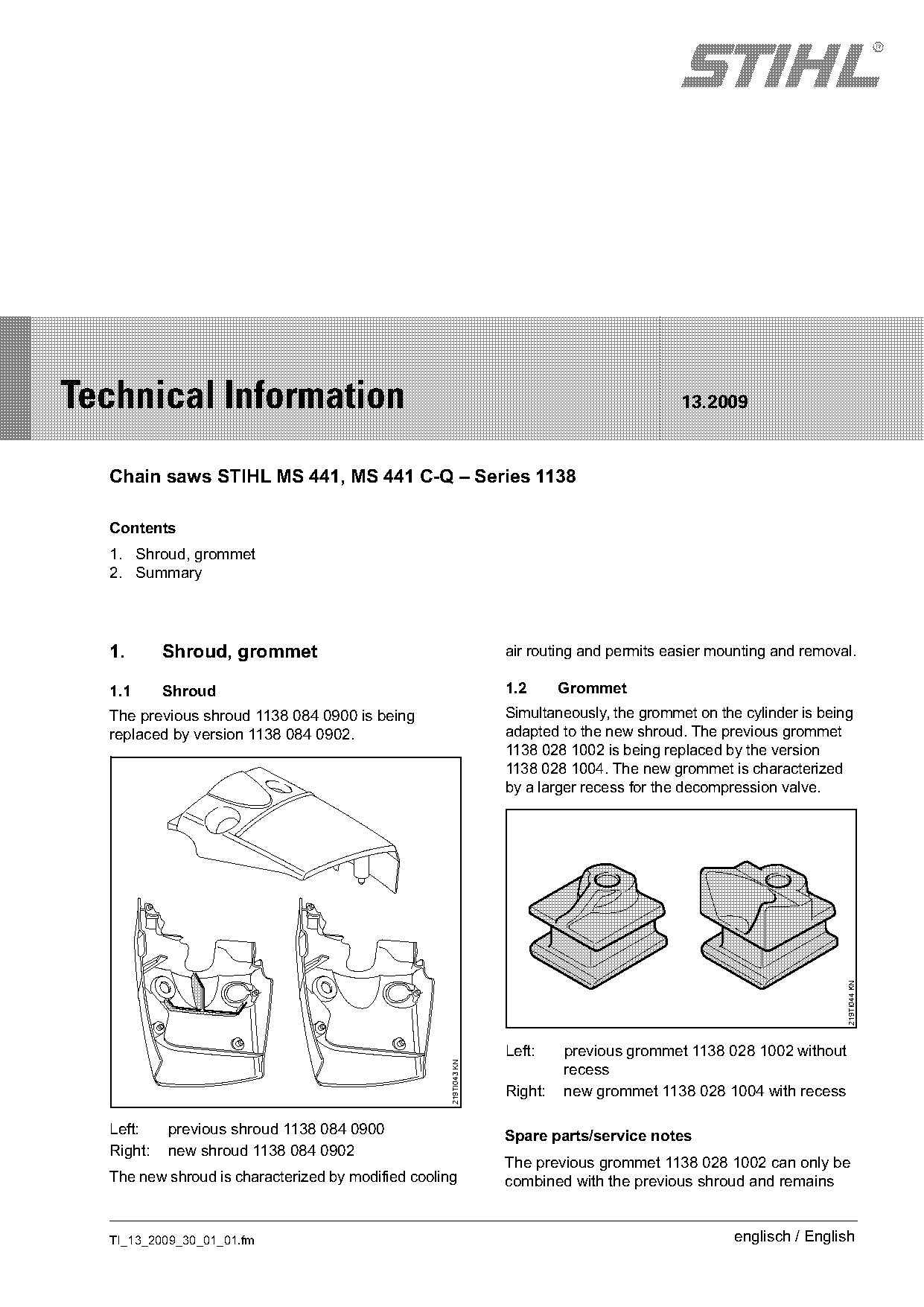

Page 1 of 2
STIH)
Technical Information 13.2009
Chain saws STIHL MS 441, MS 441 C-Q – Series 1138
Contents
1. Shroud, grommet
2. Summary
1. Shroud, grommet air routing and permits easier mounting and removal.
1.1 Shroud 1.2 Grommet
The previous shroud 1138 084 0900 is being Simultaneously, the grommet on the cylinder is being
replaced by version 1138 084 0902. adapted to the new shroud. The previous grommet
1138 028 1002 is being replaced by the version
1138 028 1004. The new grommet is characterized
by a larger recess for the decompression valve.
219TI044 KN
Left: previous grommet 1138 028 1002 without
219TI043 KN
recess
Right: new grommet 1138 028 1004 with recess
Left: previous shroud 1138 084 0900 Spare parts/service notes
Right: new shroud 1138 084 0902
The previous grommet 1138 028 1002 can only be
The new shroud is characterized by modified cooling combined with the previous shroud and remains
TI_13_2009_30_01_01.fm englisch / English

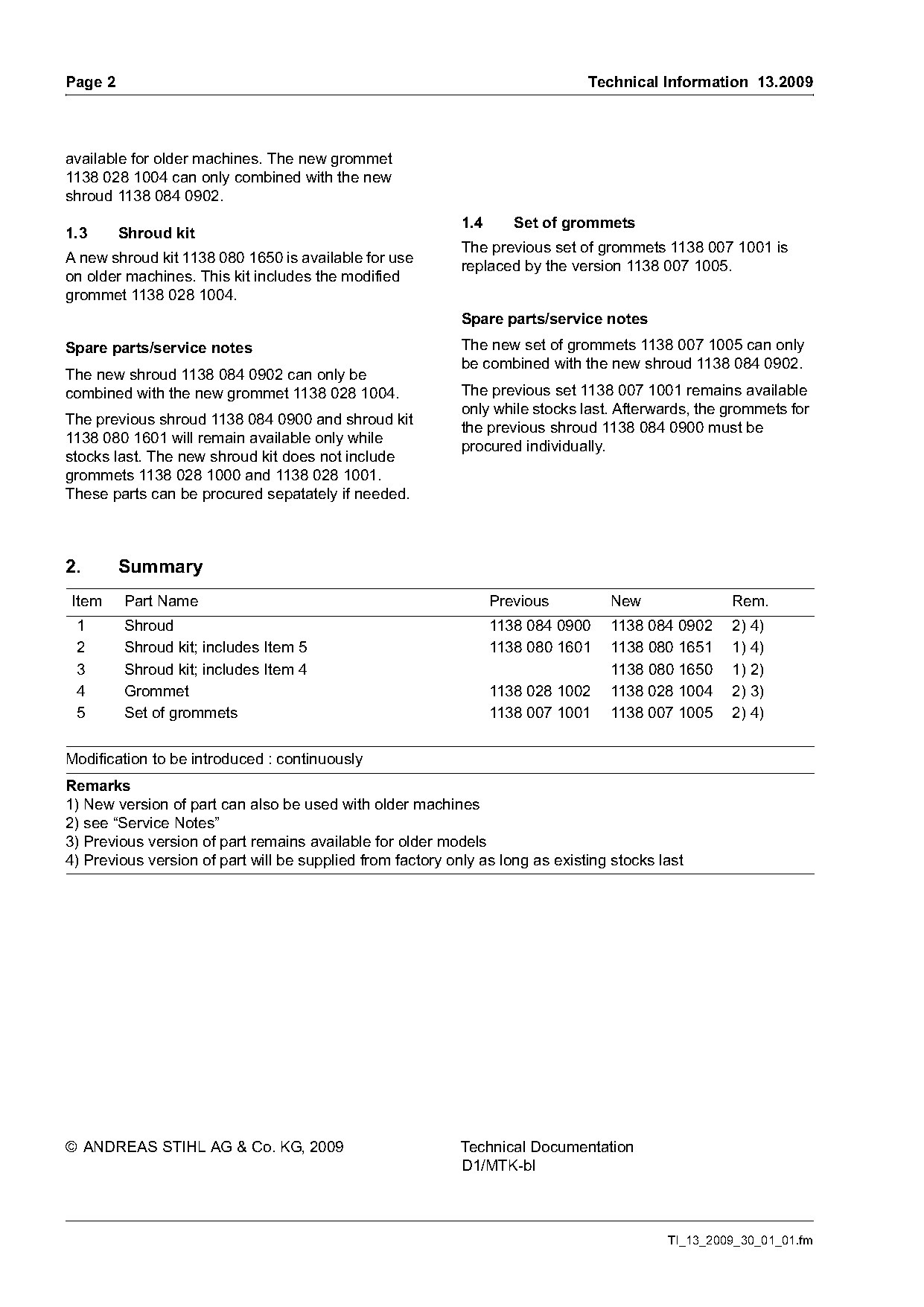

)m~ge 2 Technical Information 13.2009
available for older machines. The new grommet
1138 028 1004 can only combined with the new
shroud 1138 084 0902.
1.4 Set of grommets
1.3 Shroud kit
The previous set of grommets 1138 007 1001 is
A new shroud kit 1138 080 1650 is available for use
replaced by the version 1138 007 1005.
on older machines. This kit includes the modified
grommet 1138 028 1004.
Spare parts/service notes
Spare parts/service notes The new set of grommets 1138 007 1005 can only
be combined with the new shroud 1138 084 0902.
The new shroud 1138 084 0902 can only be
combined with the new grommet 1138 028 1004. The previous set 1138 007 1001 remains available
only while stocks last. Afterwards, the grommets for
The previous shroud 1138 084 0900 and shroud kit
the previous shroud 1138 084 0900 must be
1138 080 1601 will remain available only while
procured individually.
stocks last. The new shroud kit does not include
grommets 1138 028 1000 and 1138 028 1001.
These parts can be procured sepatately if needed.
2. Summary
Item Part Name Previous New Rem.
1 Shroud 1138 084 0900 1138 084 0902 2) 4)
2 Shroud kit; includes Item 5 1138 080 1601 1138 080 1651 1) 4)
3 Shroud kit; includes Item 4 1138 080 1650 1) 2)
4 Grommet 1138 028 1002 1138 028 1004 2) 3)
5 Set of grommets 1138 007 1001 1138 007 1005 2) 4)
Modification to be introduced : continuously
Remarks
1) New version of part can also be used with older machines
2) see “Service Notes”
3) Previous version of part remains available for older models
4) Previous version of part will be supplied from factory only as long as existing stocks last
© ANDREAS STIHL AG & Co. KG, 2009 Technical Documentation
D1/MTK-bl
TI_13_2009_30_01_01.fm Page 2 of 2
