STIH)
Technical Information 24.2011
Chain saws STIHL MS 261, 261 C, 271, 271 C, 291, 291 C – Series 1141
Chain saws STIHL MS 311, 362, 362 C, 391 – Series 1140
Contents
1. Heating element
2. Fuel hoses
3. Air filter
1. Heating element
In machines with electrically heated handles, the
previous heating element 1140 430 6003 is being
replaced by the new version 1140 430 6004. An
additional clip 1140 431 0200 is mounted on the
new heating element. The clip increases the surface
pressure between the heating element and the
circuit board. This improves the transmission of the
heat from the heating element to the rear handle.
4903TI016 KN

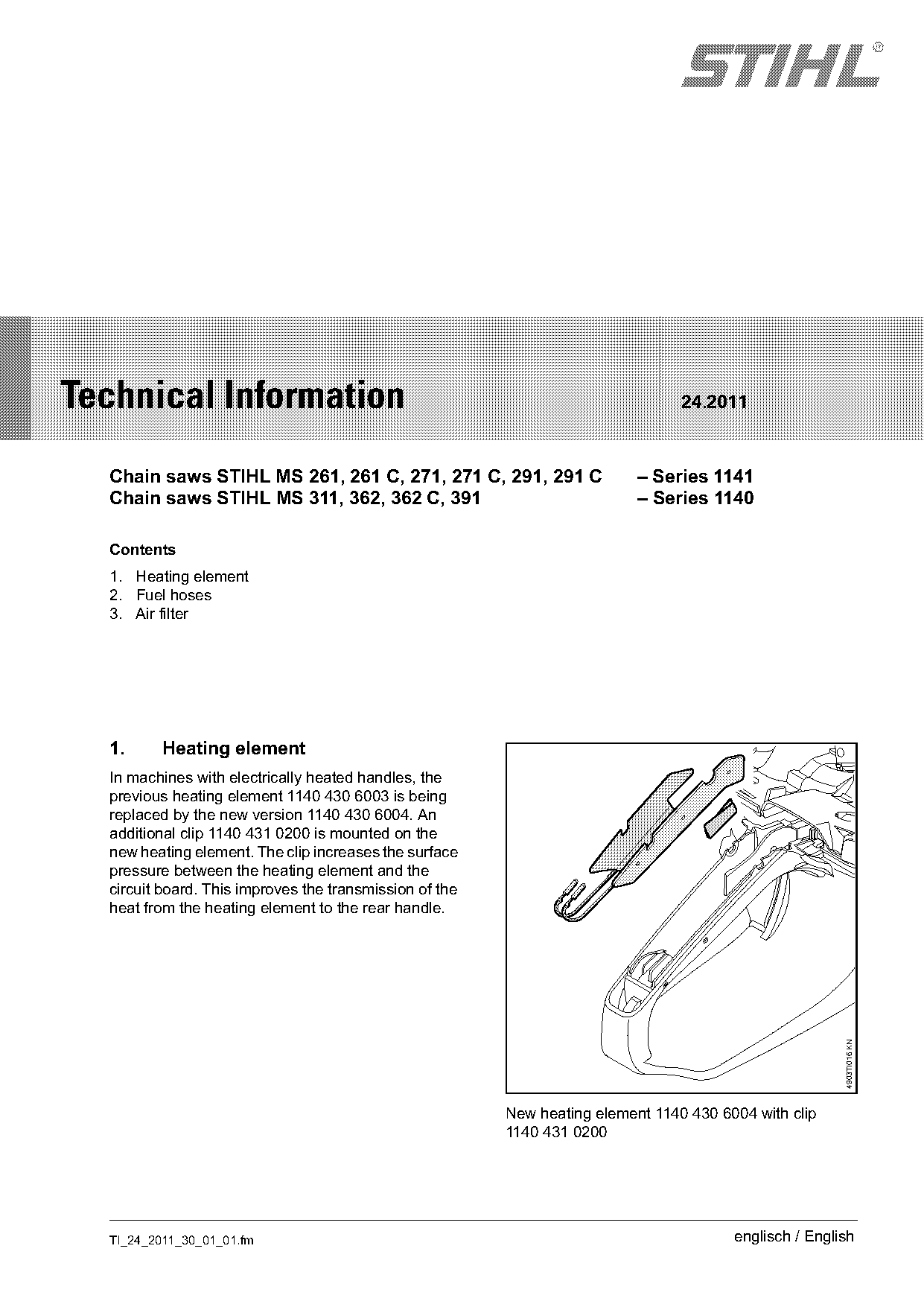

New heating element 1140 430 6004 with clip
1140 431 0200
TI_24_2011_30_01_01.fm englisch / English
)m~ge 2 Technical Information 24.2011
1.1 Spare parts and service notes 3. Air filter
The previous heating element 1140 430 6003 is no From now on, all MS 362 machines with handle and
longer available from the factory. carburetor heating (VW) will be delivered with a
fleece air filter and felt prefilter.
For operation under extreme winter conditions, it is
advisable to use the winter mesh air filter
1140 140 4402 that is available as a special
accessory.
1 2
KN
4903TI017 KN
4903TI016

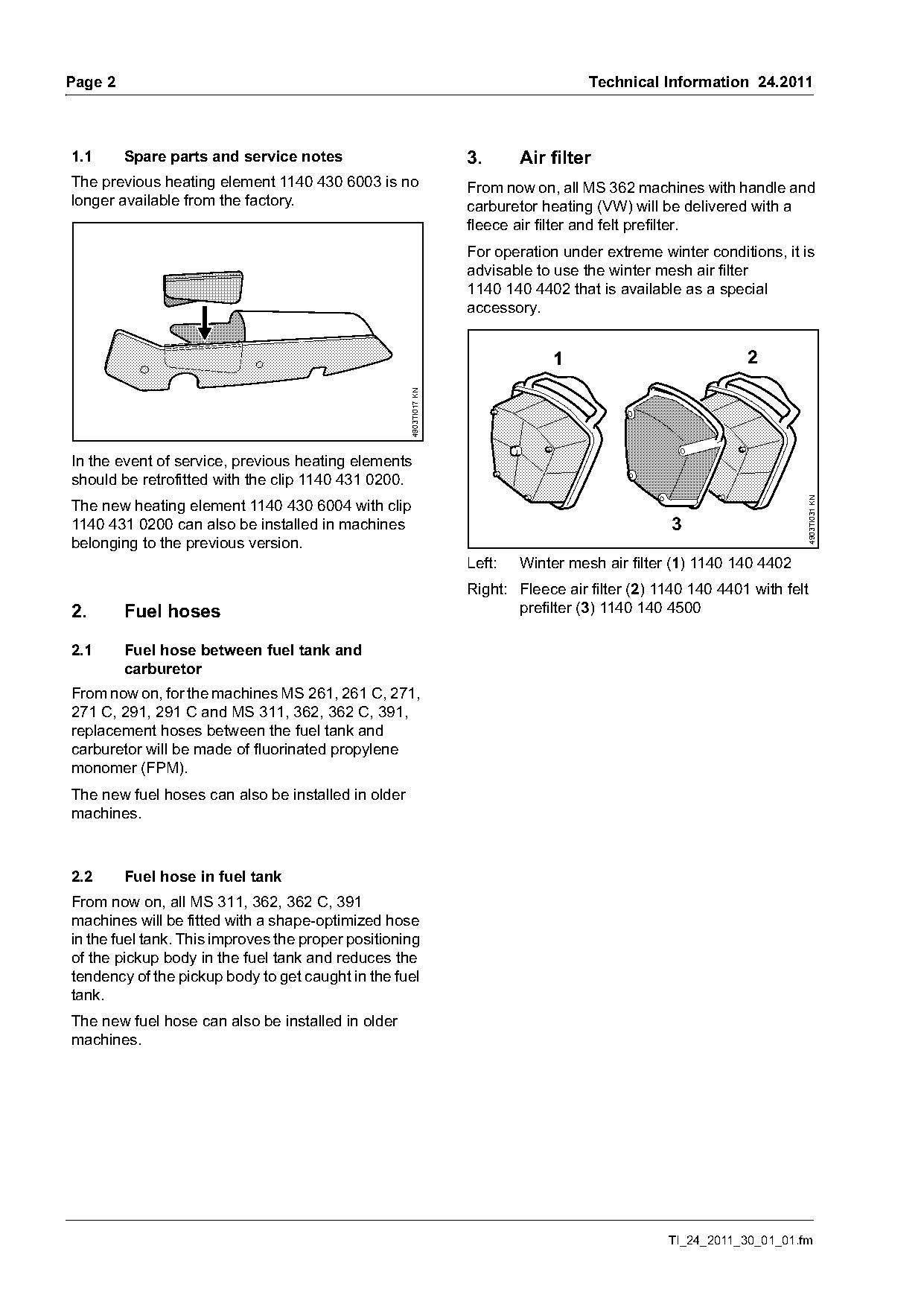

In the event of service, previous heating elements
should be retrofitted with the clip 1140 431 0200.
4903TI031 KN
The new heating element 1140 430 6004 with clip
1140 431 0200 can also be installed in machines 3
belonging to the previous version.
Left: Winter mesh air filter (1) 1140 140 4402
Right: Fleece air filter (2) 1140 140 4401 with felt
2. Fuel hoses prefilter (3) 1140 140 4500
2.1 Fuel hose between fuel tank and
carburetor
From now on, for the machines MS 261, 261 C, 271,
271 C, 291, 291 C and MS 311, 362, 362 C, 391,
replacement hoses between the fuel tank and
carburetor will be made of fluorinated propylene
monomer (FPM).
The new fuel hoses can also be installed in older
machines.
2.2 Fuel hose in fuel tank
From now on, all MS 311, 362, 362 C, 391
machines will be fitted with a shape-optimized hose
in the fuel tank. This improves the proper positioning
of the pickup body in the fuel tank and reduces the
tendency of the pickup body to get caught in the fuel
tank.
The new fuel hose can also be installed in older
machines.
TI_24_2011_30_01_01.fm Page 2 of 3
Technical Information 24.2011 Page 3
Summary

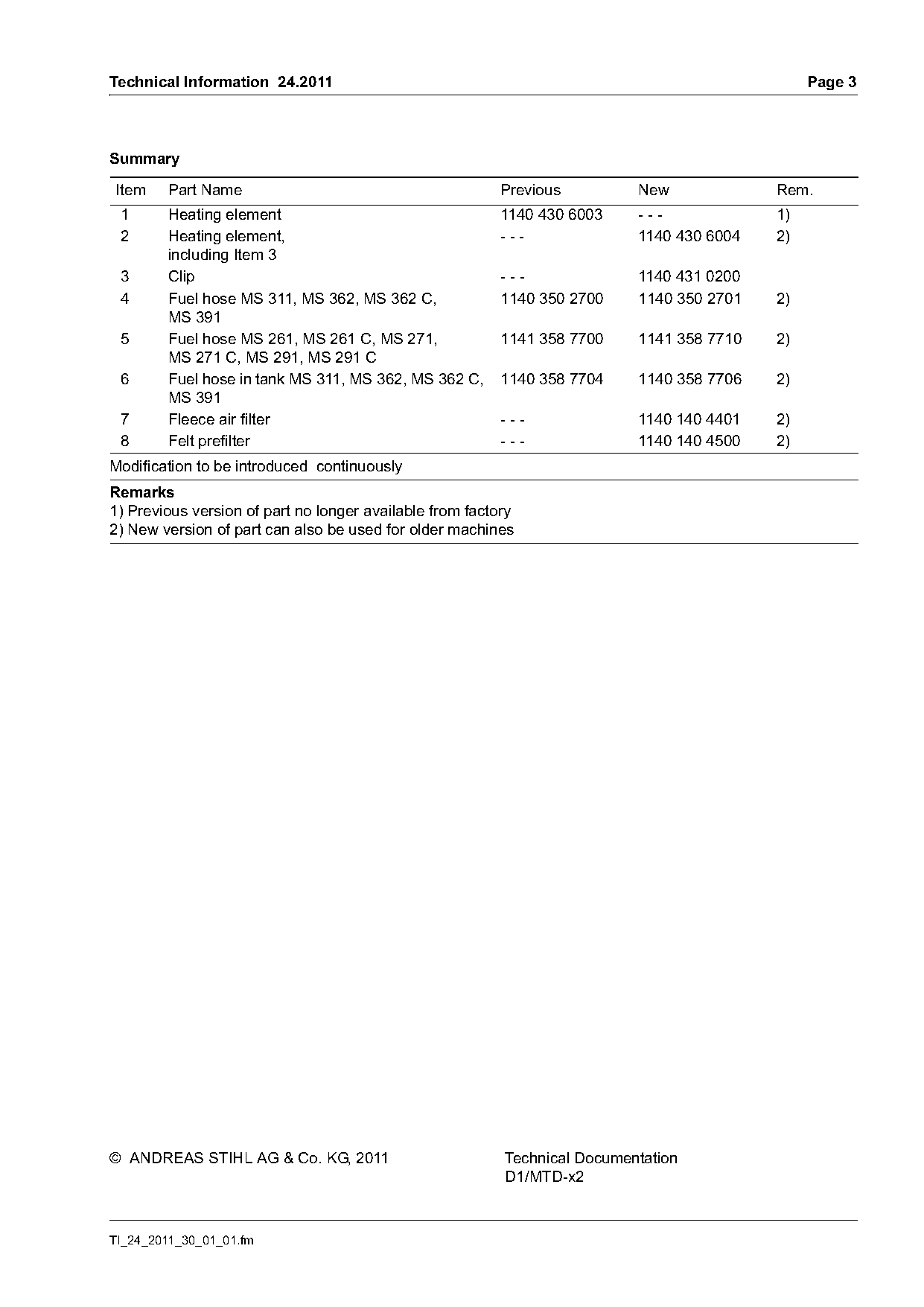

Item Part Name Previous New Rem.
1 Heating element 1140 430 6003 --- 1)
2 Heating element, --- 1140 430 6004 2)
including Item 3
3 Clip --- 1140 431 0200
4 Fuel hose MS 311, MS 362, MS 362 C, 1140 350 2700 1140 350 2701 2)
MS 391
5 Fuel hose MS 261, MS 261 C, MS 271, 1141 358 7700 1141 358 7710 2)
MS 271 C, MS 291, MS 291 C
6 Fuel hose in tank MS 311, MS 362, MS 362 C, 1140 358 7704 1140 358 7706 2)
MS 391
7 Fleece air filter --- 1140 140 4401 2)
8 Felt prefilter --- 1140 140 4500 2)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used for older machines
© ANDREAS STIHL AG & Co. KG, 2011 Technical Documentation
D1/MTD-x2
TI_24_2011_30_01_01.fm Page 3 of 3
