BGE 60: New Electric Blower

IssueTI 38/1998

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · BGE 60

BGE 60: vacuum attachment and gutter cleaning kit

Two accessory numbers are explicitly listed; no kit contents or blanket interchange are supplied.

No exact-model IPL link: Historical attachment number differs from retained shared2012 vacuum IPL; no revision interchange established. Exact original 2.98 IPL not established in retained inventory.

  • Section3 lists vacuum attachment4804 007 1002 and gutter cleaning kit4227 007 1005. Page1 calls the vacuum attachment a special accessory. No included subparts, fitting procedure, serial threshold or stock status is stated.
  • The retained2012 shared vacuum sheet instead lists attachment4807 007 1000; this differs from the TI4804 007 1002. No supersession or physical interchange between these numbers is established here. A common BE55/BGE60 heading does not transfer the BE55 housing-lug modification or cutoff to BGE60.
  • Historical BGE 60, TI38/1998 series 4807, 120 V / 60 Hz specification only. Catalog grouping under 4804 does not equate the series or extend BE 55 procedures to BGE 60. No serial changeover, later-model compatibility or current availability inferred. No hardware operation was performed.

Source: TI 38/1998, p. 1 · TI 38/1998, p. 3 — Section3 both accessory rows; page1 optional-equipment context.

Part numbers (2)
  • 4804 007 1002 — Vacuum attachmentListed special accessory · Historical BGE 60 per TI38/1998 only; no revision interchange inferred
  • 4227 007 1005 — Gutter cleaning kitListed special accessory · Historical BGE 60 per TI38/1998 only; no revision interchange inferred

Service note · BGE 60

BGE 60: owner safety and original parts-list dependencies

Later wiring guidance is reviewed; exact owner-safety, Hi-Pot method and original 2.98 IPL remain documented source gaps.

No exact-model IPL link: Exact historical owner/electrical-test sources and 2.98 IPL unestablished in retained corpus; later references do not replace them.

Later reviewed guidance: BGE 60: 2002 capacitor harness is not an older-machine replacement · BGE 60: 2002 housing compatibility is one-way · BGE 60: 2002 capacitor and cable routing diagram

  • Section 6 requires ALL local safety regulations and the owner manual safety precautions if the unit is started during repairs/maintenance. This is a prerequisite, not permission to energize the machine. Exact applicable owner-safety text is not established by the retained owner/manual inventory.
  • Section 8 says BGE 60 parts WILL BE INCORPORATED in the existing BE 55 parts list and included in the NEXT issue 2.98 of microfiche and CD-ROM. This is a historical publication statement, not an interchange declaration or proof the retained 2012 shared list is that 1998 edition.
  • Footer identifies 1998 copyright and document 6365. The TI provides no repair-manual delegation. Read-only product 42 links, retained 808-PDF/header inventory and 79-row reference index establish no exact BGE 60 owner manual, applicable Hi-Pot procedure or original 2.98 IPL. These are bounded retained-corpus gaps, not universal absence claims.
  • Linked TI 22/2002 now reviewed separately: new USA/CDN capacitor harness 4807 440 3006 is NOT for older machines; previous 4807 440 3001 remains for those machines. New housing halves may serve old machines, but no conversion exception is given. Later routing does not supply missing electrical-test settings.
  • Historical BGE 60, TI38/1998 series 4807, 120 V / 60 Hz specification only. Catalog grouping under 4804 does not equate the series or extend BE 55 procedures to BGE 60. No serial changeover, later-model compatibility or current availability inferred. No hardware operation was performed.

Source: TI 38/1998, p. 4 — Sections6 and8 complete; footer; section7 electrical-test dependency.

Referenced bulletin evidence: TI 22/2002, p. 1 · TI 22/2002, p. 2 — Later harness restrictions, housing compatibility and routing; not1998 electrical-test guidance.

No additional parts-table entry added.

Full text

Page 1 of 4

TI 38/1998 page 1
Text of page 1 — search, copy, screen readers

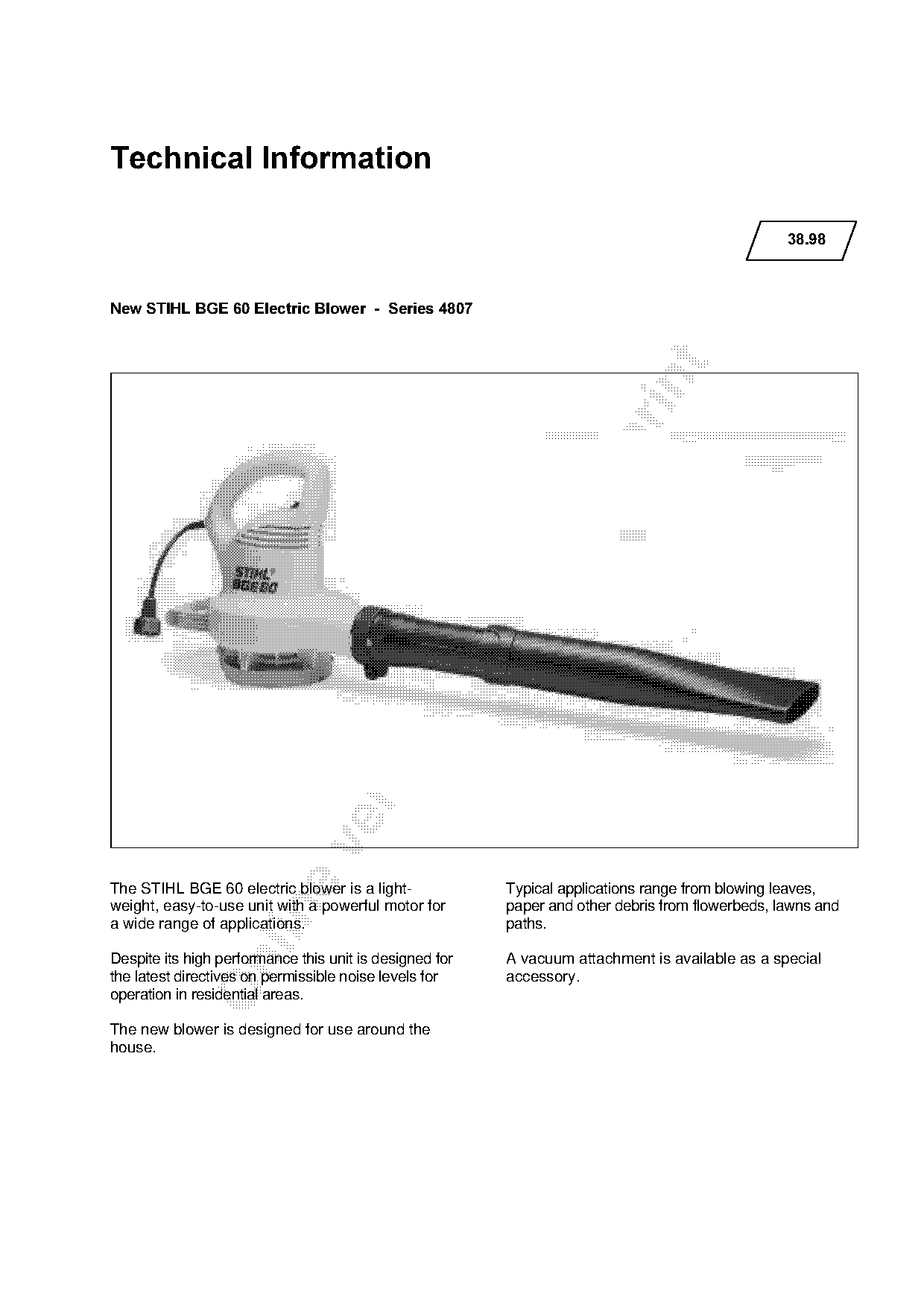

Technical Information

                                                                                                  38.98

New STIHL BGE 60 Electric Blower  -  Series 4807

The STIHL BGE 60 electric blower is a light-             Typical applications range from blowing leaves,
weight, easy-to-use unit with a powerful motor for       paper and other debris from flowerbeds, lawns and

a wide range of applications.                            paths.

Despite its high performance this unit is designed for   A vacuum attachment is available as a special

the latest directives on permissible noise levels for    accessory.
operation in residential areas.

The new blower is designed for use around the
house.

Page 2 of 4

TI 38/1998 page 2
Text of page 2 — search, copy, screen readers

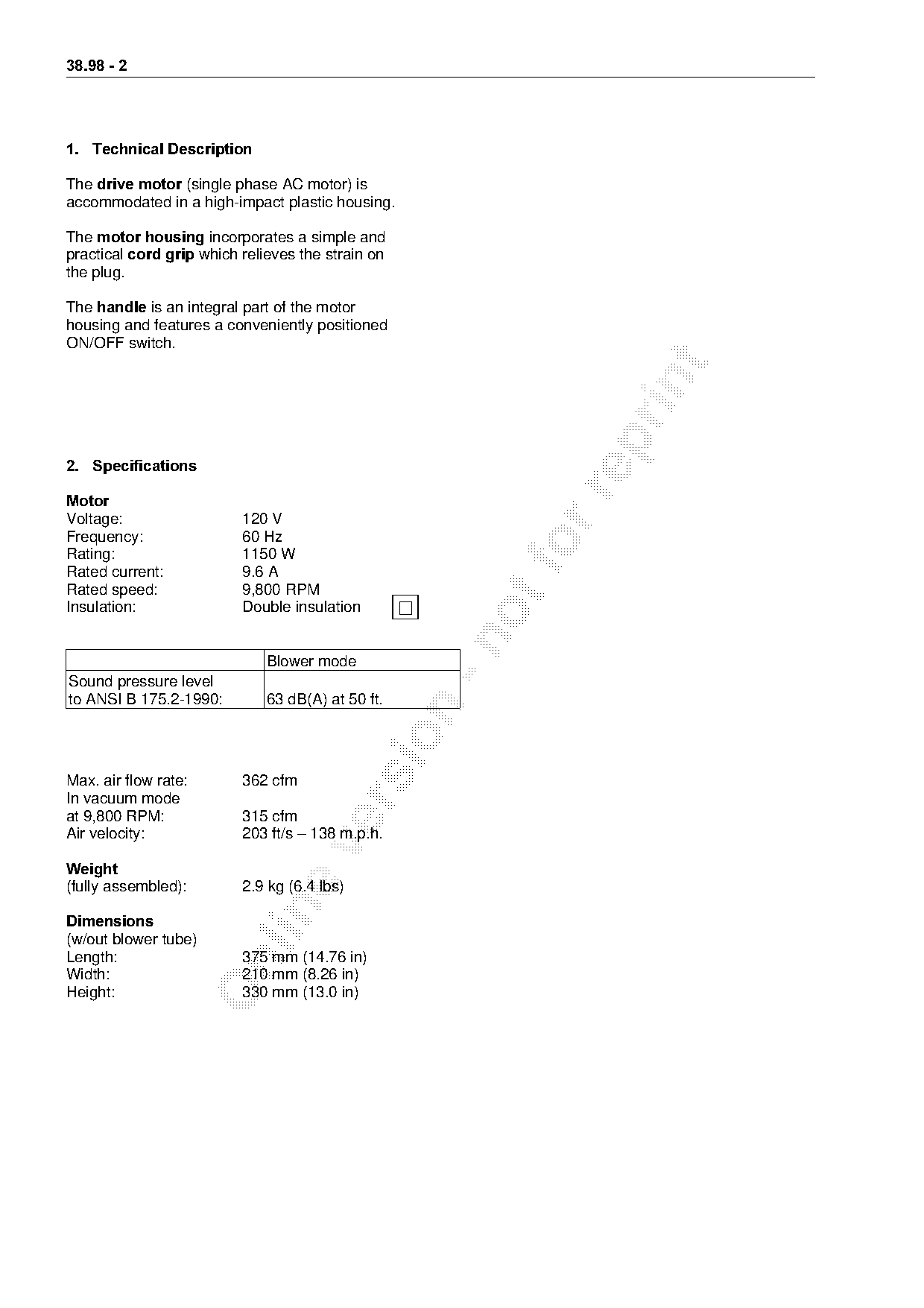

38.98 - 2

1.=Technical Description

The drive motor Esingle phase AC motor) is
accommodated in a high-impact plastic housing.

The motor housing=incorporates a simple and
practical cord grip which relieves the strain on
the plug.

The KDQGOH is an integral part of the motor
housing and features a conveniently positioned
ON/OFF switch.

2.=Specifications

0RWRU
Voltage:                  120 V
Frequency:                60 Hz
Rating:
Rated current:
                          1150 W
                          9.6 A
Rated speed:              9,800 RPM
Insulation:               Double insulation

                              Blower mode
Sound pressure level
to ANSI B 175.2-1990:         63 dB(A) at 50 ft.

Max. air flow rate:       362 cfm
In vacuum mode

at 9,800 RPM:             315 cfm
Air velocity:             203 ft/s – 138 m.p.h.

:HLJKW
(fully assembled):        2.9 kg (6.4 lbs)

'LPHQVLRQV
(w/out blower tube)
Length:                   375 mm (14.76 in)

Width:                    210 mm (8.26 in)
Height:                   330 mm (13.0 in)

Page 3 of 4

TI 38/1998 page 3
Text of page 3 — search, copy, screen readers
38.98 - 3

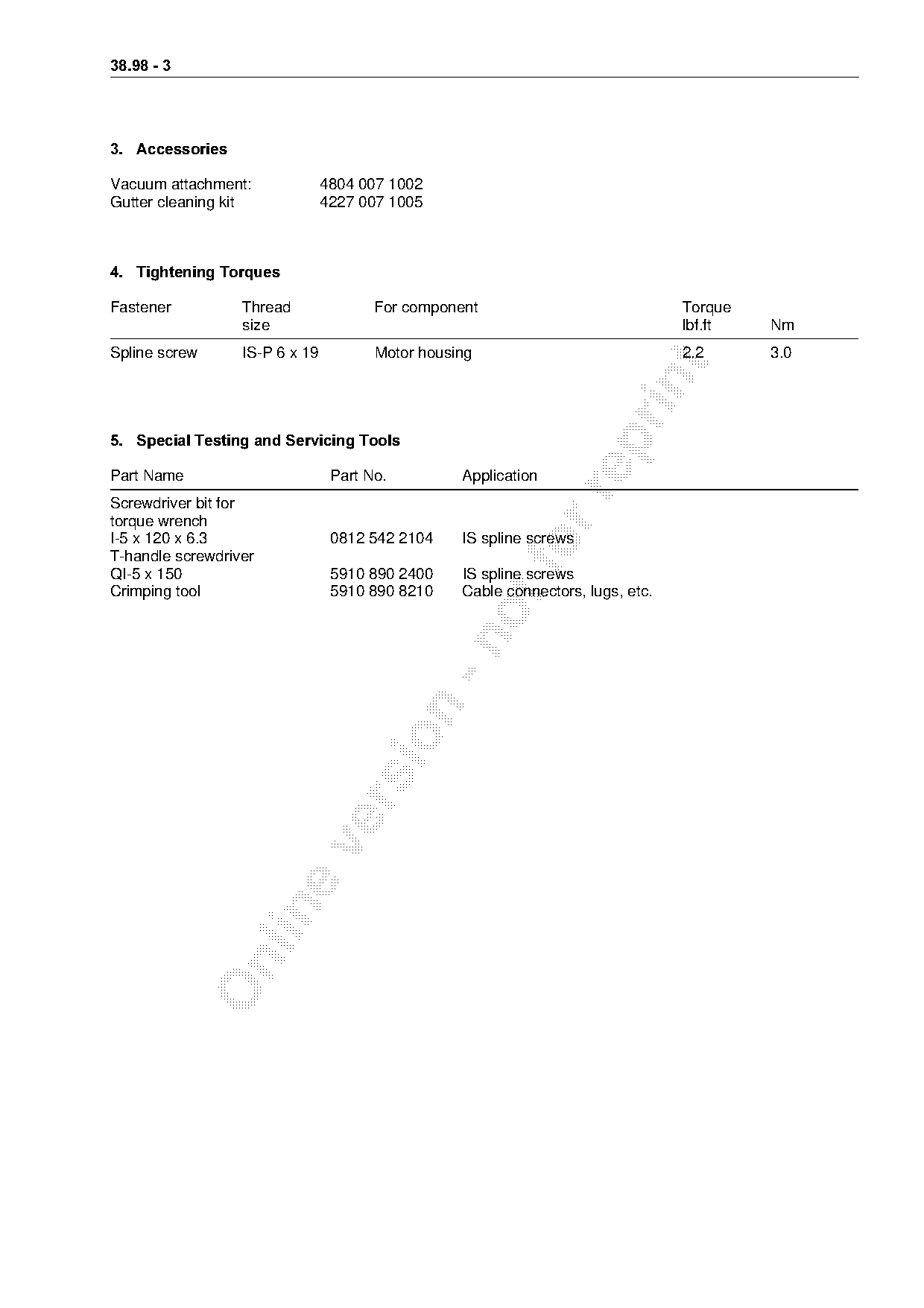

3.=Accessories

Vacuum attachment:              4804 007 1002
Gutter cleaning kit             4227 007 1005

4.=Tightening Torques

Fastener          Thread               For component                             Torque
                  size                                                           lbf.ft   Nm
Spline screw      IS-P 6 x 19          Motor housing                             2.2      3.0

5.=Special Testing and Servicing Tools

Part Name                        Part No.         Application

Screwdriver bit for
torque wrench
I-5 x 120 x 6.3                  0812 542 2104    IS spline screws
T-handle screwdriver
QI-5 x 150                       5910 890 2400
                                                  IS spline screws
Crimping tool                    5910 890 8210    Cable connectors, lugs, etc.

Page 4 of 4

TI 38/1998 page 4
Text of page 4 — search, copy, screen readers

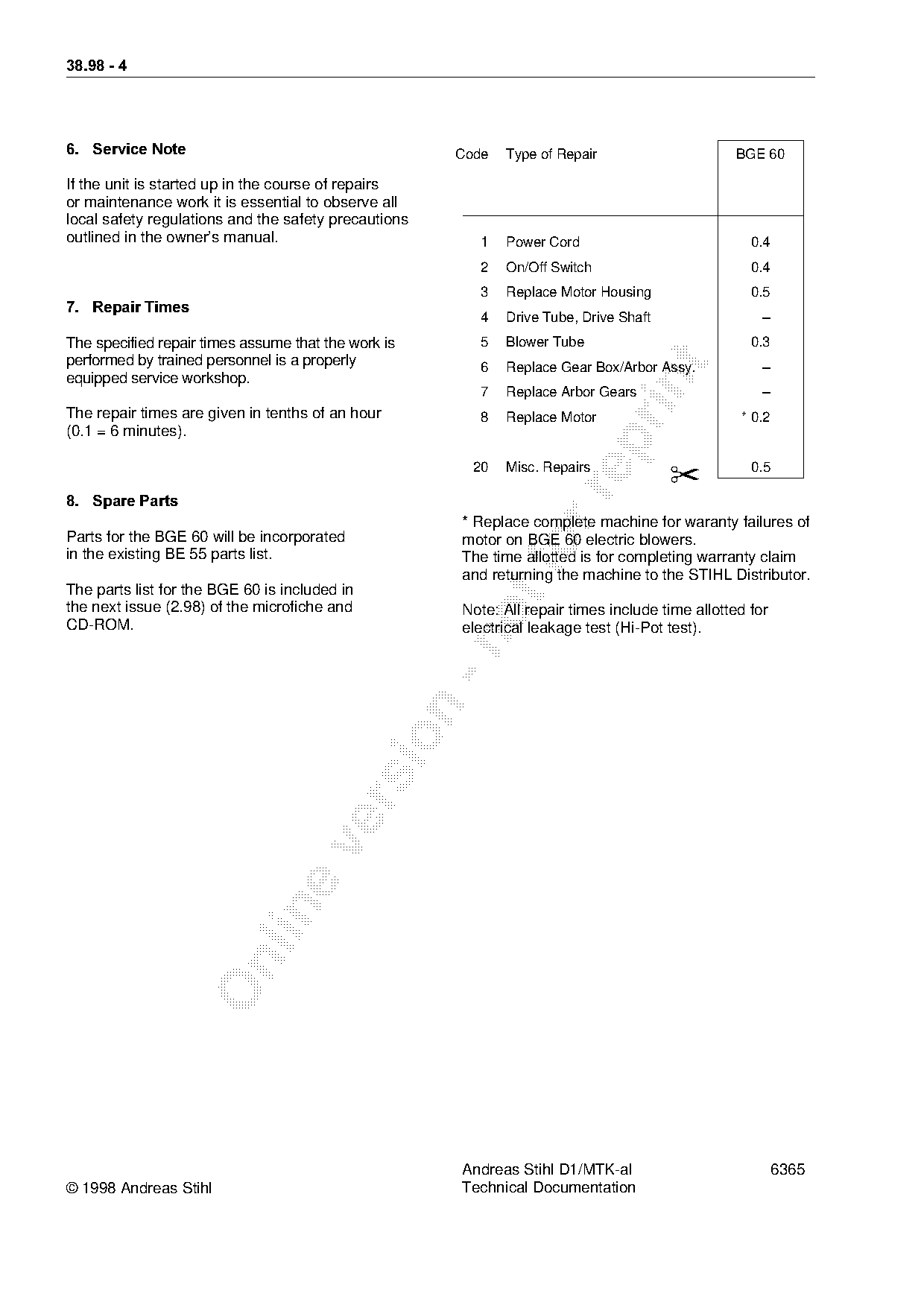

38.98 - 4

6.=Service Note=======================================`ode     Type of Repair                      BGE 60

If the unit is started up in the course of repairs
or maintenance work it is essential to observe all
local safety regulations and the safety precautions
outlined in the owner’s manual.                            1   Power Cord                             0.4
                                                           2   On/Off Switch                          0.4
                                                           3   Replace Motor Housing                  0.5
7.=Repair Times
                                                           4   Drive Tube, Drive Shaft                  –
The specified repair times assume that the work is         5   Blower Tube                            0.3
performed by trained personnel is a properly

                                                           6   Replace Gear Box/Arbor Assy.             –
equipped service workshop.

                                                           7   Replace Arbor Gears                      –
The repair times are given in tenths of an hour            8   Replace Motor                        * 0.2
(0.1 = 6 minutes).

                                                          20   Misc. Repairs
                                                                                         ✂            0.5

8.=Spare Parts
                                                         * Replace complete machine for waranty failures of
Parts for the BGE 60 will be incorporated                motor on BGE 60 electric blowers.
in the existing BE 55 parts list.                                fo
                                                         The time allotted is for completing warranty claim
                                                         and returning the machine to the STIHL Distributor.
The parts list for the BGE 60 is included in
the next issue (2.98) of the microfiche and              Note: All repair times include time allotted for
CD-ROM.                                                  electrical leakage test (Hi-Pot test).

                                                         Andreas Stihl D1/MTK-al                            6365
